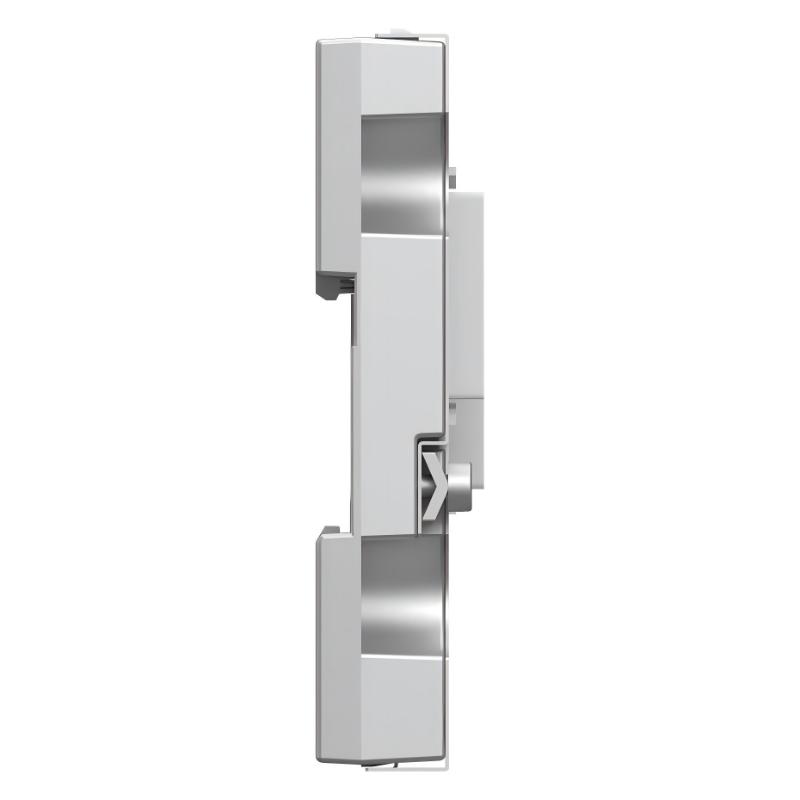

Schneider BMEXBP0400H Modicon X80 Ruggedized Rack
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Product Model | BMEXBP0400H |
| Product Name | Modicon X80 Ruggedized Rack |
| Product Series | Modicon X80 |
| Product Type | Ruggedized Ethernet + X-bus Backplane Rack |
| Main Function | Provides mounting positions and internal communication connections for PLC power supplies, processors, and I/O modules |

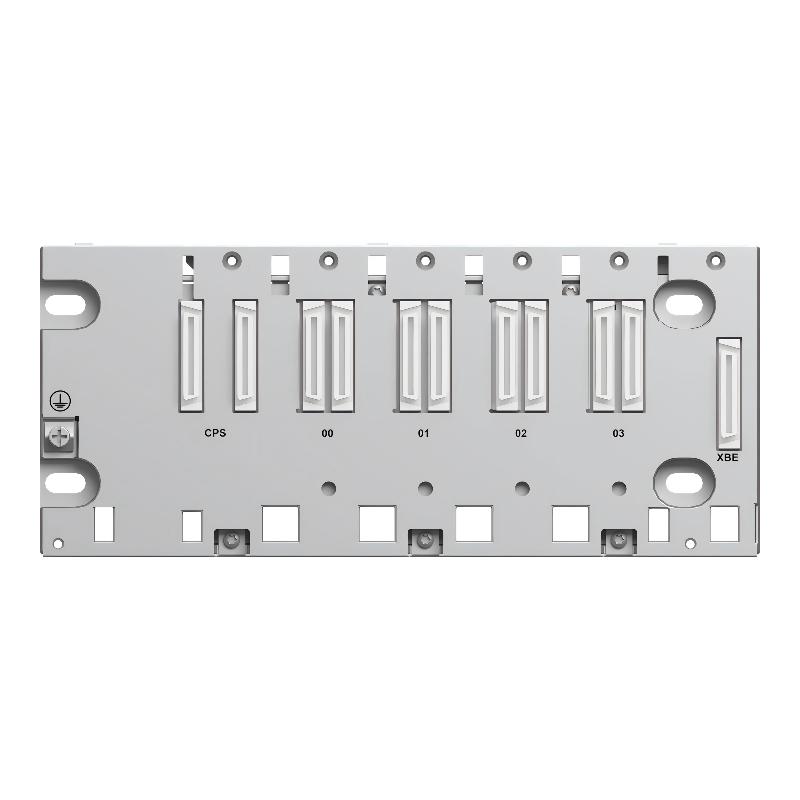

| Slot Configuration | 4 X-bus slots with Ethernet backplane |
| Backplane Type | Ethernet + X-bus |
| Application Environment | Harsh industrial environments |
| Compatible Power Supply Modules | BMXCPS Series |
| Compatible Processors | BMX and BME processors |
| Compatible Modules | I/O modules and application-specific modules |
| Expansion Connection | 1 XBE expansion module connector |
| 3.3 V DC Power Consumption | 162 mW |
| 24 V DC Power Consumption | 2.8 W |
| 3.3 V DC Current Consumption | 49 mA |
| 24 V DC Current Consumption | 118 mA |

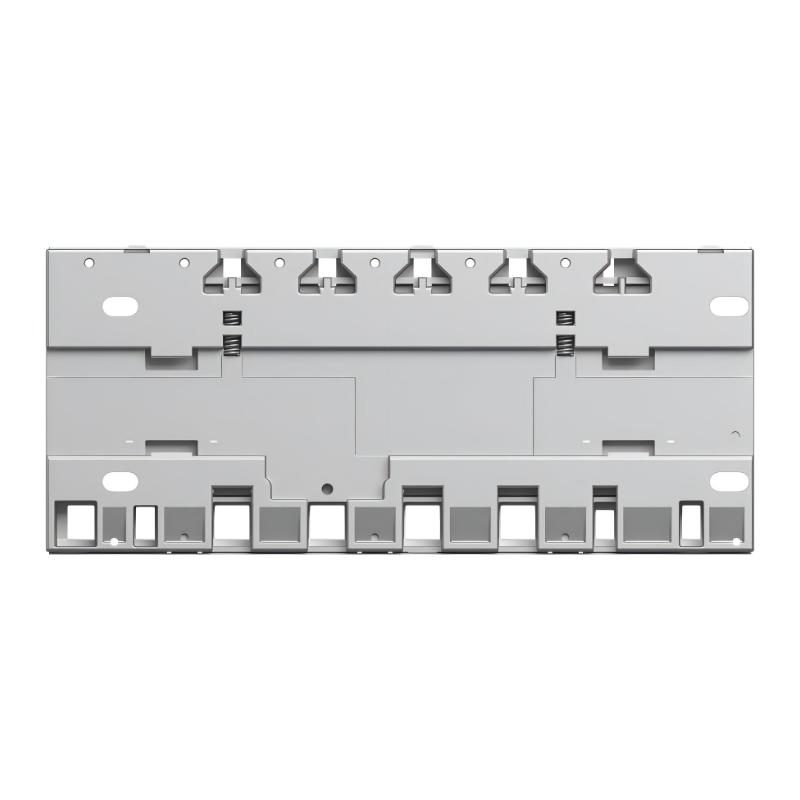

| Mounting Options | 35 mm DIN rail, panel mounting, or baseplate mounting |
| Panel Mounting | 4 screws, suitable for 4.32–6.35 mm mounting holes |
| Baseplate Mounting | 4 M6 screws |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +70°C |
| Relative Humidity | 5%–95%, non-condensing |
| Circuit Board Protection | Conformal coating |
| Mean Time Between Failures (MTBF) | Approximately 1,588,025 hours |
| Product Certifications | CE, UL, CSA, RCM, EAC, ATEX Zone 2/22, IECEx Zone 2/22, etc. |
| Applicable Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, IEC 61850-3, etc. |
| Dimensions | 242.4 × 105.11 × 19 mm |
| Weight | 0.705 kg |
FAQ
Q1: What is the main function of the Schneider BMEXBP0400H Modicon X80 Ruggedized Rack?
The BMEXBP0400H is a ruggedized rack designed for the Modicon X80 automation platform. It provides mounting positions for power supply modules, processors, and I/O modules while enabling communication between compatible modules through its backplane. It supports both X-bus and Ethernet communication and is intended for industrial automation systems, including compatible Modicon M580 configurations.
Q2: How many module slots does the BMEXBP0400H provide?
The rack provides four X-bus slots and an integrated Ethernet backplane. Depending on the system design, users can install compatible power supply modules, processors, I/O modules, and application-specific modules. Module placement must follow the installation requirements of the selected system configuration.
Q3: Which PLC modules are compatible with the BMEXBP0400H?
The rack supports BMXCPS series power supply modules, BMX and BME processors, and compatible Modicon X80 I/O and application-specific modules. Actual compatibility depends on the processor model, module type, and system architecture. Always check the hardware compatibility documentation before installation.
Q4: What are the functions of the Ethernet and X-bus backplane?
The X-bus provides communication and system connections between compatible modules installed in the rack. The Ethernet backplane provides a communication infrastructure for modules that support Ethernet connectivity. Combining these two bus structures helps meet different data exchange requirements in industrial automation systems.
Q5: What mounting options are available for the BMEXBP0400H?
The rack supports installation on a standard 35 mm symmetrical DIN rail. It can also be secured to a mounting panel or baseplate using screws. During installation, ensure that the rack is firmly fixed and that sufficient clearance is available around the equipment for heat dissipation and maintenance access.
Q6: What are the operating environmental requirements for the BMEXBP0400H?
The specified operating temperature range is -25°C to +70°C, with relative humidity between 5% and 95%, non-condensing. The rack has an IP20 protection rating and should be installed inside a suitable industrial control cabinet. It is not designed for direct exposure to water, excessive dust, or other conditions beyond its protection rating.
Q7: What is the purpose of the conformal coating on the BMEXBP0400H?
The conformal coating protects the circuit board and associated electronic components against environmental factors such as moisture, dust, salt mist, and certain corrosive gases. This treatment improves reliability in demanding industrial environments. However, it does not replace proper control cabinet protection or make the product suitable for immersion or unprotected operation in highly corrosive conditions.
Q8: How should I troubleshoot communication problems with modules installed in the BMEXBP0400H?
First, check that the rack power supply is operating correctly and that the processor and I/O modules are properly seated. Then inspect the connections between the modules and backplane, X-bus communication status, Ethernet network connections, and relevant status indicators. If the problem continues, use the PLC engineering software to review the hardware configuration and diagnostic information. Check individual modules to identify possible hardware faults or configuration mismatches. Always follow Schneider Electric’s power isolation and maintenance procedures before removing or replacing modules.
Schneider BMEXBP0400H Modicon X80 Ruggedized Rack is in stock. Please contact us for a quick quote and competitive pricing.
