Allen-Bradley MPL-B320P-SJ24AA Low-Inertia AC Servo Motor
Technical Specifications

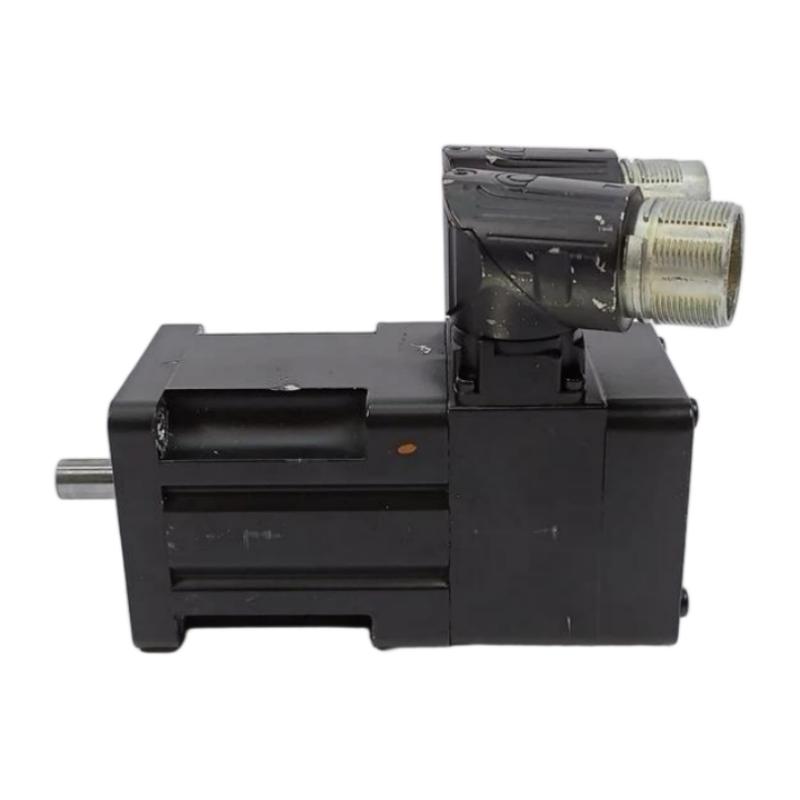

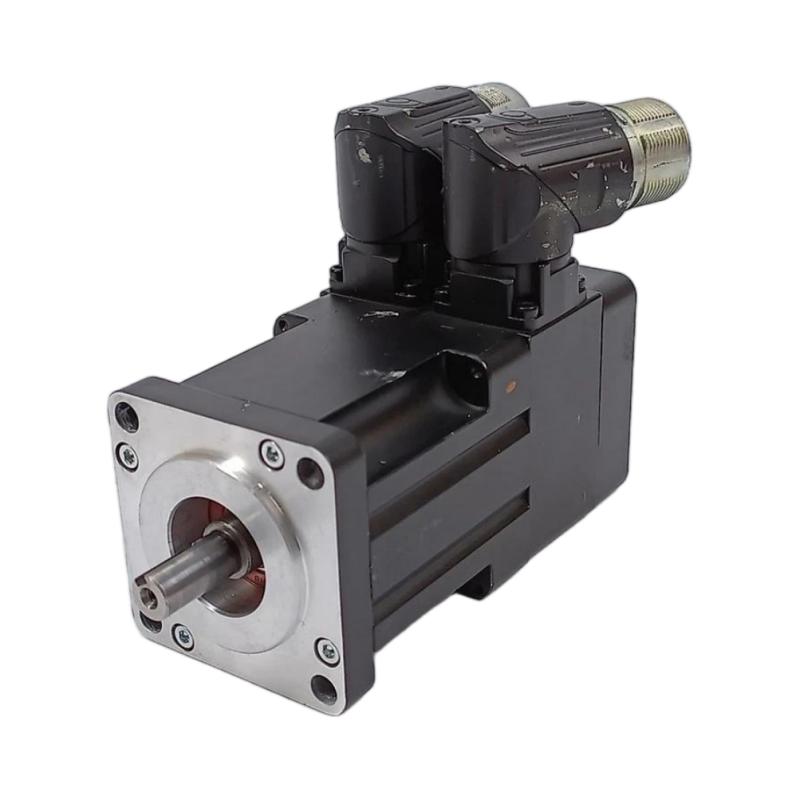

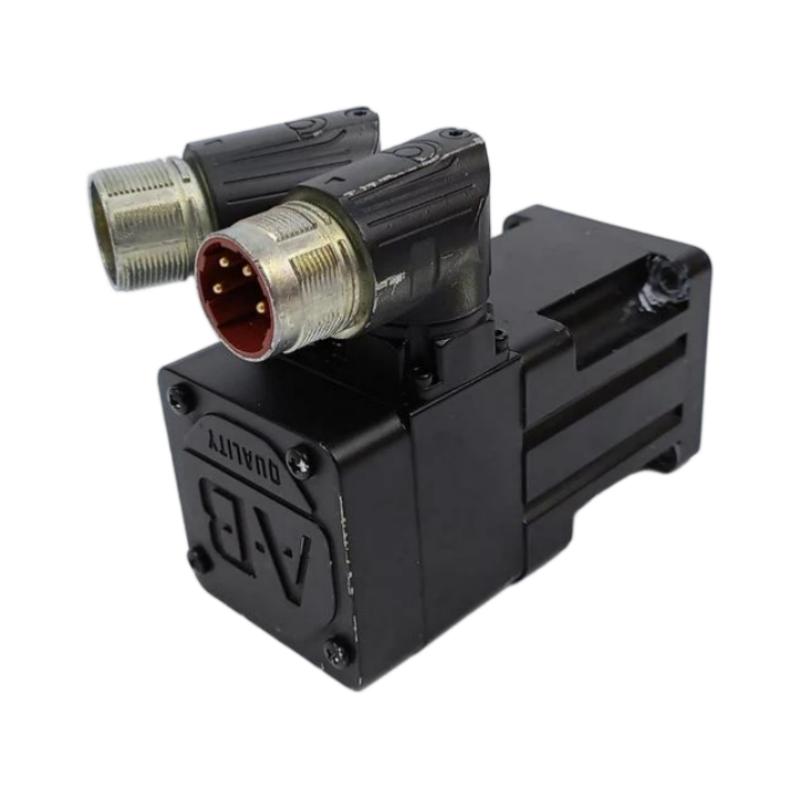

The Allen-Bradley MPL-B320P-SJ24AA is a low-inertia permanent-magnet rotary servo motor from the MP-Series MPL family. Designed for industrial automation and precision motion control, it combines high-speed operation with single-turn high-resolution encoder feedback. The motor features a keyed shaft, a 24V DC holding brake, and a right-angle circular bayonet connector that can rotate through 180 degrees. It is suitable for automated machinery requiring accurate positioning and repeatable motion. <Cite refs={[“turn394987search0″,”turn394987search2″,”turn394987search12”]}/>
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B320P-SJ24AA |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Product Series | MP-Series MPL |
| Motor Design | Permanent-Magnet Rotary Servo Motor |
| Voltage Class | 400 V AC |
| System Voltage Category | 460/480 V AC class |
| Rated Power | 1.5 kW |
| Rated Speed | 5,000 RPM |
| Maximum Speed | 5,000 RPM |
| Continuous Stall Torque | 3.05 Nm |
| Peak Torque | 7.91 Nm |
| Frame Size | 100 mm |
| Magnet Stack Length | 50.8 mm (2 in.) |
| Feedback Type | Single-Turn High-Resolution Absolute Encoder |
| Feedback Resolution | 1024 Sin/Cos Cycles per Revolution |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyed Shaft Extension |
| Shaft Seal | No standard shaft seal |
| Connector Type | Circular Bayonet Connector |
| Connector Orientation | Right Angle, 180° Rotatable |
| Holding Brake | Integrated 24 V DC Brake |
| Mounting Type | IEC Metric Flange Mount |
| Protection Rating | IP50 without shaft seal; higher protection depends on approved sealing and connector configuration |
| Maximum Operating Temperature | 40°C |
| Dimensions | 100 mm frame size; 50.8 mm magnet stack length. Overall dimensions should be confirmed using the manufacturer’s mechanical drawing |
| Approximate Weight | 4.08 kg (9.0 lbs) |
| Product Status | Discontinued by manufacturer; verify availability and replacement options |
<Cite refs={[“turn394987search0″,”turn394987search2″,”turn394987search12″,”turn394987search14”]}/>
FAQ
Q1: What is the Allen-Bradley MPL-B320P-SJ24AA used for?
A1: This servo motor is designed for industrial automation applications requiring accurate positioning, controlled acceleration, and consistent rotational speed. Common uses include packaging machinery, material handling systems, automated assembly equipment, and manufacturing lines.
Q2: What is the rated speed of the MPL-B320P-SJ24AA?
A2: The motor has a rated speed of 5,000 RPM and a maximum speed of 5,000 RPM. Actual operating performance depends on the connected servo drive, mechanical load, and application requirements.
Q3: Does the MPL-B320P-SJ24AA include a holding brake?
A3: Yes. This model includes an integrated 24V DC holding brake. The brake is intended to hold the shaft when the motor is stopped and should not be treated as a substitute for a safety-rated stopping system.
Q4: What feedback system does this servo motor use?
A4: The MPL-B320P-SJ24AA uses a single-turn high-resolution absolute encoder with Hiperface feedback and 1024 Sin/Cos cycles per revolution. It provides position information for accurate closed-loop motion control.
Q5: What type of shaft and connector does the MPL-B320P-SJ24AA have?
A5: It features a keyed shaft extension and a circular bayonet connector mounted at a right angle. The connector can rotate through 180 degrees, offering flexibility for cable routing in compact machine installations.
Q6: Which servo drives are compatible with the MPL-B320P-SJ24AA?
A6: Compatible drive families may include Allen-Bradley Kinetix 6000, 6200/6500, 300, 350, 2000, 7000, and Ultra 3000 systems, depending on the specific drive configuration. Check the manufacturer’s compatibility documentation before selecting a drive or replacement motor.
Q7: What are the dimensions and weight of the MPL-B320P-SJ24AA?
A7: The motor has a 100 mm frame size and a 50.8 mm magnet stack length. Its listed approximate weight is 4.08 kg (9.0 lbs). For exact overall length, shaft dimensions, mounting-hole positions, and installation clearances, consult the manufacturer’s mechanical drawing.
Q8: What should be checked before replacing the MPL-B320P-SJ24AA?
A8: Confirm the complete catalog number, voltage class, rated speed, encoder type, keyed shaft dimensions, connector arrangement, mounting measurements, and 24V DC brake requirements. Since the model is listed as discontinued, verify the availability and compatibility of any proposed replacement before ordering.
