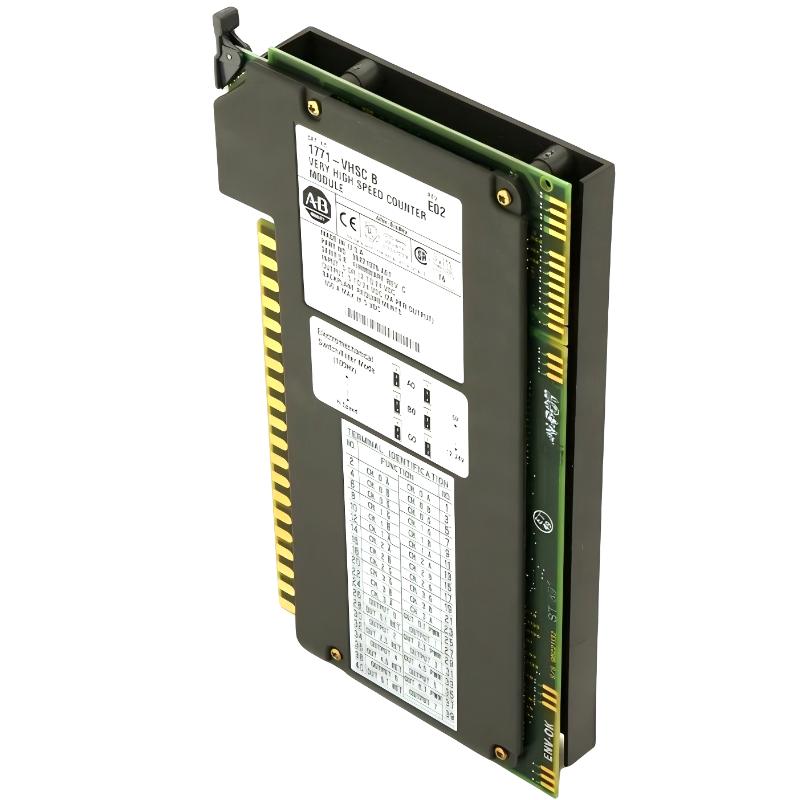

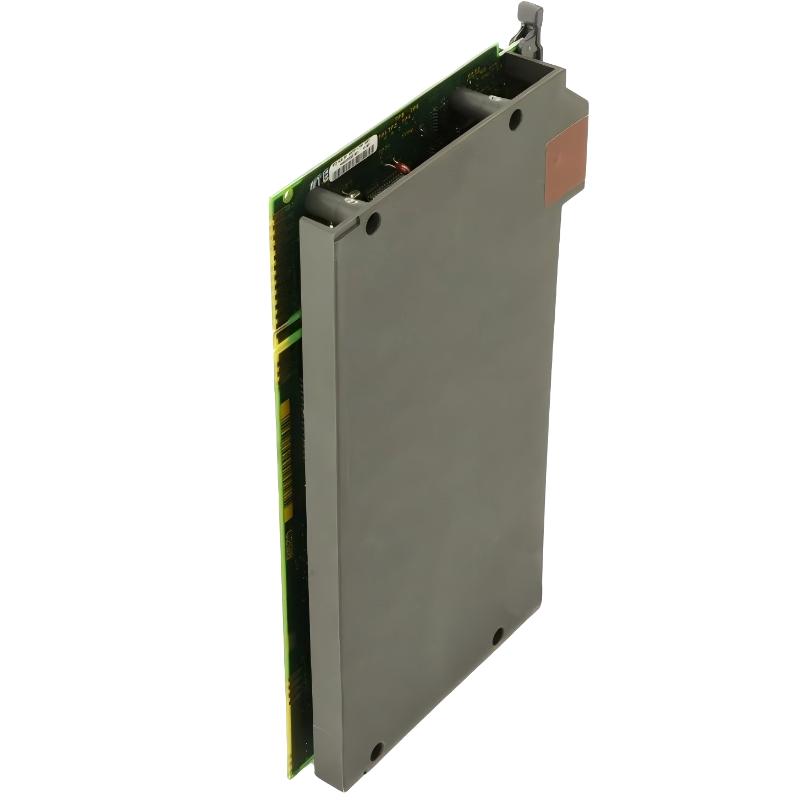

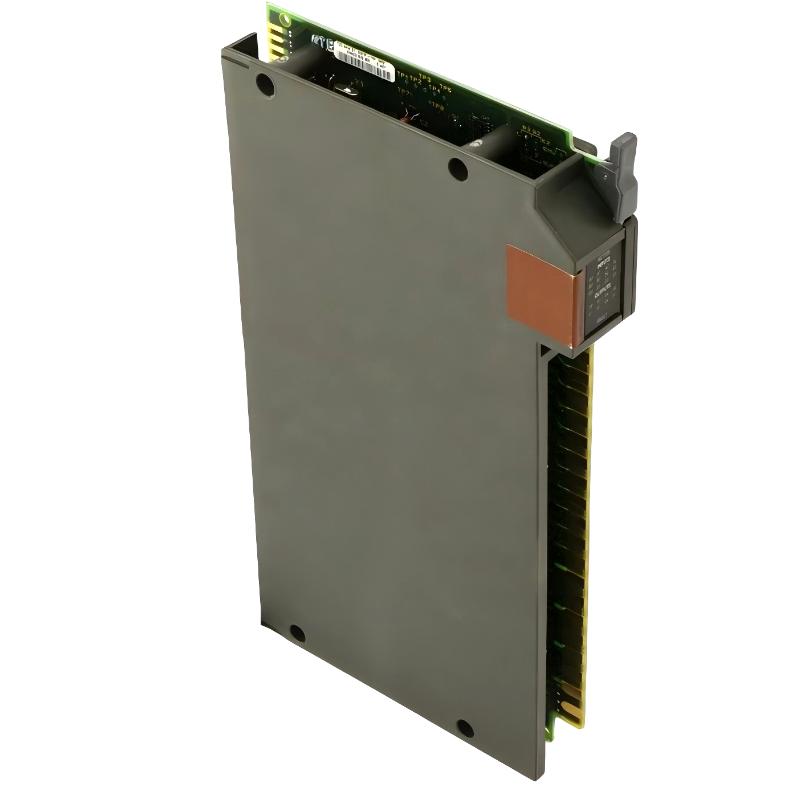

Allen Bradley 1771-VHSC Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 1771-VHSC Very High-Speed Counter Module |
| Product Type | Industrial Equipment |
| Series | Allen-Bradley PLC-5 / 1771 I/O Series |
| Module Type | High-Speed Counter Module |
| Input Channels | 4 independent high-speed inputs |
| Input Voltage | 5–24V DC |
| Input Frequency | Up to 100 kHz per channel |
| Counter Type | Up/down counting, pulse counting, rate measurement |
| Signal Compatibility | Encoder, proximity sensor, pulse generator inputs |
| Communication Method | 1771 backplane communication |
| Isolation | Optical isolation between field and logic circuits |
| Backplane Current | Approx. 750 mA @ 5V DC |
| Response Time | High-speed real-time pulse processing |
| Diagnostics | Front-panel status LEDs |
| Mounting Type | 1771 I/O chassis rack-mounted |
| Wiring Compatibility | 1771-WH wiring arm compatible |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Dimensions (H × W × D) | Approx. 250 × 35 × 180 mm |
| Weight | Approx. 0.9 kg |
| Typical Applications | Encoder feedback, motion monitoring, conveyor tracking, position sensing |
FAQ
What is the main purpose of the 1771-VHSC module?
It is designed for high-speed pulse counting and frequency measurement applications in industrial automation systems.
How many input channels does the module provide?
It provides 4 independent high-speed counter input channels.
What types of signals can the module process?
It supports encoder signals, pulse generators, proximity sensors, and other high-speed digital inputs.
What is the maximum counting frequency?
The module supports input frequencies up to 100 kHz per channel.
Is the 1771-VHSC compatible with PLC-5 systems?
Yes, it is specifically designed for Allen-Bradley PLC-5 systems using 1771 I/O chassis architecture.
Does the module include electrical isolation?
Yes, it includes optical isolation between field wiring and internal logic circuits.
What industries commonly use this module?
It is widely used in packaging, material handling, conveyor systems, and motion monitoring applications.
Is the 1771-VHSC still manufactured?
No, it is considered a legacy product from the PLC-5 / 1771 platform and has been discontinued.
Allen Bradley 1771-VHSC Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
