Technical Specifications
| Parameter | Specification |
|---|---|

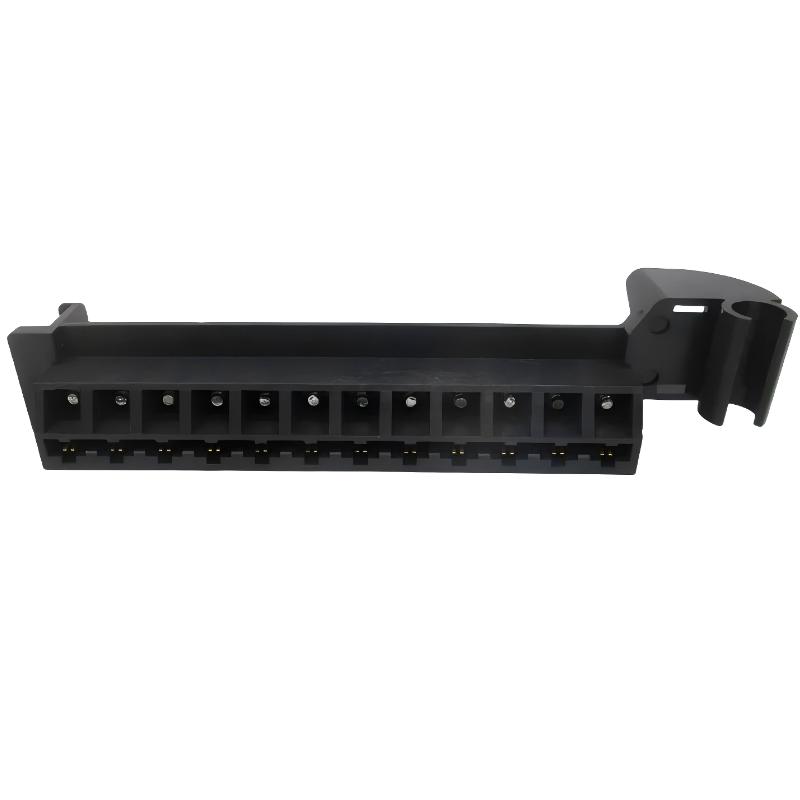

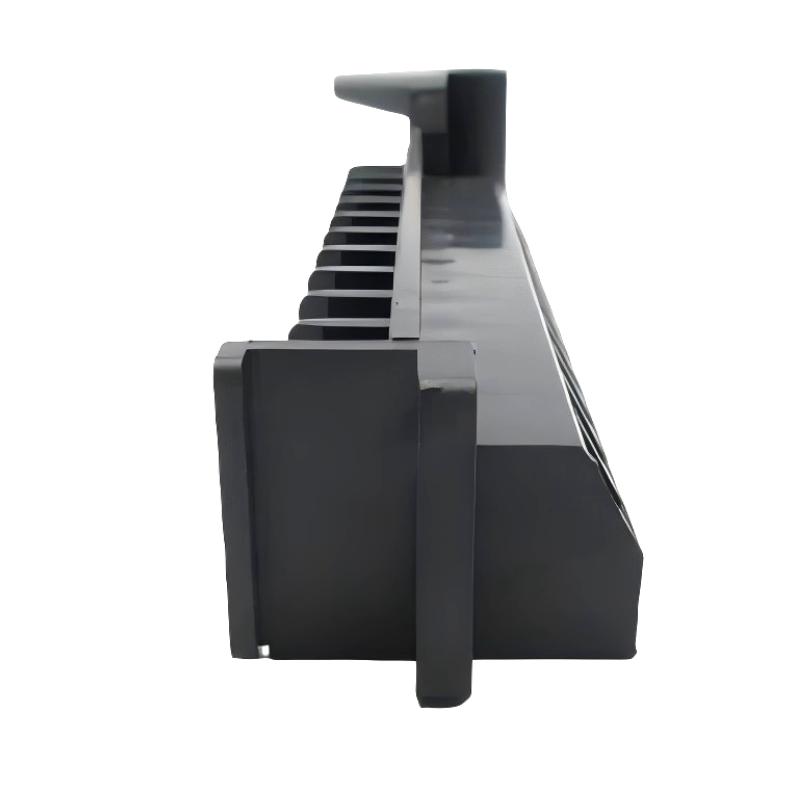

| Product Name | 1771-WA Wiring Arm |
| Product Type | Industrial Equipment |
| Series | Allen-Bradley 1771 I/O Series |
| Device Type | I/O Wiring Arm |
| Function | Field wiring termination interface |
| Compatibility | 1771 I/O modules |
| Terminal Type | Screw terminal connections |
| Wiring Capacity | Supports multiple field wiring points |
| Connector Style | Swing-arm removable connection |
| Installation Method | Direct attachment to 1771 I/O module |
| Mounting Style | Chassis-integrated installation |
| Material Construction | Industrial-grade molded housing with metal terminals |
| Signal Support | Digital and analog module compatibility (module dependent) |
| Maintenance Feature | Allows module replacement without disconnecting field wiring |
| Environmental Rating | Industrial control cabinet use |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H × W × D) | Approx. 250 × 35 × 50 mm |
| Weight | Approx. 0.25 kg |
| Typical Applications | PLC wiring systems, industrial control panels, field device termination |
FAQ
What is the purpose of the 1771-WA wiring arm?
It provides a removable field wiring connection interface for compatible 1771 I/O modules.
Which systems use the 1771-WA?
It is designed for Allen-Bradley PLC-5 and 1771 I/O chassis systems.
Does the wiring arm simplify module maintenance?
Yes, it allows modules to be replaced without removing field wiring connections.
What type of terminal connections does it use?
It uses screw terminal connections for secure industrial wiring.
Can the 1771-WA be used with both analog and digital modules?
Yes, compatibility depends on the specific 1771 I/O module being installed.
How is the wiring arm installed?
It attaches directly to the front of a compatible 1771 I/O module within the chassis.
Is the 1771-WA still commonly used?
Although part of a legacy platform, it is still widely used in existing PLC-5 installations.
Where is the 1771-WA typically applied?
It is commonly used in manufacturing systems, industrial automation cabinets, and process control applications using 1771 architecture.
Allen Bradley 1771-WA Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
