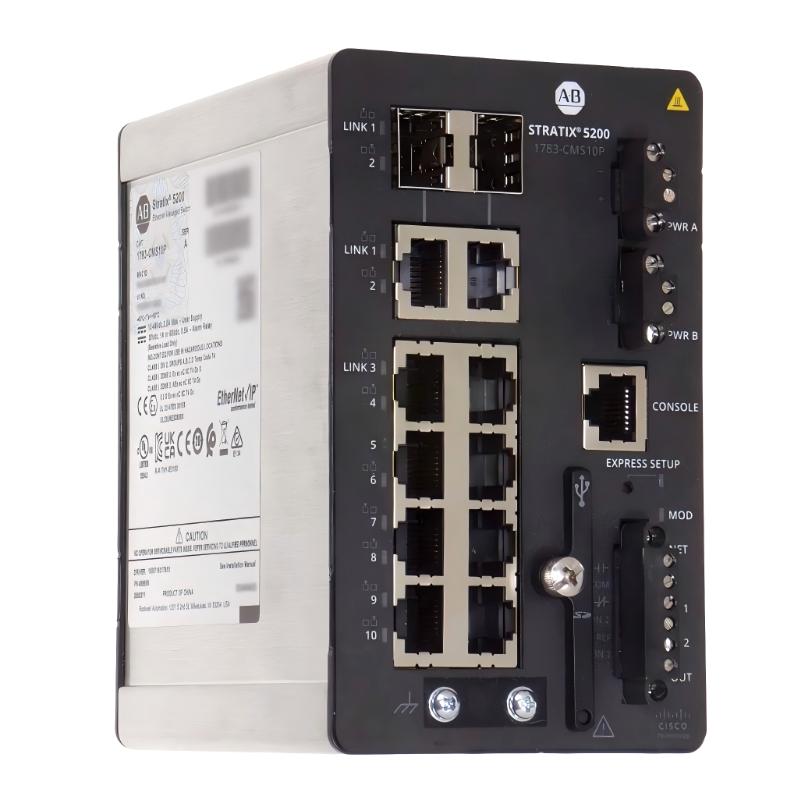

1. What is the primary function of the Allen-Bradley 1783-CMS10P Stratix 5200 Ethernet Managed Switch?

The 1783-CMS10P is designed to provide reliable and intelligent Ethernet communication within industrial automation systems. It manages network traffic between controllers, I/O devices, HMIs, and other Ethernet-enabled equipment. Its primary role is to ensure stable, high-speed, and organized data exchange across industrial networks, supporting real-time communication requirements in automation environments.

2. What makes this switch different from an unmanaged switch?

Unlike unmanaged switches that simply forward data, a managed switch allows full control over network configuration, traffic prioritization, security settings, and diagnostics. The 1783-CMS10P enables users to segment networks, prioritize critical control data, and monitor network health, which is essential for industrial automation where communication reliability is critical.

3. What role does this switch play in industrial Ethernet systems?

In industrial Ethernet architectures, this switch acts as the central communication hub that connects multiple devices. It ensures that data flows efficiently between controllers, field devices, and supervisory systems while maintaining network stability and minimizing communication delays or packet loss.

4. Does this switch support Power over Ethernet (PoE)?

Yes, it supports Power over Ethernet on compatible ports. This allows both data and electrical power to be transmitted through a single Ethernet cable, reducing wiring complexity and enabling easier deployment of field devices such as IP cameras, sensors, or industrial communication modules.

5. How does this switch improve network reliability?

The switch enhances reliability through traffic management, redundancy support, and diagnostic capabilities. It can prioritize critical control traffic, isolate network issues, and maintain communication paths even in complex industrial environments, reducing the risk of downtime or data disruption.

6. What kind of network diagnostics does it provide?

The device offers real-time monitoring of port status, traffic flow, error detection, and network performance. These diagnostic tools help engineers quickly identify communication issues, misconfigurations, or hardware faults, significantly improving maintenance efficiency and troubleshooting speed.

7. Can this switch be used in redundant network architectures?

Yes, it supports industrial network redundancy protocols. This allows the creation of failover paths so that if one network link fails, communication can automatically reroute through an alternate path, ensuring continuous operation in critical automation systems.

8. What are the benefits of using this switch in modern industrial automation?

The 1783-CMS10P improves overall system performance by ensuring stable and secure network communication, reducing downtime through redundancy, and enabling advanced network management. It is particularly valuable in smart factories and large-scale automation systems where reliable, real-time data exchange is essential for operational efficiency.
