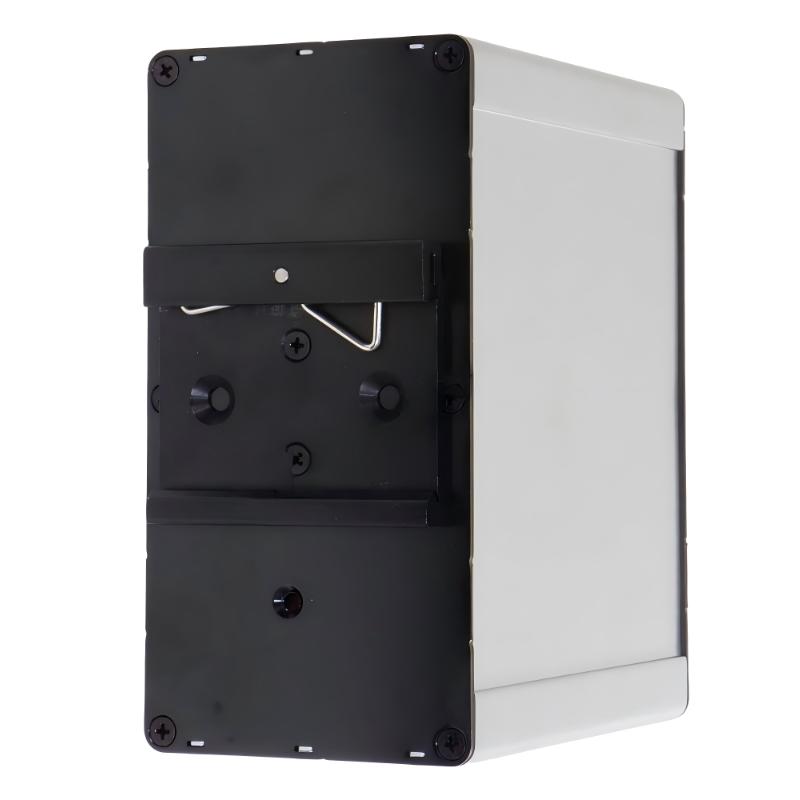

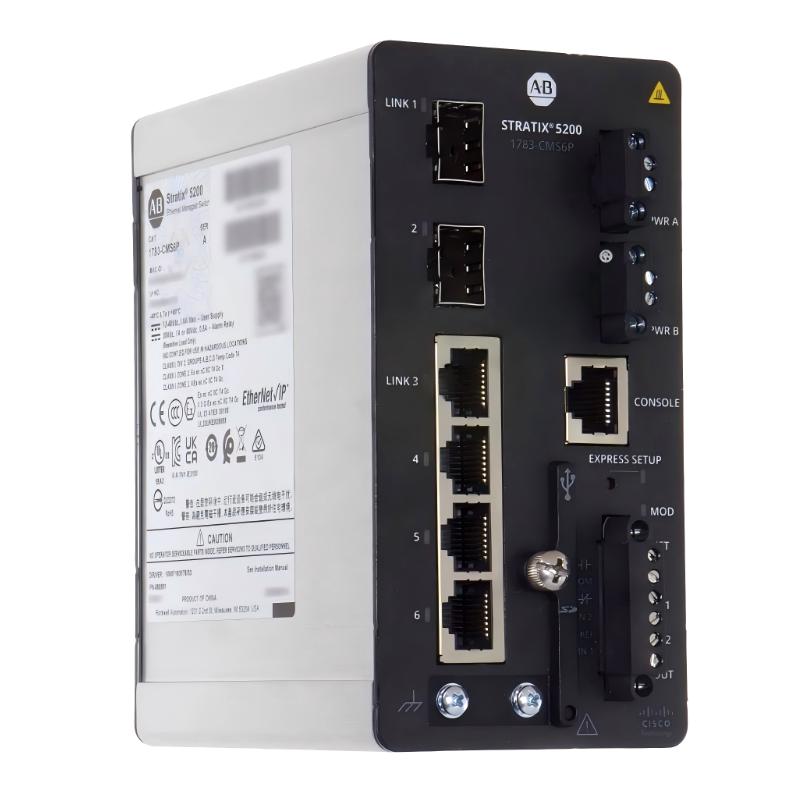

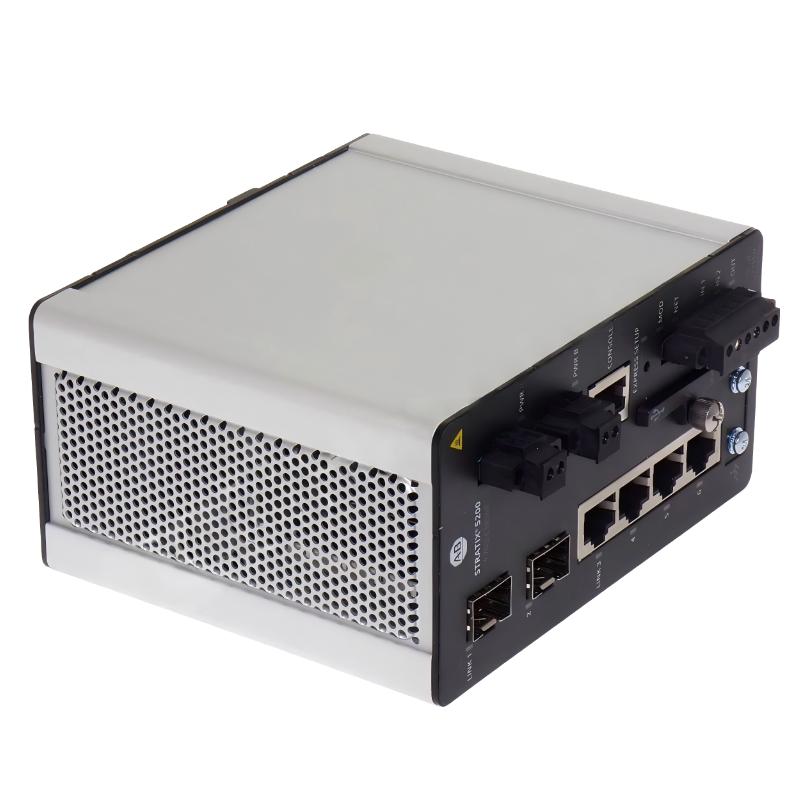

Allen Bradley 1783-CMS6P Stratix 5200 Ethernet Managed Switch
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 1783-CMS6P |
| Product Name | Stratix 5200 Ethernet Managed Switch |
| Brand | Allen-Bradley |
| Product Type | Industrial managed Ethernet switch |
| Application | Industrial automation networking and device connectivity |
| Core Function | Ethernet switching, network control, and traffic management |
| Number of Ports | 6-port managed switch |
| Ethernet Type | Industrial Ethernet communication |
| PoE Support | Supported on selected ports |
| Network Management | Fully managed switch with configurable policies |
| Switching Performance | High-speed deterministic packet forwarding |
| Protocol Support | Industrial Ethernet protocols and CIP traffic support |
| Security Features | Network segmentation and access control |
| Redundancy Support | Supports industrial network redundancy topologies |
| Configuration Interface | Web-based and industrial configuration tools |
| Diagnostic Functions | Port monitoring, network diagnostics, and fault detection |
| Installation Method | DIN rail or control cabinet mounting |
| Operating Environment | Industrial-grade automation environment |
| EMC Design | Industrial electromagnetic compatibility protection |
| Maintenance | Remote monitoring and configuration support |
| Dimensions | 127 × 64.8 × 110 mm |
| Weight | 0.73 kg |
FAQ
1. What is the primary function of the Allen-Bradley 1783-CMS6P Stratix 5200 Ethernet Managed Switch?
The 1783-CMS6P is designed to manage and optimize industrial Ethernet communication between automation devices such as PLCs, HMIs, I/O modules, and drives. Its main function is to ensure reliable, high-speed, and organized data exchange within industrial control networks, acting as a central communication hub in automation systems.
2. What is the difference between a managed switch and an unmanaged switch?
A managed switch like the 1783-CMS6P provides advanced configuration, monitoring, and control capabilities. It allows users to configure network priorities, segment traffic, monitor performance, and implement security policies. In contrast, an unmanaged switch only forwards data without any control or diagnostics, making it less suitable for complex industrial environments.
3. How does this switch improve industrial network performance?
It improves performance by prioritizing critical control traffic, reducing network congestion, and ensuring deterministic data delivery. This is essential in industrial automation where real-time communication between controllers and field devices is required for stable process operation.
4. Does the switch support Power over Ethernet (PoE)?
Yes, selected ports support PoE functionality. This allows both power and data to be delivered through a single Ethernet cable, simplifying installation and reducing wiring complexity for compatible industrial devices such as cameras, sensors, or communication modules.
5. What role does this switch play in an industrial Ethernet system?
It acts as a central node in the network, connecting multiple automation devices and ensuring efficient data routing. It manages traffic flow between controllers and field devices while maintaining communication stability and minimizing delays or packet loss.
6. What kind of network diagnostics does it provide?
The switch offers real-time monitoring of port status, traffic flow, error detection, and connection quality. These diagnostic capabilities help engineers quickly identify and resolve network issues, improving system reliability and maintenance efficiency.
7. Can this switch be used in redundant network architectures?
Yes, it supports industrial network redundancy topologies such as ring or dual-path configurations. In case of a network failure, it can automatically reroute traffic to maintain uninterrupted communication across the system.
8. What are the benefits of using this switch in modern industrial automation systems?
It enhances network reliability, improves data communication efficiency, and provides advanced control over industrial Ethernet traffic. In smart manufacturing environments, it helps ensure stable, secure, and scalable network infrastructure for complex automation systems.
Allen Bradley 1783-CMS6P Stratix 5200 Ethernet Managed Switch is in stock. Please contact us for a quick quote and competitive pricing.
