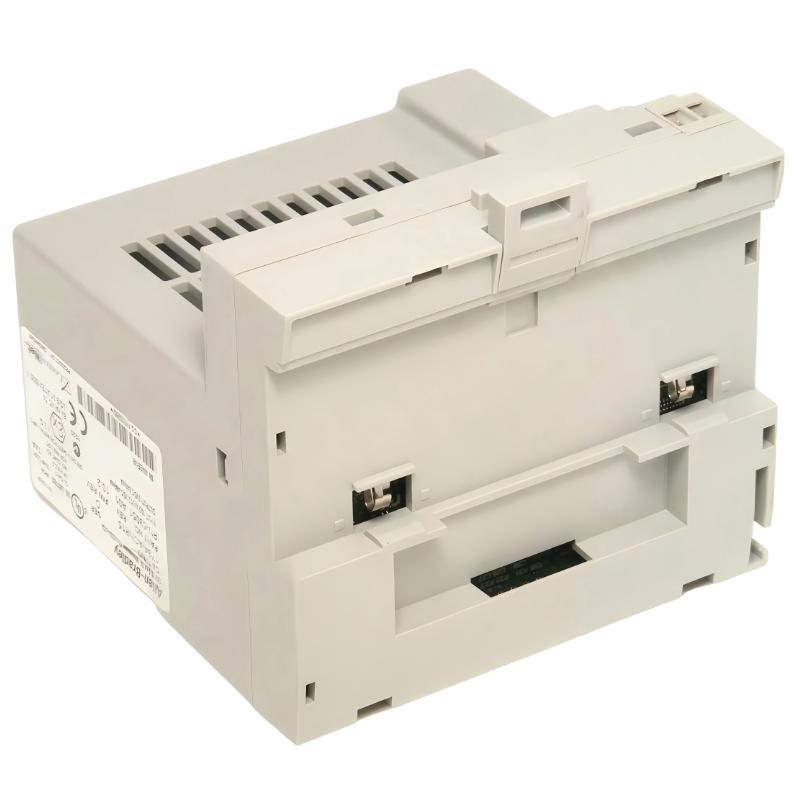

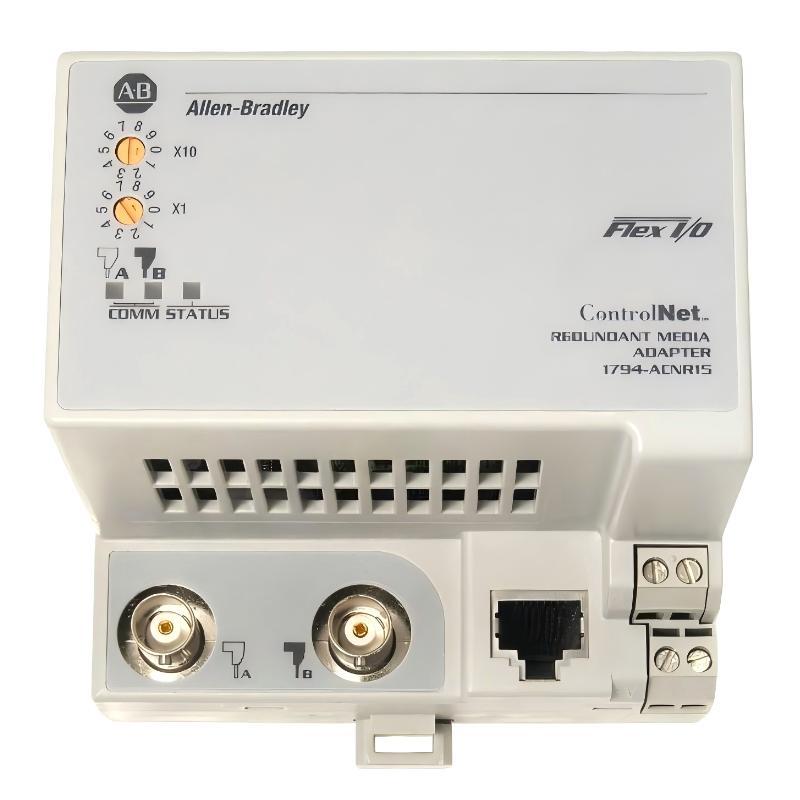

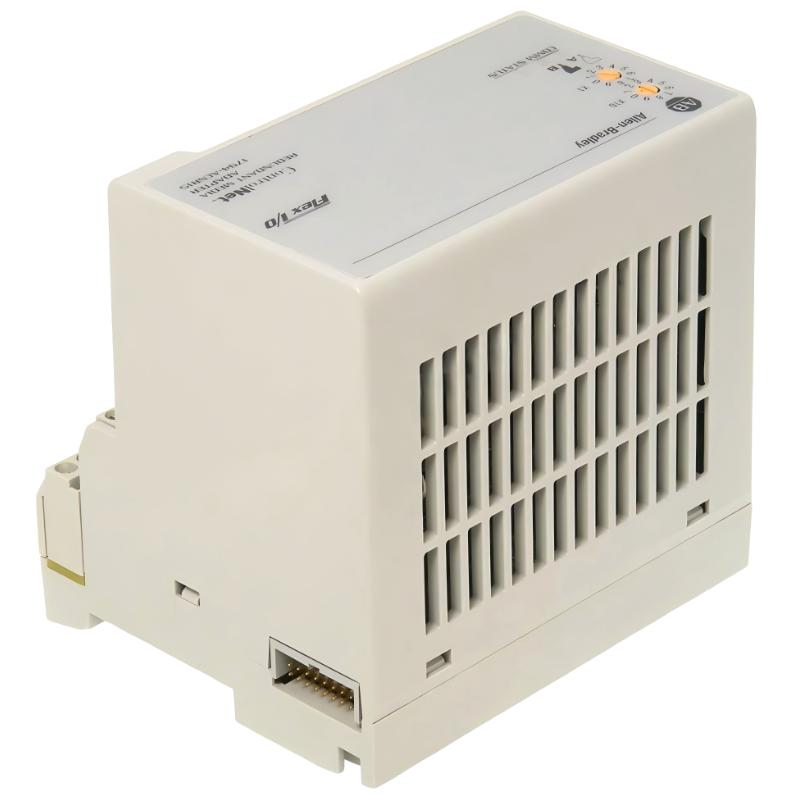

Allen Bradley 1794-ACNR FLEX I/O ControlNet Adapter Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 1794-ACNR |
| Product Type | FLEX I/O ControlNet Adapter Module |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | FLEX I/O 1794 Series |
| Main Function | Provides ControlNet network communication interface for FLEX I/O modules |
| Application | Distributed I/O systems, industrial automation, remote I/O control |
| Communication Protocol | ControlNet |
| Network Interface | Dual ControlNet BNC ports |
| Communication Speed | 5 Mbps |
| Media Type | Coaxial ControlNet cable |
| Maximum FLEX I/O Modules Supported | Up to 8 I/O modules |
| I/O Data Capacity | Supports FLEX I/O module data exchange through ControlNet |
| Power Supply | 24 VDC |
| Current Consumption | Approx. 400 mA @ 24 VDC |
| Isolation Voltage | 50 V continuous |
| Status Indicators | Module status, network status, I/O status, ControlNet status LEDs |
| Configuration Method | RSNetWorx for ControlNet |
| Mounting Method | DIN rail mounting with FLEX I/O terminal base |
| Compatible Terminal Bases | 1794-TB2, 1794-TB3, 1794-TB3S and related FLEX I/O terminal bases |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 94 × 46 × 87 mm |
| Weight | Approx. 0.15 kg |
| Enclosure Type | Open-style module |
| Typical Applications | Factory automation, packaging systems, process control, remote machine I/O networks |
FAQ
Q1: What is the 1794-ACNR mainly used for?
A: The 1794-ACNR is a FLEX I/O ControlNet adapter module used to connect FLEX I/O modules to a ControlNet industrial communication network.
Q2: How many FLEX I/O modules can the 1794-ACNR support?
A: The adapter can support up to eight FLEX I/O modules installed on the same terminal base assembly.
Q3: What communication protocol does the 1794-ACNR use?
A: The module uses the ControlNet protocol with a communication speed of 5 Mbps.
Q4: What type of network connection does the 1794-ACNR provide?
A: It provides dual ControlNet BNC network ports, allowing network connection and redundancy configurations.
Q5: What power supply is required for the 1794-ACNR?
A: The module requires a 24 VDC power supply for operation.
Q6: Which terminal bases are compatible with the 1794-ACNR?
A: It is compatible with FLEX I/O terminal bases such as 1794-TB2, 1794-TB3, and 1794-TB3S series.
Q7: What software is used to configure the 1794-ACNR?
A: Configuration is performed using RSNetWorx for ControlNet and the associated PLC programming environment.
Q8: What are the main advantages of the 1794-ACNR?
A: It provides reliable remote I/O communication, flexible FLEX I/O expansion, ControlNet network integration, and easy maintenance for distributed automation systems.
Allen Bradley 1794-ACNR FLEX I/O ControlNet Adapter Module is in stock. Please contact us for a quick quote and competitive pricing.
