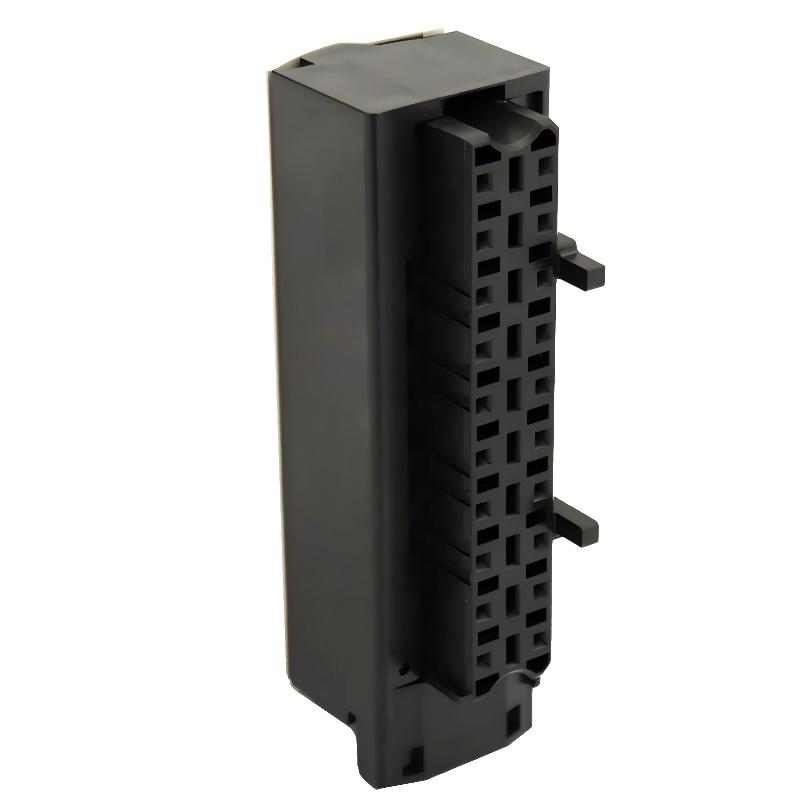

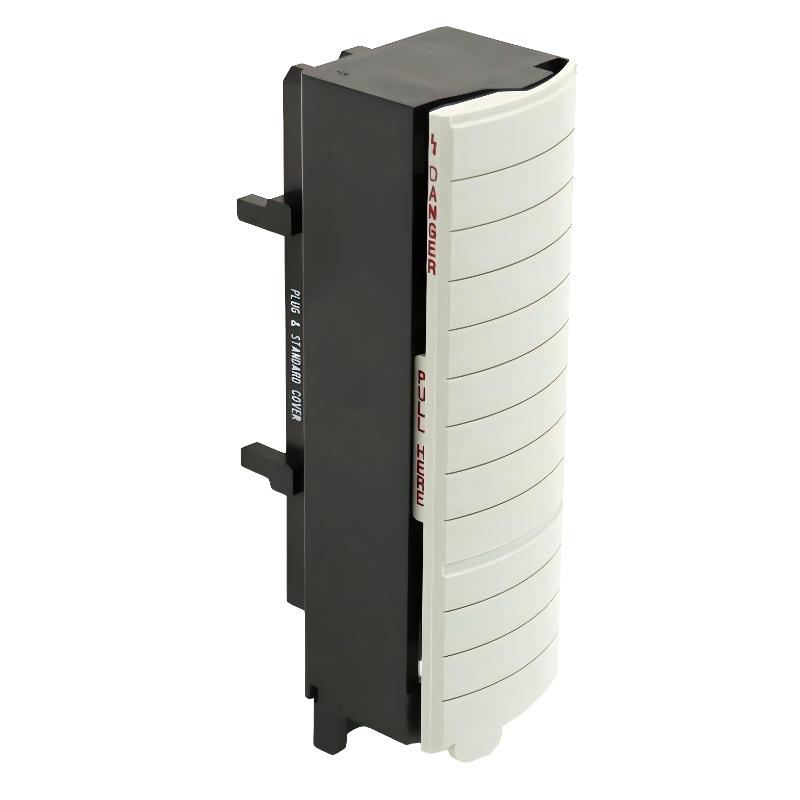

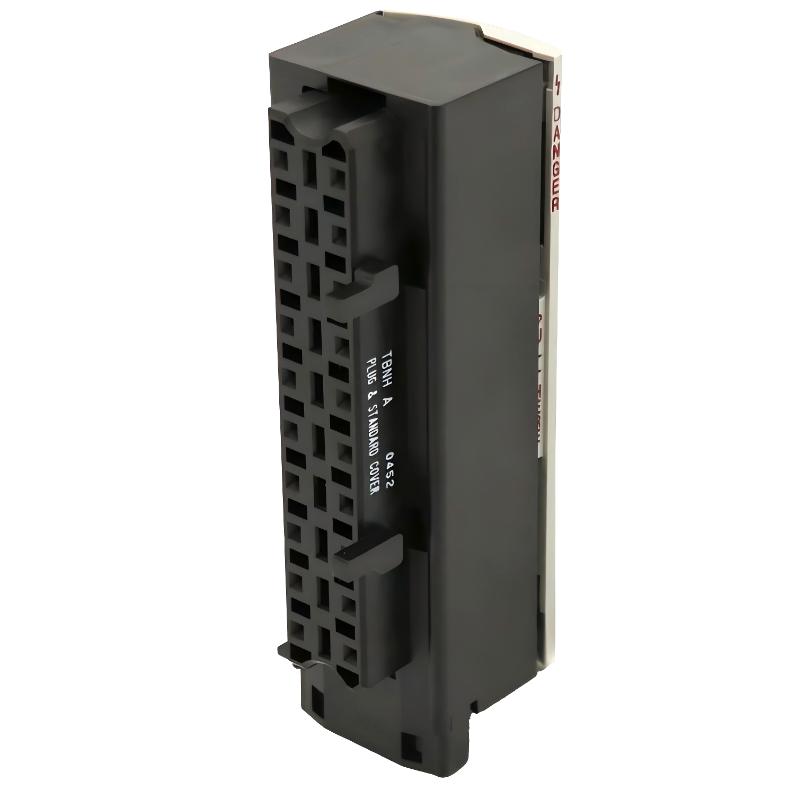

Allen Bradley 1756-TBN ControlLogix Removable Terminal Block
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 1756-TBN |
| Product Type | ControlLogix Removable Terminal Block (RTB) |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | ControlLogix 1756 Series |
| Main Function | Provides field wiring connection between ControlLogix I/O modules and external devices |
| Application | PLC I/O wiring, industrial automation, process control systems |
| Terminal Type | Screw-clamp terminal block |
| Number of Pins | 20-pin connection |
| Terminal Style | Standard housing |
| Compatible Modules | ControlLogix 1756 digital and analog I/O modules requiring 20-pin RTB |
| Wire Connection | Screw terminal wiring |
| Wire Size | Supports applicable industrial control wiring sizes |
| Mounting Method | Direct plug-in installation on ControlLogix I/O module |
| Removable Design | Yes (RIUP – Remove and Insert Under Power, when supported by system configuration) |
| Keying Function | Supports mechanical keying to prevent incorrect module connection |
| Insulation Voltage | Determined by installed I/O module |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Enclosure Type | Open-style terminal block |
| Dimensions | Approx. 12.7 × 132 × 36 mm |
| Weight | Approx. 0.05 kg |
| Typical Applications | ControlLogix PLC cabinets, remote I/O panels, machine automation systems |
FAQ
Q1: What is the 1756-TBN mainly used for?
A: The 1756-TBN is a removable terminal block used with ControlLogix I/O modules to provide field wiring connections between external devices and the PLC system.
Q2: How many terminals does the 1756-TBN provide?
A: The 1756-TBN provides a 20-pin screw terminal connection interface.
Q3: Which ControlLogix modules use the 1756-TBN?
A: It is used with compatible 1756 ControlLogix I/O modules that require a 20-pin removable terminal block.
Q4: What is the difference between 1756-TBN and 1756-TBNH?
A: Both are 20-pin screw terminal blocks. The 1756-TBN is the standard terminal block style, while the 1756-TBNH is a newer low-profile housing version.
Q5: Can the 1756-TBN be replaced while the system is running?
A: The ControlLogix platform supports removable terminal block replacement under specific RIUP conditions, but actual operation depends on the installed module, wiring design, and safety requirements.
Q6: What type of wiring is used with the 1756-TBN?
A: It uses screw-clamp terminals for connecting field devices such as sensors, actuators, transmitters, and control signals.
Q7: What are the advantages of the 1756-TBN?
A: It provides easy field wiring, reliable connection, quick maintenance, and convenient replacement for ControlLogix I/O modules.
Q8: What systems can use the 1756-TBN?
A: It is designed for Allen-Bradley ControlLogix 1756 chassis-based PLC systems used in industrial automation, manufacturing, process control, and machine control applications.
Allen Bradley 1756-TBN ControlLogix Removable Terminal Block is in stock. Please contact us for a quick quote and competitive pricing.
