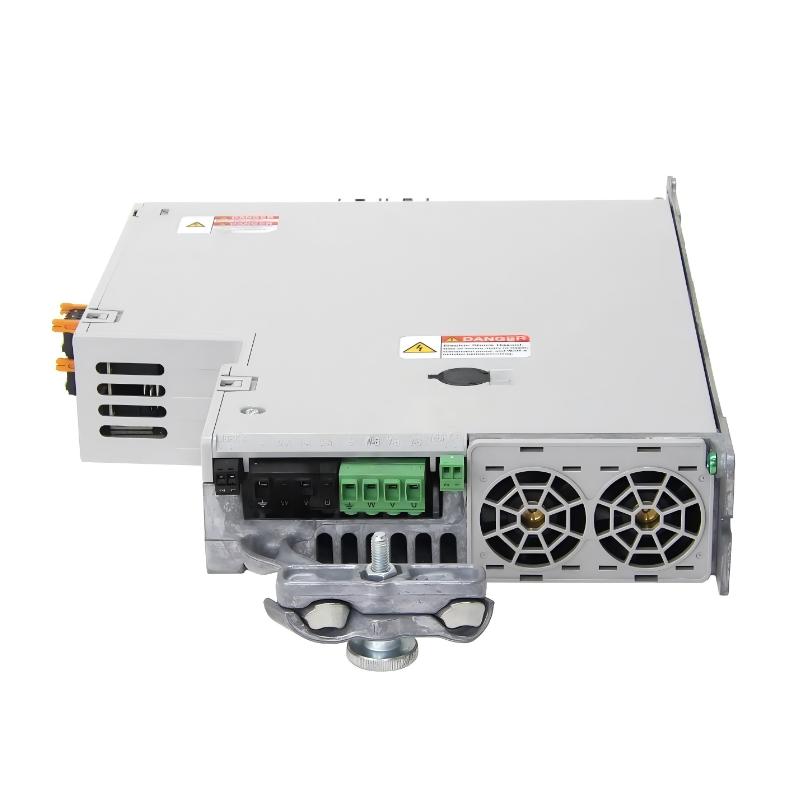

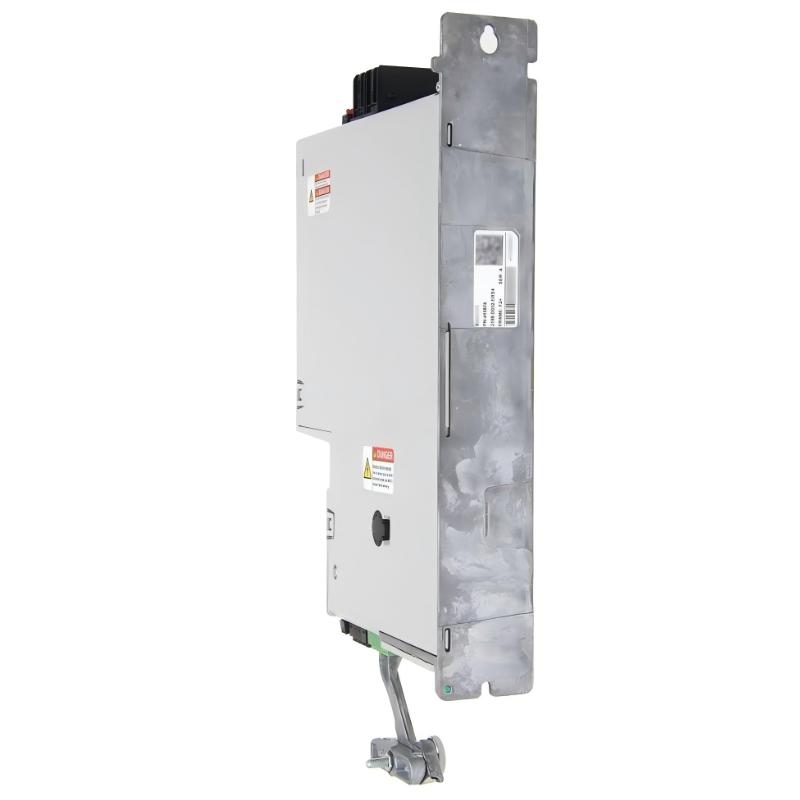

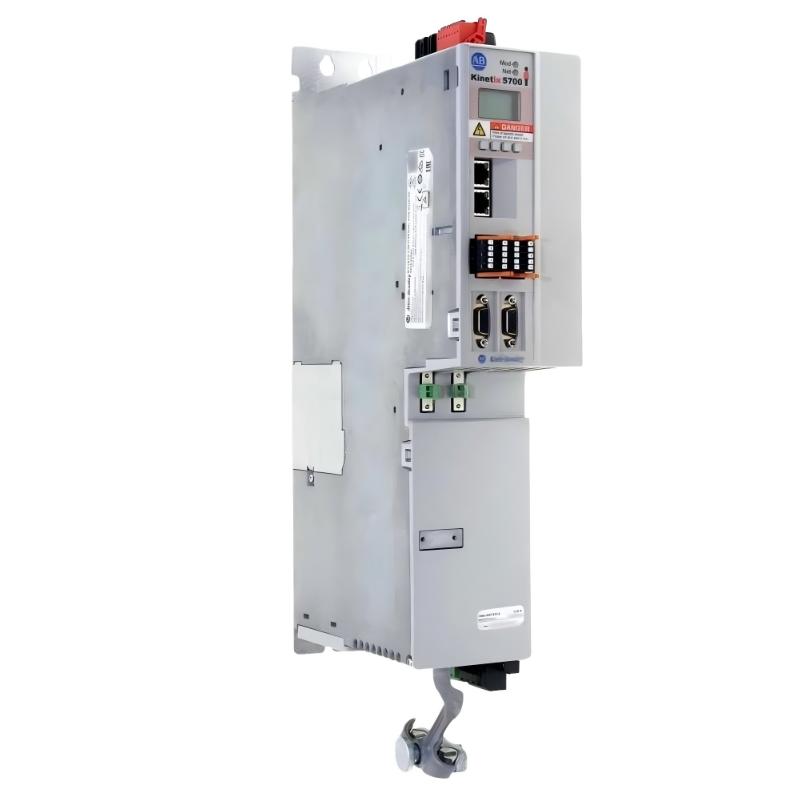

Allen Bradley 2198-S086-ERS4 Kinetix 5700 Single Axis Servo Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 2198-S086-ERS4 |
| Product Type | Kinetix 5700 Single Axis Servo Drive |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | Kinetix 5700 Servo Drive Series |
| Main Function | Single-axis servo motor control with advanced safety functions |
| Application | Motion control systems, robotics, machine tools, high-performance automation |
| Safety Function | Advanced safety / Safe Torque Off functions |
| Continuous Output Current | 43 A RMS |
| Peak Output Current | 86 A RMS |
| Continuous Output Current (0-peak) | 60.8 A |
| Peak Output Current (0-peak) | 121.6 A |
| Rated Output Power | Approx. 29.7 kW |
| Input Voltage | 324…528 V AC, 3-phase |
| DC Bus Voltage Range | 458…747 VDC |
| DC Input Current | Approx. 45.7 A |
| Internal Capacitance | Approx. 560 μF |
| PWM Frequency | 4 kHz |
| Velocity Loop Bandwidth | Up to 400 Hz |
| Current Loop Bandwidth | Up to 1000 Hz |
| Communication Interface | EtherNet/IP |
| Ethernet Ports | 2 × RJ45 EtherNet/IP ports |
| Digital Inputs | 4 inputs |
| Digital Outputs | Not available |
| Analog Inputs | Not available |
| Analog Outputs | Not available |
| Motor Feedback | Supports Kinetix motor feedback interfaces |
| Safety Interface | Safe Torque Off / Advanced Safety functions |
| Dynamic Brake | Integrated brake chopper |
| Mounting Method | Panel mounting within Kinetix 5700 system |
| Protection Class | IP20 |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 15 G, 11 ms half-sine pulse |
| Vibration Resistance | 2 G @ 55…500 Hz |
| Dimensions (H×W×D) | Approx. 433 × 85 × 252 mm |
| Weight | Approx. 5.21 kg |
| Typical Applications | Packaging machines, robotics, printing equipment, semiconductor equipment, material handling systems, and advanced automation |
FAQ
Q1: What is the 2198-S086-ERS4 mainly used for?
A: The 2198-S086-ERS4 is a Kinetix 5700 single-axis servo drive used for precise motion control applications requiring high power output and advanced safety features.
Q2: What motors can be used with the 2198-S086-ERS4?
A: It is designed for compatible Allen-Bradley Kinetix servo motors and supported third-party motors within the Kinetix motion platform.
Q3: What is the output capacity of the 2198-S086-ERS4?
A: The drive provides 43 A continuous RMS output current and 86 A peak RMS output current for demanding servo applications.
Q4: What communication protocol does the 2198-S086-ERS4 support?
A: It supports EtherNet/IP communication for integration with ControlLogix and CompactLogix automation systems.
Q5: What safety functions are available?
A: The ERS4 version provides advanced safety functions including Safe Torque Off for machine protection and safe motion applications.
Q6: What controller is commonly paired with the 2198-S086-ERS4?
A: It is commonly used with Allen-Bradley ControlLogix or CompactLogix controllers programmed through Studio 5000 Logix Designer.
Q7: Can the 2198-S086-ERS4 be used in demanding industrial environments?
A: Yes. It is designed for industrial motion applications with resistance to vibration, shock, and typical factory operating conditions.
Q8: What are the main advantages of the 2198-S086-ERS4?
A: It provides high power density, precise servo control, EtherNet/IP integration, advanced safety functions, and easy scalability within Kinetix 5700 motion systems.
Allen Bradley 2198-S086-ERS4 Kinetix 5700 Single Axis Servo Drive is in stock. Please contact us for a quick quote and competitive pricing.
