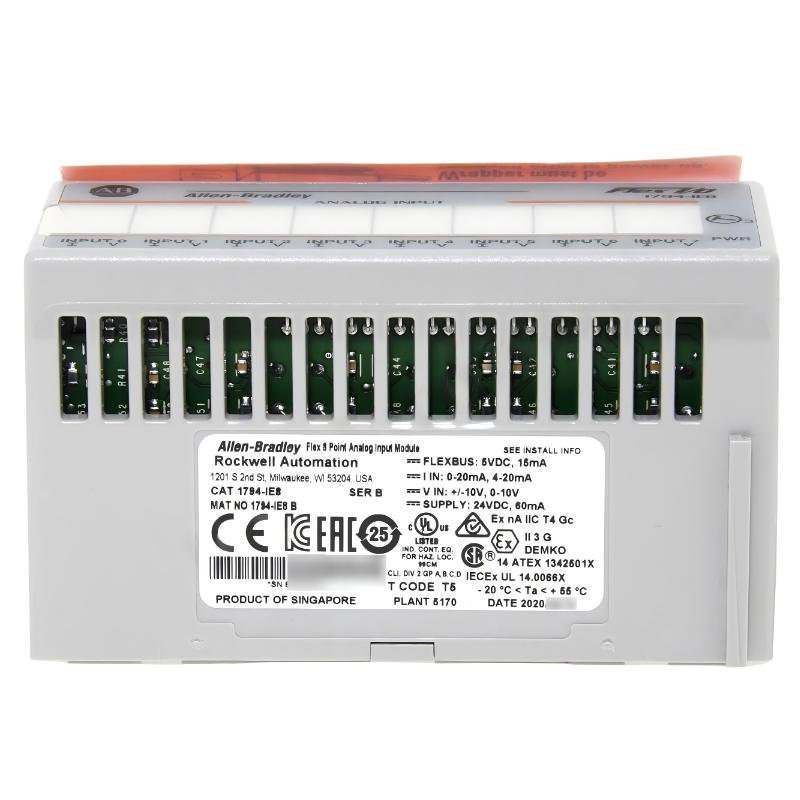

1794-IE8 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 1794-IE8 Analog Input Module |
| Brand | Allen Bradley |
| Product Type | Industrial Equipment |
| Series | FLEX I/O |
| Module Type | Analog Input Module |
| Number of Inputs | 8 Single-Ended Analog Inputs |
| Input Signal Type | Current |
| Input Range | 0–20 mA, 4–20 mA |
| Resolution | 16-bit |
| Data Format | Integer or Floating Point |
| Input Impedance | 250 Ω Nominal |
| Accuracy | ±0.1% Full Scale at 25°C |
| Conversion Rate | Approx. 5 ms per Channel |
| Backplane Current | 120 mA @ 5V DC |
| Power Dissipation | Approx. 3.5 W |
| Isolation Voltage | 850V DC Tested |
| Wiring Connection | FLEX I/O Terminal Base Unit Required |
| Status Indicators | Module Status and Channel Status LEDs |
| Mounting Type | DIN Rail Mount |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Enclosure Rating | Open Type |
| Certifications | UL, CE, CSA, RoHS |
| Lifecycle Status | Active |
| Dimensions (H × W × D) | Approx. 94 × 55 × 87 mm |
| Weight | Approx. 0.18 kg |
| Typical Applications | Process monitoring, flow measurement, pressure transmitters, level sensors, temperature transmitters, industrial automation systems |
FAQ
What is the 1794-IE8 used for?
The 1794-IE8 is an analog input module designed to receive and process current signals from field instruments such as transmitters, sensors, and process control devices.
How many input channels does the module provide?
The module provides eight independent analog input channels for monitoring multiple process signals simultaneously.
What input signal ranges are supported?
The module supports industry-standard 0–20 mA and 4–20 mA analog current signals.
What is the resolution of the analog inputs?
The 1794-IE8 offers 16-bit resolution, enabling accurate measurement and process control.
Does the module require a terminal base unit?
Yes. The module must be installed on a compatible FLEX I/O terminal base unit for field wiring and backplane communication.
What types of devices can be connected to this module?
Typical connected devices include pressure transmitters, flow meters, level transmitters, temperature transmitters, and other analog process instruments.
What diagnostic indicators are available?
The module includes LED indicators for module status and channel status, helping simplify troubleshooting and maintenance.
What industries commonly use the 1794-IE8?
It is widely used in manufacturing, water treatment, oil and gas, food and beverage processing, chemical plants, and general industrial automation applications.
Allen Bradley 1794-IEB Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
