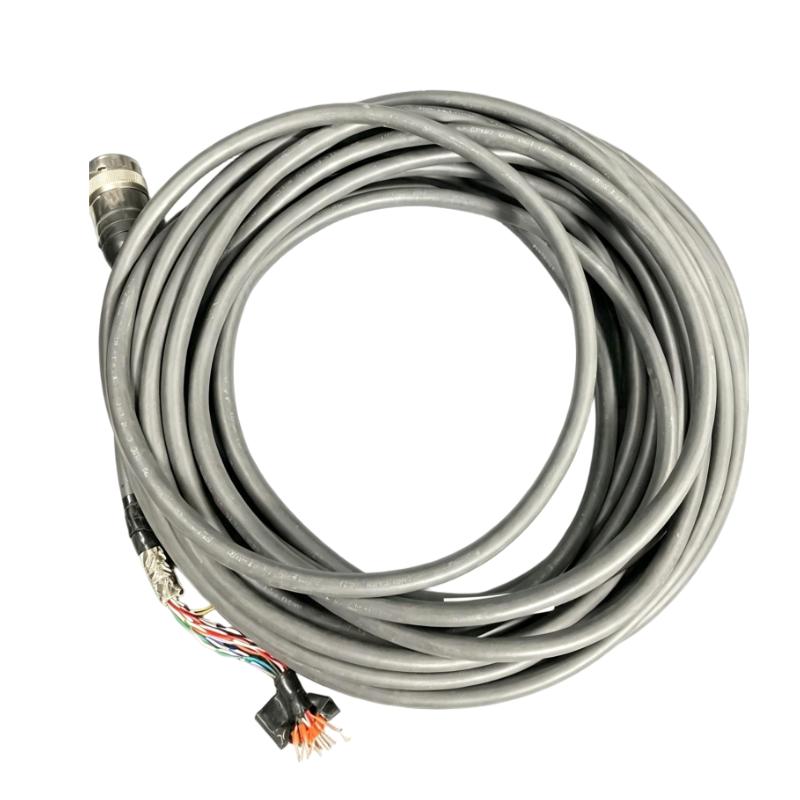

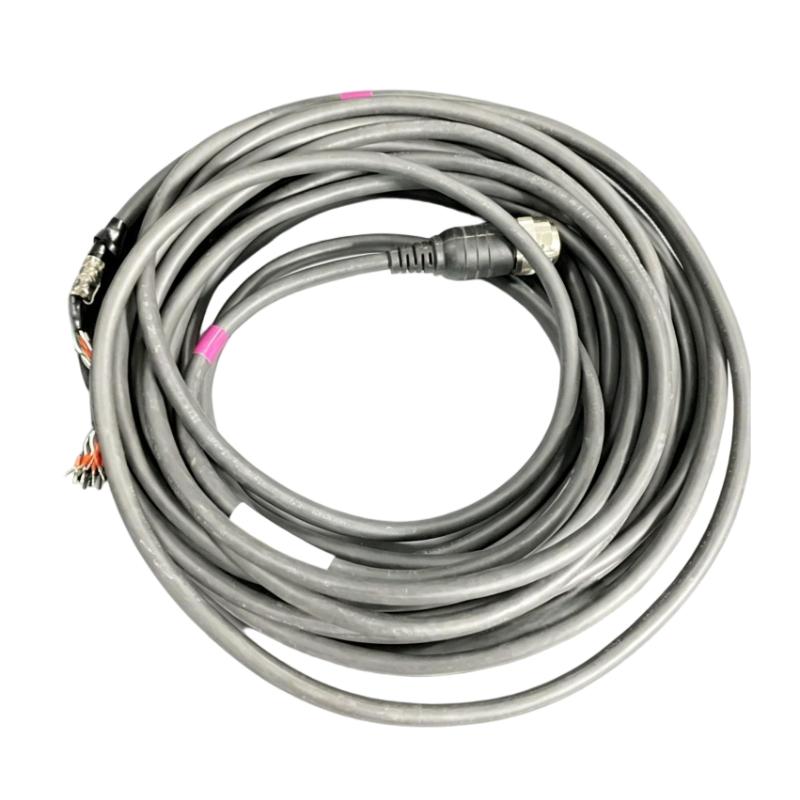

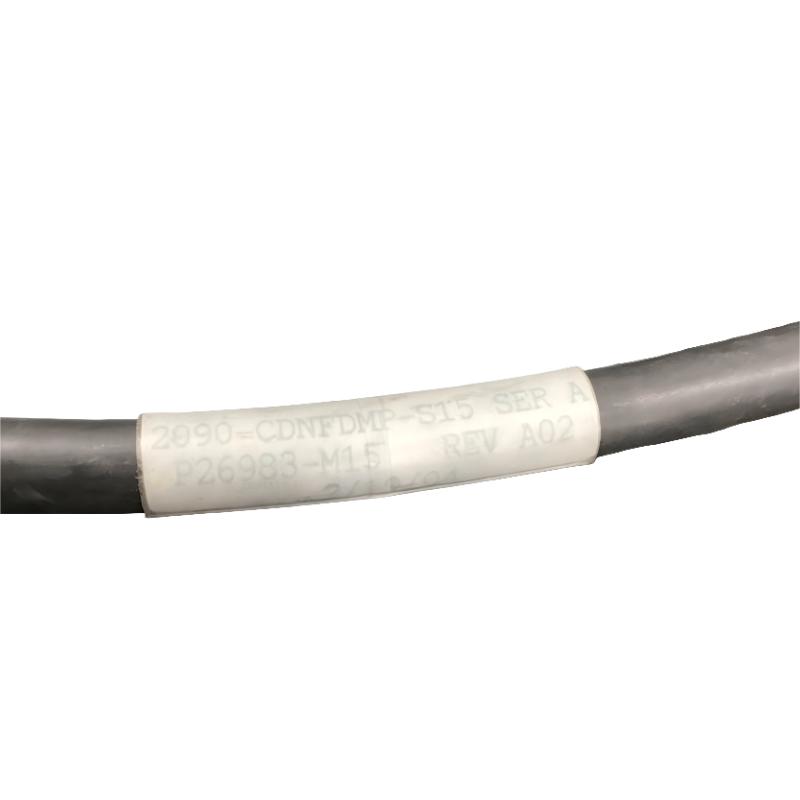

Allen Bradley 2090-CDNFDMP-S15 Servo Feedback Cable
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 2090-CDNFDMP-S15 |
| Product Type | Servo Motor Feedback Cable |
| Product Series | Allen Bradley 2090-Series |
| Application | Servo Motor Feedback / Resolver Feedback |
| Compatible Motor Family | MP-Series / MPL-B Servo Motors |
| Cable Function | Motor Feedback |
| Cable Type | Standard, Non-Flex |
| Cable Length | 15 meters |
| Motor-End Connector | Bayonet, Type E2 |
| Drive-End Connection | Flying Leads |
| Feedback Type | Resolver |
| Cable Jacket Diameter | 9.65 mm |
| Minimum Bend Radius | 96.52 mm |
| Voltage Rating | 300 V |
| Cable Construction | Shielded feedback cable |
| Installation Type | Fixed installation / non-flexing applications |
| Connector Configuration | Bayonet connector to flying leads |
| Suitable Application | Kinetix motion control and MP-Series servo systems |
| Shipping Weight | 3 kg |
FAQ
1. What is the main purpose of the Allen Bradley 2090-CDNFDMP-S15 cable?
The 2090-CDNFDMP-S15 is a motor feedback cable designed to transmit resolver feedback signals between compatible MP-Series servo motors and the associated motion-control system. It provides the feedback connection required by the drive to monitor motor position and related resolver signals during servo operation.
2. Which type of feedback does the 2090-CDNFDMP-S15 support?
This model is designed for resolver feedback applications. It is associated with compatible MP-Series/MPL-B servo motor configurations using the corresponding bayonet feedback interface. The feedback wiring carries resolver-related signals between the motor and drive-side termination.
3. What does the “S15” designation mean?
The S15 suffix identifies the cable length as 15 meters. This makes the cable suitable for installations where the servo motor and drive equipment are separated by a relatively long distance, provided the installation remains within the applicable system requirements.
4. Is the 2090-CDNFDMP-S15 suitable for continuous-flex applications?
No. The 2090-CDNFDMP-S15 is a standard non-flex feedback cable. It is intended for installations where the cable remains substantially stationary after installation. Applications involving repeated robotic movement, cable carriers, or continuous mechanical flexing should use a feedback cable specifically rated for continuous-flex service.
5. What connector arrangement does this feedback cable use?
The motor end uses a Type E2 bayonet connector, while the drive end is provided as flying leads. The flying-lead configuration allows the cable to be terminated through the appropriate drive-side connection method required by the specific motion-control installation.
6. What bend radius should be considered when installing the cable?
The specified minimum bend radius is approximately 96.52 mm. The cable should not be forced into a tighter bend than the recommended radius. Maintaining an appropriate bend radius helps prevent mechanical damage and reduces the possibility of feedback signal problems caused by excessive cable stress.
7. What should be checked if the servo drive reports a feedback or resolver fault?
First inspect the motor-end connector for proper engagement, contamination, damaged contacts, or loose connections. Then check the cable for cuts, crushing, excessive bending, or other physical damage. Verify the flying-lead termination and resolver wiring against the applicable motor and drive connection information. Signal continuity, shielding, and grounding should also be checked before replacing the cable.
8. Can the 2090-CDNFDMP-S15 be used with any Allen Bradley servo motor?
No. Compatibility depends on the motor feedback interface, connector configuration, resolver requirements, and associated motion-control hardware. The cable is intended for compatible MP-Series/MPL-B resolver feedback applications. The motor catalog number and drive configuration should be verified before installation to ensure that the feedback interface and wiring are compatible.
Allen Bradley 2090-CDNFDMP-S15 Servo Feedback Cable is in stock. Please contact us for a quick quote and competitive pricing.
