1. What are the main electrical ratings of the 20AE011A0AYNNNC0?

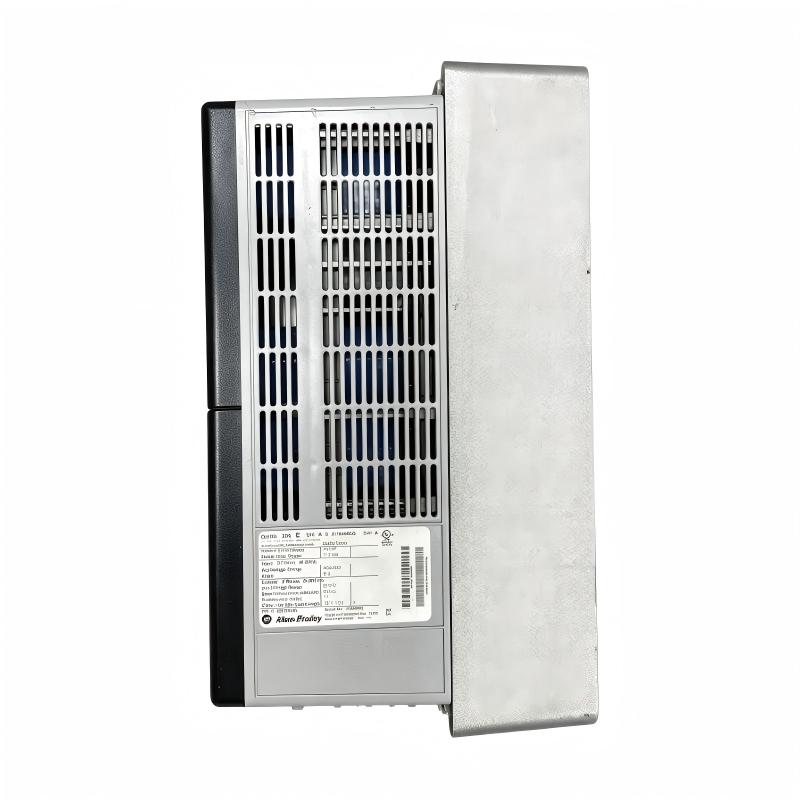

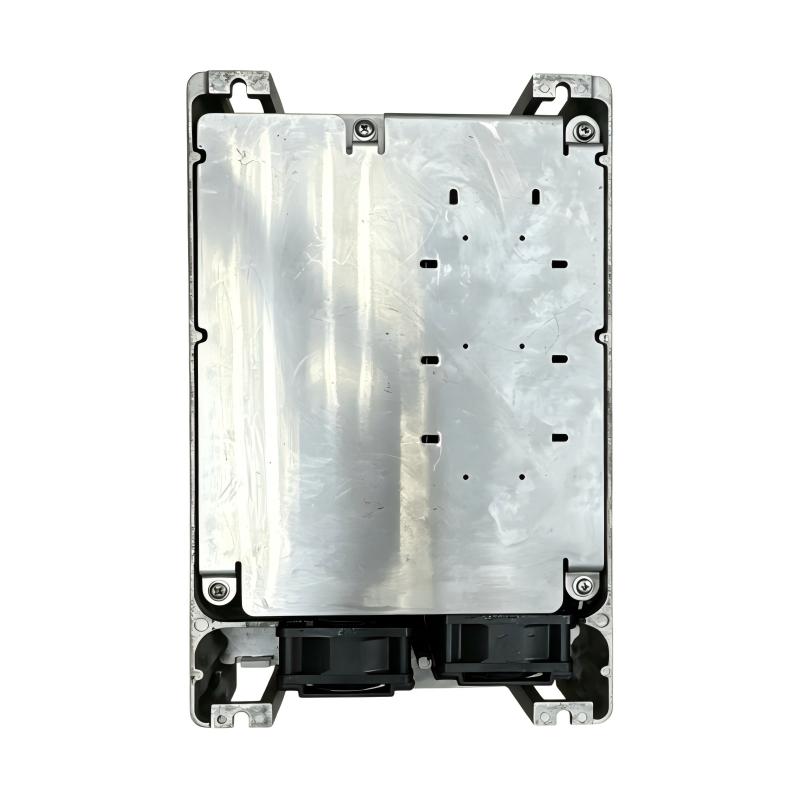

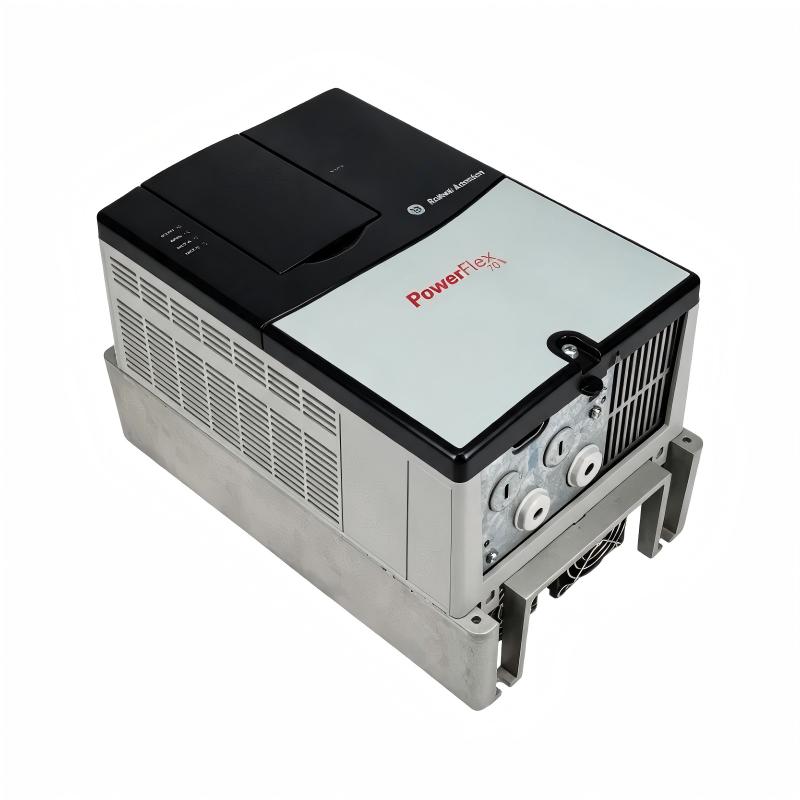

The 20AE011A0AYNNNC0 is a PowerFlex 70 AC drive designed for a 600 VAC three-phase power system. It provides a continuous output current of 11 A, with an overload capability of approximately 13.5 A for one minute and 18 A for three seconds under the specified conditions. Its normal-duty rating is 10 HP (7.5 kW), while the heavy-duty rating is 7.5 HP. When selecting the drive for an application, the motor nameplate current, operating duty, load characteristics, and required acceleration or deceleration performance should all be considered rather than selecting the drive only by motor horsepower.

2. What type of motor applications is the 20AE011A0AYNNNC0 suitable for?
This drive is intended for variable-speed control of three-phase AC motors in industrial equipment. The Enhanced Control configuration provides adjustable motor control for applications where controlled starting, stopping, acceleration, deceleration, and speed regulation are required. Typical applications can include conveyors, pumps, fans, material-handling machinery, process equipment, and general-purpose industrial motor systems. The actual suitability should be determined from the motor’s rated current and the mechanical requirements of the driven load.

3. Does the 20AE011A0AYNNNC0 have an internal braking function?
Yes. The 20AE011A0AYNNNC0 is equipped with a brake IGBT. However, the specified configuration does not include a drive-mounted internal braking resistor. When an application requires rapid deceleration or operates with a high-inertia load, regenerative energy can increase the DC bus voltage during deceleration. An appropriate external braking arrangement may therefore be required. The braking resistor should be selected according to the required braking duty, resistance requirements, energy absorption capability, and installation conditions.

4. What control and I/O functions are available on the 20AE011A0AYNNNC0?
The drive uses Enhanced Control and provides six digital inputs, two digital outputs, two analog inputs, and one analog output. These I/O resources can be used for common drive-control functions such as start and stop commands, direction control, speed reference, operating status, and fault-related signals. The exact function assigned to each terminal depends on the drive parameter configuration. During commissioning, the programmed I/O functions should be checked against the machine control sequence to prevent incorrect operation.

5. Does the 20AE011A0AYNNNC0 include an Ethernet or other communication module?
The standard configuration does not include an internal communication module. Therefore, communication with a PLC, DCS, SCADA system, or other control equipment may require an appropriate communication option. The PowerFlex 70 platform supports various communication solutions, but the required option should be selected according to the control system and network protocol used at the installation site. For systems using network control, communication parameters, node addressing, command sources, and speed-reference sources should be verified during commissioning.

6. Does the 20AE011A0AYNNNC0 support encoder feedback?
The specified configuration is supplied without a feedback option. This means the standard drive configuration does not provide an installed encoder feedback interface. Applications that require closed-loop speed regulation, improved low-speed performance, or encoder-based control should be evaluated separately to determine whether an appropriate feedback option is required. The required feedback accuracy and control mode should be established before selecting the final drive configuration.

7. What should be checked if the drive trips on overcurrent during motor acceleration?
An acceleration overcurrent condition should first be investigated from both the electrical and mechanical sides. Check whether the motor nameplate data has been correctly entered into the drive and verify that the motor cable connections are correct and free from insulation or phase faults. The driven machine should also be checked for excessive friction, mechanical blockage, excessive inertia, or an abnormal starting load. If the acceleration time is set too short, the drive may need to supply a high current to accelerate the motor rapidly. Increasing the acceleration time can reduce the required acceleration torque and current. The drive’s fault code and stored operating data should also be reviewed to determine whether the condition is related specifically to acceleration, load demand, or another protection function.

8. What environmental conditions should be considered when installing the 20AE011A0AYNNNC0?
Installation should take into account ambient temperature, humidity, altitude, ventilation, dust, and mechanical vibration. The specified maximum altitude without derating is 1000 m, while the permitted relative humidity is 5–95% without condensation. Adequate airflow around the drive is important because heat generated during operation must be dissipated effectively. The installation area should also protect the drive from excessive moisture, conductive contamination, corrosive substances, and conditions outside its specified environmental limits. For installations at higher altitudes or in demanding environments, the drive’s applicable derating and enclosure requirements should be evaluated before commissioning.
