Technical Specifications

FAQ

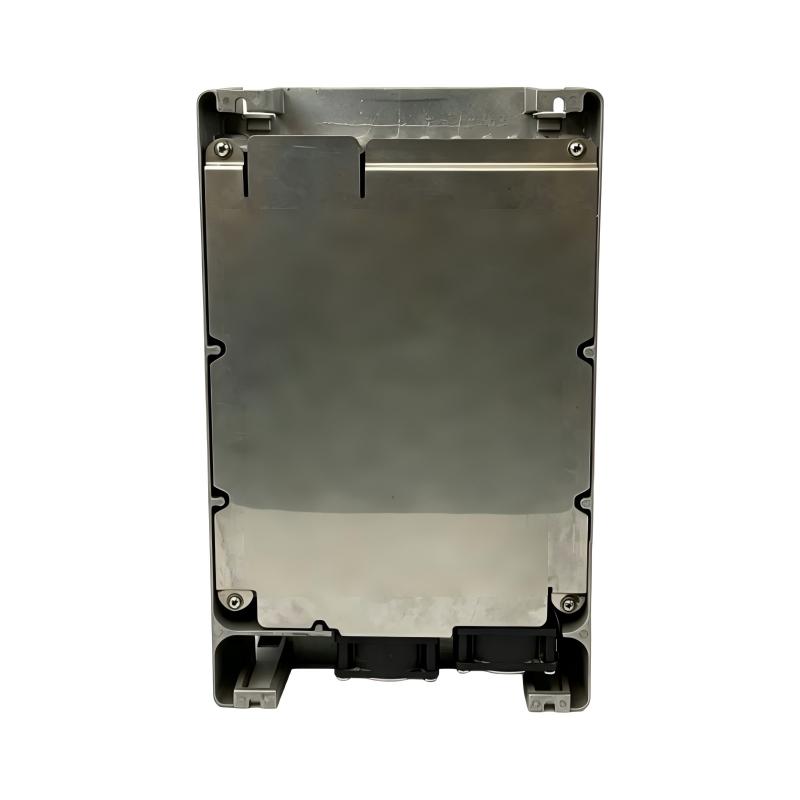

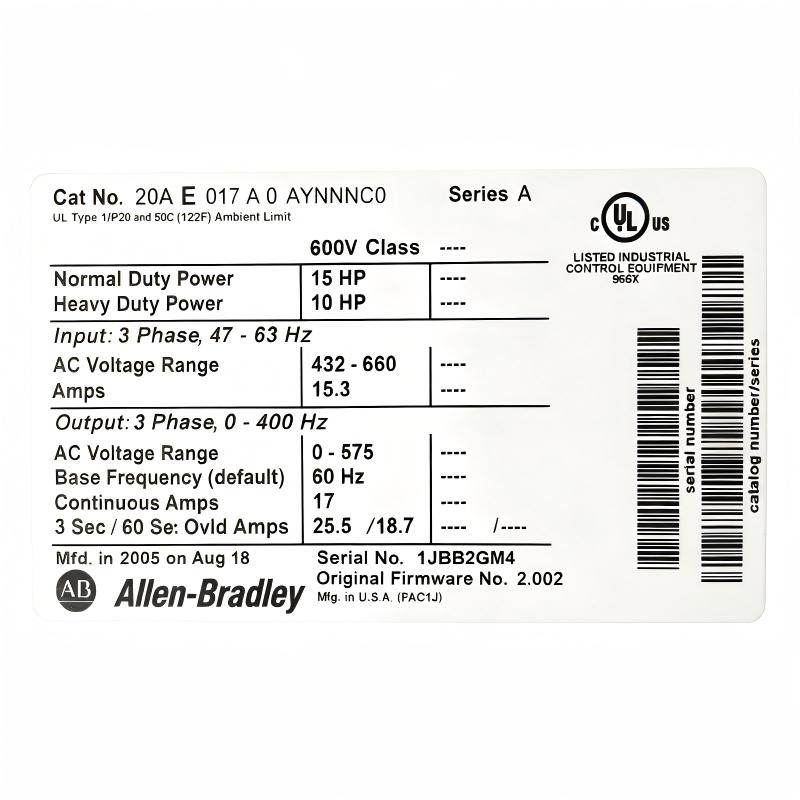

1. What are the rated current and power ratings of the 20AE017A0AYNNNC0?
The 20AE017A0AYNNNC0 has a rated output current of 17 A and a normal-duty power rating of 15 HP (11 kW). Its heavy-duty power rating is 10 HP (7.5 kW), and it is designed for a 600 VAC three-phase power system. When selecting this drive for a motor application, the motor nameplate current should be treated as an important selection parameter. Load characteristics, starting torque, operating cycle, acceleration requirements, and overload conditions should also be considered to ensure the drive is correctly matched to the application.

2. What type of motor control does the 20AE017A0AYNNNC0 provide?
The 20AE017A0AYNNNC0 uses an Enhanced Control configuration for variable-speed control of three-phase AC motors. By regulating output frequency and voltage, the drive can control motor starting, stopping, acceleration, deceleration, and operating speed. The appropriate control parameters should be configured according to the motor and application requirements. During commissioning, motor nameplate information such as rated voltage, rated current, and rated frequency should be entered correctly to establish stable motor operation and appropriate protection settings.

3. Does the 20AE017A0AYNNNC0 include a braking function?
Yes. The drive includes an internal braking IGBT for dynamic braking applications, but an internal braking resistor is not included. When a high-inertia load is decelerated, regenerative energy can flow back into the drive and increase the DC bus voltage. If the application requires short deceleration times, an external braking resistor may therefore be required. The resistor should be selected according to the drive requirements, braking energy, duty cycle, and load characteristics. Proper ventilation should also be provided because the braking resistor can generate considerable heat during operation.

4. Can the 20AE017A0AYNNNC0 communicate with a PLC or DCS?
The specified configuration does not include an internal communication module. If the drive needs to communicate with a PLC, DCS, SCADA system, or another industrial controller, an appropriate communication option may be required based on the selected network protocol. The available digital and analog I/O can also be used for hardwired control, including start, stop, speed reference, status monitoring, and fault signaling. For network-based control, communication addressing, command source, speed reference source, and status feedback should be configured and tested before placing the equipment into normal operation.

5. What I/O interfaces are available on the 20AE017A0AYNNNC0?
The 20AE017A0AYNNNC0 provides six digital inputs, two digital outputs, two analog inputs, and one analog output. These I/O points can be configured for functions such as start and stop commands, forward and reverse control, speed reference, drive status, fault indication, and equipment interlocking. For example, an analog input can be used for an external speed reference, while digital inputs can receive control commands from switches or a PLC. The exact function of each terminal depends on the configured drive parameters and the control architecture of the machine.

6. What should be checked if the 20AE017A0AYNNNC0 trips on overcurrent during startup?
If an overcurrent fault occurs during startup, first verify that the motor data programmed into the drive matches the motor nameplate, including rated voltage, current, and frequency. The motor cable and connections should then be inspected for short circuits, ground faults, insulation problems, or incorrect phase connections. Mechanical conditions should also be checked for excessive friction, locked components, abnormal starting loads, or excessive load inertia. If the acceleration time is too short, the drive may need to produce a high amount of torque in a short period, resulting in increased output current. Increasing the acceleration time may help reduce the starting current demand. The recorded fault code and drive operating parameters should also be reviewed to identify the specific cause.

7. What can cause an overvoltage fault during deceleration on the 20AE017A0AYNNNC0?
An overvoltage fault during deceleration is commonly associated with regenerative energy from the driven load. When a high-inertia load decelerates, the rotating load can continue driving the motor, causing energy to return to the drive’s DC bus. If the deceleration time is too short, the regenerative energy can cause the DC bus voltage to rise rapidly. The deceleration time can be increased when the process allows it. For applications requiring rapid stopping, the dynamic braking system should be checked to ensure that the external braking resistor is correctly selected and capable of absorbing the required braking energy.

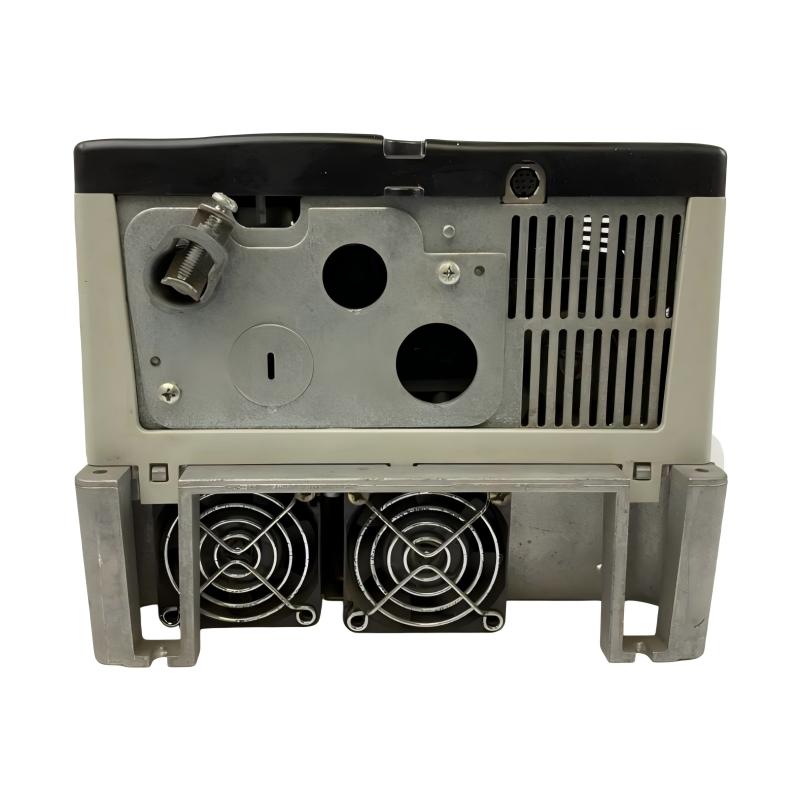

8. What environmental and electrical conditions should be considered when installing the 20AE017A0AYNNNC0?
The 20AE017A0AYNNNC0 is designed for panel mounting and has an IP20 / NEMA/UL Type 1 enclosure rating. The specified operating temperature range is 0–50 °C, and the operating humidity range is 5–95% without condensation. Adequate cabinet ventilation and heat dissipation should be provided to prevent excessive internal temperature. The installation environment should also be protected from excessive moisture, conductive dust, corrosive substances, and other conditions outside the drive’s specified environmental limits. The 600 VAC three-phase supply should be verified before energizing the drive. After wiring, grounding, motor connections, control terminals, and interlock signals should be checked carefully. Before full-load operation, the drive should be commissioned progressively to verify motor direction, acceleration, deceleration, current, and protection functions.
