1. What type of motor applications is the Allen-Bradley 20BB070A0ANNANC0 designed for?

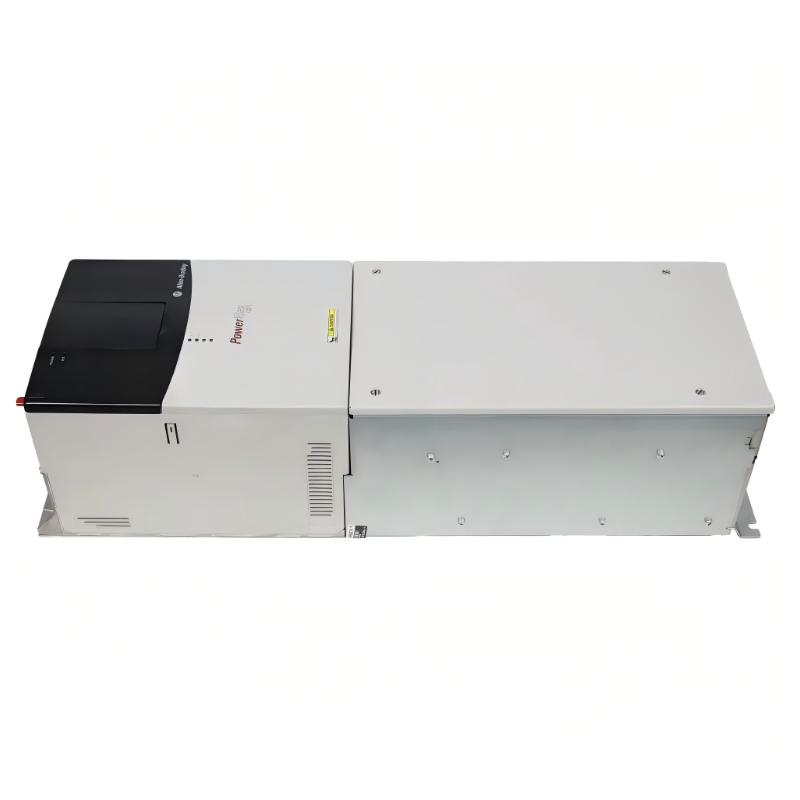

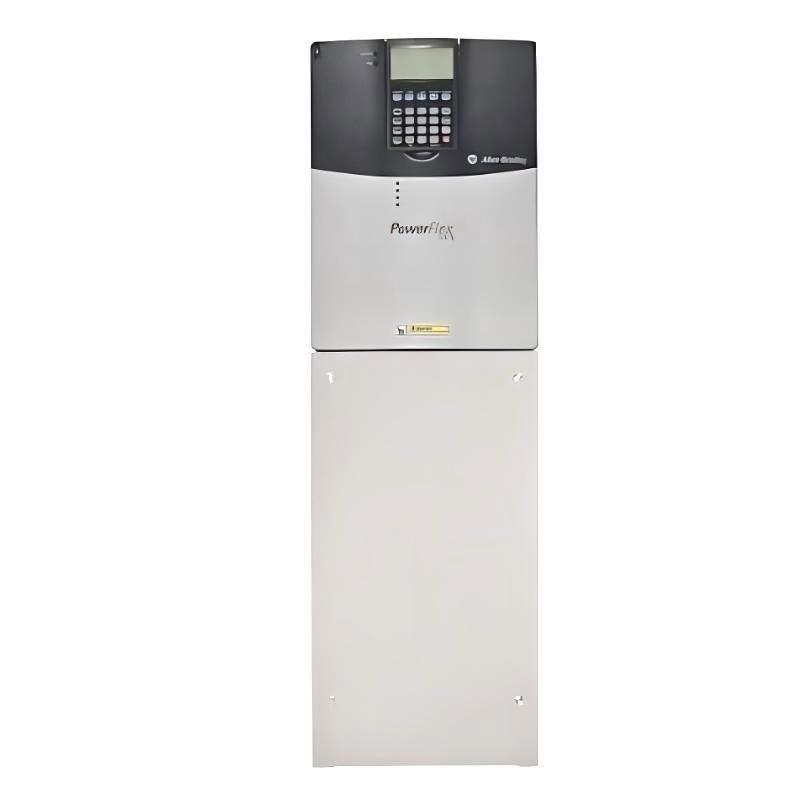

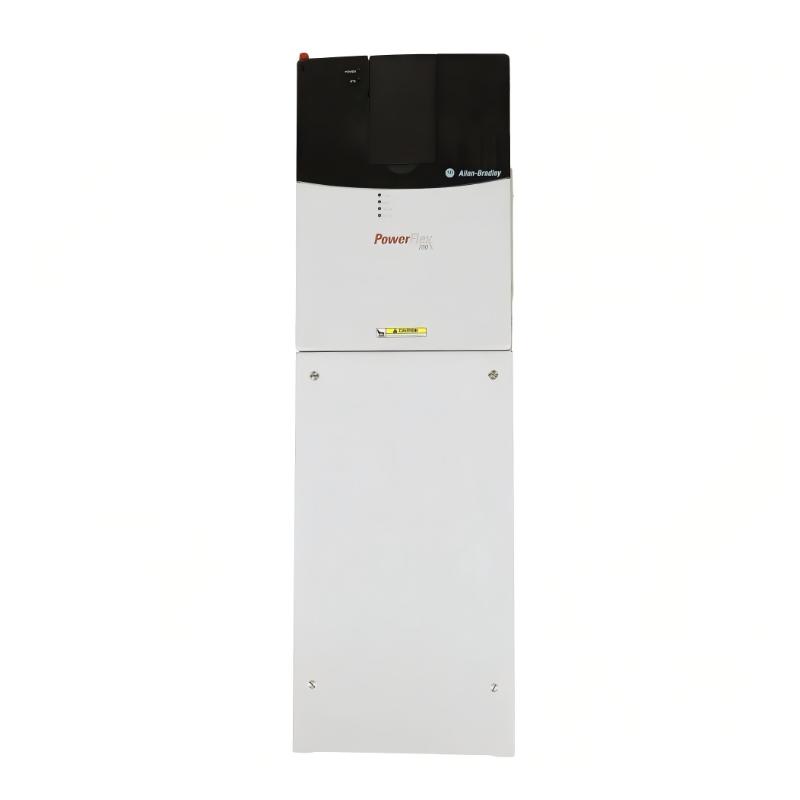

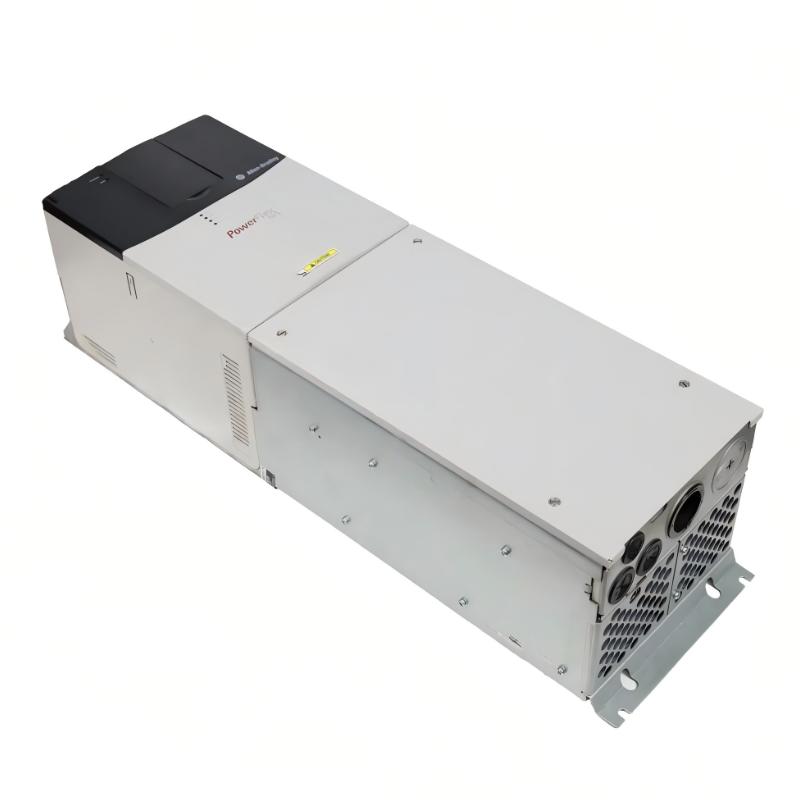

The Allen-Bradley 20BB070A0ANNANC0 is a PowerFlex 700 AC drive designed for controlling three-phase AC motors in industrial automation systems. It can regulate motor speed and operating torque by controlling the output frequency and voltage supplied to the motor. With a 70 A continuous output rating and a normal-duty rating of 25 HP, the drive can be used for a wide range of industrial equipment, including conveyors, pumps, fans, processing machinery, material-handling systems, and other variable-speed applications. Its vector control capability provides more precise motor control than basic scalar control, making it suitable for applications where stable speed and improved torque response are important.

2. What are the input voltage and phase requirements for the 20BB070A0ANNANC0?

The 20BB070A0ANNANC0 is designed for a 208–240 VAC, three-phase input power supply. Before installation, the incoming power should be checked carefully to ensure that the voltage and phase configuration are compatible with the drive rating. The power supply should also be properly protected using suitable upstream circuit protection and disconnect equipment. Incorrect input voltage, improper wiring, or an unsuitable power source can result in undervoltage, overvoltage, excessive current, or drive faults. The incoming power system should therefore be verified before the drive is energized and commissioned.

3. What is the rated output current of the 20BB070A0ANNANC0?

The 20BB070A0ANNANC0 has a continuous output current rating of 70 A. Its short-term overload capability allows higher current under specific operating conditions, with the drive capable of providing approximately 78 A for one minute and up to 105 A for a short three-second period. When selecting a motor for this drive, engineers should compare the motor’s full-load current with the drive’s rated output current rather than relying only on the motor horsepower. Applications involving frequent acceleration, heavy starting loads, high inertia, or rapid changes in speed should be evaluated carefully to ensure that the drive is not continuously operated beyond its rated capacity.

4. Does the 20BB070A0ANNANC0 have an internal braking resistor?

The 20BB070A0ANNANC0 does not include an internal braking resistor, and this configuration does not include an internal brake IGBT. This is an important consideration for applications where the motor must decelerate quickly or where the connected load can return significant regenerative energy to the drive. Examples include high-inertia machinery, rapid-stop applications, hoisting equipment, and certain material-handling systems. If dynamic braking is required, the complete braking solution should be evaluated according to the motor characteristics, load inertia, stopping frequency, deceleration time, and regenerative energy generated during operation. The braking requirements should be determined during system design rather than after commissioning.

5. Can the 20BB070A0ANNANC0 communicate with a PLC or DCS system?

The standard 20BB070A0ANNANC0 configuration does not include a communication module. However, PowerFlex 700 systems can be integrated into industrial automation architectures using appropriate communication options and control interfaces. When the drive is intended to operate with a PLC, DCS, HMI, or supervisory control system, the required communication method should be determined before installation. Engineers should consider the required protocol, network architecture, command structure, speed reference, status information, diagnostic data, and control response requirements. If the application depends on network-based control, the appropriate communication hardware and configuration should be selected to match the automation system.

6. What control method does the 20BB070A0ANNANC0 use?

The 20BB070A0ANNANC0 uses vector control to provide improved control of AC motor speed and torque. Vector control can provide better motor response and more stable operation under changing load conditions compared with simple V/Hz control. The drive also provides 24 V I/O for control functions, allowing it to be incorporated into conventional industrial control circuits. During commissioning, important motor nameplate information such as rated voltage, rated current, frequency, and speed should be entered accurately. Correct motor parameter configuration is essential because incorrect values can reduce control performance, increase motor current, or cause unnecessary drive faults during acceleration and normal operation.

7. How should an overcurrent fault on the 20BB070A0ANNANC0 be diagnosed?

When an overcurrent fault occurs, troubleshooting should begin by determining whether the problem originates from the motor, mechanical load, wiring, or drive configuration. First, inspect the connected machinery for mechanical blockage, excessive friction, seized components, or an unexpectedly high load. Next, inspect the motor power cables for short circuits, damaged insulation, incorrect connections, or grounding problems. The motor nameplate data programmed into the drive should also be checked to make sure that voltage, current, frequency, and other relevant parameters are correct. An acceleration time that is too short can also cause excessive current because the drive must produce a large amount of torque in a very short period. If the mechanical system, motor, wiring, and parameters are confirmed to be normal, further inspection of the drive’s power section and output circuitry may be necessary.

8. What should be checked if the motor does not run after the 20BB070A0ANNANC0 receives power?

If the drive powers up but the motor does not start, troubleshooting should begin with the control command and operating status of the drive. Verify that a valid start or run command is being received and that the relevant 24 V I/O signals are in the expected states. The commanded frequency or speed reference should also be checked to confirm that it is not zero or being limited by another control condition. Next, check the drive display and status information for active faults, alarms, inhibit conditions, or interlocks that may prevent operation. The motor output wiring and motor connections should also be inspected. If the drive is controlled by a PLC or DCS, the control program should be checked for permissive conditions, emergency-stop logic, interlocks, output states, and communication commands. A systematic check of the power supply, control signals, operating parameters, motor connection, and automation logic can usually help identify why the drive is not issuing the expected motor output.
