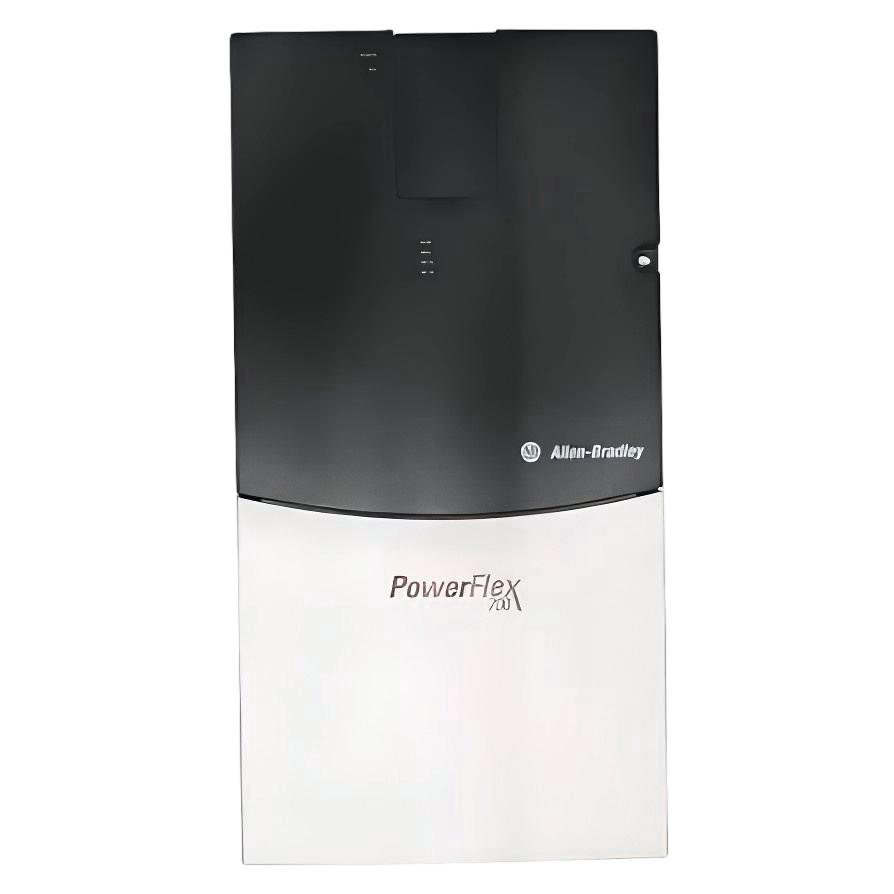

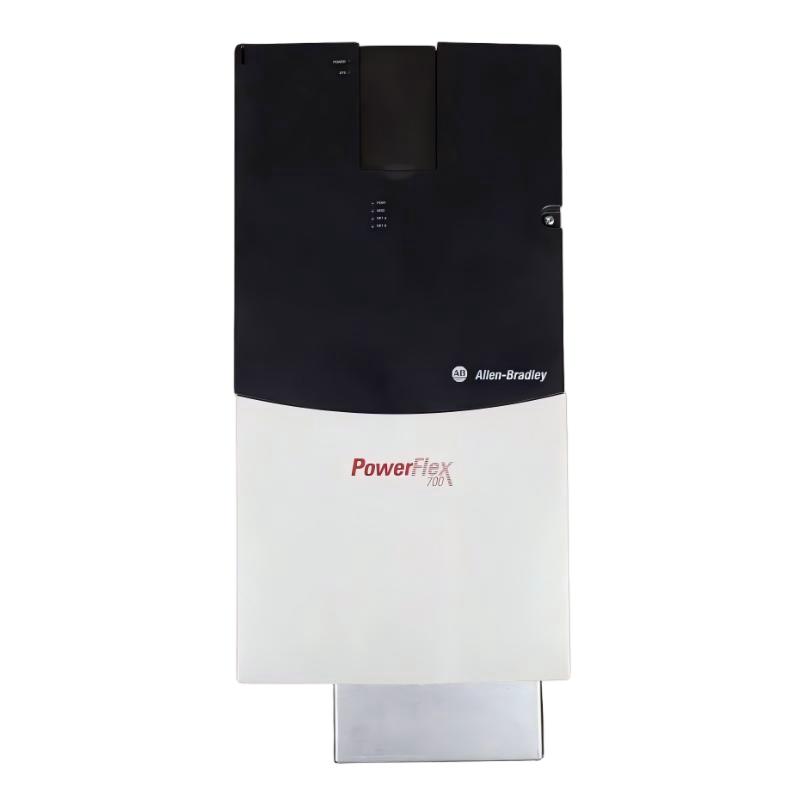

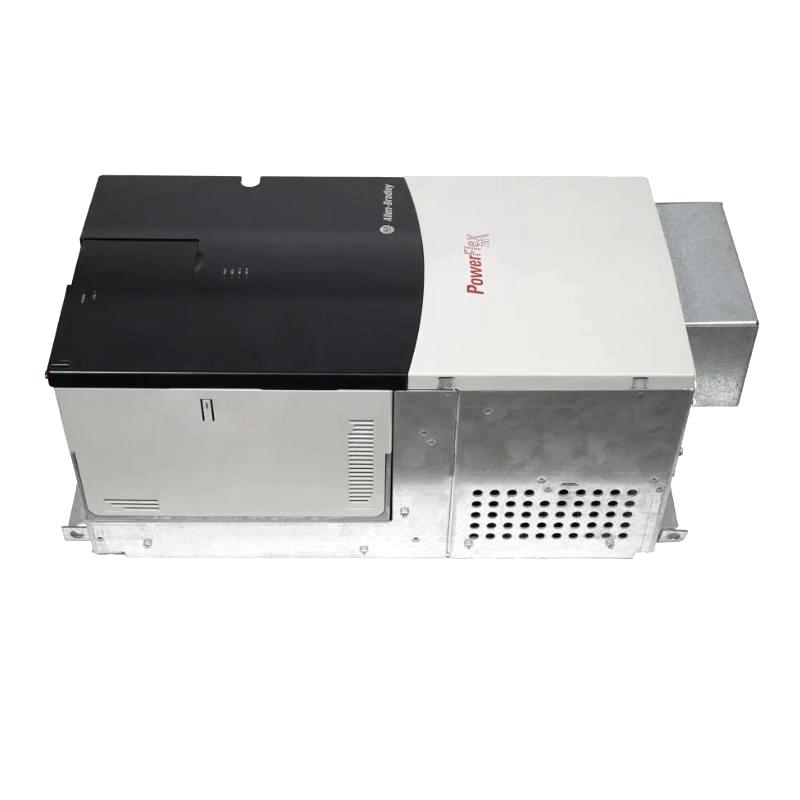

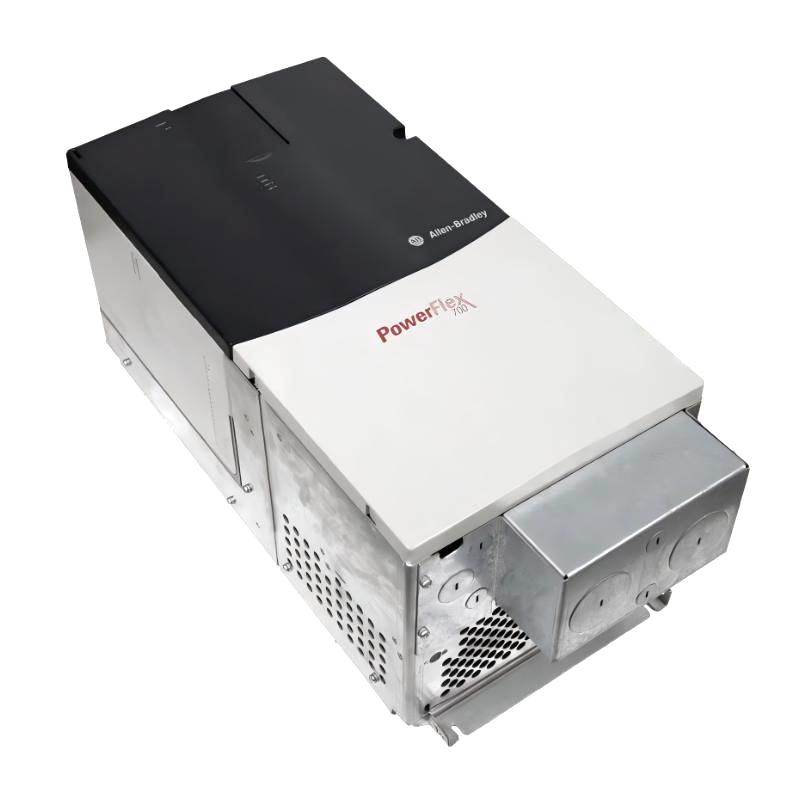

1. What is the rated output current of the Allen-Bradley 20BB104A0ANNANC0?

The Allen-Bradley 20BB104A0ANNANC0 PowerFlex 700 AC Drive provides different output ratings depending on the required duty level. Under normal-duty operation, the continuous output current is 104 A, with an overload capability of 115 A for one minute and 175 A for three seconds. Under heavy-duty operation, the continuous output current is 80 A, with 120 A available for one minute and 160 A for three seconds. When selecting this drive for an application, the actual motor full-load current and load characteristics should be evaluated rather than selecting the drive based only on horsepower. Applications involving frequent acceleration, high starting torque, rapid speed changes, or extended heavy loading should be checked against the appropriate heavy-duty rating.

2. What motor power rating is suitable for the 20BB104A0ANNANC0?

The 20BB104A0ANNANC0 is rated for 40 HP (30 kW) under normal-duty conditions and 30 HP (22 kW) under heavy-duty conditions. The appropriate rating depends on the application and the operating load profile. Equipment such as pumps and fans with relatively stable load characteristics may be evaluated using the normal-duty rating, while conveyors, processing machinery, and other equipment requiring higher starting torque may require the heavy-duty rating. Motor selection should also consider the motor nameplate current, acceleration requirements, operating speed, mechanical load, and duty cycle. The drive should not be selected solely by matching the nominal motor horsepower because the actual motor current and application load can have a significant effect on drive sizing.

3. What input power supply does the 20BB104A0ANNANC0 require?

The 20BB104A0ANNANC0 is designed for a 200–240 VAC three-phase input supply, with a rated input voltage of 240 VAC. Before installation, the incoming power system should be verified to ensure that the voltage is within the required operating range and that a suitable three-phase supply is available. Proper upstream circuit protection, disconnect equipment, grounding, and correctly sized power conductors should also be provided. An incorrect or unstable input supply can cause undervoltage, overvoltage, input protection faults, or unexpected drive shutdowns. The three-phase input voltage should therefore be measured and verified before the drive is energized for commissioning.

4. Does the 20BB104A0ANNANC0 have an internal braking resistor?

The standard 20BB104A0ANNANC0 configuration does not include an internal braking resistor. This should be considered carefully when the drive is installed on equipment with high rotational inertia or applications requiring rapid and repeated deceleration. During deceleration, the motor can operate as a generator and return energy to the drive’s DC bus, causing the DC-bus voltage to increase. If the application requires short stopping times or frequent braking cycles, the regenerative energy should be evaluated based on motor power, load inertia, deceleration time, operating cycle, and stopping frequency. An external braking solution may be necessary when the regenerative energy cannot be adequately handled by the standard drive configuration.

5. What control and I/O functions are available on the 20BB104A0ANNANC0?

The 20BB104A0ANNANC0 provides a range of conventional control I/O functions, including two analog inputs, two analog outputs, six digital inputs, and three digital outputs. These I/O points can be used to integrate the drive with industrial control panels, PLC systems, DCS systems, and other automation equipment. Analog inputs can be used for variable reference signals such as speed commands, while analog outputs can provide operating feedback to an external control system. Digital inputs and outputs can be assigned to functions such as start, stop, direction, enable, fault indication, and other machine-control functions. The exact I/O assignments should be configured according to the control architecture and the requirements of the specific application.

6. What is the maximum output frequency of the 20BB104A0ANNANC0?

The 20BB104A0ANNANC0 can provide an output frequency of up to 420 Hz. However, the maximum available frequency should not automatically be treated as the recommended operating frequency for every motor. The actual frequency limit should be determined according to the motor nameplate data, motor maximum permissible speed, mechanical equipment limitations, and application requirements. Increasing the output frequency increases motor speed, which can place additional mechanical stress on bearings, couplings, fans, pumps, gearboxes, and other rotating components. For high-frequency applications, the motor and driven equipment should therefore be verified for the intended operating speed before the frequency limit is increased.

7. How should an overcurrent fault on the 20BB104A0ANNANC0 be diagnosed?

When an overcurrent fault occurs, troubleshooting should begin with the mechanical load before assuming that the drive itself has failed. Check whether the driven machine has become jammed, overloaded, or mechanically restricted. Bearings, couplings, gearboxes, shafts, and other mechanical components should be inspected for abnormal friction or blockage. The motor power cables and terminals should then be checked for phase-to-phase shorts, ground faults, damaged insulation, loose connections, or incorrect wiring. The motor parameters programmed into the drive should also be compared with the actual motor nameplate information, including rated voltage, current, frequency, and speed. If the acceleration time is too short for the mechanical load, the motor may draw excessive current during acceleration, so acceleration settings should also be reviewed. If the external load, motor, wiring, and parameters are all confirmed to be normal, the drive’s output power section and associated components should be investigated for possible electrical problems.

8. Why does the motor fail to start even though the 20BB104A0ANNANC0 is powered?

If the 20BB104A0ANNANC0 is powered but the motor does not start, the first step is to check whether the drive is actually receiving a valid run command and whether it is in a state that permits operation. The drive should be checked for active faults, alarms, inhibit conditions, interlocks, or other operating restrictions. The digital input signals used for start, stop, enable, or other control functions should be verified to ensure that they are in the correct states. If an analog signal is used as the speed reference, the input signal should also be measured to confirm that a valid frequency or speed command is being provided. In PLC- or DCS-controlled systems, the control program should be checked for permissive logic, emergency-stop conditions, interlocks, sequence requirements, and output states. Motor connections and output terminals should also be inspected. A systematic check of drive status, control signals, reference commands, programmed parameters, motor wiring, and PLC/DCS logic can identify the cause without unnecessarily replacing the drive.
