1. What are the rated power and output current of the 20BC085A0ANNAND0?

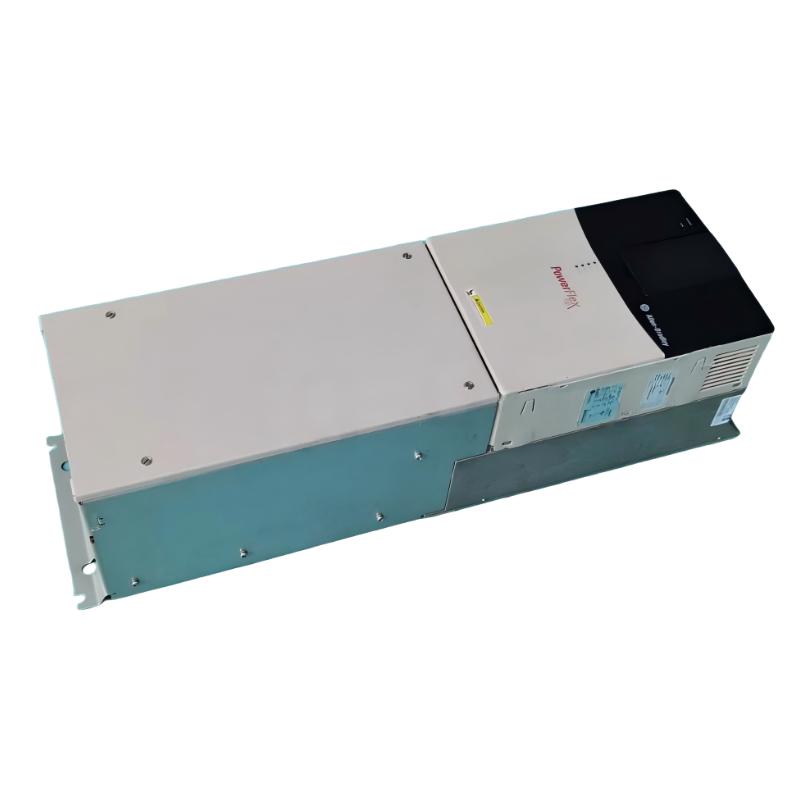

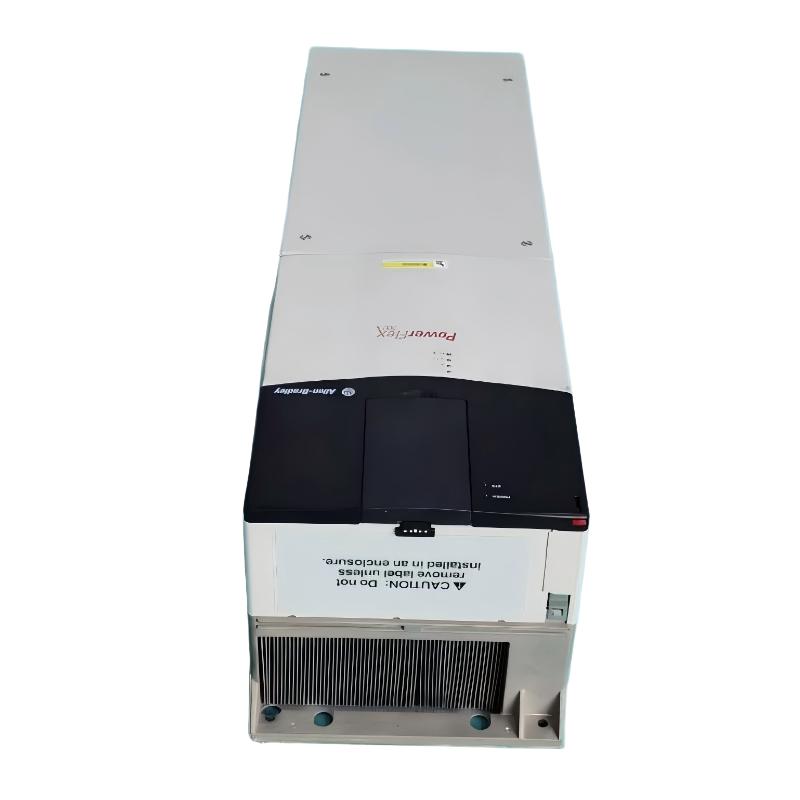

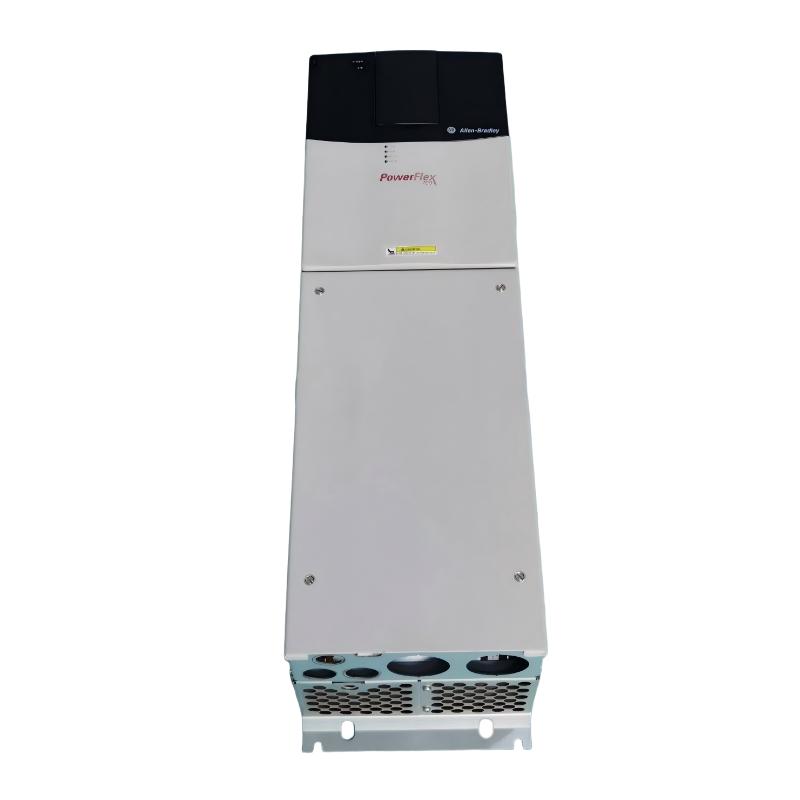

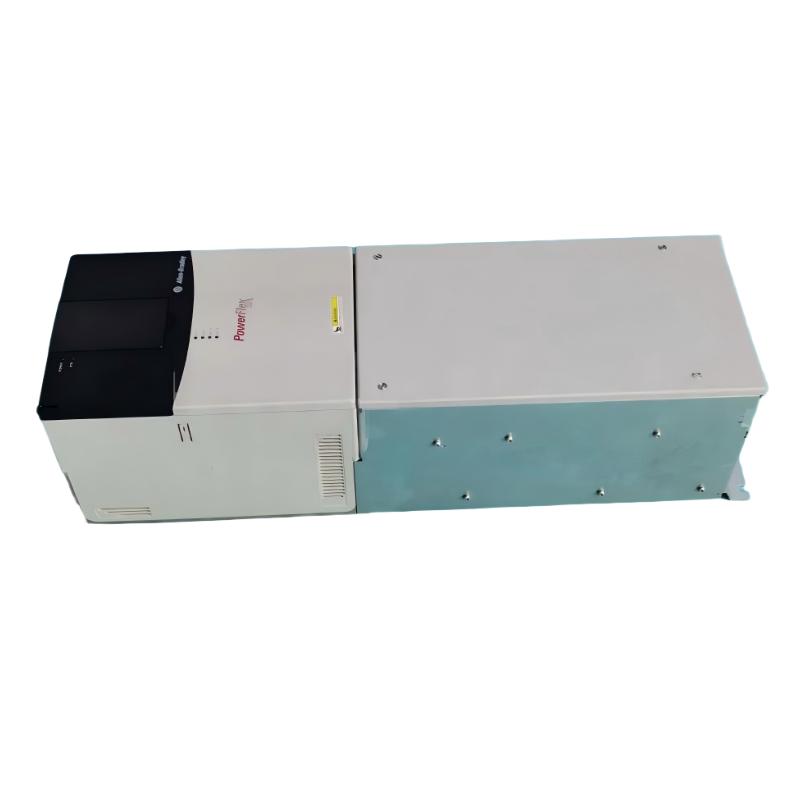

The 20BC085A0ANNAND0 is a PowerFlex 700 AC drive with a rated output current of 85 A. Its normal-duty power rating is approximately 45 kW, while the heavy-duty rating is approximately 37 kW. When selecting this drive for a motor application, the motor nameplate current should be considered more important than power alone. The actual motor current must remain within the drive’s applicable output-current capability under the required operating duty. Load type, acceleration requirements, starting conditions, ambient temperature, and expected overload conditions should also be considered. For applications such as conveyors, pumps, fans, compressors, and other industrial machinery, matching the drive’s current rating to the motor’s actual operating requirements helps prevent nuisance overcurrent or thermal protection trips.

2. What input power supply is required for the 20BC085A0ANNAND0?

The 20BC085A0ANNAND0 is designed for a three-phase AC power supply in the 380–480 VAC range, with 400 VAC being a typical rated supply voltage. Before installation, the incoming power should be checked to make sure that the voltage, phase configuration, and frequency are compatible with the drive. The incoming disconnect, circuit protection, power cables, grounding system, and other upstream components should also be selected according to the drive rating and the applicable electrical installation requirements. If the industrial power system experiences frequent voltage fluctuations, severe voltage imbalance, or other power-quality problems, these conditions should be corrected or evaluated before commissioning because abnormal input power can contribute to DC-bus faults, overheating, and unstable drive operation.

3. What control and I/O capabilities are available on the 20BC085A0ANNAND0?

The 20BC085A0ANNAND0 provides a combination of digital and analog I/O for integration with industrial control systems. The drive has six digital inputs, three digital outputs, two analog inputs, and two analog outputs. These interfaces can be used for functions such as start and stop commands, speed references, status signals, fault indications, and integration with external control equipment. The available I/O can be configured according to the application requirements and control architecture. When commissioning the drive, the control terminals should be checked carefully against the electrical drawings because incorrect signal wiring or incorrect parameter assignments can result in unexpected starting, incorrect speed reference signals, or failure of external interlocks.

4. Does the 20BC085A0ANNAND0 include an internal braking resistor?

The 20BC085A0ANNAND0 does not include an internal braking resistor. This is important for applications where the motor and connected machinery have significant inertia or where rapid and repeated deceleration is required. During deceleration, a motor can operate as a generator and return energy to the drive’s DC bus. If the regenerated energy is greater than the drive can absorb, the DC-bus voltage can increase and eventually cause an overvoltage fault. For applications requiring short deceleration times, frequent stopping, or high-inertia loads, an external braking solution may therefore be required. The braking resistor value, power rating, and duty cycle should be selected according to the actual regenerated energy and operating cycle rather than simply choosing a resistor based on the motor power rating.

5. What installation conditions should be considered to prevent overheating?

Proper thermal management is essential when installing the 20BC085A0ANNAND0 in an industrial control cabinet or electrical enclosure. The drive should be installed in a location that provides adequate ventilation and sufficient clearance for heat dissipation. Airflow around the cooling path must not be blocked by other equipment, wiring, dust, or cabinet structures. If several heat-producing components are installed in the same enclosure, the total cabinet heat load should also be considered when determining whether additional ventilation or cooling is necessary. Excessive ambient temperature can reduce the drive’s thermal margin and may result in overtemperature protection or reduced service life of internal components. Regular maintenance should include checking cooling passages, removing accumulated dust, and verifying that cooling fans and other thermal-management components are operating correctly.

6. What should be checked when the 20BC085A0ANNAND0 reports an overcurrent fault?

An overcurrent fault should be investigated systematically rather than simply resetting the drive. First, check whether the motor or driven machine is mechanically blocked, overloaded, or experiencing excessive friction. Next, inspect the motor output wiring for short circuits, insulation problems, incorrect connections, or grounding issues. If the mechanical and electrical connections appear normal, review the acceleration time and motor control parameters. An acceleration time that is too short can require excessive current from the drive, particularly when starting a high-inertia load. The motor nameplate data should also be entered correctly so that the drive’s control algorithm has accurate voltage, current, frequency, and speed information. If overcurrent occurs repeatedly during normal operation rather than only during acceleration, the load profile, motor condition, drive parameters, and output circuit should all be examined to identify the underlying cause.

7. What can cause a DC-bus overvoltage fault on the 20BC085A0ANNAND0?

A DC-bus overvoltage fault commonly occurs when regenerative energy from the motor causes the internal DC-bus voltage to rise above the permissible operating level. This situation is especially common when a high-inertia load is stopped too quickly, when the deceleration time is too short, or when the application frequently accelerates and decelerates. Vertical lifting equipment and certain high-inertia machines can produce particularly significant regenerative energy. The input power supply should also be checked because excessive incoming voltage can contribute to a high DC-bus condition. During troubleshooting, review the deceleration settings, load characteristics, operating cycle, and incoming voltage. If the process requires rapid or repeated deceleration, an appropriately sized external braking system or another regenerative-energy management solution may be necessary.

8. What maintenance procedures are recommended for long-term operation of the 20BC085A0ANNAND0?

Long-term maintenance should focus on cooling performance, electrical connections, environmental conditions, and historical fault information. The drive’s ventilation passages should be inspected regularly and cleaned when dust or contamination begins to restrict airflow. Cooling fans should be checked for abnormal noise, reduced speed, or failure. Power terminals, motor connections, grounding points, and control wiring should also be inspected because vibration and repeated thermal cycling can gradually loosen electrical connections. In dusty, humid, or chemically aggressive industrial environments, maintenance intervals may need to be shorter than those used in clean control rooms. Operators should also review fault history and operating conditions to identify repeated overcurrent, overvoltage, overtemperature, or communication-related events. Early investigation of recurring faults can help prevent damage to power components and reduce unexpected production downtime.
