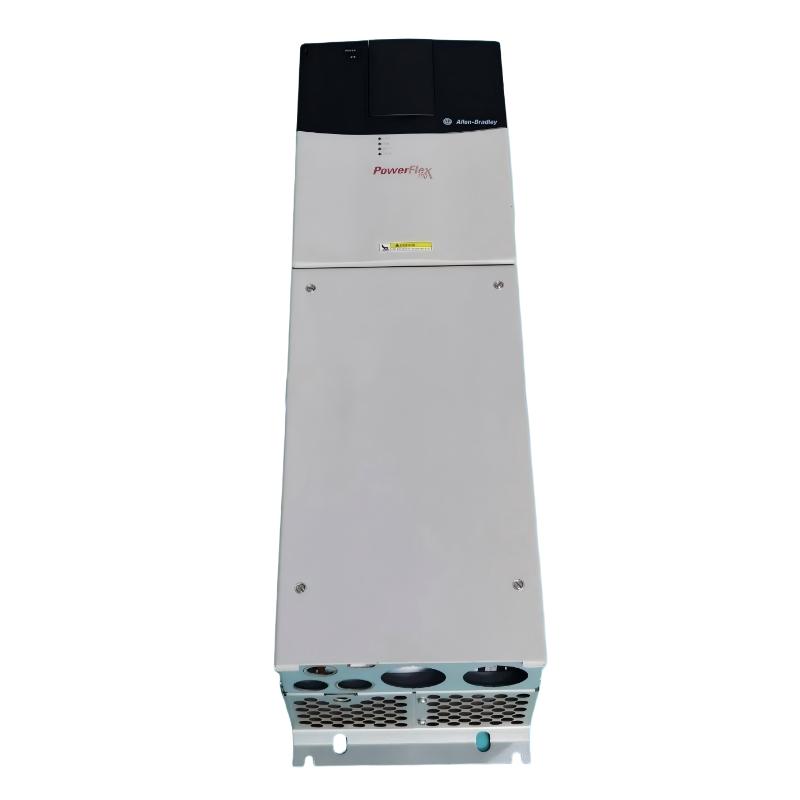

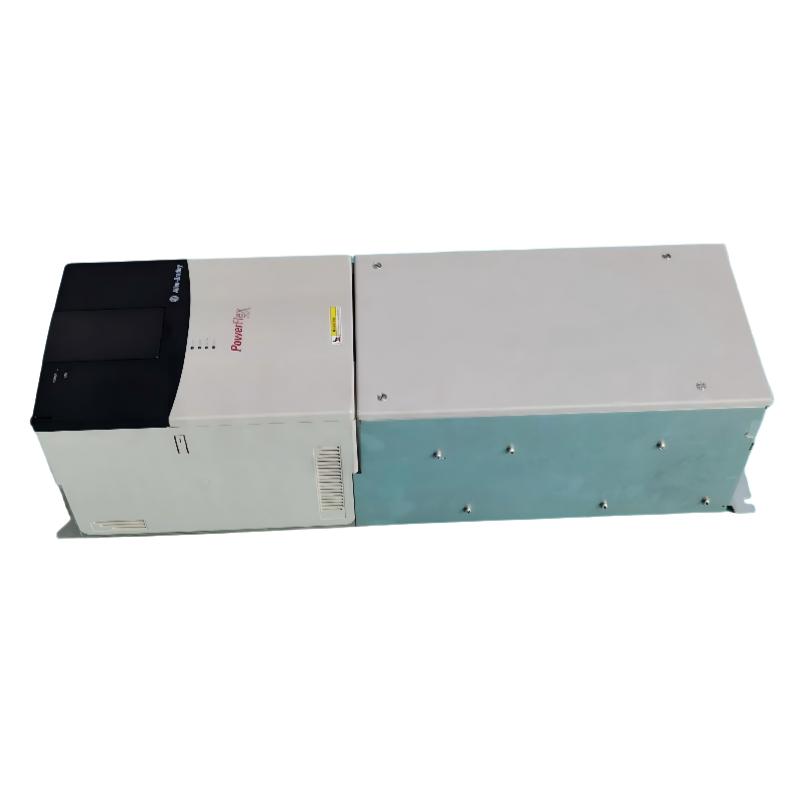

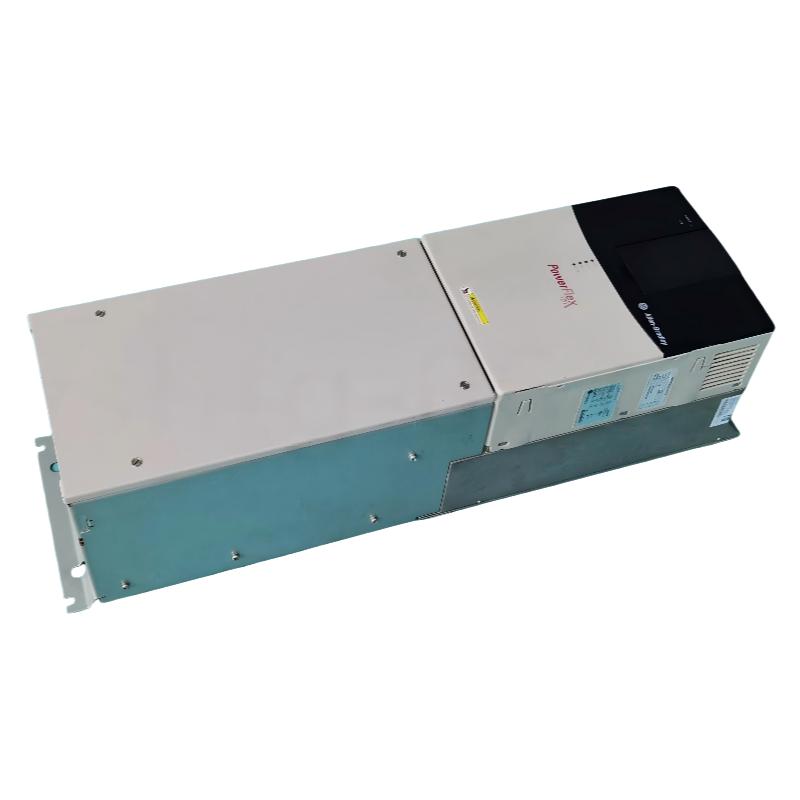

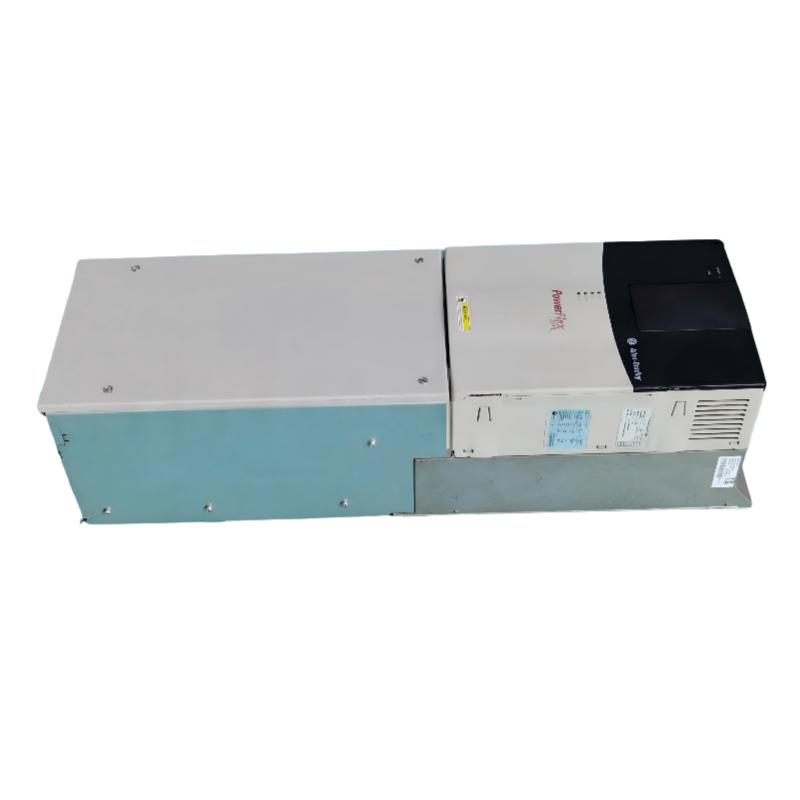

1. What is the rated output current of the 20BC085A0ANNANC0?

The 20BC085A0ANNANC0 has a rated output current of 85 A and is designed for three-phase 380–480 VAC applications. The 85 A rating should be compared directly with the motor nameplate current when selecting the drive for a specific machine. In addition to continuous current, the application should be evaluated for starting torque, acceleration time, load inertia, operating frequency, and duty cycle. A motor that appears suitable based on its kW rating may still require a larger drive if its actual full-load current or transient torque demand is too high. Correct motor data should also be entered during commissioning to ensure proper current regulation and stable operation.

2. What motor power rating is suitable for the 20BC085A0ANNANC0?

The 20BC085A0ANNANC0 has a normal-duty rating of 45 kW and a heavy-duty rating of 37 kW. The appropriate rating depends on the characteristics of the driven equipment. Applications with relatively stable load requirements can be evaluated using the normal-duty rating, while machinery that requires higher starting torque or experiences frequent acceleration and deceleration should be evaluated against the heavy-duty rating. Conveyors, compressors, mixers, extruders, and material-handling equipment often require more careful consideration than variable-torque loads. Motor rated current remains one of the most important selection parameters, so the motor nameplate current should be checked against the drive’s continuous output capability before installation.

3. What input power supply does the 20BC085A0ANNANC0 require?

The 20BC085A0ANNANC0 is intended for a 380–480 VAC three-phase supply, with 400 VAC as the nominal input voltage. The input voltage tolerance is ±10%, and the drive is designed for a 50 Hz line frequency. Before energizing the drive, the incoming voltage should be measured and the three phases checked for excessive imbalance. The electrical installation should include appropriate circuit protection, a disconnect device, suitable grounding, and properly sized conductors. Loose terminals, poor grounding, severe phase imbalance, or an input voltage outside the specified range can cause abnormal operation and protective trips. Verifying the incoming power before commissioning is therefore an important part of installation.

4. Does the 20BC085A0ANNANC0 support encoder feedback?

The standard 20BC085A0ANNANC0 configuration does not include motor feedback. It uses vector control with 24 V I/O and is suitable for applications where the required speed and torque performance can be achieved without closed-loop encoder feedback. For applications requiring very precise speed regulation, enhanced low-speed torque control, or closed-loop positioning, the feedback requirements should be evaluated before selecting the drive configuration. During commissioning, the motor’s rated voltage, current, frequency, and speed should be entered correctly. The control parameters should also be adjusted according to the actual mechanical load to achieve stable operation without unnecessary current or torque fluctuations.

5. Does the 20BC085A0ANNANC0 include a brake IGBT or internal braking resistor?

No. The 20BC085A0ANNANC0 does not include a brake IGBT or an internal drive-mounted braking resistor. This is important for applications involving high-inertia loads, rapid deceleration, or frequent stopping cycles. When a motor decelerates, energy from the rotating load can be returned to the drive’s DC bus and cause the DC-bus voltage to rise. If the regenerative energy becomes excessive, an overvoltage condition can occur. For applications requiring rapid braking, the system should be evaluated based on motor power, load inertia, deceleration time, braking frequency, and operating cycle. An external braking or energy-management solution may be required depending on the actual application.

6. Can the 20BC085A0ANNANC0 be integrated with a PLC or DCS?

Yes. The 20BC085A0ANNANC0 provides vector control with 24 V I/O and can be integrated with PLC, DCS, HMI, and other industrial control systems using its analog and digital I/O. The two analog inputs can be used for speed references or other process signals, while the analog outputs can provide operating feedback. The six digital inputs and three digital outputs can be assigned to functions such as start, stop, enable, direction, running status, and fault indication. This particular configuration does not include a communication module, so network-based control requires an appropriate external communication solution. When integrating the drive into an automation system, the I/O assignments, run permissives, interlocks, fault reset logic, and control sequence should be defined clearly.

7. How should an overcurrent fault on the 20BC085A0ANNANC0 be diagnosed?

An overcurrent fault should be investigated from the mechanical load toward the drive rather than immediately assuming that the drive itself has failed. First, inspect the driven machine for mechanical blockage, excessive friction, bearing problems, coupling faults, or an unexpected increase in load. Next, inspect the motor cables and output terminals for phase-to-phase shorts, ground faults, damaged insulation, loose terminals, or incorrect wiring. The motor parameters programmed into the drive should then be compared with the actual motor nameplate values, especially rated voltage, rated current, rated frequency, and rated speed. If the fault occurs mainly during acceleration, the acceleration time should be checked because a high-inertia load may draw excessive current when acceleration is too aggressive. If the mechanical system, motor, wiring, and parameters are all confirmed to be correct, the drive’s output power section should be examined for possible internal faults.

8. Why does the motor fail to start even though the 20BC085A0ANNANC0 is powered on?

If the 20BC085A0ANNANC0 is powered but the motor does not start, first check the drive status for active faults, alarms, inhibits, or external interlocks. The digital input signals should then be checked to confirm that the configured start, stop, enable, and direction commands are being received correctly. If an analog speed reference is used, verify that the signal is present and that the commanded frequency has not been set to zero or restricted by another parameter. The motor output terminals and power cables should also be inspected for incorrect connections or an open circuit. For PLC- or DCS-controlled applications, check the control program for run permissives, emergency-stop conditions, machine interlocks, startup sequencing, and fault-reset requirements. If all external signals and wiring are correct, review the motor parameters and drive operating status to determine whether the problem is related to configuration or an internal drive condition.
