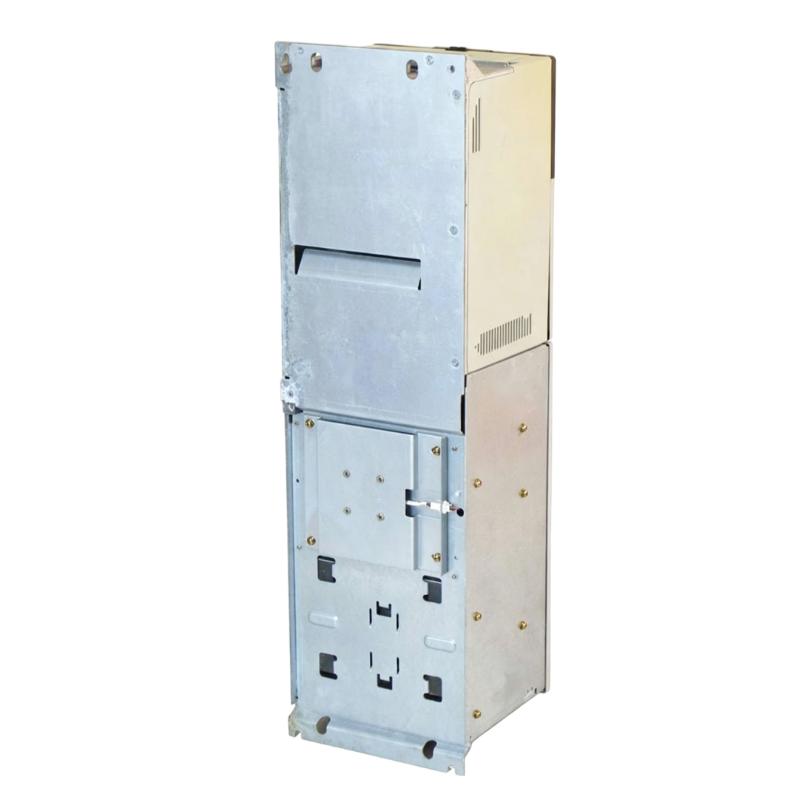

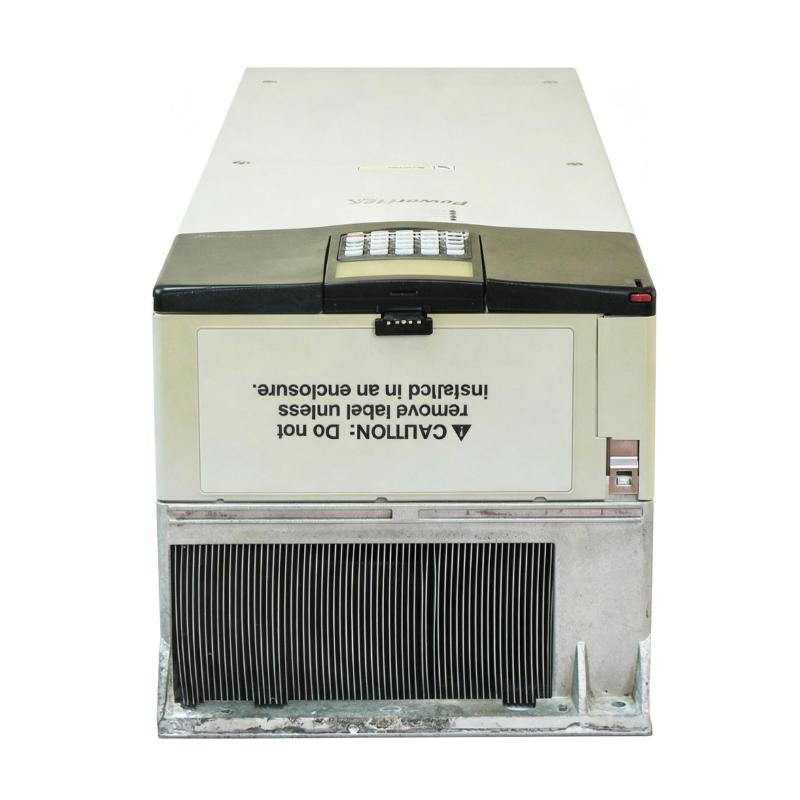

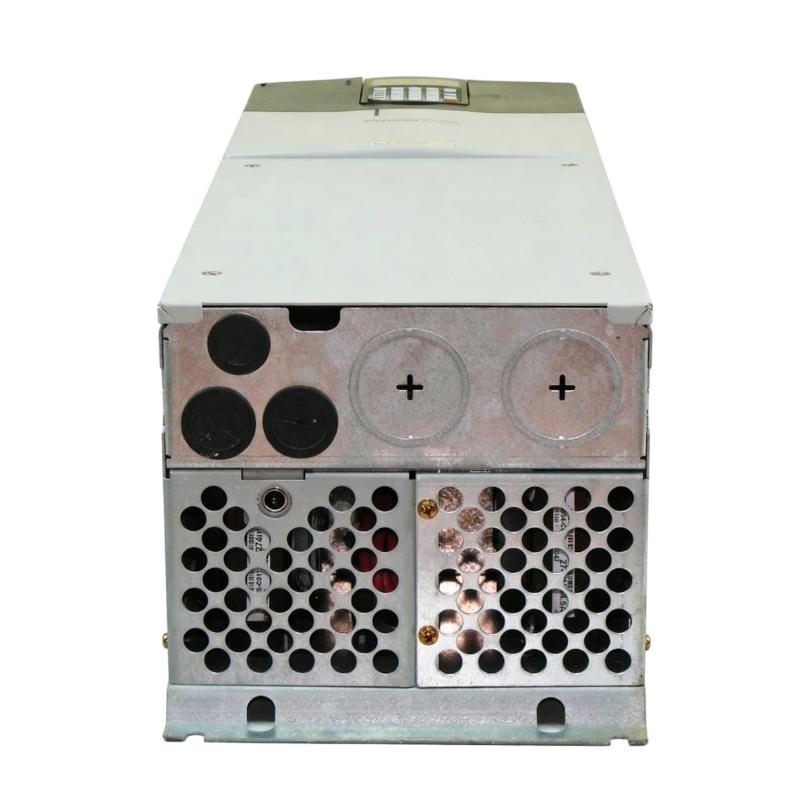

1. What type of motor applications is the 20BC085A3ANNANC1 suitable for?
The 20BC085A3ANNANC1 is an AC drive designed for controlling three-phase AC motors in industrial automation systems. It can be used for motor starting, stopping, speed regulation, and torque control. Typical applications include conveyors, pumps, fans, machine tools, material-handling equipment, and other industrial machinery requiring adjustable motor speed. Its vector control capability allows the drive to regulate motor performance more effectively under changing load conditions.

2. What is the rated output current of the 20BC085A3ANNANC1?
The 20BC085A3ANNANC1 has a rated continuous output current of 85 A. Its short-term overload capability can reach approximately 94 A for 1 minute and 128 A for 3 seconds. When selecting this drive for a motor application, the motor nameplate current should be considered together with the starting load, acceleration requirements, load inertia, and operating cycle. Selecting a drive only according to motor power may result in insufficient overload capacity for demanding applications.

3. What input power supply does the 20BC085A3ANNANC1 require?
The 20BC085A3ANNANC1 is designed for three-phase AC input power. Its nominal voltage is 400 VAC, with an applicable voltage range of approximately 380–480 VAC. Before installation, the incoming power supply should be checked to ensure that the voltage, phase balance, frequency, and available power capacity are suitable for the drive. Appropriate upstream protection and correctly sized wiring should also be provided according to the installation requirements.

4. Does the 20BC085A3ANNANC1 have a braking function?
The 20BC085A3ANNANC1 includes a braking IGBT, but this does not mean that an internal braking resistor is installed. The braking IGBT can work with an external braking resistor to dissipate regenerative energy generated during rapid motor deceleration. When a high-inertia load decelerates, energy can flow back into the DC bus and increase its voltage. For applications involving frequent or rapid braking, the external braking system should be properly selected according to the load inertia, braking frequency, deceleration time, and required braking power.

5. How should an overcurrent fault on the 20BC085A3ANNANC1 be diagnosed?
When an overcurrent fault occurs, first inspect the motor and motor cables for short circuits, grounding problems, damaged insulation, or incorrect wiring. The mechanical load should also be checked for excessive resistance, mechanical seizure, bearing problems, or unexpected increases in load torque. The acceleration time should then be reviewed because an excessively short acceleration time can produce a high motor current. Motor nameplate parameters should also be verified in the drive. A systematic inspection of the motor, cables, mechanical load, configuration parameters, and drive output section can help identify the source of the fault.

6. What can cause an overvoltage fault during operation?
An overvoltage condition is commonly associated with an increase in the drive’s DC bus voltage. It can occur when a high-inertia motor decelerates rapidly and sends regenerative energy back to the drive. If this energy cannot be dissipated effectively, the DC bus voltage may rise and trigger the protection function. The deceleration time, load inertia, braking resistor system, and braking IGBT should therefore be checked. For applications involving frequent rapid deceleration, the braking capacity should be evaluated based on the actual operating cycle rather than simply changing protection settings.

7. How should the basic parameters of the 20BC085A3ANNANC1 be commissioned?
Basic commissioning normally starts with entering the motor nameplate information, including rated voltage, rated current, rated frequency, motor power, and rated speed. Acceleration, deceleration, start, stop, and speed-reference parameters can then be configured according to the machine requirements. After configuration, the motor should initially be operated at a low speed to verify the rotation direction, output current, operating status, and control response. Once basic operation has been confirmed, the drive parameters can be optimized according to the motor and mechanical load characteristics.

8. How can the 20BC085A3ANNANC1 be integrated with a PLC-based automation system?
The 20BC085A3ANNANC1 can be integrated into an industrial automation system as the motor control device, with a PLC providing operating commands and speed references. Depending on the installed configuration, basic control can be achieved through digital and analog I/O, while communication-based control can be used when a compatible communication interface is installed. During PLC commissioning, the control engineer should verify the start and stop logic, speed reference scaling, run status, fault feedback, reset signals, and emergency-stop circuit. Correct coordination between the PLC control logic and the drive’s protection functions is important for stable and reliable system operation.
