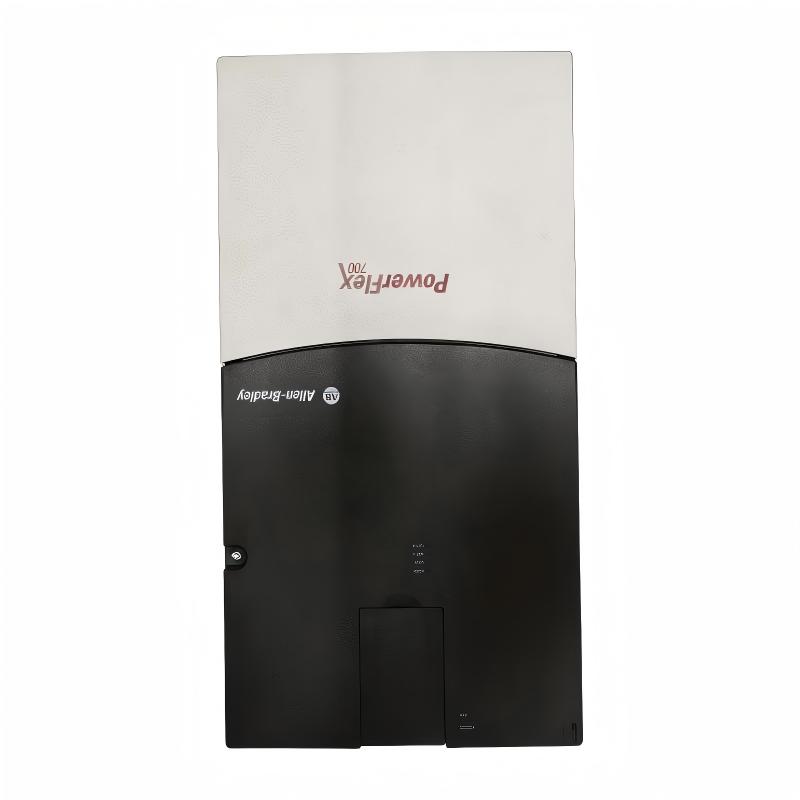

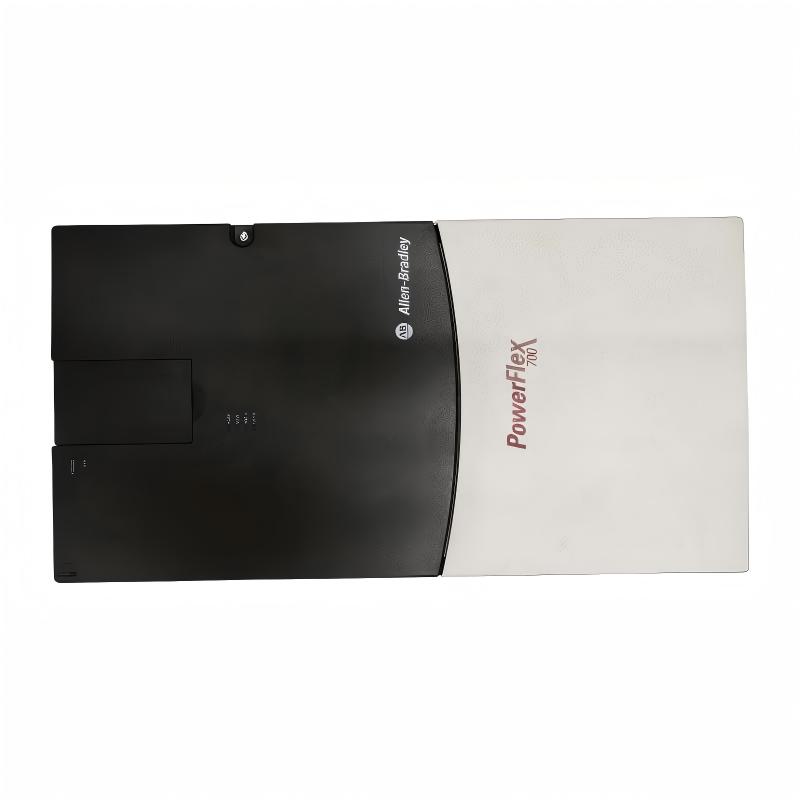

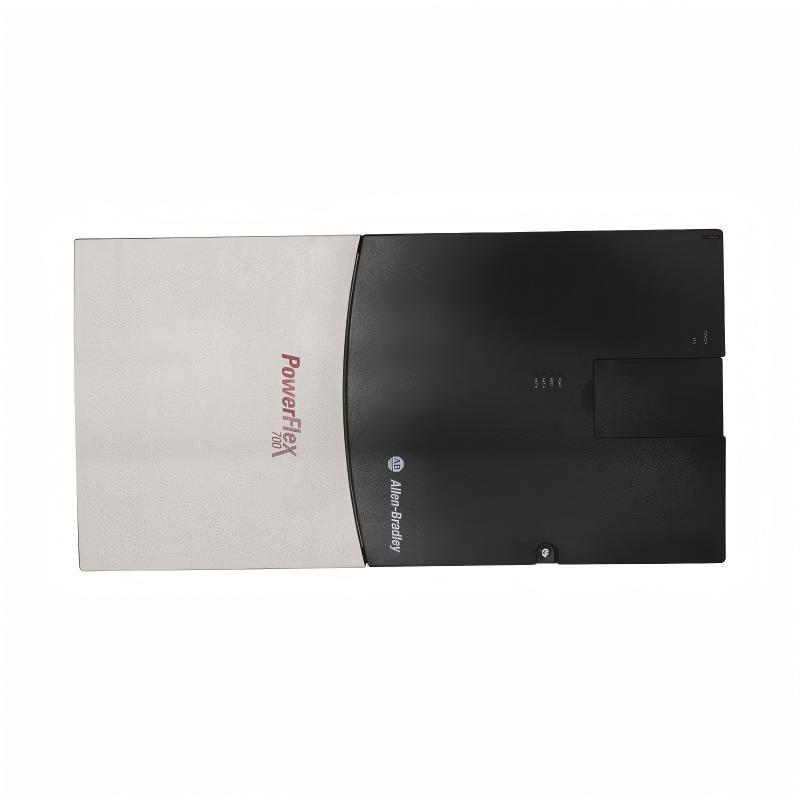

1. What is the rated output current of 20BC105A0NNNANC0?
The rated output current of 20BC105A0NNNANC0 is 105 A. This current rating makes the drive suitable for medium- to high-power three-phase AC motor applications. When selecting the drive for a specific motor, the motor nameplate current should be compared directly with the drive output-current rating. Motor power alone should not be used as the only selection criterion because actual operating conditions, load characteristics, acceleration requirements, and overload conditions can affect the required drive capacity.

2. What type of power supply is required for 20BC105A0NNNANC0?
20BC105A0NNNANC0 is designed for a three-phase AC power supply with a nominal voltage of 400 VAC and an applicable voltage class of 380–480 VAC. The typical input frequency is 50 Hz. Before commissioning, the incoming power supply should be checked for correct voltage, phase sequence, phase balance, and sufficient capacity. Proper circuit protection and correctly sized input cables should also be provided according to the installation requirements of the complete drive system.

3. What motor control method does 20BC105A0NNNANC0 support?
This configuration uses vector control for AC motor operation. Vector control provides more precise control of motor speed and torque than basic scalar control and is useful for applications where the load changes during operation. Correct motor data must be entered during commissioning so that the drive can establish the appropriate control parameters. Incorrect motor voltage, current, frequency, or speed settings can result in unstable operation, excessive current, or reduced control performance.

4. Does 20BC105A0NNNANC0 include an internal braking resistor?
No. The 20BC105A0NNNANC0 configuration does not include an internal braking resistor, and the catalog configuration specifies no braking option. For applications with rapid deceleration or high-inertia loads, regenerative energy can increase the DC bus voltage. If the application requires frequent or aggressive braking, an appropriate external braking solution should be evaluated according to the load inertia, deceleration time, braking frequency, and required braking power.

5. How should an overcurrent fault be checked on 20BC105A0NNNANC0?
An overcurrent condition should be investigated systematically. First check the motor output wiring for short circuits, incorrect connections, insulation damage, or grounding problems. Next inspect the mechanical load for excessive resistance, locked components, bearing problems, or sudden changes in torque demand. The acceleration time should also be reviewed because an excessively short acceleration period can cause the motor current to rise rapidly. Finally, verify the motor parameters stored in the drive and make sure they correspond to the actual motor nameplate data.

6. What can cause a DC bus overvoltage condition during deceleration?
A DC bus overvoltage condition can occur when the motor regenerates energy during deceleration. This is particularly common with high-inertia loads or applications that require rapid stopping. The regenerated energy flows back into the drive and raises the DC bus voltage. If the energy cannot be dissipated or controlled effectively, the drive may activate its protection function. Increasing the deceleration time, reviewing the load characteristics, and evaluating an appropriate external braking solution are common engineering approaches for applications with substantial regenerative energy.

7. How should 20BC105A0NNNANC0 be commissioned with a new motor?
Commissioning should begin by confirming all power and motor connections before energizing the drive. The motor nameplate information, including rated voltage, rated current, rated frequency, and rated speed, should then be entered accurately. Start and stop commands, minimum and maximum speed references, acceleration and deceleration times, and other application parameters can be configured according to the machine requirements. Initial testing should be performed at low speed while monitoring motor current, rotation direction, drive status, and fault information before the motor is operated through the complete process range.

8. Can 20BC105A0NNNANC0 be used in a PLC-based automation system?
Yes. The drive can be incorporated into a PLC-based motor control system using its configured control and I/O functions. The 24 VDC I/O configuration can be used for control signals such as run commands, stop commands, enable signals, fault reset, and status feedback, while an appropriate analog reference can be used where required for speed control. The specific PLC logic should be designed around the machine sequence and safety architecture. During commissioning, engineers should verify the signal polarity, reference scaling, drive status, fault feedback, and emergency-stop logic to ensure that the PLC and drive operate together correctly.
