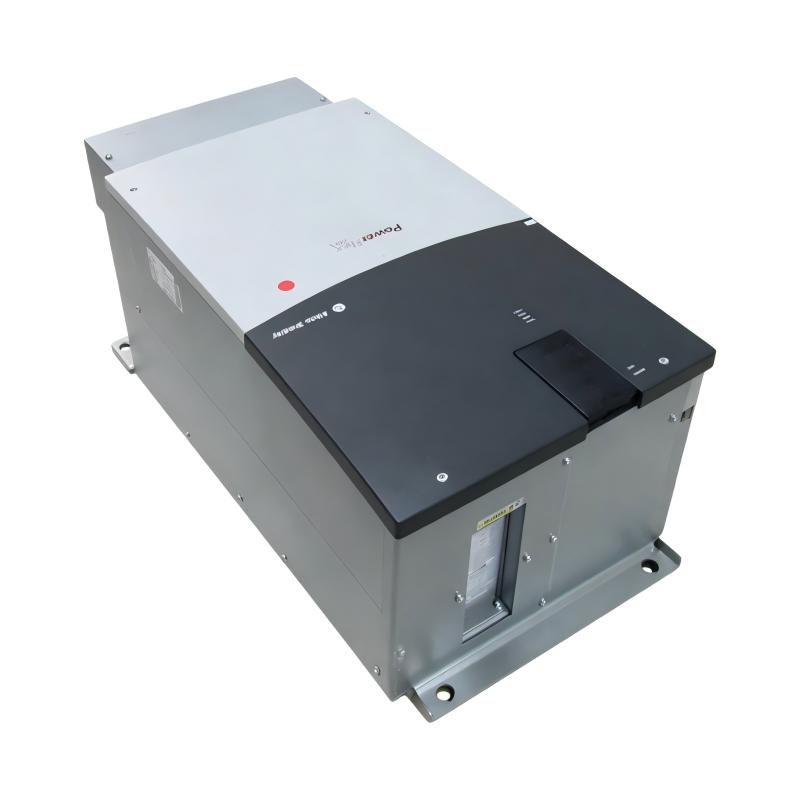

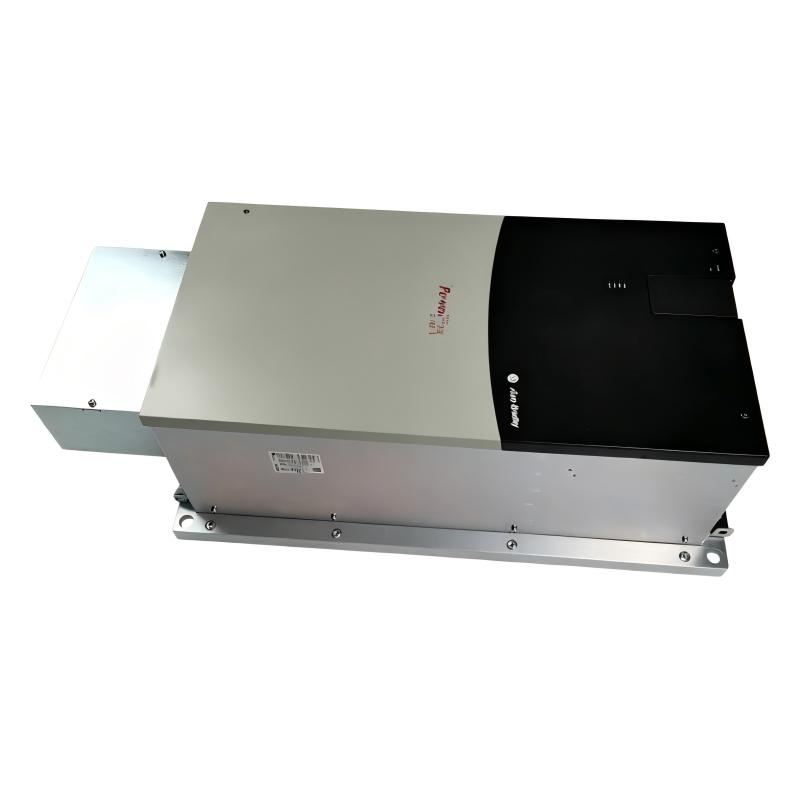

1. What is the rated output current of the 20BC205A3NNNANA0?

The rated continuous output current is 205 A. The drive is rated for 110 kW under normal-duty operation and 90 kW under heavy-duty operation at a 400 V AC, three-phase supply. When selecting the drive for a motor application, the motor’s actual rated current should be compared with the drive’s continuous output rating rather than relying only on the motor’s power rating. Load characteristics, starting torque, acceleration requirements, operating cycle, and overload conditions should also be considered. Proper sizing helps prevent nuisance overload trips and ensures that the drive can maintain stable motor operation under the required process conditions.

2. What motor control methods are supported?

The drive supports V/Hz control, sensorless vector control, and vector control. V/Hz control can be used for relatively straightforward speed-control applications, while sensorless vector control provides improved torque and speed regulation without requiring a motor feedback device. Vector control can be selected when more demanding speed or torque performance is required. During commissioning, the motor nameplate parameters should be entered accurately, including rated voltage, rated current, rated frequency, and rated power. Incorrect motor data can affect current regulation, low-speed torque, acceleration performance, and overall motor stability.

3. Can the 20BC205A3NNNANA0 be integrated with a PLC or industrial control system?

Yes. The drive can be integrated into an industrial control system using the appropriate communication configuration. The standard drive configuration does not include an internal communication module, so the required communication interface or adapter should be selected according to the control architecture. Supported communication options include industrial protocols such as EtherNet/IP, DeviceNet, Modbus, and PROFIBUS. When connecting the drive to a PLC or DCS, communication parameters, node addressing, control commands, speed reference, status information, and fault reporting should be configured consistently on both sides. Communication should be tested after local drive operation has been verified.

4. Does the 20BC205A3NNNANA0 have an internal braking resistor?

No. This configuration does not include an internal braking resistor and does not have an internal brake IGBT. If the application requires rapid deceleration or has a high-inertia load, the regenerative energy generated during deceleration must be considered during system design. Depending on the application, an appropriate external braking solution may be required. The required braking capacity should be calculated according to motor power, load inertia, deceleration time, operating frequency, and the number of braking cycles. Simply reducing the deceleration time without evaluating regenerative energy can result in DC-bus overvoltage faults.

5. What should be checked if an overcurrent fault occurs during acceleration?

If an overcurrent fault occurs during acceleration, first check whether the connected machine has excessive mechanical resistance, a locked mechanism, or an unexpectedly high starting load. The motor and output cables should also be inspected for incorrect wiring, insulation problems, phase-to-phase faults, or grounding issues. Drive parameters should then be reviewed, particularly motor rated current, motor voltage, motor frequency, acceleration time, current limit, and motor-control mode. If the acceleration time is too short for the mechanical inertia, the motor can demand excessive current before reaching the target speed. Increasing the acceleration time within the process requirements can help determine whether the fault is related to acceleration demand or an underlying electrical or mechanical problem.

6. Why can an overvoltage fault occur during deceleration?

An overvoltage fault during deceleration is commonly associated with regenerative energy returning from the motor to the drive’s DC bus. This condition is more likely when a high-inertia load is stopped rapidly or when the deceleration time is too short. When the motor decelerates, the mechanical energy of the rotating load can be converted back into electrical energy, causing the DC-bus voltage to rise. The deceleration time, load inertia, operating speed, and braking requirements should therefore be evaluated together. Where the process requires frequent or rapid stopping, an appropriately sized external braking system may be necessary to dissipate the regenerative energy safely.

7. What should be checked if the motor does not start when a run command is given?

Begin by confirming that the drive has the correct input power and that there are no active faults or inhibit conditions. Check the selected start-command source, digital input status, speed reference source, direction command, and external permissive or interlock signals. If the drive is controlled through a PLC or DCS, verify that the controller is actually transmitting the required run command and speed reference. The motor configuration should also be reviewed to make sure the programmed motor data matches the connected motor. If a communication network is being used, check the communication status and control-word configuration. Testing the drive in local control, where appropriate, can help determine whether the problem is related to the drive itself or to the external control system.

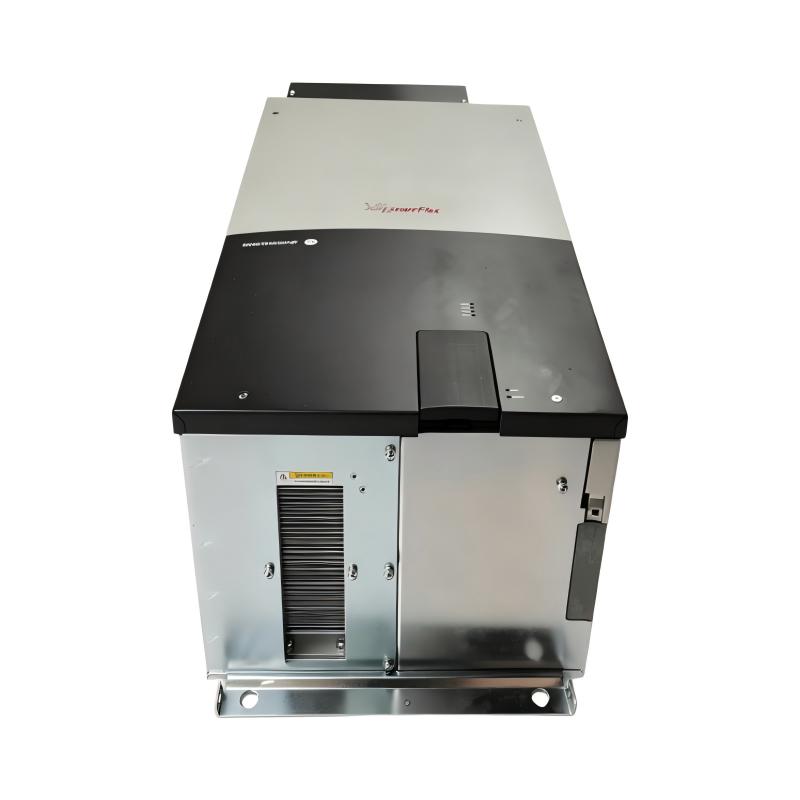

8. How should the 20BC205A3NNNANA0 be maintained for reliable long-term operation?

Regular maintenance should focus on cooling, electrical connections, environmental conditions, and operating data. The cooling airflow and fans should be inspected periodically because restricted airflow or accumulated dust can increase internal temperature and reduce component life. Power and control terminals should be checked according to the applicable maintenance procedure to identify loose or overheated connections. The installation environment should also remain within the specified temperature and humidity conditions and should be protected from corrosive gases, conductive dust, and excessive contamination. It is also useful to monitor operating current, DC-bus voltage, fault history, and temperature-related alarms. Any repeated fault should be investigated at its source rather than repeatedly resetting the drive, especially when the drive is operating critical industrial equipment.
