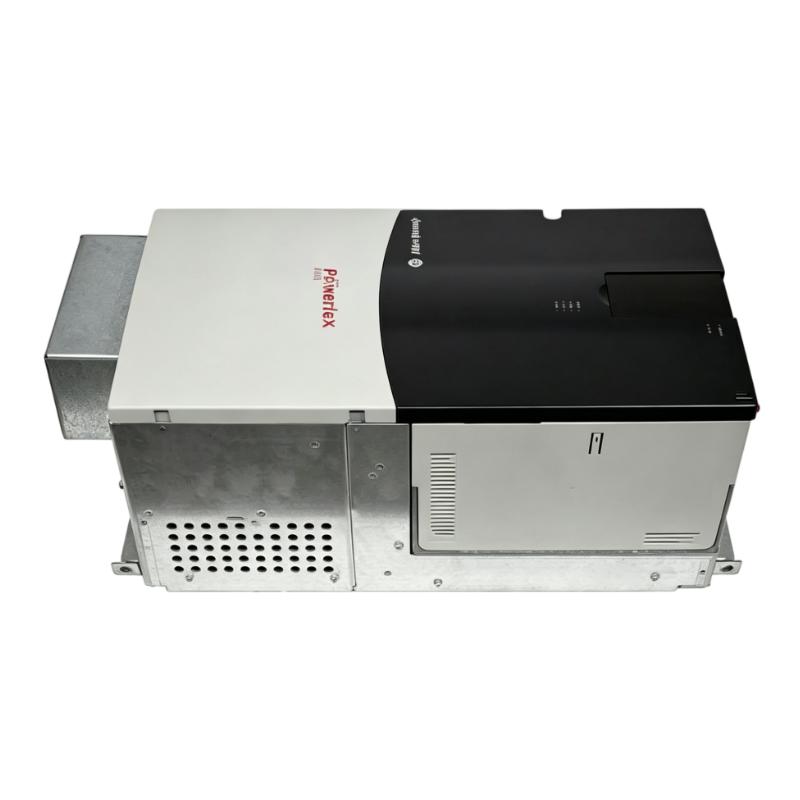

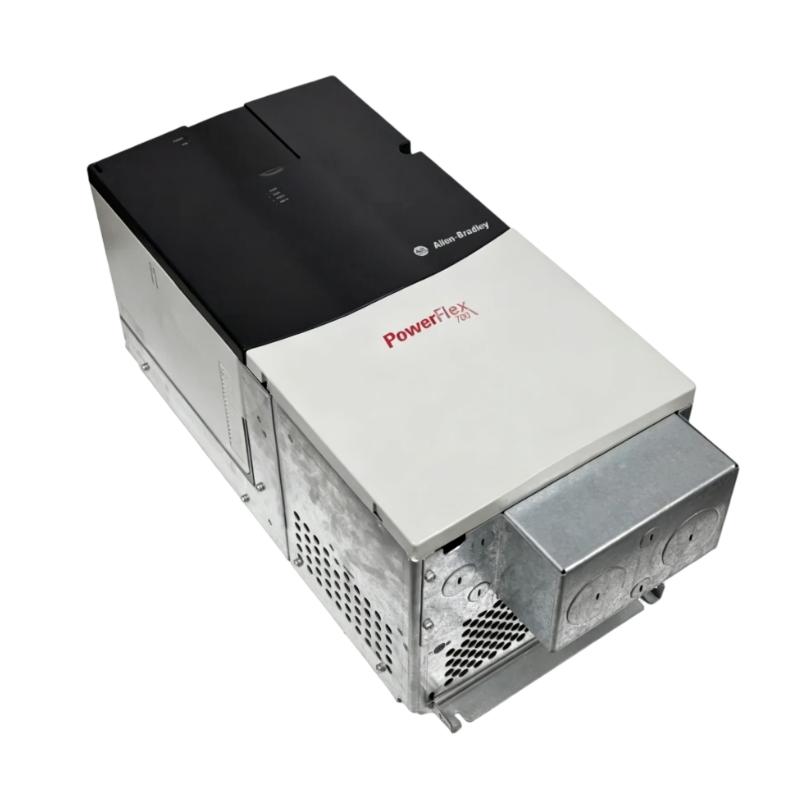

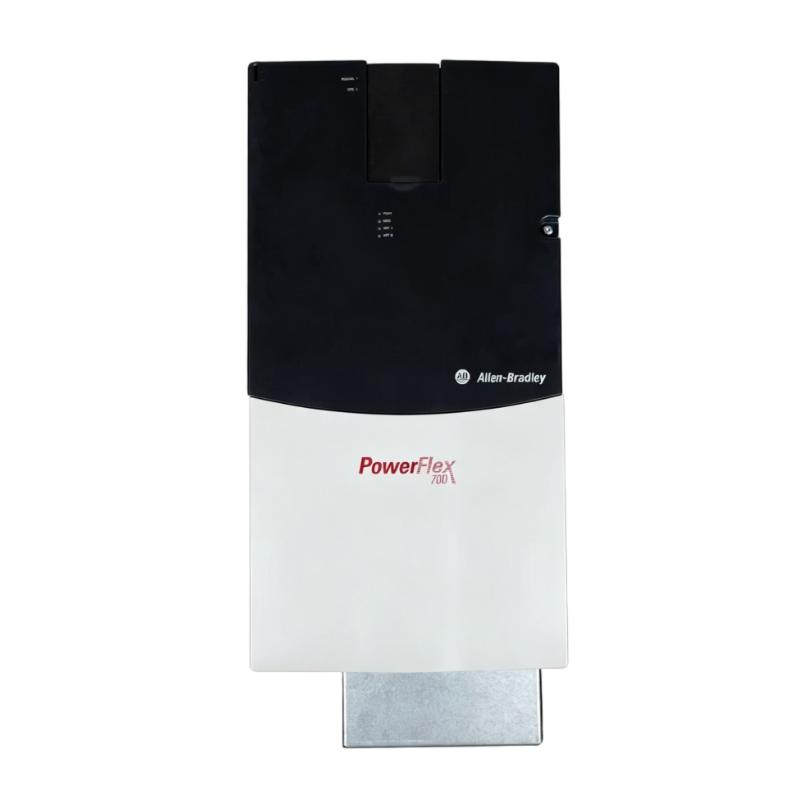

1. What is the rated output current and power of the 20BC260A0ANNAEC0?

The 20BC260A0ANNAEC0 has a rated continuous output current of 260 A. Its normal-duty power rating is 132 kW, while the heavy-duty rating is 110 kW. The drive is designed for three-phase AC motor applications and is suitable for industrial equipment requiring adjustable speed and torque control. When selecting this drive, the motor rated current should be compared with the drive output current, rather than selecting the drive based only on motor power. The actual load type, starting torque, acceleration requirements, duty cycle, and possible overload conditions should also be evaluated to ensure reliable operation.

2. Which motor control methods are supported by the 20BC260A0ANNAEC0?

The drive supports V/Hz control, sensorless vector control, and vector control. V/Hz control is suitable for relatively straightforward speed-control applications, while sensorless vector control can provide improved torque performance without requiring a motor feedback device. Vector control can be used for applications requiring more precise speed and torque regulation. During commissioning, accurate motor nameplate data should be entered, including rated voltage, rated current, rated frequency, and rated power. Incorrect motor parameters can lead to unstable operation, excessive current, poor low-speed torque, or unexpected drive protection trips.

3. Can the 20BC260A0ANNAEC0 communicate with a PLC through EtherNet/IP?

Yes. The 20BC260A0ANNAEC0 is configured with an EtherNet/IP DPI communication module and can be integrated into an industrial control system using EtherNet/IP. This allows a PLC or other automation controller to exchange operating commands and drive status information with the AC drive. Typical applications can include remote start and stop commands, speed references, operating status monitoring, output frequency monitoring, current monitoring, and fault information. During commissioning, the network address, communication configuration, control words, status words, and PLC-side I/O configuration should be checked carefully. Local operation should normally be verified before enabling full remote control through the PLC.

4. Does the 20BC260A0ANNAEC0 include an internal braking resistor or braking IGBT?

The 20BC260A0ANNAEC0 does not include an internal braking resistor or internal braking IGBT. This is important for applications involving high-inertia loads, rapid deceleration, or frequent stopping. During deceleration, the motor can operate in a regenerative condition and return mechanical energy to the drive’s DC bus. If this regenerated energy causes the DC-bus voltage to rise beyond the permitted level, an overvoltage fault can occur. Applications such as conveyors, centrifuges, high-inertia machinery, and equipment requiring rapid stopping should therefore be evaluated for an appropriate external braking solution based on motor power, load inertia, operating speed, deceleration time, and braking frequency.

5. What should be checked if an overcurrent fault occurs during acceleration?

If an overcurrent fault occurs during acceleration, the mechanical load should be checked first for jamming, excessive friction, bearing problems, or an unexpected increase in load torque. The motor power cables should then be inspected for phase-to-phase short circuits, grounding problems, insulation damage, or incorrect connections. Drive parameters should also be verified, particularly motor rated current, rated voltage, rated frequency, motor power, and the selected control mode. If the fault occurs mainly during acceleration, the acceleration time may be too short for the inertia of the connected machinery. Increasing the acceleration time within the process requirements can help determine whether the problem is related to acceleration demand. Repeated faults should be investigated together with the motor, mechanical system, cabling, and drive parameters rather than simply increasing protection limits.

6. Why can a DC-bus overvoltage fault occur during deceleration?

A DC-bus overvoltage condition can occur when a high-inertia load decelerates rapidly and regenerative energy flows back from the motor into the drive. During this process, mechanical energy from the rotating equipment is converted into electrical energy, causing the DC-bus voltage to increase. Because the 20BC260A0ANNAEC0 does not include an internal braking resistor and braking IGBT, the application must be evaluated carefully when rapid or repeated deceleration is required. The first checks should include the programmed deceleration time, load inertia, operating speed, and stopping frequency. If the process requires frequent rapid braking, an appropriately designed external braking system may be required to manage the regenerated energy.

7. What should be checked if the motor runs unstably after starting?

If the motor starts but experiences speed fluctuations, unstable torque, or abnormal current, the motor configuration should be checked first. The programmed rated voltage, rated current, rated frequency, and rated power should correspond to the actual motor nameplate. For vector-control applications, the relevant motor identification and control parameters should also be configured correctly. The motor cables, grounding, mechanical load, and coupling should then be inspected. If the speed reference is provided through EtherNet/IP, the PLC output value and communication data should be checked to make sure the reference is stable. Low-speed instability may also be related to the selected control method, motor parameters, load inertia, or minimum operating speed, so these factors should be evaluated together rather than adjusting a single parameter without checking the complete system.

8. What maintenance should be performed on the 20BC260A0ANNAEC0 for reliable operation?

Routine maintenance should focus on cooling, electrical connections, control wiring, communication, and the operating environment. The cooling fans and airflow paths should be inspected regularly because accumulated dust or restricted ventilation can increase internal temperature and accelerate component aging. Main power connections and control terminals should also be checked according to the applicable maintenance procedure for loose connections, abnormal heating, or signs of electrical damage. For systems using EtherNet/IP, the network connection, communication status, and PLC-to-drive data exchange should be verified periodically. Fault history and operating conditions should also be reviewed when abnormal events occur. If the same fault repeatedly returns, the underlying electrical, mechanical, or control-system cause should be identified before the equipment is returned to continuous production service.
