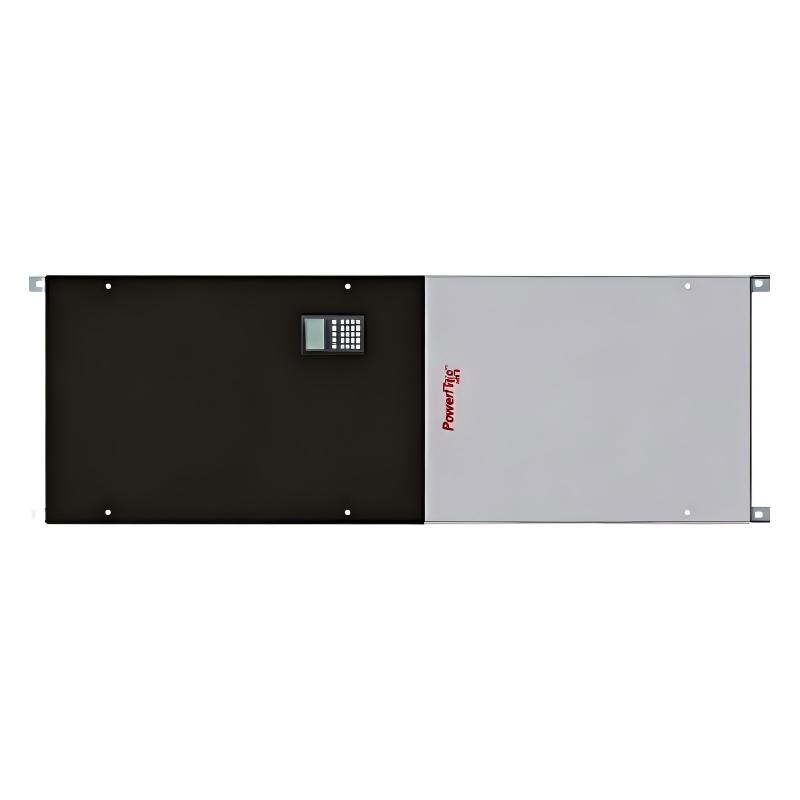

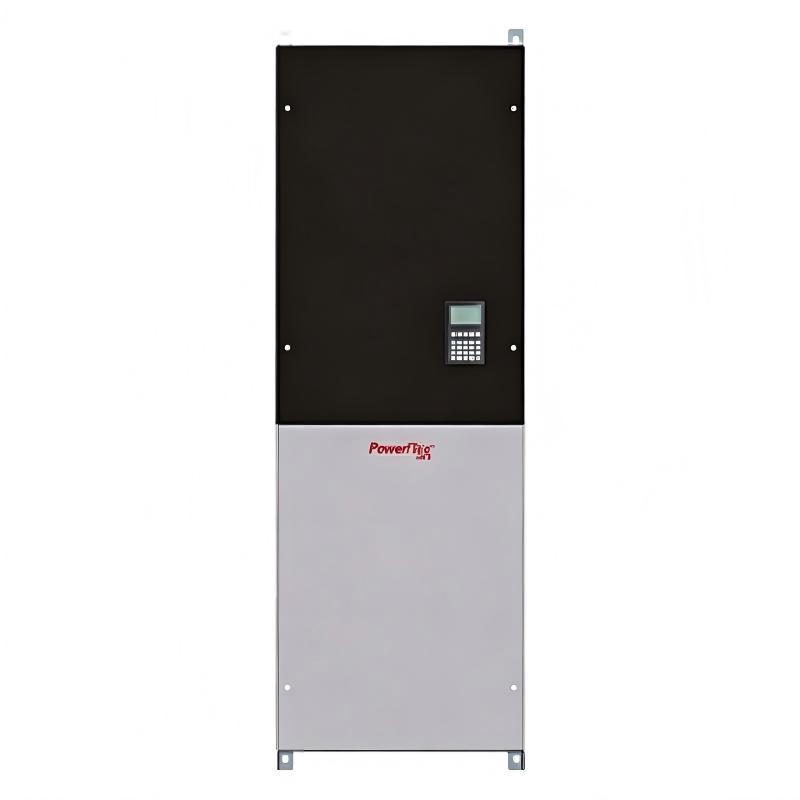

Allen Bradley 20BC325A3ANNNDC0 PowerFlex 700 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 20BC325A3ANNNDC0 |
| Product Series | PowerFlex 700 |
| Product Type | AC Drive |
| Input Voltage | 400 V AC |
| Input Phase | Three Phase |
| Input Frequency | 50/60 Hz |
| Rated Output Current | 325 A |
| Normal Duty Power | 180 kW |
| Heavy Duty Power | 180 kW |
| Horsepower Rating | 250 HP |
| Output Voltage | 0–400 V AC |
| Output Phase | Three Phase |
| Motor Control | V/Hz, Sensorless Vector, Vector Control |
| Frame Size | Frame 7 |
| Enclosure | IP20 / NEMA/UL Type 1 |
| Operator Interface | LCD Display with Full Numeric Keypad |
| Control I/O | 24 V DC |
| Communication | DeviceNet |
| Communication Interface | DPI Communication |
| Feedback | Optional Encoder Feedback Capability |
| Braking IGBT | Not Available for Frame 7 |
| Cooling Method | Forced-Air Cooling |
| PWM Carrier Frequency | 4 kHz |
| Control Mode | Open-Loop and Vector Control |
| Installation Type | Cabinet / Panel Mount |
| Dimensions | 1447.8 × 514.4 × 406.5 mm |
| Weight | 170 kg |
FAQ
- What is the rated output current of the 20BC325A3ANNNDC0?
The 20BC325A3ANNNDC0 has a rated continuous output current of 325 A. This rating is important when matching the drive with a motor because the drive should be selected according to the motor’s actual full-load current, operating duty, acceleration requirements, and load characteristics rather than relying only on the motor horsepower rating. - What input power supply does the 20BC325A3ANNNDC0 require?
This model is designed for a three-phase 400 V AC power supply. It belongs to the 400 V class of the PowerFlex 700 series. During installation, the incoming supply voltage, phase sequence, grounding arrangement, disconnect equipment, and branch-circuit protection should be checked carefully before energizing the drive. - What motor control methods are available with this drive?
The drive supports conventional V/Hz control as well as vector-based motor control functions. V/Hz control is suitable for applications with relatively straightforward speed requirements, while vector control can provide improved torque and speed regulation. Correct motor nameplate data and appropriate drive parameters are important when configuring vector-based operation. - Can the 20BC325A3ANNNDC0 be integrated with a PLC system?
Yes. This configuration uses DeviceNet communication through the PowerFlex DPI architecture. A PLC or other DeviceNet controller can exchange operating commands and drive data with the AC drive. Typical communication functions include start and stop commands, speed references, drive status, output frequency, motor current, and fault information. - Why might the drive trip on overcurrent during motor acceleration?
An overcurrent condition can result from excessive mechanical load, an acceleration time that is too short, incorrect motor data, motor cable problems, or a motor that is unsuitable for the configured drive parameters. The motor and load should first be checked for mechanical restrictions. Increasing acceleration time and verifying motor parameter settings can also help determine whether the fault is related to the operating configuration. - How should a DC-bus overvoltage condition be investigated?
DC-bus overvoltage commonly occurs when a high-inertia load regenerates energy into the drive during deceleration. If the deceleration time is too short, the returned energy can raise the DC-bus voltage above the allowable level. Check the load inertia, deceleration settings, operating speed, and stopping requirements. Because Frame 7 drives do not use an internal braking IGBT, an appropriate external braking solution may need to be considered for applications with significant regenerative energy. - What should be checked if the motor speed is unstable during operation?
Verify the motor nameplate parameters, control mode, speed reference, motor connections, grounding, and load conditions. For vector-control applications, incorrect motor data or unsuitable tuning parameters can significantly affect speed regulation. If DeviceNet is being used for the speed command, the PLC communication data and reference scaling should also be checked to ensure that the commanded speed is stable. - What maintenance is recommended for reliable operation of the 20BC325A3ANNNDC0?
Regular maintenance should include inspection of cooling airflow, fans, heat-sink surfaces, power terminals, control wiring, grounding connections, and DeviceNet communication connections. Dust accumulation and excessive cabinet temperature should be avoided because they can increase thermal stress on the power components. Drive fault history should also be reviewed periodically so that repeated overcurrent, overvoltage, overheating, or communication faults can be investigated before they develop into larger system failures.
Allen Bradley 20BC325A3ANNNDC0 PowerFlex 700 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
