FAQ

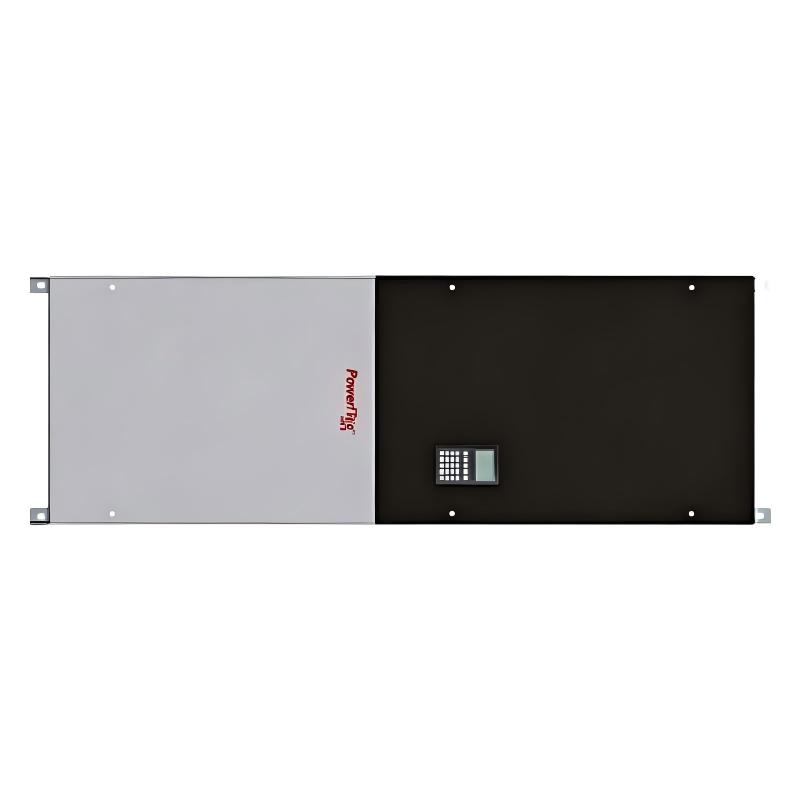

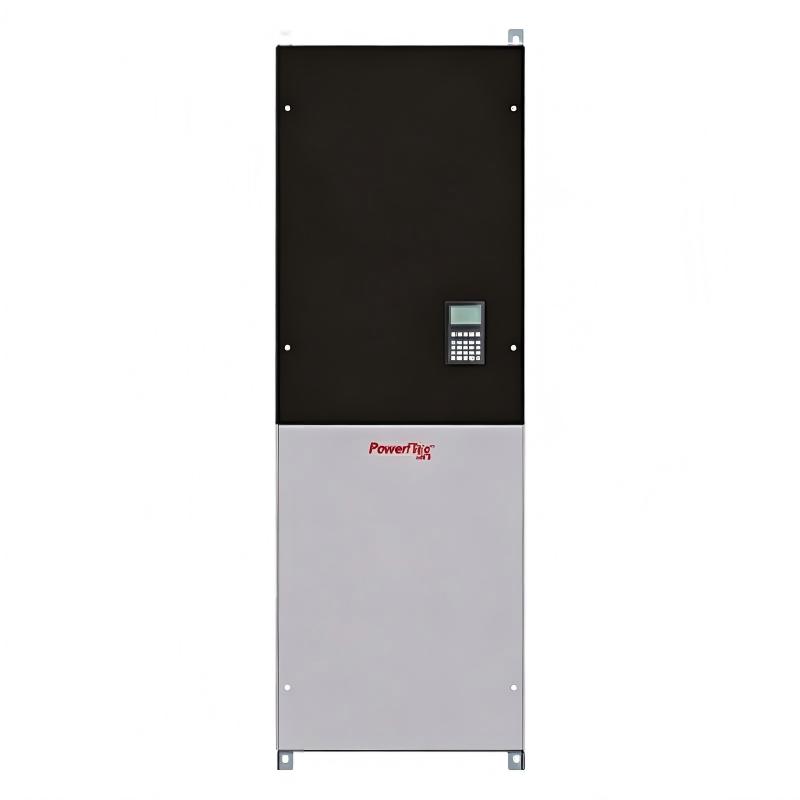

1. What is the rated output current of the 20BC325N0ANNNDC0?
   The 20BC325N0ANNNDC0 has a continuous rated output current of 325 A and is designed for high-power motor control applications. When selecting the drive, the motor full-load current, load type, starting torque, acceleration requirements, and operating cycle should all be considered. For continuous-duty or high-torque applications, the actual operating current should remain within the appropriate drive rating to prevent unnecessary thermal stress and overload trips.
2. What type of power supply is required for the 20BC325N0ANNNDC0?
   The drive is designed for a three-phase 400 V AC power supply. Before commissioning, the incoming voltage, frequency, grounding arrangement, and upstream protection should be verified against the application requirements. Proper circuit protection and isolation equipment should also be installed according to the electrical design of the control cabinet. Reliable power connections are particularly important for high-current applications.
3. What motor control method does the 20BC325N0ANNNDC0 use?
   The 20BC325N0ANNNDC0 uses vector control to provide accurate motor speed and torque regulation. Correct motor nameplate data should be entered during commissioning, including rated voltage, rated current, frequency, and speed. Proper parameter configuration is especially important when the drive is used with variable loads, high starting torque requirements, or applications requiring stable low-speed operation.
4. Can the 20BC325N0ANNNDC0 communicate with a PLC through DeviceNet?
   Yes. This configuration uses a DeviceNet DPI communication module and can exchange operating data with compatible PLC and industrial control systems. Typical communication functions include start and stop commands, speed references, operating status, output frequency, motor current, and fault information. During commissioning, the DeviceNet node address, communication configuration, network wiring, termination, and PLC I/O mapping should be checked carefully.
5. What should be checked if an overcurrent fault occurs during startup?
   First check whether the motor or mechanical load is jammed, overloaded, or experiencing excessive friction. The motor power cables, insulation condition, and terminal connections should then be inspected. Incorrect motor parameters can also cause abnormal current during acceleration. If the acceleration time is too short, increasing it can reduce the initial current demand. If the fault remains, check motor capacity, load inertia, output wiring, and possible phase-to-phase or phase-to-ground faults.
6. Why can a DC-bus overvoltage fault occur during deceleration?
   A high-inertia load can regenerate energy back into the drive when the motor decelerates. This regenerative energy raises the DC-bus voltage, and a short deceleration time can cause the voltage to exceed the protection threshold. The load inertia, deceleration settings, operating speed, and stopping requirements should therefore be evaluated. Since this configuration does not include an internal braking IGBT, applications with significant regenerative energy may require an appropriately designed external braking solution.
7. What should be checked if the motor speed fluctuates during operation?
   Start by checking the motor nameplate parameters and vector-control settings. The stability of the speed reference should also be verified, followed by inspection of the motor cables, grounding, mechanical load, and motor condition. If the speed reference is transmitted through DeviceNet, check the PLC output data, scaling parameters, communication status, and network stability. For low-speed instability, motor parameter identification and vector-control tuning should also be reviewed.
8. What maintenance is recommended for the 20BC325N0ANNNDC0?
   Regular maintenance should include inspection of the cooling airflow, cooling fans, heat-sink surfaces, power terminals, control wiring, grounding connections, and DeviceNet communication cables. Because this model uses an open-type enclosure, the installation environment should be controlled to minimize dust, oil mist, moisture, and other contaminants entering the drive. Periodically reviewing fault history is also recommended, especially for repeated overcurrent, overvoltage, overheating, or communication faults, so that the underlying cause can be corrected before it results in equipment downtime.
