1. What are the main applications of 20BC600A3ANNNNC0?

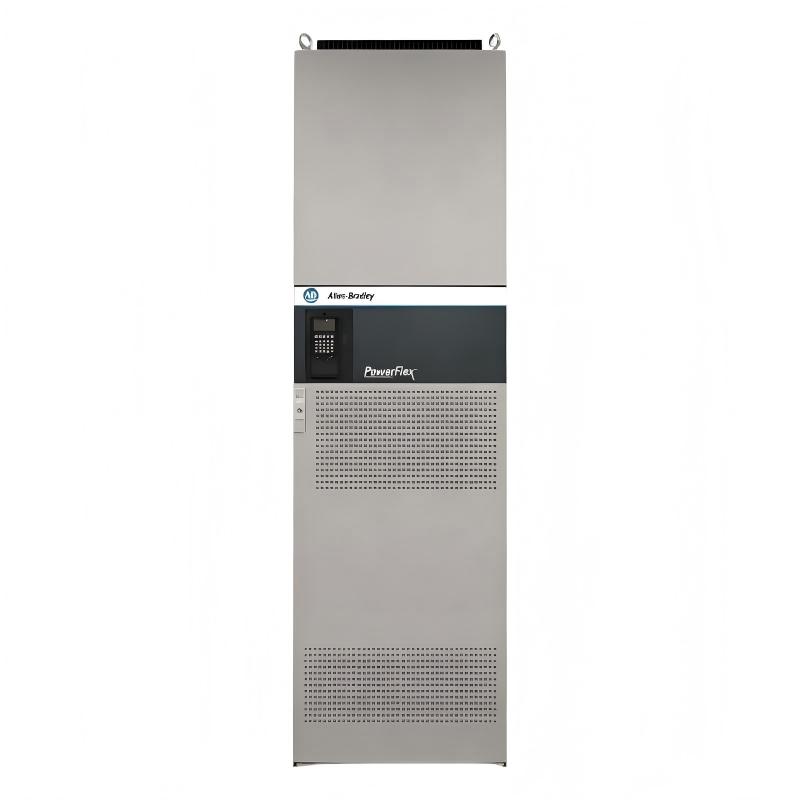

20BC600A3ANNNNC0 is a high-power AC drive designed for variable-speed control of three-phase AC motors in industrial automation systems. With a 600 A rated output, it is intended for large motor applications where controlled starting, stopping, speed regulation, and torque management are required. Typical applications include large conveyors, pumps, fans, compressors, material-handling systems, and heavy industrial machinery. By controlling the output frequency and voltage, the drive can provide smoother motor acceleration and deceleration compared with direct-on-line starting, while allowing the motor speed to be adjusted according to process requirements.

2. What are the input power requirements for 20BC600A3ANNNNC0?
The drive is designed for a three-phase 400 VAC, 50 Hz power supply. Because the unit has a 600 A output rating, the complete incoming power system must be designed for a high-power industrial installation. The incoming cables, circuit protection, disconnecting equipment, grounding conductors, and associated electrical components should be selected according to the actual installation conditions and applicable electrical requirements. Before energizing the drive, technicians should verify the supply voltage, phase configuration, grounding, and all power connections. Proper protection and grounding are especially important for maintaining reliable operation and reducing the risk of electrical faults.

3. What does the 600 A rated output current mean?
The 600 A rating represents the drive’s continuous output current capability under the specified operating conditions. This parameter is important when matching the drive with a motor because the motor’s rated current must be compatible with the drive’s output capability. Motor selection should consider more than the motor’s kilowatt rating; rated voltage, rated current, operating duty, starting torque, acceleration requirements, and mechanical load characteristics should also be evaluated. Applications involving high inertia or frequent acceleration and deceleration may require additional consideration of the drive’s short-term overload capability. Correct motor parameters should also be entered during commissioning to ensure appropriate motor control and protection.

4. What control method does 20BC600A3ANNNNC0 use?
The drive uses vector control to provide more precise regulation of motor speed and torque. This control method is useful for industrial machinery where the load can change during operation and where stable motor performance is required during starting, acceleration, deceleration, and normal running. For large conveyor systems and other variable-load machinery, vector control can provide improved dynamic response compared with basic frequency control. During commissioning, accurate motor nameplate information should be entered into the drive. Incorrect motor parameters can cause excessive current, unstable speed, insufficient torque, or unnecessary protective trips, so motor data should be verified carefully before normal operation.

5. What does the IP00 enclosure rating mean for installation?
IP00 means that the drive itself does not provide protection against the entry of solid foreign objects or water. Therefore, it should not be installed directly in an environment where it can be exposed to dust, moisture, water spray, conductive contamination, or other harmful substances. The drive should be installed within an appropriately designed electrical cabinet or protected installation. Cabinet design should provide suitable environmental protection while also allowing sufficient heat dissipation and airflow. Because this is a high-power drive, thermal management is particularly important. Excessive cabinet temperature can increase thermal stress on power components and may result in temperature-related protection events or reduced component service life.

6. How should an overcurrent fault be diagnosed on 20BC600A3ANNNNC0?
When an overcurrent fault occurs, troubleshooting should begin with the mechanical load, motor, wiring, and drive parameters. First check whether the driven equipment has become mechanically blocked, overloaded, or subject to abnormal friction. Then inspect the motor cables and terminals for phase-to-phase faults, ground faults, incorrect connections, or loose terminals. The programmed motor parameters should also be compared with the actual motor nameplate information. If the fault occurs mainly during acceleration, the acceleration time should be checked, particularly if the machine has high inertia or requires high starting torque. If the fault occurs during steady operation, the actual motor current should be measured and compared with normal operating conditions. The drive’s fault history and diagnostic information should then be used to determine whether the problem is related to the motor, mechanical system, wiring, or configuration.

7. What should be checked during commissioning of a large motor with this drive?
Commissioning should proceed systematically, beginning with electrical and mechanical inspections before applying the full operating load. Verify the incoming power supply, grounding, motor wiring, control wiring, and terminal connections first. The motor nameplate data should then be entered accurately into the drive, followed by verification of the applicable protection and operating parameters. During the first startup, the motor should be observed for correct rotation direction, abnormal noise, excessive current, unstable speed, or unexpected alarms. If the machine has significant inertia, acceleration and deceleration times should be configured appropriately rather than using unnecessarily aggressive settings. After successful initial operation, the system can be progressively tested under load while monitoring current, speed, alarms, and temperature to confirm stable operation.

8. What should be considered when integrating 20BC600A3ANNNNC0 into an automation system?
Integration should consider the complete power, motor, control, grounding, cabinet, and automation architecture. This configuration does not include a communication module or feedback option, so the control system should be designed around the available control interfaces and the actual requirements of the application. If a PLC, DCS, or other controller is used, the required start/stop commands, speed references, status signals, and fault indications should be clearly defined before installation. Power cables and control cables should be routed appropriately to reduce electromagnetic interference, particularly around a high-power motor drive. The IP00 configuration also means that suitable cabinet protection and thermal management must be provided. After installation, perform wiring verification, parameter configuration, I/O testing, initial motor testing, and progressive load testing before placing the equipment into continuous industrial service.
