1. What type of application is the Allen Bradley 20BC600N0ANNNNC0 designed for?

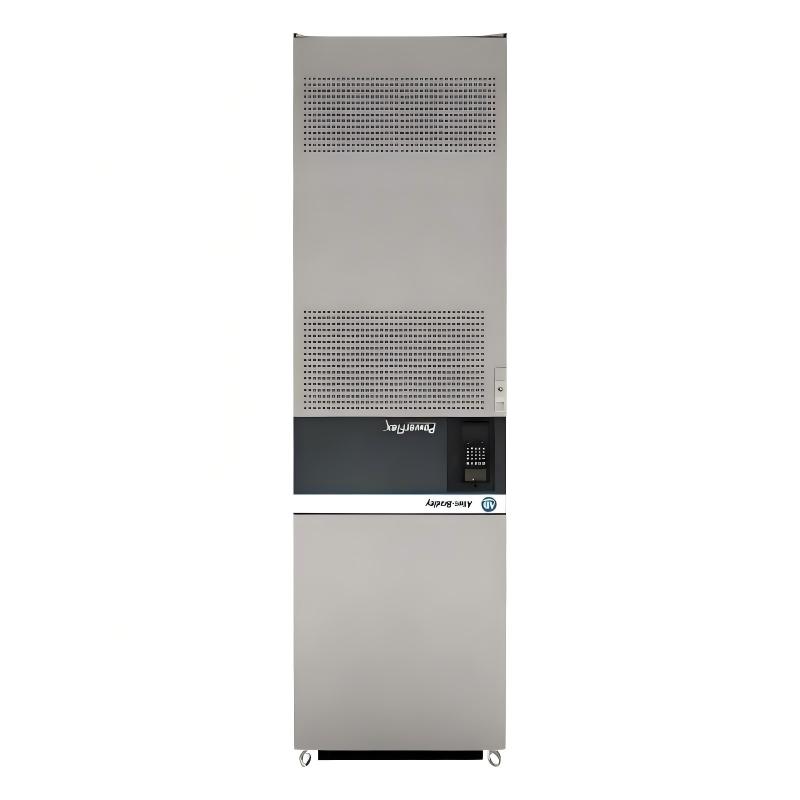

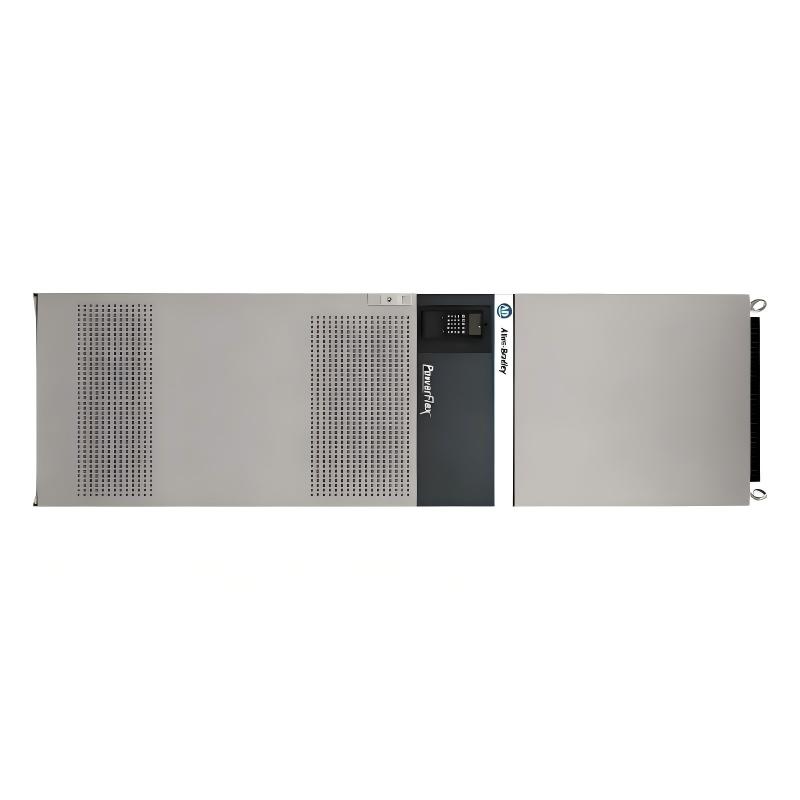

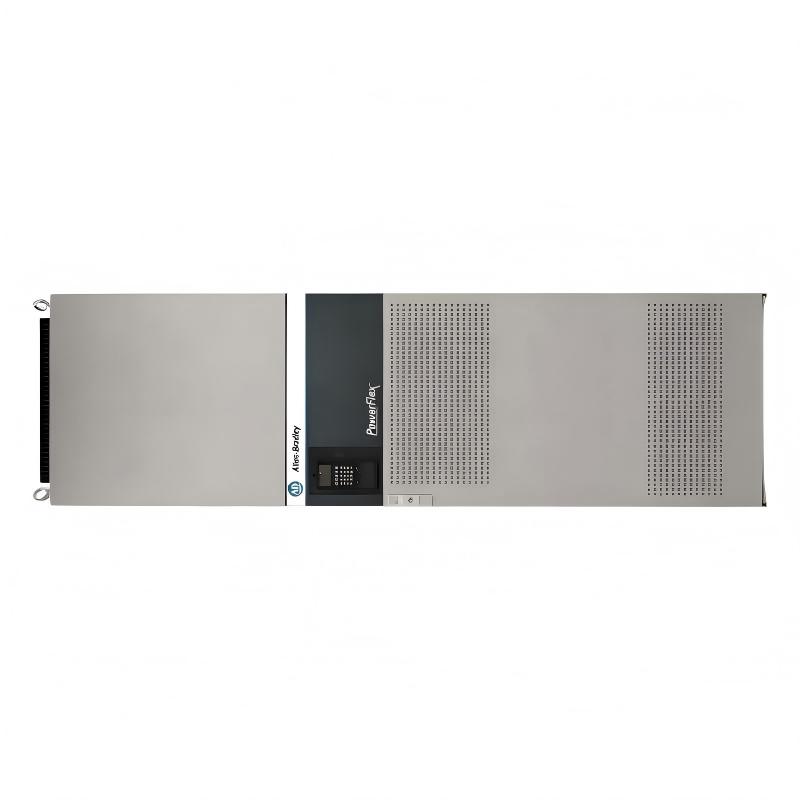

The 20BC600N0ANNNNC0 is a high-power PowerFlex 700 AC drive designed for controlling large three-phase AC motors. Its 600 A continuous output rating makes it suitable for demanding industrial equipment such as large conveyors, pumps, fans, compressors, material-handling systems, process machinery, and other applications requiring controlled motor speed and torque. The drive provides adjustable acceleration and deceleration and can be configured for different motor-control requirements. (ManualZilla)

2. What are the input and output current ratings of the 20BC600N0ANNNNC0?
The drive is rated for a 400 VAC three-phase input and provides 600 A of continuous output current. Its short-duration output capability is higher, reaching 660 A for one minute and 900 A for three seconds under the specified operating conditions. These ratings should be considered when selecting the motor, incoming power equipment, protection devices, and motor cables. (Scribd)

3. How does vector control improve motor performance on this PowerFlex 700 drive?
Vector control allows the drive to regulate motor speed and torque more precisely than basic volts-per-hertz control. This is useful when the load changes significantly or when the application requires controlled acceleration, stable low-speed operation, and improved torque response. Correct motor nameplate information and appropriate motor tuning are important during commissioning to achieve stable operation. (studylib.net)

4. What should be checked before commissioning the 20BC600N0ANNNNC0?
Before energizing the drive, technicians should inspect incoming power, grounding, motor connections, control wiring, protective devices, cabinet ventilation, and terminal tightness. Motor nameplate data should be entered correctly into the drive, including voltage, current, frequency, speed, and power information. The motor should initially be operated without unnecessary mechanical load so that rotation direction, current, acceleration, deceleration, and fault indications can be verified before full-load operation.

5. How should an overcurrent fault be investigated on the 20BC600N0ANNNNC0?
Start by checking whether the motor or driven machine is mechanically overloaded, blocked, or experiencing excessive friction. Inspect the motor cable for phase-to-phase or phase-to-ground faults and verify all power connections. Motor parameter settings should also be compared with the actual motor nameplate. If the fault occurs mainly during acceleration, acceleration time may be too short for a high-inertia load. Reviewing the drive fault history and measuring actual motor current can help distinguish between electrical and mechanical causes.

6. What should be considered when installing this high-power PowerFlex 700 drive?
The 20BC600N0ANNNNC0 is a large Frame 8 drive and requires an installation arrangement capable of handling its electrical power, physical size, heat generation, and cable requirements. Adequate cabinet ventilation and thermal management are essential. Power and control wiring should be routed appropriately to reduce electrical interference, while grounding must follow the applicable installation requirements. Because the drive configuration uses an open-type/IP00 arrangement, suitable enclosure protection must be provided by the installation. (ManualZilla)

7. Does the 20BC600N0ANNNNC0 include an internal communication module?
This catalog configuration is specified without an internal communication module. Integration with a PLC, DCS, or other automation controller therefore requires the appropriate control and interface arrangement for the system. During system design, engineers should define the required start/stop commands, speed reference, status signals, fault indications, and any additional communication requirements before installation and commissioning.

8. What maintenance checks are recommended for the 20BC600N0ANNNNC0?
Routine maintenance should include inspection of power terminals, control connections, cooling paths, fans, cabinet ventilation, grounding connections, and signs of contamination or overheating. Fault history should be reviewed regularly to identify recurring problems before they cause production interruptions. The motor and driven equipment should also be checked because mechanical problems such as excessive load, bearing deterioration, or misalignment can produce drive faults. For a high-current drive of this rating, preventive inspection of electrical connections and thermal conditions is particularly important.
