1. What are the main applications of the Allen Bradley 20BC730A0ANNNNC0?

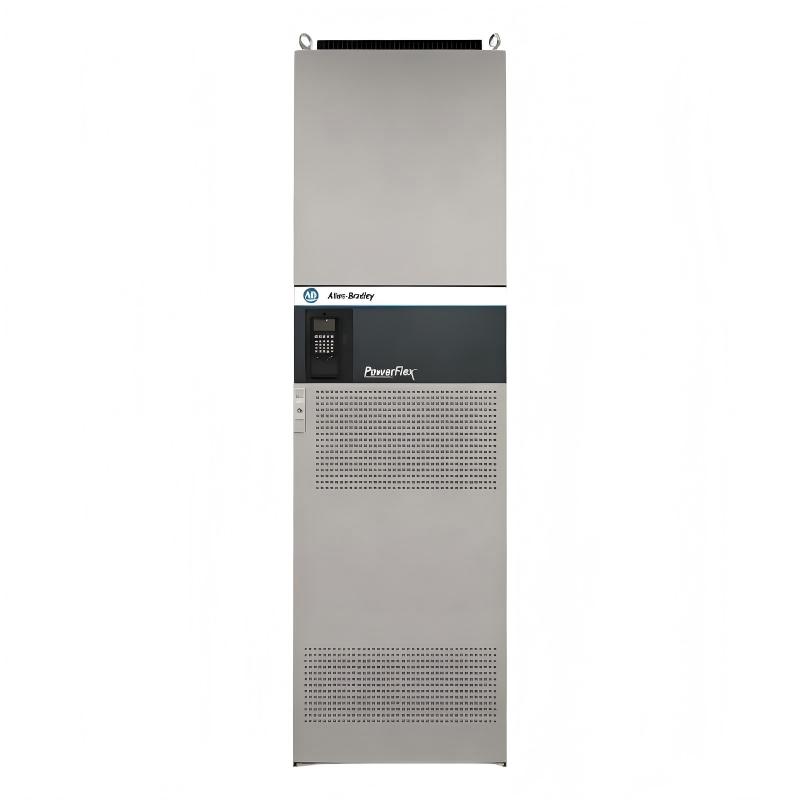

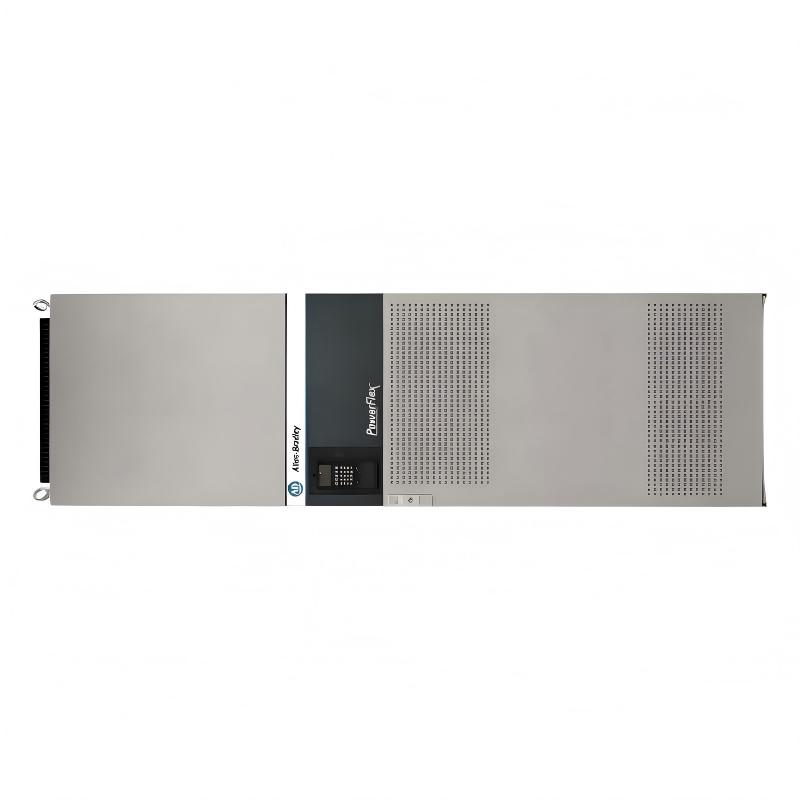

The 20BC730A0ANNNNC0 is a high-power PowerFlex 700 AC drive designed for controlling large three-phase AC motors. With a 730 A rated output, it is suitable for demanding industrial applications such as large conveyors, pumps, fans, compressors, material handling systems, and continuous production machinery. Its high current capacity supports applications that require stable motor speed, controlled acceleration, and reliable torque management.

2. What are the power requirements for the 20BC730A0ANNNNC0?
The 20BC730A0ANNNNC0 is designed for a three-phase 400 VAC power supply with a 50 Hz input frequency. The incoming power system should be properly sized for the drive and connected motor load. Installation planning should include appropriately rated power cables, circuit protection, disconnect equipment, and grounding. For a high-current drive of this capacity, the available power system and protection equipment should be verified before commissioning.

3. What does the 730 A rated output current mean for motor selection?
The 730 A rating represents the drive’s continuous output current capability under the specified operating conditions. Motor selection should not be based only on horsepower or kilowatts. The motor’s rated current, voltage, frequency, duty cycle, starting requirements, load characteristics, and operating environment should also be considered. For high-inertia or frequently accelerating loads, the motor operating current should be checked against the drive’s continuous and short-term overload capabilities.

4. What control method does the 20BC730A0ANNNNC0 use?
The 20BC730A0ANNNNC0 uses vector control to provide improved motor speed and torque regulation. This control method is suitable for applications where load conditions vary or where more precise motor response is required. During commissioning, accurate motor nameplate information should be entered into the drive, including rated voltage, current, frequency, speed, and power. Acceleration, deceleration, and current-limit parameters can then be adjusted according to the mechanical characteristics of the application.

5. How can the 20BC730A0ANNNNC0 be integrated into a PLC or DCS system?
This configuration does not include an internal communication module. Integration with a PLC, DCS, or other automation controller therefore requires an appropriate control interface based on the system architecture. Typical control requirements include start/stop commands, speed reference, run status, fault status, and other operating signals. If network-based communication is required, the appropriate communication interface or adapter should be selected according to the control system and commissioning requirements.

6. What installation factors are important for this high-power AC drive?
Thermal management is particularly important for a 730 A high-power drive. The installation area or electrical cabinet should provide sufficient airflow and heat dissipation, while cooling passages should remain unobstructed. Power cables and control wiring should be routed appropriately to reduce electrical interference. Because the drive uses an IP00/open-type configuration, it must be installed within a suitable enclosure or protected electrical installation that provides the required environmental protection.

7. How should an overcurrent fault be diagnosed on the 20BC730A0ANNNNC0?
Begin by checking the motor and driven machinery for mechanical blockage, excessive friction, abnormal bearings, sudden load increases, or other conditions that may increase motor torque demand. Next, inspect the motor cables for phase-to-phase or phase-to-ground faults and verify that all power connections are secure. If the fault occurs primarily during acceleration, check whether the acceleration time is too short for the load inertia. Reviewing the drive fault history and actual operating current can help identify whether the problem originates from the electrical system, motor, drive settings, or mechanical load.

8. What maintenance should be performed on the 20BC730A0ANNNNC0?
Routine maintenance should include inspection of power terminals, control wiring, grounding connections, cooling paths, fans, and the surrounding electrical cabinet environment. Check for loose terminals, abnormal heating, discoloration, dust accumulation, and restricted airflow. Drive fault history should also be reviewed periodically to identify recurring overcurrent, overvoltage, undervoltage, or thermal conditions. The motor and mechanical transmission system should be inspected as well, since mechanical problems can cause abnormal loading and repeated drive faults.
