1. What are the main applications of the Allen Bradley 20BC730N0ANNNNC0?

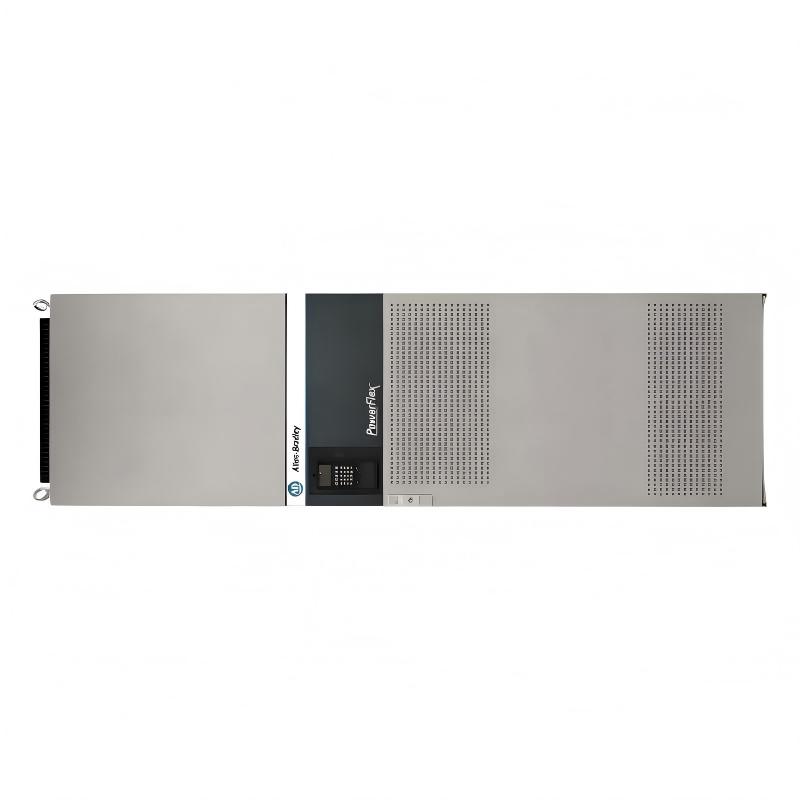

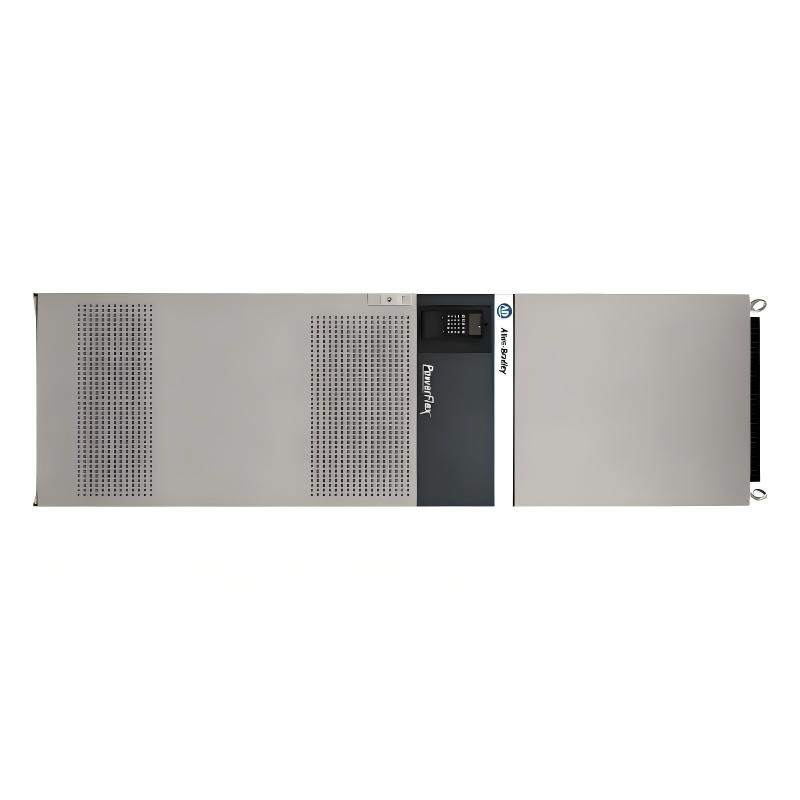

The 20BC730N0ANNNNC0 is a high-power PowerFlex 700 AC drive designed for controlling large three-phase AC motors. Its 730 A output rating makes it suitable for demanding industrial equipment such as conveyors, pumps, fans, compressors, material handling systems, process machinery, and other applications requiring controlled motor speed and torque. The drive can provide adjustable acceleration and deceleration to match different mechanical load characteristics.

2. What are the input power requirements for the 20BC730N0ANNNNC0?
The drive is designed for a three-phase 400 VAC power supply with a 50 Hz input frequency. The incoming power system should be properly sized according to the drive rating and connected motor load. Installation should include appropriately rated incoming cables, circuit protection, disconnect equipment, and grounding. For a 730 A high-current drive, the capacity and protection characteristics of the upstream power distribution system should be verified before energizing the equipment.

3. What does the 730 A rated output current mean for motor selection?
The 730 A rating represents the drive’s continuous output current capability under the specified operating conditions. Motor selection should consider more than the motor’s power rating. Rated motor current, voltage, frequency, speed, duty cycle, load inertia, starting torque, and operating environment should all be evaluated. For high-inertia applications or systems with frequent acceleration and deceleration, the actual motor current should be compared with the drive’s continuous and short-term overload capability.

4. What control method does the 20BC730N0ANNNNC0 use?
The 20BC730N0ANNNNC0 uses vector control for motor speed and torque regulation. This control method is suitable for applications where stable speed and controlled torque response are required under changing loads. During commissioning, accurate motor nameplate information should be entered into the drive. Important parameters include motor voltage, rated current, frequency, speed, and power. Proper motor parameter configuration helps prevent unstable operation, excessive current, and unnecessary drive trips.

5. How should the 20BC730N0ANNNNC0 be integrated with a PLC or DCS?
This configuration does not include an internal communication module. Integration with a PLC, DCS, or other automation controller therefore requires an appropriate control interface based on the overall system architecture. Typical control signals include start/stop commands, speed reference, run status, ready status, and fault indication. If network communication is required, the communication interface should be selected according to the PLC or DCS platform and the required industrial communication protocol.

6. What should be checked during installation of the 20BC730N0ANNNNC0?
Installation should begin with verification of the incoming power, grounding, motor wiring, control connections, protective devices, and terminal tightness. Because the drive operates at a high current level, cable sizing and electrical connection quality are particularly important. Adequate ventilation and thermal management must also be provided. The IP00/open-type configuration requires installation inside a suitable electrical enclosure or protected installation that prevents exposure to dust, moisture, and accidental contact with energized components.

7. How can an overcurrent fault be diagnosed on the 20BC730N0ANNNNC0?
First inspect the driven machine for mechanical blockage, excessive friction, abnormal bearings, or an unexpected increase in load. Next check the motor cables for phase-to-phase or phase-to-ground faults and verify that all power terminals are correctly tightened. Motor parameters should be compared with the actual motor nameplate data. If the overcurrent occurs mainly during acceleration, check the acceleration time and load inertia. Reviewing the fault history together with actual motor current and operating frequency can help determine the cause.

8. What maintenance is recommended for the 20BC730N0ANNNNC0?
Routine maintenance should include inspection of power terminals, control wiring, grounding connections, cooling components, fans, and ventilation paths. Technicians should look for loose connections, abnormal heating, discoloration, dust accumulation, and restricted airflow. The drive’s fault and alarm history should be reviewed regularly to identify repeated operating problems. The connected motor and mechanical equipment should also be inspected because bearing problems, misalignment, excessive friction, or mechanical overload can result in abnormal drive current and repeated protection trips.
