1. What are the main applications of the Allen Bradley 20BD077A3ANNANC0?

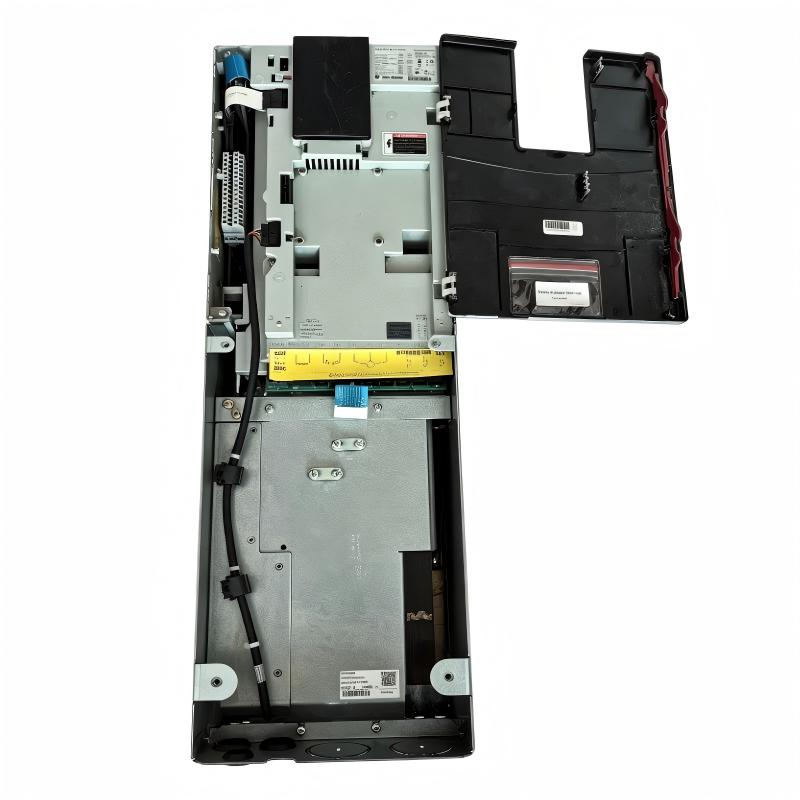

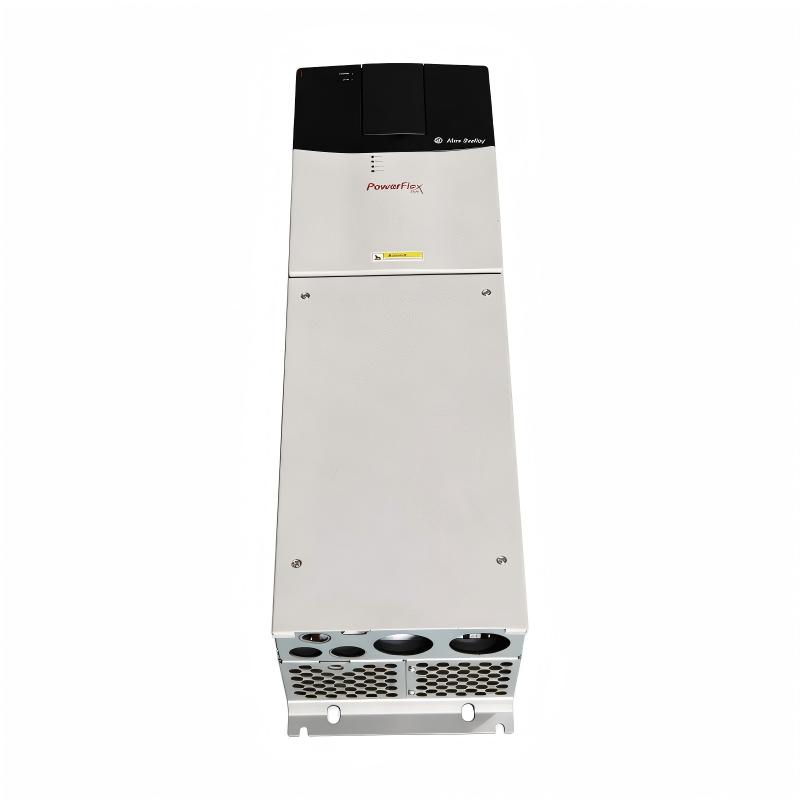

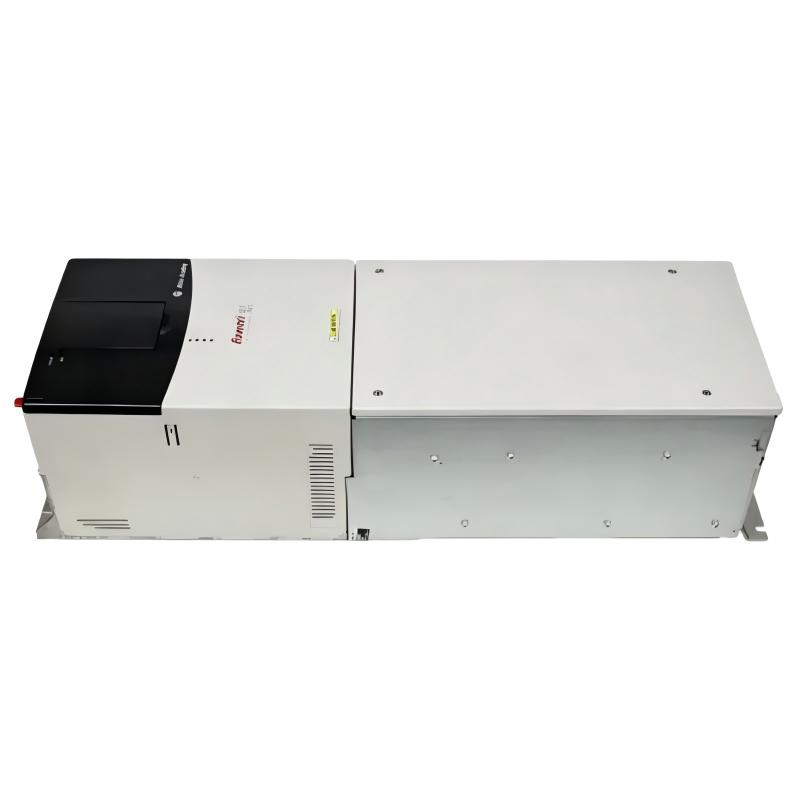

The 20BD077A3ANNANC0 is a PowerFlex 700 AC drive designed for variable-speed control of three-phase AC motors. With a 77 A normal-duty output rating and 60 HP capacity, it can be used for conveyors, pumps, fans, compressors, machine tools, material handling equipment, and other industrial machinery requiring adjustable motor speed and torque control.

2. What are the input power requirements of the 20BD077A3ANNANC0?
The drive uses a three-phase 480 VAC input and supports 50/60 Hz line frequency. The incoming power system should be matched to the drive rating, with correctly sized cables, circuit protection, disconnect equipment, and grounding. Before commissioning, verify that the actual supply voltage is within the permitted operating range and that the motor voltage is compatible with the drive output.

3. What motor capacity is suitable for the 20BD077A3ANNANC0?
The drive is rated for 60 HP under normal-duty conditions and 50 HP under heavy-duty conditions. Motor selection should also consider rated motor current, voltage, speed, frequency, load characteristics, starting torque, and duty cycle. The motor’s rated current should remain within the drive’s applicable output-current capability, particularly when the application involves continuous heavy loading or frequent acceleration.

4. What control method does the 20BD077A3ANNANC0 use?
The 20BD077A3ANNANC0 uses vector control, providing improved speed and torque regulation compared with basic V/Hz operation. During commissioning, accurate motor nameplate data should be entered into the drive. Motor voltage, rated current, frequency, speed, and power parameters should be checked carefully. Proper configuration helps maintain stable operation and reduces unnecessary current fluctuations and drive trips.

5. What type of operator interface is provided with this PowerFlex 700 drive?
This configuration uses an LCD display with a full keypad. The operator interface can be used for monitoring drive status, viewing operating parameters, entering configuration values, checking alarms, and reviewing fault information. During commissioning and maintenance, the keypad provides convenient access to important drive parameters without requiring an external programming device for basic setup and diagnostics.

6. How should an overcurrent fault on the 20BD077A3ANNANC0 be diagnosed?
First inspect the driven machine for excessive mechanical load, blockage, bearing problems, or abnormal friction. Then check the motor cable and motor terminals for phase-to-phase or phase-to-ground faults. Verify that the motor nameplate parameters programmed into the drive are correct. If the fault occurs mainly during acceleration, check the acceleration time and load inertia. The drive fault history and actual operating current should also be reviewed to determine whether the problem is electrical, mechanical, or parameter-related.

7. How can the 20BD077A3ANNANC0 be integrated into an industrial automation system?
The drive can be integrated into a PLC, DCS, or machine control system using its available control interfaces. Typical signals include start/stop commands, speed reference, run status, ready status, and fault indication. The RS-485 interface can also be used where the application requires serial communication. During system commissioning, control commands and feedback signals should be tested individually to confirm correct operation before the motor is placed under full production load.

8. What maintenance should be performed on the 20BD077A3ANNANC0?
Routine maintenance should include inspection of power terminals, control wiring, grounding connections, cooling paths, and ventilation areas. Check for loose connections, abnormal heating, dust accumulation, and signs of electrical stress. The drive’s alarm and fault history should be reviewed periodically to identify recurring problems. The connected motor and mechanical equipment should also be inspected because excessive load, bearing wear, misalignment, or mechanical resistance can cause increased motor current and repeated drive protection events.
