1. What are the main applications of the Allen Bradley 20BD156A0ANNAND0NNAD?

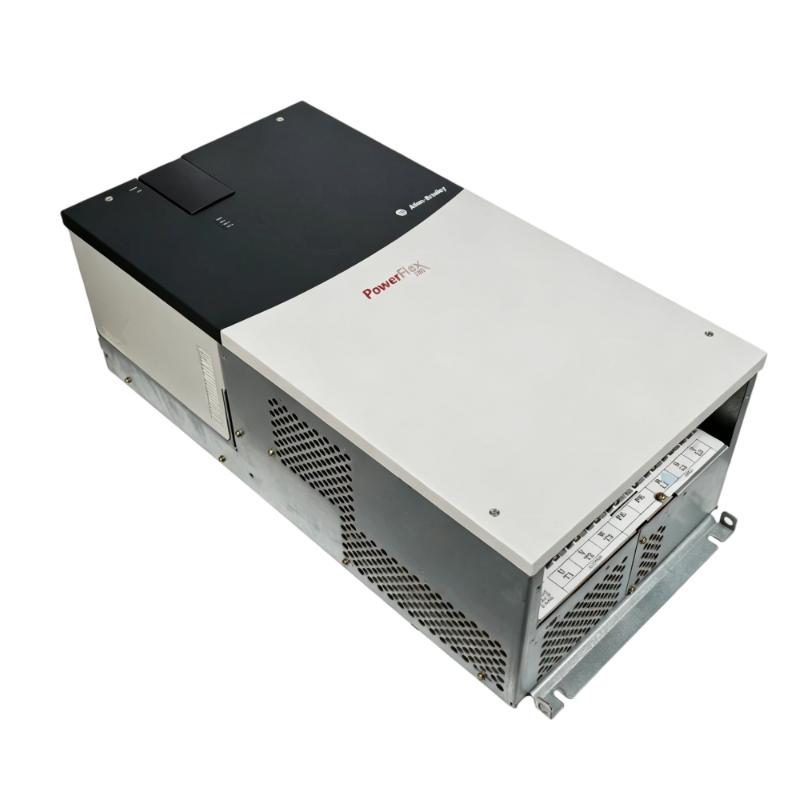

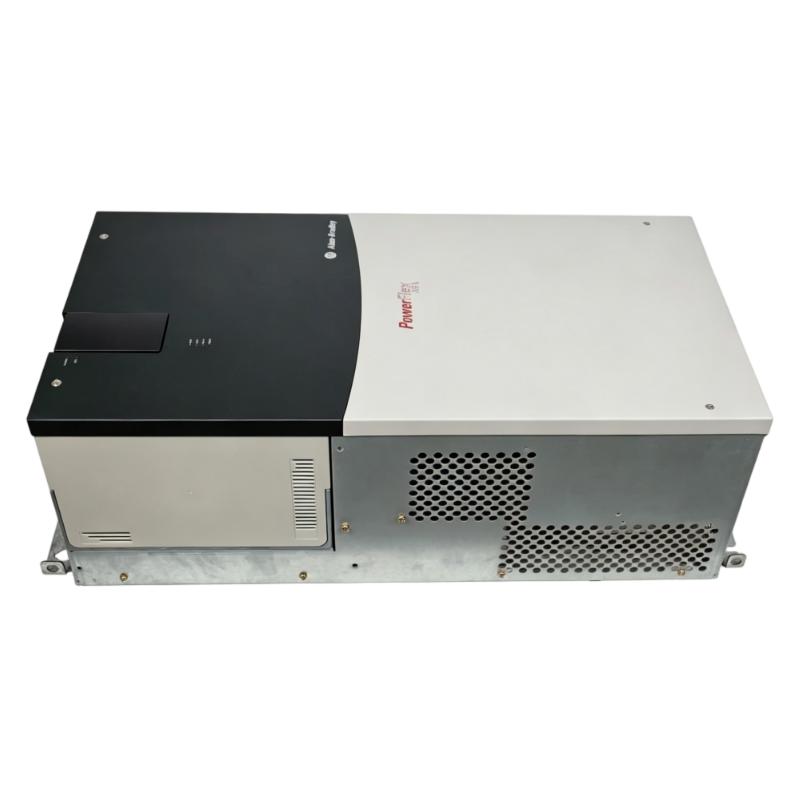

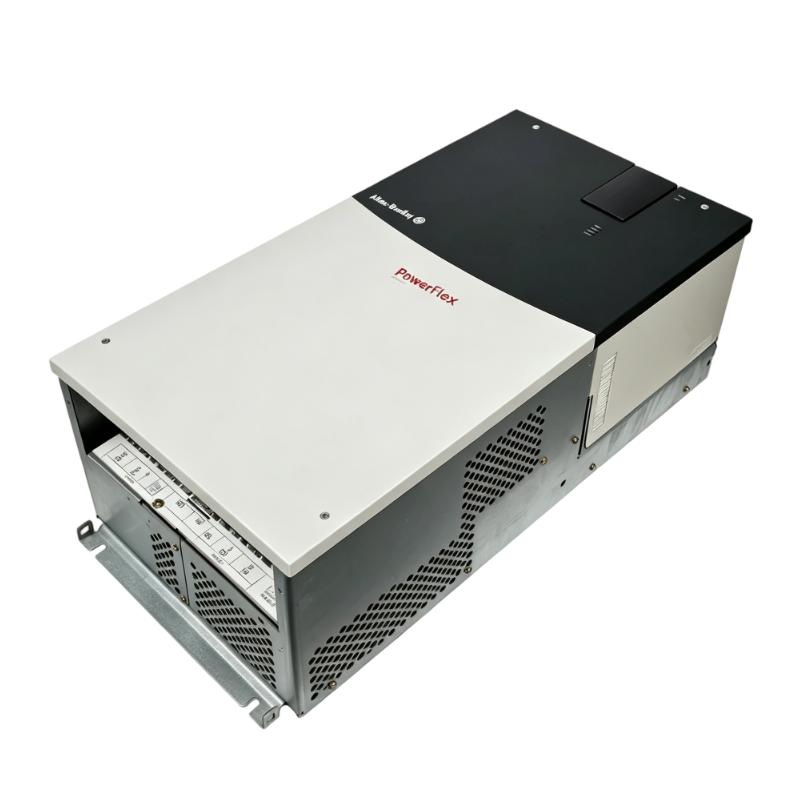

The 20BD156A0ANNAND0NNAD is a PowerFlex 700 AC drive designed for variable-speed control of three-phase AC motors. With a 156 A continuous output rating and a 125 HP normal-duty rating, it can be used in industrial conveyors, pumps, fans, compressors, material-handling equipment, process machinery, and other applications requiring controlled motor speed and torque.

2. What are the input power requirements for the 20BD156A0ANNAND0NNAD?
This drive uses a three-phase 480 VAC input with a 60 Hz operating frequency. The incoming power system should be properly sized for the drive and motor load, including suitable power cables, circuit protection, disconnect equipment, and grounding. Before commissioning, the supply voltage should be checked and the motor voltage should be confirmed as compatible with the drive configuration.

3. What motor rating is suitable for the 20BD156A0ANNAND0NNAD?
The drive is rated for 125 HP under normal-duty operation and 100 HP under heavy-duty operation. Motor selection should also consider the motor’s rated current, voltage, frequency, speed, duty cycle, starting torque, and load characteristics. For applications with frequent acceleration, high inertia, or continuous heavy loading, the actual motor current should be checked carefully against the drive’s applicable current capacity.

4. What control method does the 20BD156A0ANNAND0NNAD use?
The drive uses vector control, providing controlled motor speed and torque response. Sensorless vector operation can provide stable performance without a motor feedback device in suitable applications. During commissioning, accurate motor nameplate data should be entered, including rated voltage, current, frequency, speed, and power. Correct motor parameters are important for maintaining stable operation and avoiding unnecessary overcurrent or protection events.

5. What type of operator interface is included with this drive?
The 20BD156A0ANNAND0NNAD is configured with an HIM blank plate rather than a standard Human Interface Module. Drive configuration and diagnostics therefore need to be performed through the available control interface, connected automation system, or an appropriate compatible programming and monitoring method. System designers should consider the required commissioning and maintenance interface when planning the installation.

6. How should an overcurrent fault be diagnosed on the 20BD156A0ANNAND0NNAD?
First check the connected motor and mechanical equipment for excessive load, blockage, bearing problems, misalignment, or increased mechanical resistance. Then inspect the motor cables and terminals for phase-to-phase or phase-to-ground faults. Verify that the motor parameters programmed into the drive match the actual motor nameplate. If the fault occurs during acceleration, check the acceleration time and load inertia. Reviewing fault history and actual operating current can help determine whether the cause is mechanical, electrical, or related to drive configuration.

7. How can the 20BD156A0ANNAND0NNAD be integrated into a PLC or DCS system?
The drive can be integrated into an industrial automation system using its available control interfaces. Typical signals include start/stop commands, speed reference, run status, ready status, and fault indication. The configuration also provides RS-485 connectivity for suitable serial communication applications. During commissioning, each command and feedback signal should be tested separately to confirm correct communication between the drive and PLC, DCS, or machine controller.

8. What maintenance is recommended for the 20BD156A0ANNAND0NNAD?
Routine maintenance should include inspection of power terminals, control wiring, grounding connections, cooling paths, and ventilation areas. Technicians should check for loose connections, abnormal heating, dust accumulation, and signs of electrical stress. Fault and alarm history should be reviewed periodically to identify recurring problems. The connected motor and mechanical equipment should also be inspected because excessive load, bearing wear, misalignment, or mechanical resistance can increase motor current and cause repeated drive protection events.
