1. What are the main applications of the Allen Bradley 20BD481A3ANNNNC1?

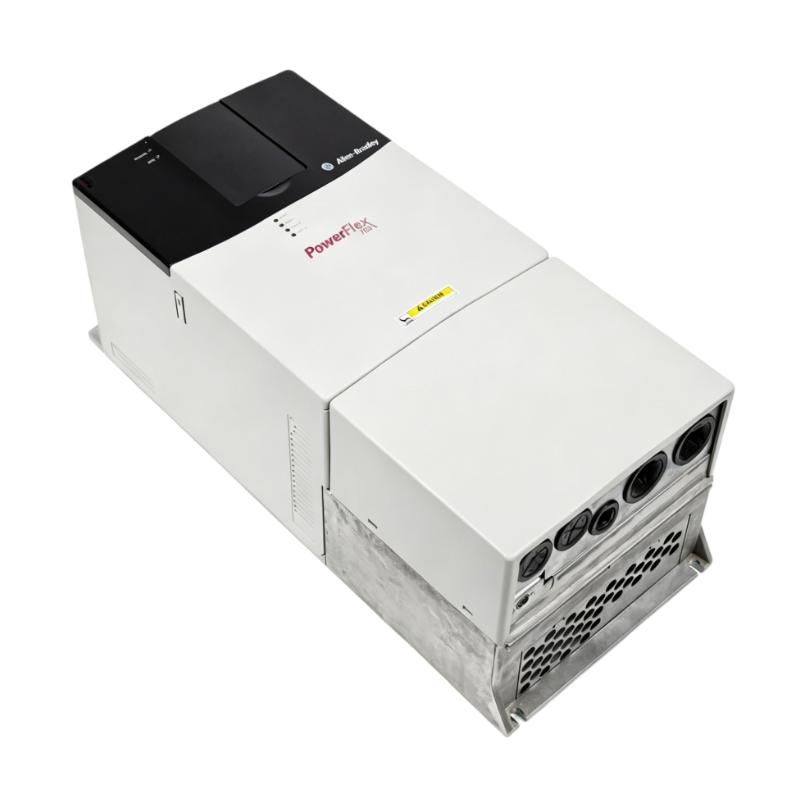

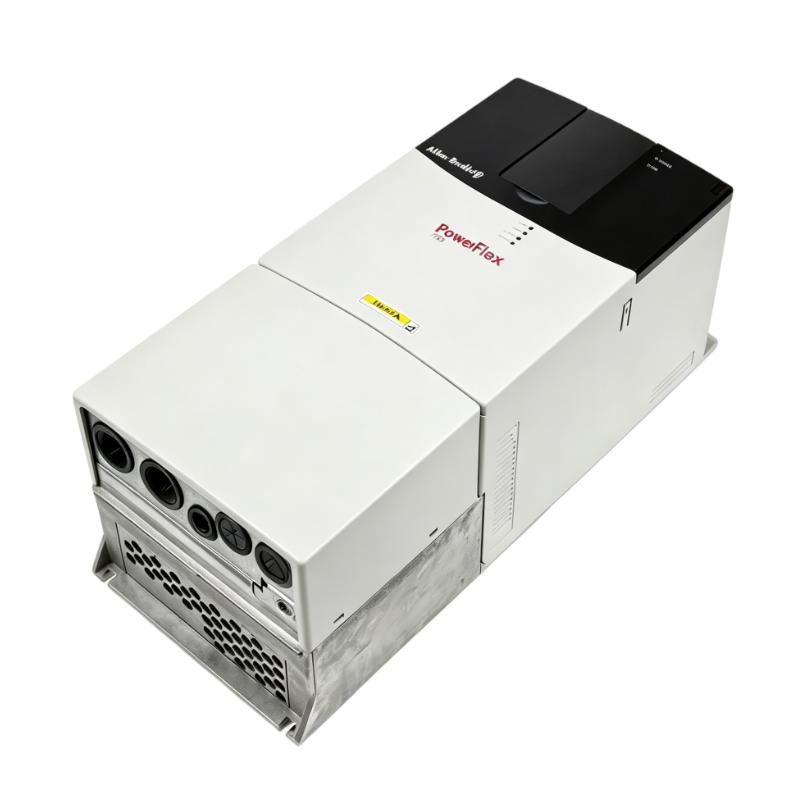

The 20BD481A3ANNNNC1 is a high-power PowerFlex 700 AC drive designed for variable-speed control of large three-phase AC motors. With a 481 A continuous output rating and 400 HP normal-duty capacity, it is suitable for large conveyors, pumps, fans, compressors, material-handling systems, process machinery, and other industrial equipment requiring controlled motor speed and torque. The PowerFlex 700 platform supports applications requiring adjustable acceleration, deceleration, and motor control.

2. What are the input power requirements for the 20BD481A3ANNNNC1?
The drive uses a three-phase 480 VAC input at 60 Hz. The incoming power system should be properly sized for the drive and connected motor load, including suitable power cables, circuit protection, disconnect equipment, and grounding. Before energizing the drive, verify the actual line voltage, phase sequence, grounding arrangement, and motor voltage. Proper power-system preparation is especially important for a high-current 481 A drive.

3. What motor rating is suitable for the 20BD481A3ANNNNC1?
The 20BD481A3ANNNNC1 is rated for 400 HP under normal-duty operation and 350 HP under heavy-duty operation. Motor selection should also consider rated current, voltage, frequency, speed, duty cycle, starting torque, and mechanical load characteristics. For high-inertia loads or applications involving frequent acceleration and deceleration, the actual motor current and overload requirements should be checked carefully against the drive rating.

4. What control method does the 20BD481A3ANNNNC1 use?
The drive uses vector control for regulating motor speed and torque. This provides more controlled motor performance than basic fixed-frequency operation and is suitable for industrial loads with changing torque requirements. During commissioning, the motor nameplate information should be entered accurately, including rated voltage, current, frequency, speed, and power. Incorrect motor data can result in unstable operation, excessive current, or unnecessary drive protection events.

5. What does the 24V I/O configuration provide for an automation system?
The 24V I/O configuration allows the drive to exchange control and status signals with external automation equipment. Typical signals include start, stop, enable, speed reference, running status, ready status, and fault indication. When integrating the drive with a PLC or DCS, the control circuit should be designed so that command logic, interlocks, emergency-stop functions, and fault handling are clearly defined before commissioning.

6. How should an overcurrent fault be diagnosed on the 20BD481A3ANNNNC1?
Start by checking the mechanical load for blockage, excessive friction, bearing problems, misalignment, or an unexpected increase in torque demand. Then inspect the motor cable and motor terminals for phase-to-phase or phase-to-ground faults. Verify that the motor parameters programmed into the drive match the actual motor nameplate. If the fault occurs mainly during acceleration, check the acceleration time and load inertia. Reviewing the drive fault history together with actual motor current can help identify the underlying cause.

7. How should the 20BD481A3ANNNNC1 be installed in an industrial control system?
Because this configuration uses an IP00/open-type enclosure, it should be installed within a suitable electrical cabinet or protected industrial installation. The installation should provide adequate cooling and airflow while protecting the drive from dust, moisture, conductive contamination, and accidental contact with energized components. Power cables and control wiring should be routed appropriately to reduce electrical interference. High-current connections should be properly tightened and inspected during commissioning and preventive maintenance.

8. What maintenance is recommended for the 20BD481A3ANNNNC1?
Routine maintenance should include inspection of power terminals, control wiring, grounding connections, cooling paths, fans, and cabinet ventilation. Check for loose connections, abnormal heating, discoloration, dust accumulation, and restricted airflow. The drive fault and alarm history should also be reviewed periodically to identify recurring problems. The connected motor and mechanical transmission should be inspected at the same time because excessive load, bearing wear, misalignment, or mechanical resistance can cause increased motor current and repeated drive protection events.
