1. What is the main function of the Allen Bradley 20BF119A3ANNANC0?

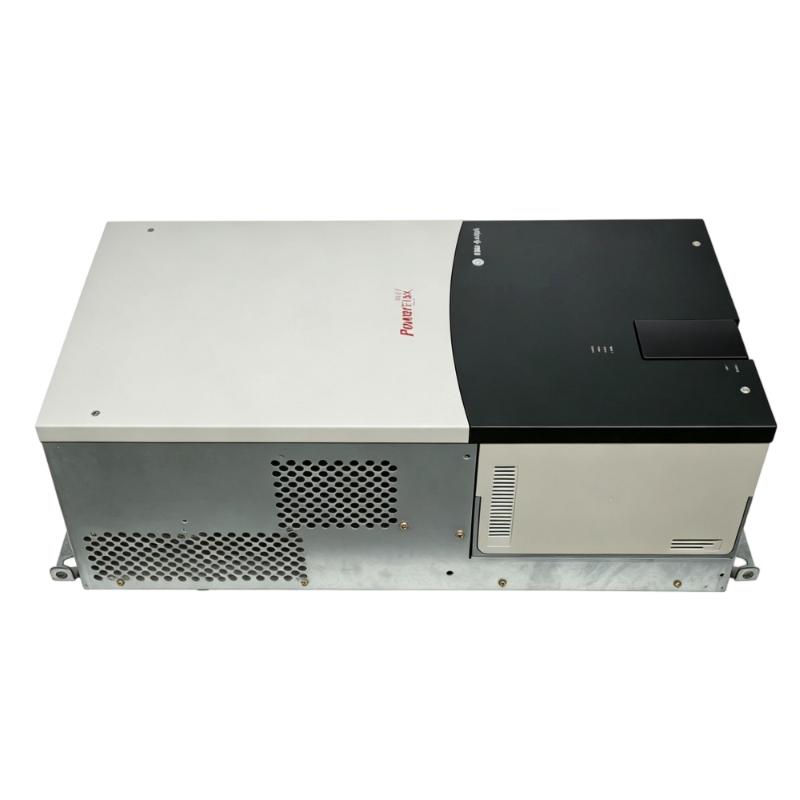

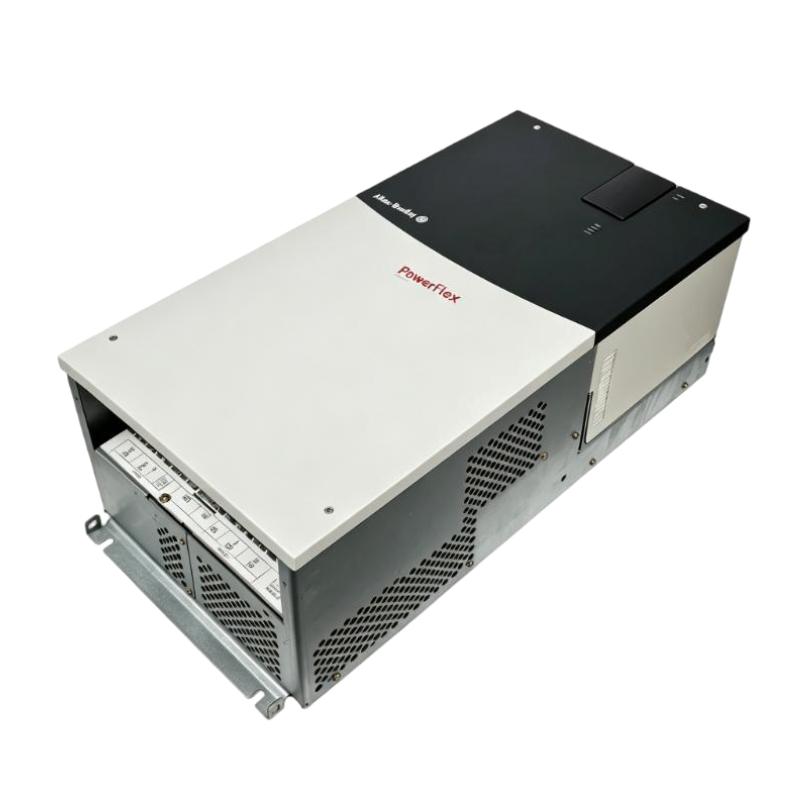

The Allen Bradley 20BF119A3ANNANC0 is a PowerFlex 700 AC drive designed for variable-speed control of three-phase industrial motors. It is rated for 690 VAC three-phase power and provides vector-based motor control for applications requiring controlled acceleration, deceleration, speed regulation, and torque management. Typical applications include pumps, fans, conveyors, compressors, material-handling equipment, and other large industrial machines.

2. What are the input power requirements for the 20BF119A3ANNANC0?
This model is designed for a 690 VAC, three-phase, 50 Hz power supply. The incoming power system should be properly coordinated with the drive rating, protective devices, disconnect equipment, grounding system, and cable selection. Before energizing the drive, verify the actual supply voltage and phase configuration and ensure that the installation complies with the requirements of the electrical system.

3. What motor power rating is suitable for the 20BF119A3ANNANC0?
The 20BF119A3ANNANC0 is associated with a 110 kW motor power rating. Motor selection should also consider rated motor current, voltage, speed, operating frequency, starting torque, load inertia, and duty cycle. For applications involving frequent acceleration, heavy starting loads, or continuous high torque, the drive should be evaluated according to the actual load characteristics rather than relying only on the motor kW rating.

4. What type of motor control does the 20BF119A3ANNANC0 provide?
The drive supports vector-based motor control, including sensorless vector operation. This control method can provide improved speed and torque regulation compared with basic V/Hz control, particularly when the motor operates over a wide speed range. During commissioning, accurate motor nameplate data should be entered, including motor voltage, current, frequency, and rated speed, so the drive can establish appropriate motor control parameters.

5. How can the 20BF119A3ANNANC0 be integrated with a PLC or DCS?
The drive provides 24 VDC control I/O for exchanging operating commands and status signals with an automation system. Digital inputs can be assigned to functions such as start, stop, direction selection, enable, and fault reset, while outputs can provide drive status information. Analog inputs and outputs can also be used for speed references and operating feedback. The exact I/O assignment should be defined during system commissioning to match the PLC or DCS control logic.

6. What should be checked if the 20BF119A3ANNANC0 trips on overcurrent?
First inspect the driven machine for mechanical blockage, excessive friction, sudden load increases, or a locked motor. The motor cable should also be checked for phase-to-phase faults, ground faults, loose connections, or insulation problems. Incorrect motor parameters can also cause abnormal current. If the fault occurs mainly during acceleration, check the acceleration time and load inertia. Repeated overcurrent trips should be diagnosed using the drive fault history together with motor current, operating frequency, and mechanical load conditions.

7. Does the 20BF119A3ANNANC0 have an internal braking resistor?
No. This configuration does not include an internal brake resistor or brake IGBT. When the application involves rapid deceleration or high-inertia loads, regenerative energy can raise the DC-bus voltage. The deceleration profile should therefore be evaluated carefully. If dynamic braking is required, an appropriate external braking solution should be selected according to the actual motor power, inertia, braking frequency, and required stopping time.

8. What maintenance should be performed on the 20BF119A3ANNANC0?
Routine maintenance should include inspection of power terminals, control wiring, grounding connections, ventilation paths, cooling components, and cabinet conditions. Dust accumulation around cooling passages should be removed, and abnormal fan operation or temperature increases should be investigated. It is also useful to record drive current, operating frequency, alarms, and fault history during normal operation. If repeated overcurrent, overvoltage, or overtemperature faults occur, the motor, cables, drive, and mechanical load should all be checked as part of the troubleshooting process.
