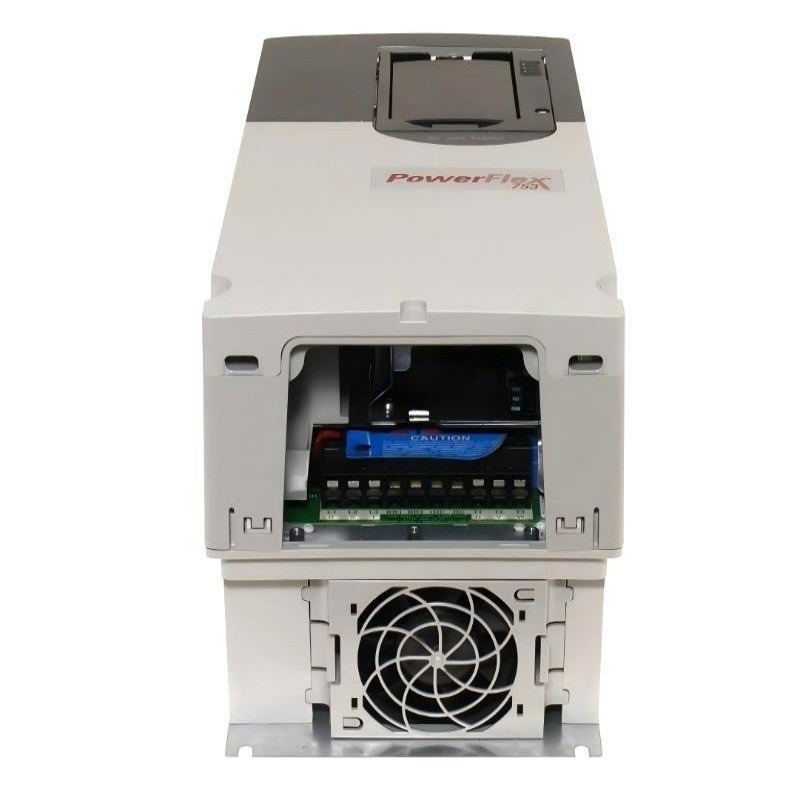

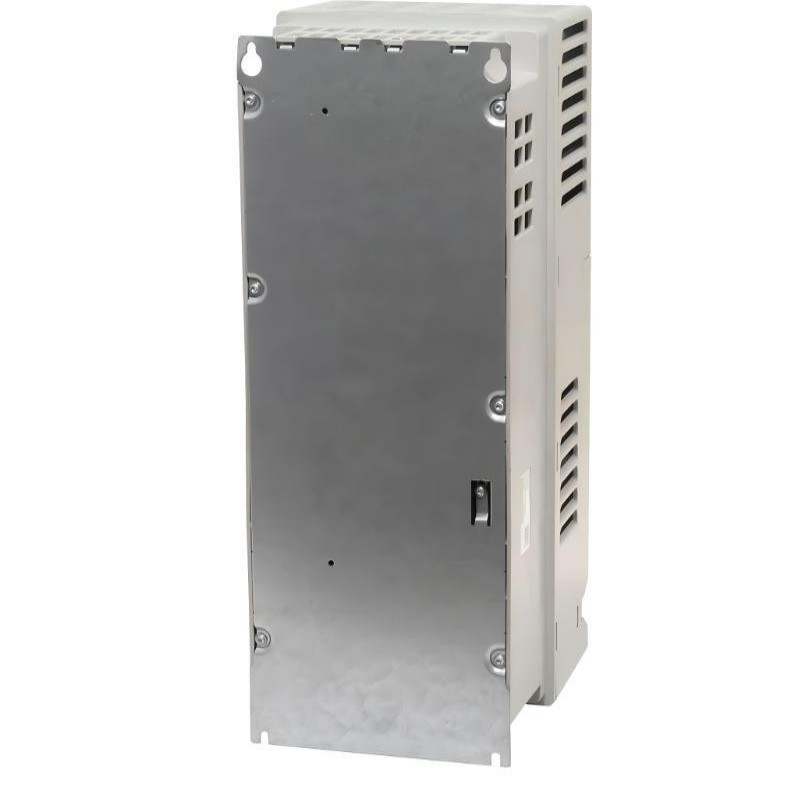

Allen-Bradley PowerFlex 753 20F14NF098JN0NNNNN AC Drive – Technical Specifications & FAQ
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

Technical Specifications
Allen-Bradley PowerFlex 753 20F14NF098JN0NNNNN AC Drive – Technical Specifications & FAQ
|
Parameter |
Specification |
|---|---|
|
Brand |
Allen-Bradley |
|
Product Series |
PowerFlex 753 |
|
Model Number |
|
|
Product Type |
|
|
Drive Configuration |
Common-Bus Drive |
|
Input Type |
DC Input with Precharge |
|
Voltage Class |
690 V AC |
|
Nominal DC Bus Voltage |
932 V DC |
|
Input Phase |
3-phase |
|
Normal-Duty Output Current |
98 A |
|
Normal-Duty Power Rating |
90 kW |
|
Heavy-Duty Output Current |
82 A |
|
Heavy-Duty Power Rating |
75 kW |
|
Enclosure |
Open Type |
|
Cooling |
Forced-air cooled |
|
Filtering |
Filtered |
|
Common-Mode Jumper |
Installed |
|
Dynamic Braking Transistor |
Not included |
|
Human Interface Module (HIM) |
Not included |
|
Mounting |
Panel mounting |
|
Dimensions (H × W × D) |
110 mm × 66.8 mm × 50 mm |
|
Weight |
2.5 kg |
FAQ
Q1: What is the Allen-Bradley 20F14NF098JN0NNNNN?
– It is a PowerFlex 753 AC drive designed for industrial motor control and common-bus applications. It is used in systems requiring adjustable motor speed and controlled operation.
Q2: What is the power rating of the 20F14NF098JN0NNNNN?
– The model designation corresponds to a 98 A current rating. Confirm the applicable normal-duty and heavy-duty power ratings against the drive nameplate and technical documentation before selecting it for a specific motor.
Q3: What voltage class does this drive belong to?
– It is associated with the 690 V PowerFlex 753 product range. The DC-bus supply and operating voltage must be compatible with the complete drive system.
Q4: Is the 20F14NF098JN0NNNNN suitable for common-bus applications?
– Yes. This configuration is intended for common-bus installations, where the drive receives power from a shared DC bus rather than a conventional standalone AC input arrangement.
Q5: Does this model include filtering?
– The J configuration is associated with a filtered drive configuration. Verify the exact filter specification and installation requirements before commissioning.
Q6: Does the drive include an internal dynamic braking transistor?
– The specified configuration does not include an internal dynamic braking transistor. Applications involving frequent deceleration or regenerative energy may require additional braking equipment.
Q7: Does the 20F14NF098JN0NNNNN come with a Human Interface Module?
– The listed configuration does not include a HIM. A compatible interface may be required for local parameter adjustment, diagnostics, and commissioning.
Q8: What are the dimensions and weight of the 20F14NF098JN0NNNNN?
– The exact dimensions and weight should be verified using the model-specific installation drawing and product documentation. These details are important when planning cabinet space, mounting, ventilation, and transportation.
Allen-Bradley PowerFlex 753 20F14NF098JN0NNNNN AC Drive – Technical Specifications & FAQ is in stock. Please contact us for a quick quote and competitive pricing.
