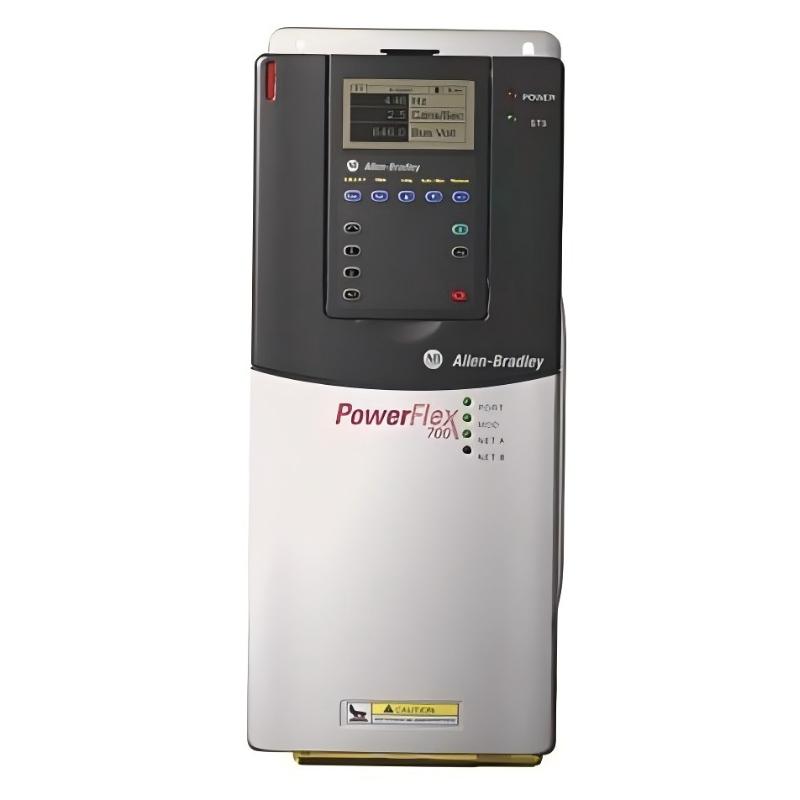

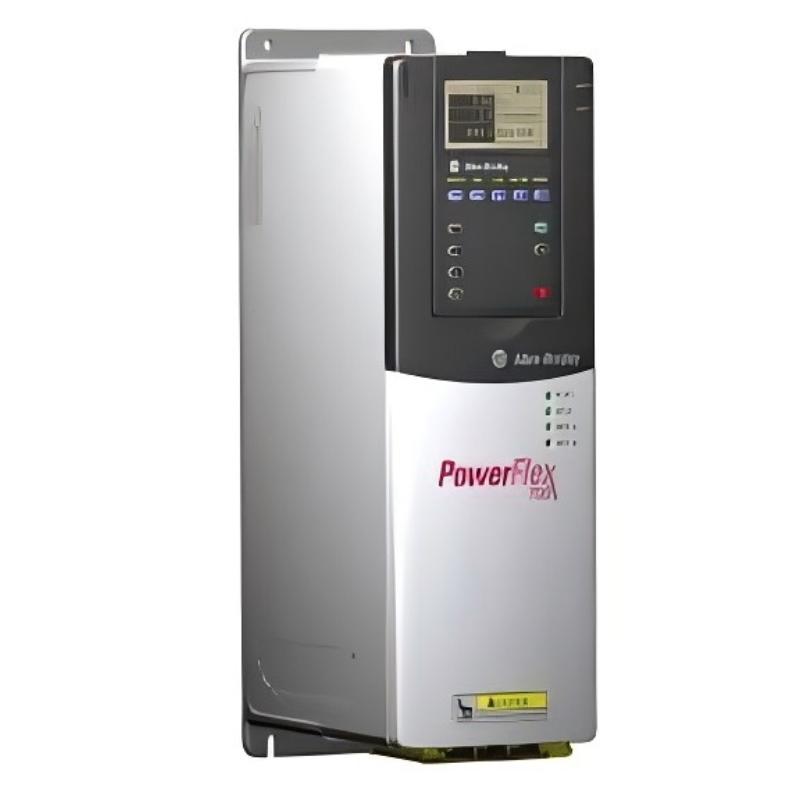

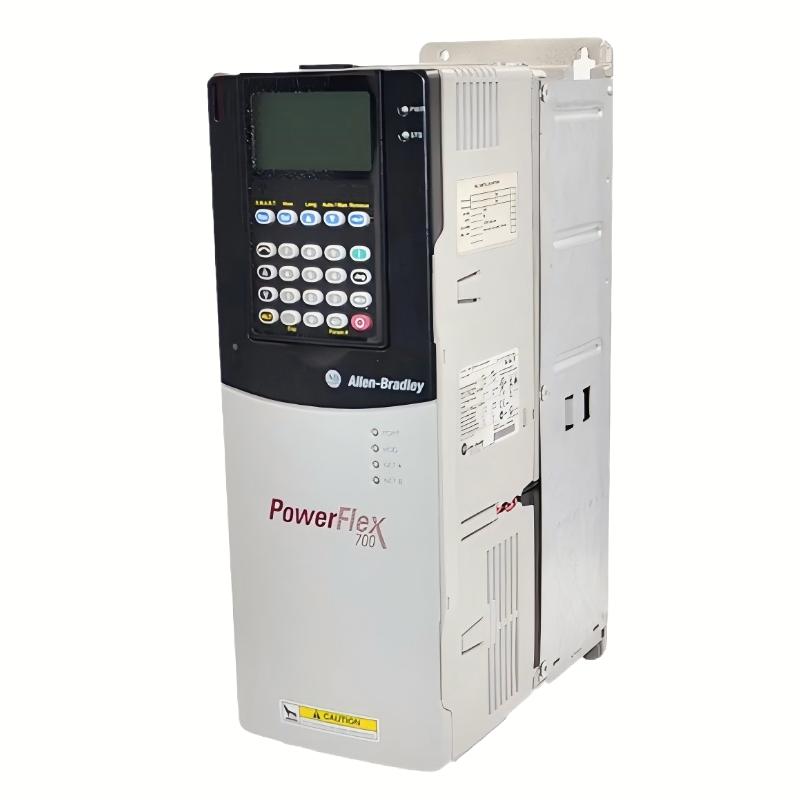

1. What motor power rating is suitable for the 20BD022A3AYNAND1NNAD?
The 20BD022A3AYNAND1NNAD has a rated output current of 22 A and can be used for applications up to approximately 15 HP under normal-duty conditions. For heavy-duty applications, the rating is approximately 10 HP. When selecting the drive, motor nameplate current should be considered together with motor power. Load type, starting requirements, acceleration and deceleration time, operating cycle, and required torque should also be evaluated to ensure that the drive has sufficient continuous and overload capacity.

2. What motor control methods does the 20BD022A3AYNAND1NNAD support?
The drive supports several motor control methods, including V/Hz control, sensorless vector control, and vector-based control. V/Hz control is suitable for applications such as fans and pumps where basic speed control is sufficient. Sensorless vector control provides improved torque and speed regulation without requiring an encoder. For applications requiring higher speed accuracy and dynamic response, encoder feedback can be used when the appropriate feedback configuration is installed.

3. Does the 20BD022A3AYNAND1NNAD support encoder feedback?
Yes. The drive supports standard incremental encoder feedback for applications requiring improved speed regulation and closed-loop control. Before connecting an encoder, the encoder type, supply voltage, pulse configuration, wiring, and feedback channels should be verified. The corresponding drive parameters must also be configured correctly. Incorrect encoder wiring or parameter settings can result in incorrect speed feedback, unstable operation, incorrect motor direction, or feedback-related faults.

4. What are the input voltage and power requirements for the 20BD022A3AYNAND1NNAD?
The 20BD022A3AYNAND1NNAD is designed for a three-phase AC power supply with a nominal input voltage of 480 V AC and a 60 Hz input frequency. Before installation, the incoming power supply should be checked to ensure that the voltage is within the drive’s permitted operating range. Phase-to-phase voltage balance should also be verified. Proper input protection, including suitable circuit protection and grounding, should be provided according to the overall electrical system design.

5. Does the 20BD022A3AYNAND1NNAD have a built-in braking function?
The drive includes a built-in brake IGBT, but it does not include an internal brake resistor. If the application requires rapid deceleration or involves a high-inertia load, an appropriately sized external braking resistor may therefore be required. Brake resistor selection should consider motor power, load inertia, deceleration time, braking frequency, and regenerated energy. If the braking system is undersized, excessive DC bus voltage can occur during deceleration and may cause an overvoltage fault.

6. How should an overcurrent fault on the 20BD022A3AYNAND1NNAD be diagnosed?
The first step is to determine when the overcurrent occurs. If it happens during starting or acceleration, check whether the acceleration time is too short, whether the mechanical load is excessive or jammed, and whether the motor parameters are correctly configured. If the fault occurs during normal operation, inspect the motor, output wiring, and mechanical load. Motor cables should also be checked for phase-to-phase shorts, ground faults, or insulation problems. The motor rating and drive output capacity should be compared to ensure that the drive is appropriately sized for the application.

7. What can cause a DC bus overvoltage fault on the 20BD022A3AYNAND1NNAD?
A DC bus overvoltage condition can be caused by excessive incoming voltage, excessive regenerative energy, or an excessively short deceleration time. Start by checking the incoming three-phase voltage and confirming that it is within the permitted range. If the fault occurs primarily during deceleration, increase the deceleration time and observe whether the condition improves. For high-inertia loads or applications with frequent rapid stopping, an external braking resistor may be necessary. The braking resistor and brake circuit should be correctly rated for the regenerated energy produced by the application.

8. Why does the motor not run after the 20BD022A3AYNAND1NNAD is powered on?
First, check whether the drive has any active fault, alarm, or inhibit condition. Then verify that a valid start command is reaching the drive through the configured control terminals or control system. The frequency reference should also be checked because a valid start command with a zero-frequency reference will not produce normal motor rotation. Next, inspect the motor output wiring and verify the motor configuration parameters. If encoder feedback is being used, check the encoder power supply, feedback signals, pulse configuration, and direction settings. For a newly installed or replacement drive, carefully compare the motor nameplate data with the corresponding drive parameters to ensure that the configuration is correct.
