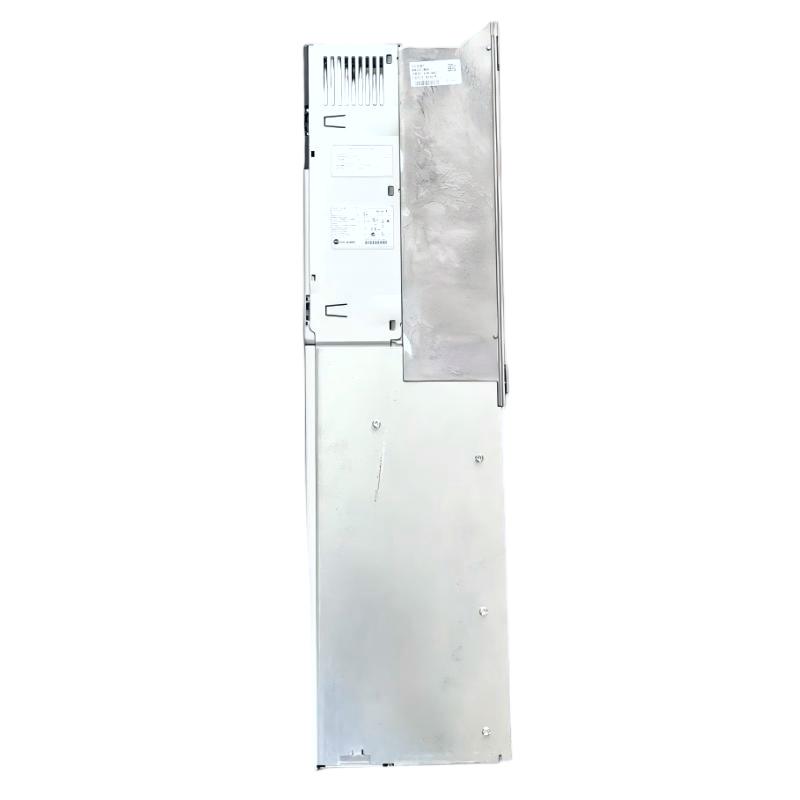

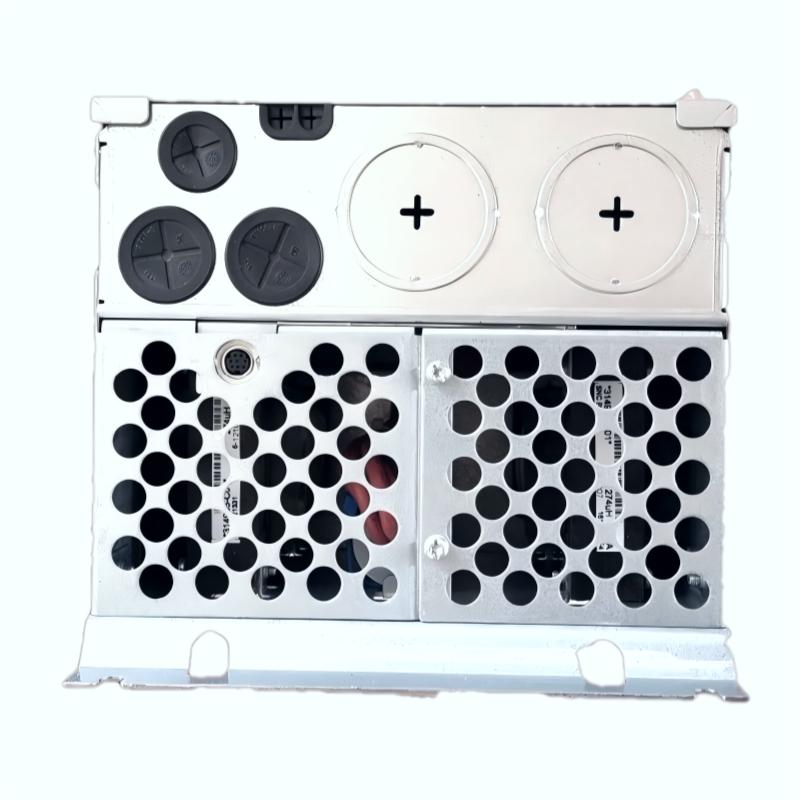

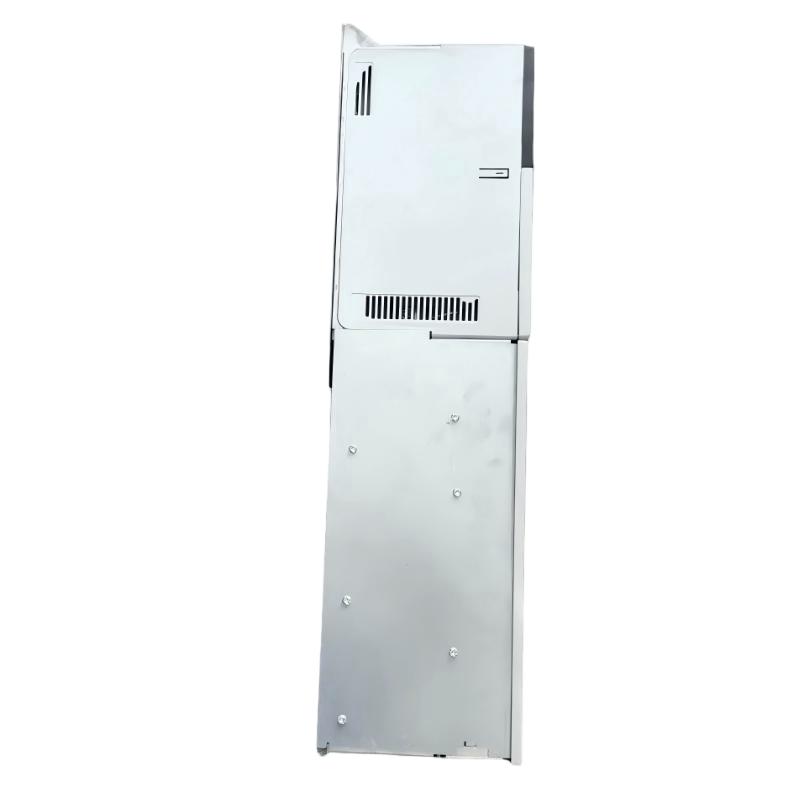

1. What motor power rating is suitable for the 20BD077A0ANNACC1?
The 20BD077A0ANNACC1 has a continuous output current rating of 77 A and is rated for 60 HP under normal-duty operation and 50 HP under heavy-duty operation. Motor selection should not be based only on horsepower. The motor’s rated current, voltage, operating speed, load characteristics, acceleration requirements, and overload conditions should also be checked. For applications with frequent acceleration, high starting torque, or significant load variation, the heavy-duty current rating should be considered when selecting the drive.

2. What input power supply does the 20BD077A0ANNACC1 require?
The drive is designed for a 480 V AC, three-phase input supply at 60 Hz. Its operating range for the 380–480 V drive class extends from approximately 342 to 528 V AC, while the nominal line voltage is 480 V AC. Before commissioning, the incoming voltage should be measured between all three phases to verify that the supply is within the acceptable range and that phase imbalance is not excessive. Proper circuit protection and grounding should also be provided according to the installation design.

3. Does the 20BD077A0ANNACC1 support vector control and encoder feedback?
Yes. The drive supports sensorless vector control, V/Hz control, and vector control. It also includes a standard incremental encoder feedback option. Sensorless vector control can provide improved torque performance without an encoder, while encoder feedback can be used when higher speed regulation and closed-loop performance are required. When an encoder is installed, its voltage, signal type, pulse configuration, wiring, and direction must be correctly matched with the drive’s feedback interface and parameter settings.

4. Does the 20BD077A0ANNACC1 have an internal braking resistor or brake IGBT?
No. This specific configuration does not include a brake IGBT and does not have an internal brake resistor. Therefore, applications requiring rapid deceleration or frequent braking should be evaluated carefully before commissioning. If the motor and load generate significant regenerative energy during deceleration, a suitable external braking solution or another regenerative energy management method may be required. The braking method should be selected according to load inertia, stopping time, braking frequency, motor power, and regenerated energy.

5. What communication interface is included with the 20BD077A0ANNACC1?
This configuration includes a ControlNet coaxial DPI communication module. ControlNet can be used for communication between the drive and an industrial control system where the network architecture supports this protocol. When commissioning the communication interface, the network configuration, node addressing, communication parameters, and drive command/reference settings should be checked carefully. The drive’s local control configuration should also be reviewed to ensure that the communication network is actually authorized to control the start, stop, and speed reference functions.

6. What should be checked if the drive trips on overcurrent during acceleration?
An overcurrent trip during acceleration can result from excessive acceleration demand, an overloaded mechanical system, incorrect motor data, or problems in the motor and output wiring. First, check whether the acceleration time is too short for the connected load. If necessary, increase the acceleration time and verify whether the fault disappears. The motor nameplate data should then be compared with the programmed motor parameters. Inspect the motor cables for phase-to-phase shorts, ground faults, loose connections, and insulation problems. Mechanical problems such as a seized bearing, blocked conveyor, or excessive load can also cause the drive to reach its current limit.

7. How can a DC bus overvoltage fault be diagnosed on the 20BD077A0ANNACC1?
A DC bus overvoltage fault is commonly associated with excessive regenerative energy during deceleration or an incoming AC voltage condition outside the expected range. If the fault occurs primarily while the motor is slowing down, check the deceleration time and load inertia first. Increasing the deceleration time can reduce the amount of regenerative energy returned to the DC bus. For applications requiring very rapid stopping, the absence of an internal brake IGBT and brake resistor must be taken into account when designing the external braking system. The incoming AC voltage should also be measured to rule out excessive line voltage.

8. Why does the motor fail to start even though the 20BD077A0ANNACC1 is powered?
A powered drive does not necessarily mean that a valid start command is being received. First, check the drive status and confirm that there are no active faults, alarms, or inhibit conditions. Next, verify whether the start command is coming from the correct source, such as the control terminals or the ControlNet communication interface. The commanded frequency or speed reference should also be checked because a valid start command with a zero reference may leave the motor stopped. In addition, inspect the motor output wiring, programmed motor data, stop mode, digital input configuration, and any interlocks in the control system. If encoder feedback is being used, incorrect feedback signals or direction settings should also be investigated.
