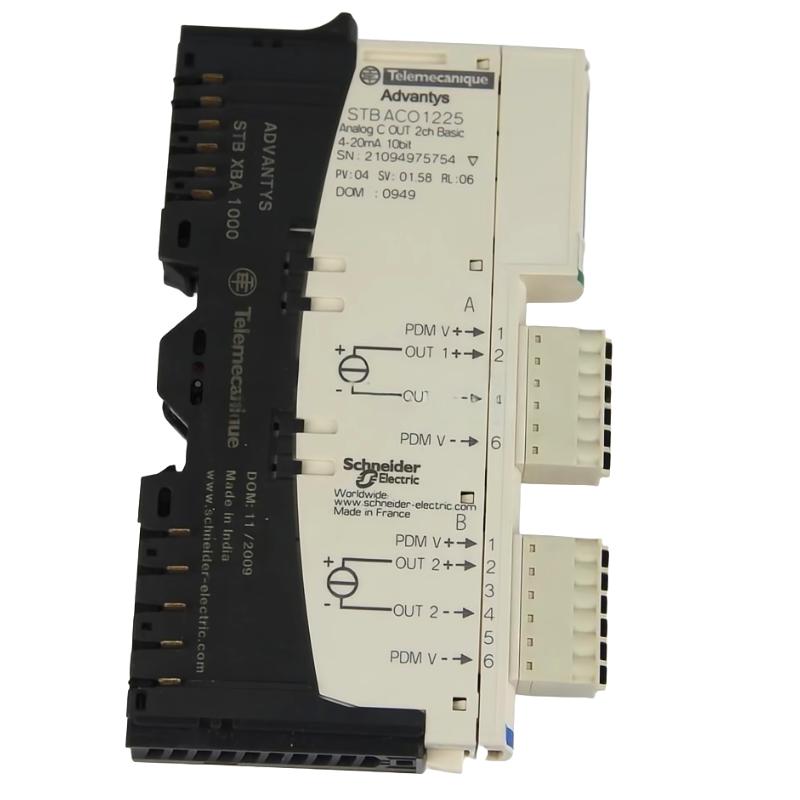

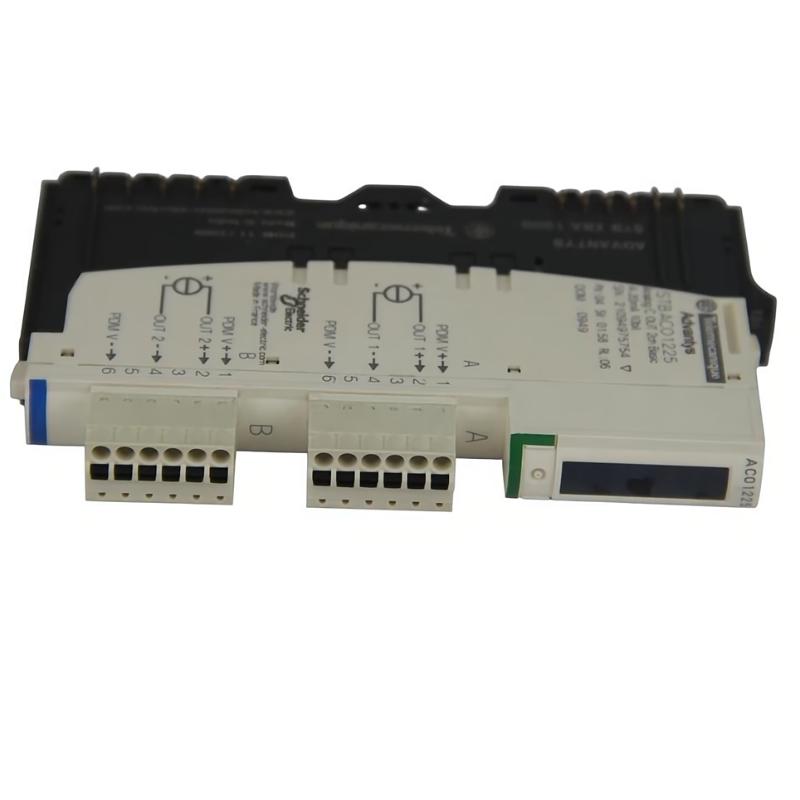

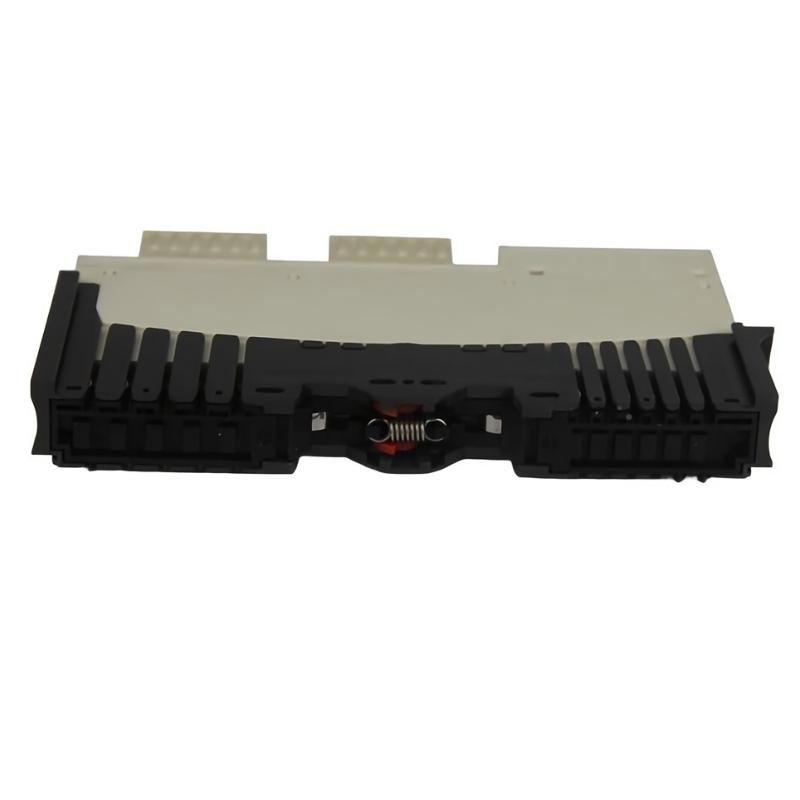

Schneider STBACO1225K Basic Analog Output Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Schneider Electric STBACO1225K Basic Analog Output Kit |
| Brand | Schneider Electric |
| Model | STBACO1225K |
| Product Series | Modicon STB Distributed I/O |
| Product Type | Basic Analog Output Kit |
| Analog Output Channels | 2 |
| Analog Output Signal | 4–20 mA |
| Analog Output Resolution | 10 bits |
| Rated Supply Voltage | 24 V DC |
| Logic Bus Current Consumption | 40 mA at 5 V DC |
| Maximum Output Current | 20 mA |
| Response Time | 3 ms |
| Update Time | 25 ms |
| Conversion Time | 900 ms at ±0.1% of final value |
| Integral Linearity | ±0.1% of full scale |
| Differential Linearity | Monotonic |
| Absolute Accuracy Error | ±0.5% of full scale per °C |
| Temperature Drift | ±0.01%/°C |
| Short-Circuit Protection | Supported |
| Channel-to-Logic Bus Insulation | 1500 V for 1 minute |
| Channel-to-Actuator Bus Insulation | 30 V |
| Fallback State | State 0 |
| Cold Swapping | Supported |
| Hot-Swapping Fallback | Not supported with basic NIMs |
| Compatible Mounting Base | STBXBA1000 |
| Compatible Power Distribution Module | STBPDT3100 / STBPDT3105 |
| Kit Contents | STBACO1225 module, STBXBA1000 base, STBXTS1100 screw-type connector, STBXTS2100 spring-clamp connector |
| Protection Rating | IP20 |
| Operating Temperature | 0–60°C |
| Dimensions | 13.9 × 128.3 × 70 mm |
| Weight | 0.082 kg |
FAQ
Q1: What is the main function of the Schneider STBACO1225K Basic Analog Output Kit?
A: The STBACO1225K converts digital control commands from a compatible Modicon STB system into 4–20 mA analog current signals. These outputs can regulate compatible field devices, including valve positioners and other actuators that accept current references.
Q2: How many analog output channels does the STBACO1225K provide?
A: The module provides two analog output channels, each supporting a 4–20 mA current signal. This allows the controller to adjust two independent devices or process variables.
Q3: What power supply does the STBACO1225K require?
A: The module operates within a Modicon STB system using a rated supply voltage of 24 V DC. Its logic bus current consumption is 40 mA at 5 V DC. Check the power distribution arrangement and system documentation before wiring.
Q4: Which mounting base and power distribution modules are compatible with the STBACO1225K?
A: The specified mounting base is STBXBA1000. Compatible power distribution modules include STBPDT3100 and STBPDT3105. Verify the existing system configuration before installation or replacement.
Q5: Why might the STBACO1225K produce an incorrect output signal?
A: Possible causes include incorrect PLC scaling, an incorrect channel configuration, loose wiring, a faulty actuator, or a problem with the module’s power supply. Check the commanded output value, measure the current loop, and inspect the controller diagnostics.
Q6: What should I do if a connected actuator does not respond?
A: Confirm that the actuator accepts a 4–20 mA input and that the PLC program is sending the correct command. Inspect the wiring and terminal connections, measure the output current, and check the module’s status indicator and power distribution.
Q7: Can the STBACO1225K be replaced while the system is operating?
A: The module supports cold swapping, but hot-swapping fallback is not supported with basic network interface modules (NIMs). Do not assume it can be safely removed under power. Follow the system-specific procedures and isolate power whenever required.
Q8: What should I verify before ordering a replacement STBACO1225K?
A: Confirm the complete model number, 4–20 mA output requirement, 10-bit resolution, mounting base, and power distribution configuration. Schneider Electric lists the STBACO1225K for discontinuation on December 1, 2027, and identifies NTSAMO0210HK as a recommended replacement. Verify compatibility with the existing control system before purchasing.
Schneider STBACO1225K Basic Analog Output Kit is in stock. Please contact us for a quick quote and competitive pricing.
