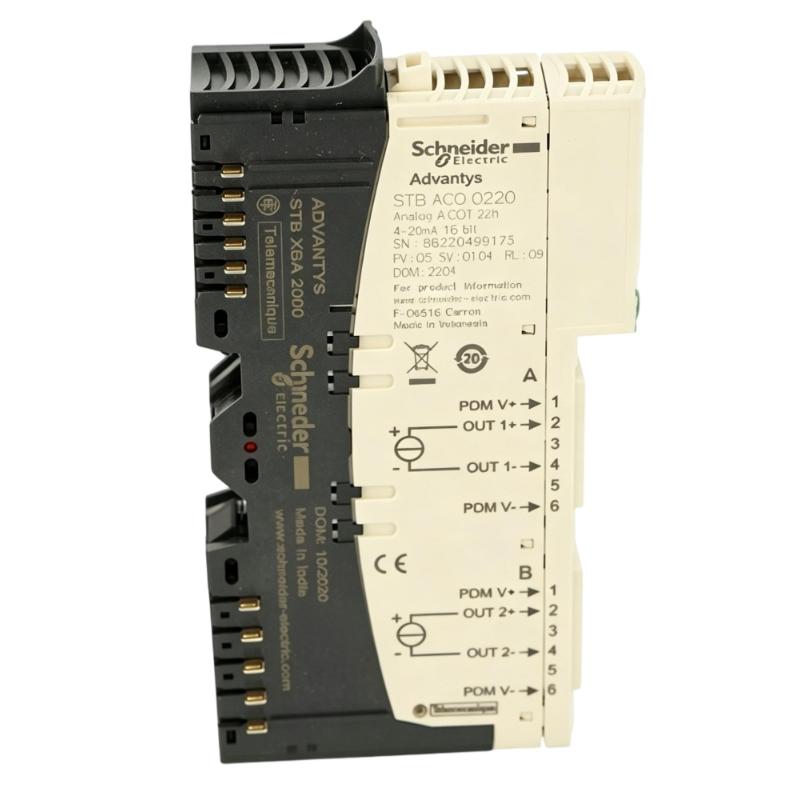

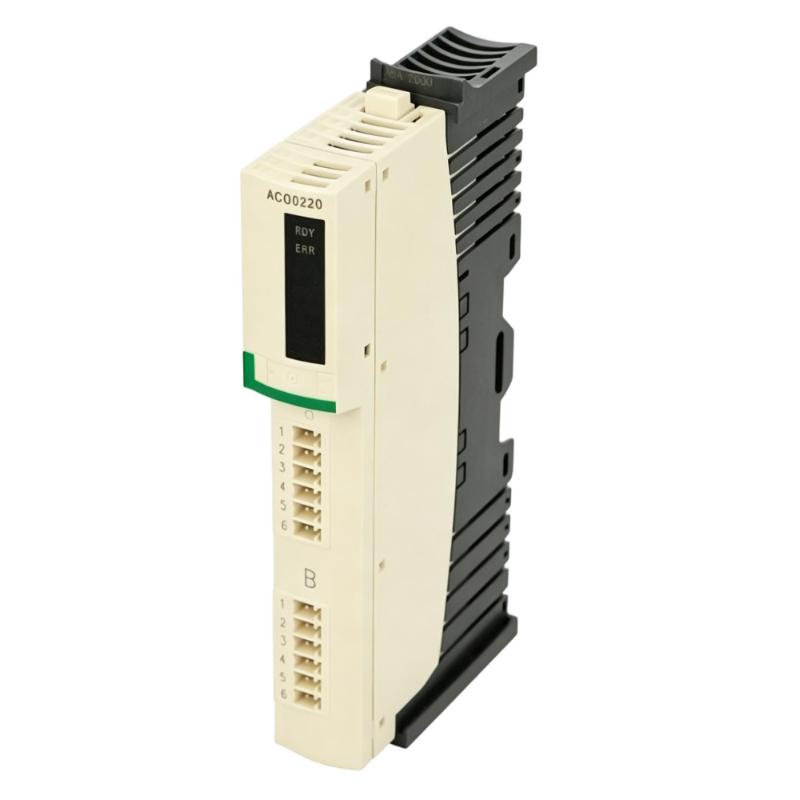

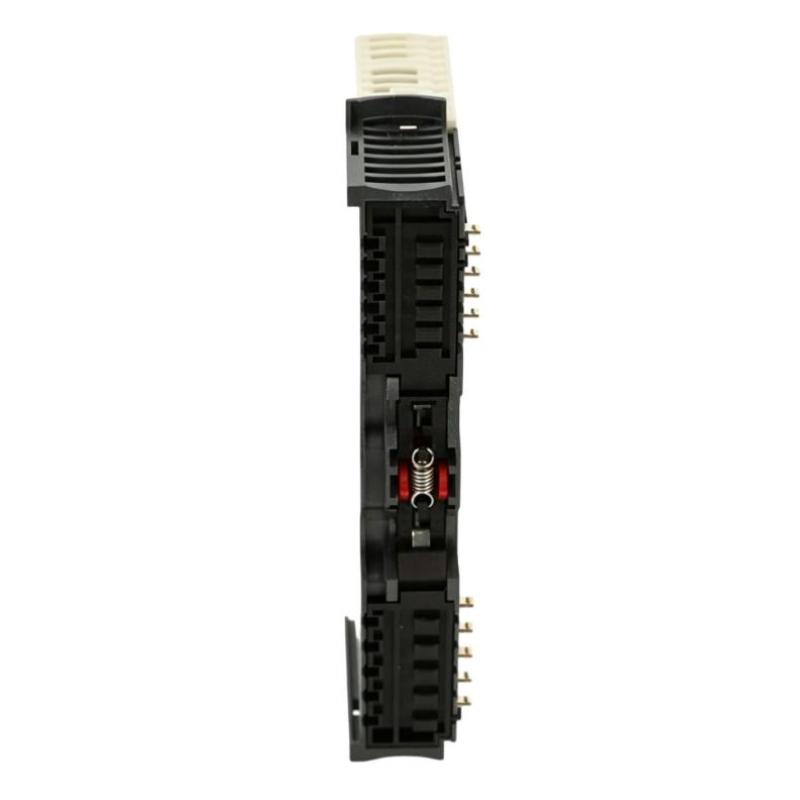

Schneider STBACO0220K Standard Analog Output Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Schneider Electric STBACO0220K Standard Analog Output Kit |
| Brand | Schneider Electric |
| Model | STBACO0220K |
| Product Series | Modicon STB Distributed I/O |
| Product Type | Standard Analog Output Kit |
| Analog Output Channels | 2 |
| Analog Output Signal | 4–20 mA |
| Analog Output Resolution | 15 bits + sign |
| Rated Supply Voltage | 24 V DC |
| Logic Bus Current Consumption | 210 mA at 5 V DC |
| Maximum Output Current | 20 mA |
| Response Time | 4 ms |
| Update Time | 8 ms |
| Conversion Time | 4 ms for both channels |
| Integral Linearity | ±0.5% of full scale |
| Differential Linearity | Monotonic |
| Absolute Accuracy Error | ±0.3% of full scale at 25°C |
| Temperature Drift | ±0.005%/°C |
| Insulation Between Channels and Logic Bus | 1500 V for 1 minute |
| Insulation Between Channels and Actuator Bus | 200 V |
| Compatible Mounting Base | STBXBA2000 included in the kit; verify system compatibility before installation |
| Compatible Power Distribution Module | STBPDT3100 / STBPDT3105 |
| Kit Contents | STBACO0220 module, STBXBA2000 base, STBXTS1100 screw-type connector, STBXTS2100 spring-clamp connector |
| Hot Swapping | Supported with standard network interface modules (NIMs), subject to system configuration |
| Protection Rating | IP20 |
| Operating Temperature | 0–60°C |
| Dimensions | 18.4 × 128.3 × 70 mm |
| Weight | 0.147 kg |
FAQ
Q1: What is the main function of the Schneider STBACO0220K Standard Analog Output Kit?
A: The STBACO0220K converts digital control commands from a compatible Modicon STB system into analog current signals. These outputs can be used to control devices such as valve positioners, variable-speed drives, and other equipment that accepts a 4–20 mA reference signal.
Q2: How many analog output channels does the STBACO0220K provide?
A: The module provides two analog current output channels. Each channel can be configured for the supported output range, allowing the controller to regulate two separate devices or process variables.
Q3: What output signal does the STBACO0220K support?
A: The module supports 4–20 mA analog current output. Confirm that the connected actuator or receiving device accepts this signal range and that the PLC program uses the correct scaling.
Q4: Which components are included in the STBACO0220K kit?
A: The kit includes the STBACO0220 module, STBXBA2000 mounting base, STBXTS1100 screw-type connector, and STBXTS2100 spring-clamp connector. Check the delivered components and system documentation before installation.
Q5: Why might an actuator fail to respond to the STBACO0220K output?
A: Possible causes include incorrect PLC output scaling, loose wiring, an open current loop, an incompatible actuator input, or a module fault. Measure the output current with a suitable instrument and check the controller diagnostics and terminal connections.
Q6: How can I troubleshoot an incorrect analog output value?
A: Verify the channel configuration and commanded output value in the PLC program. Then inspect the wiring, confirm the actuator’s input requirements, and measure the loop current. Also check the module’s status indicators and the system’s power distribution.
Q7: Can the STBACO0220K be replaced while the control system is running?
A: Hot swapping is supported with standard network interface modules, but safe replacement depends on the complete system configuration and operating procedure. Confirm the NIM type and follow Schneider Electric’s instructions before removing or installing the module.
Q8: What should I check before ordering a replacement STBACO0220K?
A: Confirm the complete model number, two-channel 4–20 mA output requirement, mounting base, power distribution module, and controller configuration. Schneider Electric lists the STBACO0220K for discontinuation on December 1, 2027, with the recommended replacement NTSAMO0210HK. Verify replacement compatibility before purchasing.
Schneider STBACO0220K Standard Analog Output Kit is in stock. Please contact us for a quick quote and competitive pricing.
