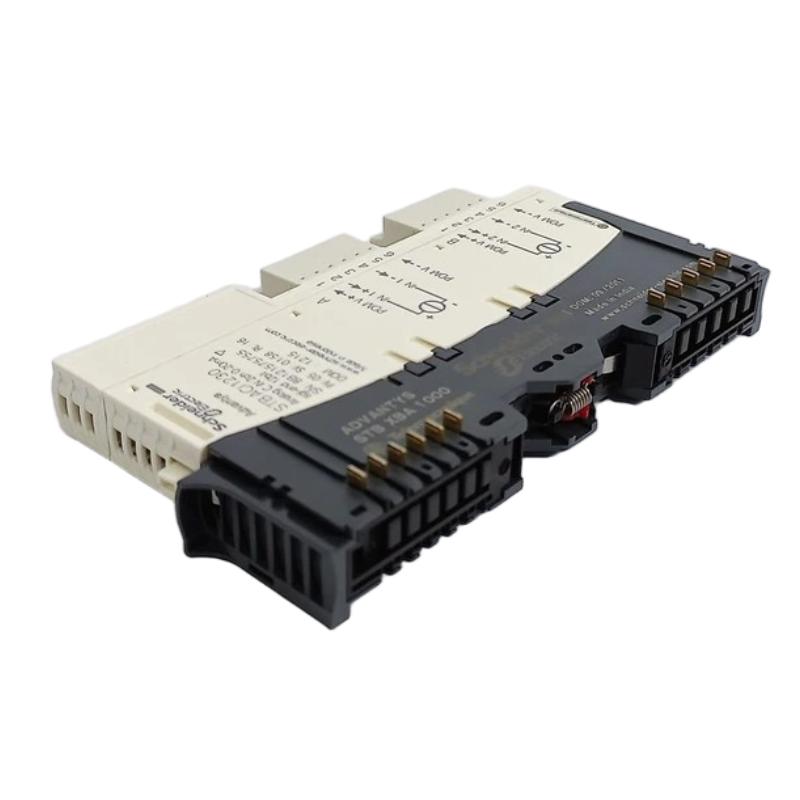

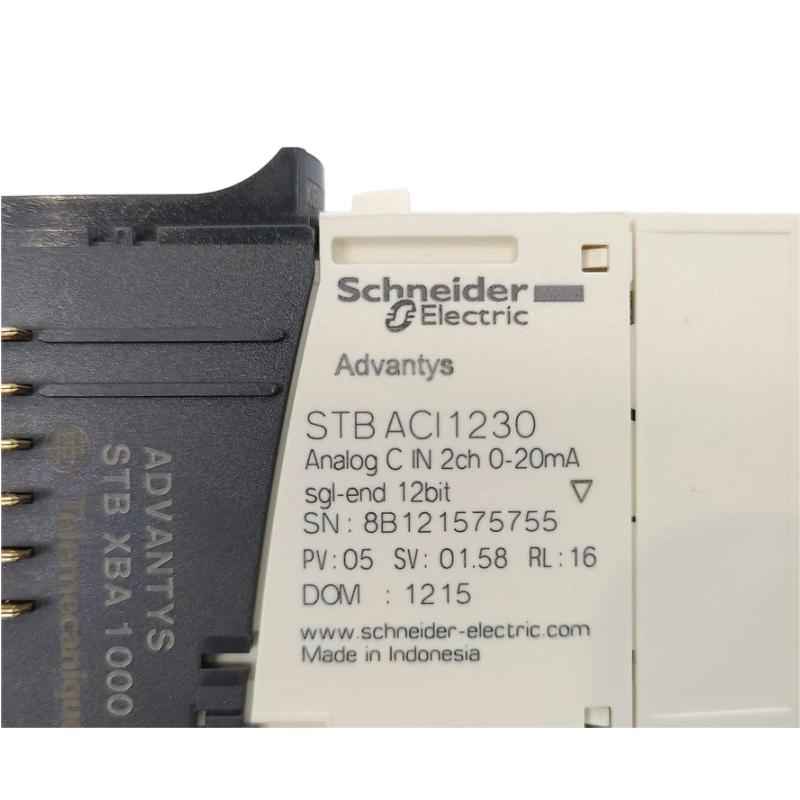

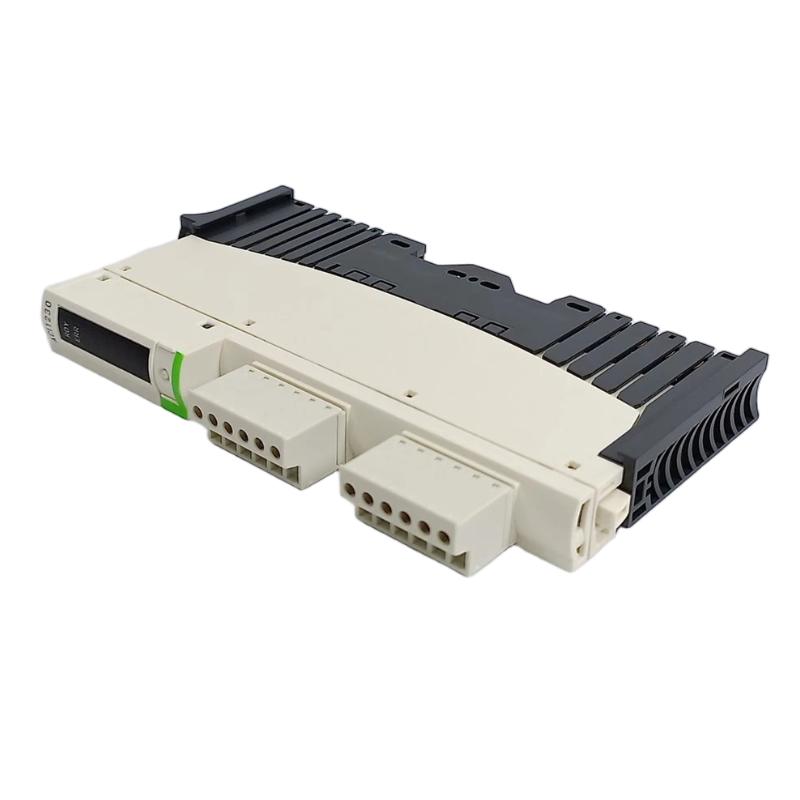

Schneider STBACI1230K Standard Analog Input Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Schneider Electric STBACI1230K Standard Analog Input Kit |
| Brand | Schneider Electric |
| Model | STBACI1230K |
| Product Series | Modicon STB Distributed I/O |
| Product Type | Standard Analog Input Kit |
| Analog Input Channels | 2 |
| Analog Input Signal | 0–20 mA |
| Resolution | 12 bits |
| Rated Supply Voltage | 24 V DC |
| Logic Bus Current Consumption | 30 mA at 5 V DC |
| Input Filter | Single low-pass filter, 25 Hz |
| Response Time | 5 ms |
| Update Time | 10 ms |
| Input Impedance | ≤ 300 Ω |
| Absolute Maximum Input | 25 mA / 50 V DC |
| Integral Linearity | ±0.1% of full scale |
| Absolute Accuracy Error | ±0.5% of full scale at 25°C |
| Temperature Drift | ±0.01%/°C |
| Sensor Supply Current | 100 mA per input channel |
| Short-Circuit Protection | Supported |
| Cold Swapping | Supported |
| Hot-Swapping Fallback | Supported with standard network interface modules (NIMs) |
| Compatible Mounting Base | STBXBA1000 |
| Compatible Power Distribution Module | STBPDT3100 / STBPDT3105 |
| Kit Contents | STBACI1230 module, STBXBA1000 base, STBXTS1100 screw-type connector, STBXTS2100 spring-clamp connector |
| Protection Rating | IP20 |
| Dimensions | 13.9 × 128.3 × 70 mm |
| Weight | 0.116 kg |
FAQ
Q1: What is the main function of the Schneider STBACI1230K Standard Analog Input Kit?
A: The STBACI1230K collects analog current signals from field instruments and converts them into digital values for a compatible Modicon STB control system. It can be used to monitor process variables such as pressure, flow, and temperature when the connected instruments provide 0–20 mA signals.
Q2: How many analog input channels does the STBACI1230K support?
A: The kit supports two analog current input channels, each accepting a 0–20 mA signal. This allows the controller to monitor two independent process variables.
Q3: What is the difference between the STBACI1230K and STBACI1225K?
A: The STBACI1230K supports 0–20 mA input signals with 12-bit resolution, while the STBACI1225K is designed for 4–20 mA signals with 10-bit resolution. Select the model that matches the field transmitter signal and control-system configuration.
Q4: Which mounting base and power distribution module are compatible with the STBACI1230K?
A: The specified mounting base is STBXBA1000, and compatible power distribution modules include STBPDT3100 and STBPDT3105. Confirm the existing island configuration and wiring requirements before installation.
Q5: Why might the STBACI1230K report incorrect analog values?
A: Incorrect readings may result from transmitter faults, wiring errors, loose terminals, electrical interference, or incorrect PLC scaling. Check the 0–20 mA signal loop and verify that the controller program uses the correct input range and conversion settings.
Q6: What should I check if an input channel does not respond?
A: Inspect the field wiring and terminal connections, then measure the loop current with a suitable instrument. Confirm that the transmitter is operating correctly and check the module’s status indicators, controller configuration, and I/O mapping.
Q7: Can the STBACI1230K be replaced while the system is operating?
A: The kit supports cold swapping and hot-swapping fallback with standard network interface modules, but safe replacement depends on the complete system configuration. Follow the applicable Modicon STB instructions, confirm the NIM type, and use the required isolation procedure before handling the module.
Q8: What should I verify before ordering a replacement STBACI1230K?
A: Confirm the complete model number, required 0–20 mA signal range, 12-bit resolution, mounting base, and power distribution arrangement. The model is scheduled for discontinuation on December 1, 2027, so if planning a long-term replacement, check the availability and suitability of Schneider Electric’s recommended successor, NTSAMI0210K.
