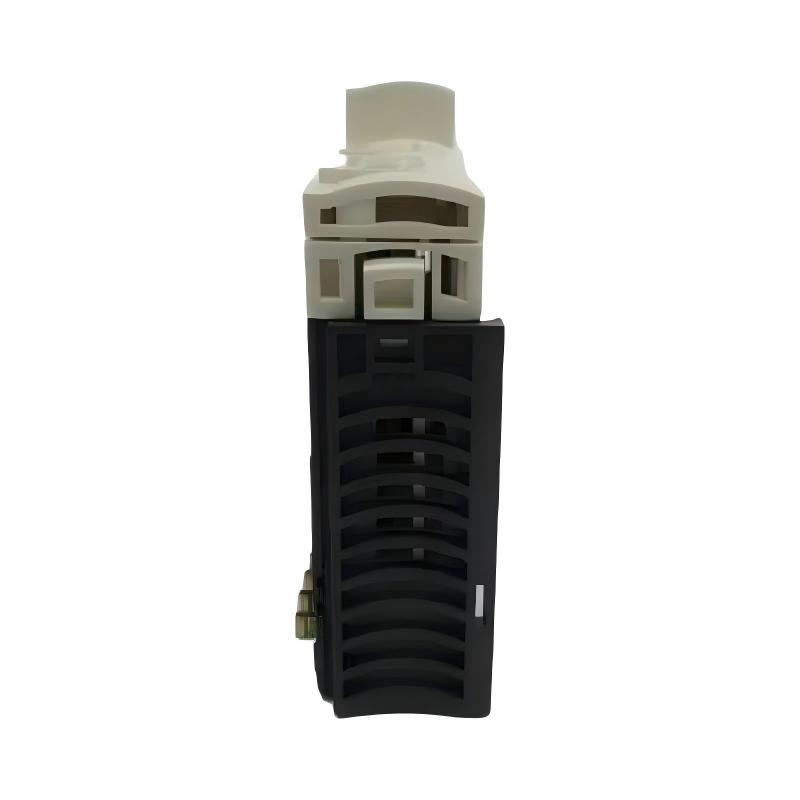

Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Schneider Electric |
| Model | STBAVI0300K |
| Product Type | Standard Analog Input Kit |
| Product Series | Modicon STB Distributed I/O |
| Analog Input Module | STBAVI0300 |
| Number of Analog Inputs | 4 |
| Input Signal Types | ±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V DC |
| Input Resolution | 15 bits + sign |
| Input Impedance | 400 kΩ |
| Maximum Source Impedance | 1 kΩ |
| Input Filter | 25 Hz low-pass filter |
| Absolute Maximum Input Voltage | 50 V DC |
| Absolute Accuracy Error | ±0.75% of full scale at 25°C |
| Integral Linearity | ±0.2% of full scale |
| Differential Linearity | Monotonic |
| Temperature Drift | ±0.01%/°C |
| Maximum Sensor Supply Current | 100 mA per input channel |
| Channel-to-Logic-Bus Insulation | 1500 V for 1 minute |
| Channel-to-Sensor-Bus Insulation | 30 V |
| Rated Supply Voltage | 24 V DC |
| Logic Bus Current Consumption | 90 mA at 5 V DC |
| Data Format | EN 61131-2, IEC 61131-2 |
| Cold Swapping | Supported |
| Hot-Swapping Fallback | Supported with standard NIMs, subject to system configuration |
| Fallback Status | State 0 with basic NIMs; user-configurable with standard NIMs |
| Addressing Requirement | 2 input words |
| Mounting Base | STBXBA1000 |
| Compatible Power Distribution Modules | STBPDT3100 / STBPDT3105 |
| Kit Components | STBAVI0300 module, STBXBA1000 base, STBXTS1100 screw-terminal connector, STBXTS2100 spring-clamp connector |
| Protection Rating | IP20 |
| Certifications | UL, CSA, FM Class 1 Division 2, ATEX Category 3G, CE and other applicable regional approvals |
| Dimensions | 18.4 × 128.3 × 70 mm |
| Weight | 0.11 kg |
| Product Lifecycle Status | Scheduled for discontinuation on December 1, 2027; standard service scheduled to end on December 31, 2035 |
| Recommended Replacement | NTSAMI0420K, subject to application and system compatibility verification |
FAQ
1. What is the main function of the Schneider STBAVI0300K Analog Input Kit?
The STBAVI0300K is designed to acquire analog voltage signals in a Modicon STB distributed I/O system. It converts incoming voltage measurements into digital values for use by a PLC or other compatible controller. Typical applications include process monitoring, machine automation, and industrial measurement systems.
2. Which analog input ranges does the STBAVI0300K support?
The module supports five voltage ranges: ±10 V, ±5 V, 0–10 V, 0–5 V, and 1–5 V DC. The appropriate range must be selected according to the connected device’s output signal and the system configuration. Using an incorrect range may result in inaccurate readings or input overload.
3. What is the input resolution and accuracy of the STBAVI0300K?
The module provides a resolution of 15 bits plus a sign bit. Its specified absolute accuracy error is ±0.75% of full scale at 25°C, with integral linearity of ±0.2% of full scale. Temperature drift is specified at ±0.01%/°C. Actual measurement performance also depends on signal quality, wiring, and operating conditions.

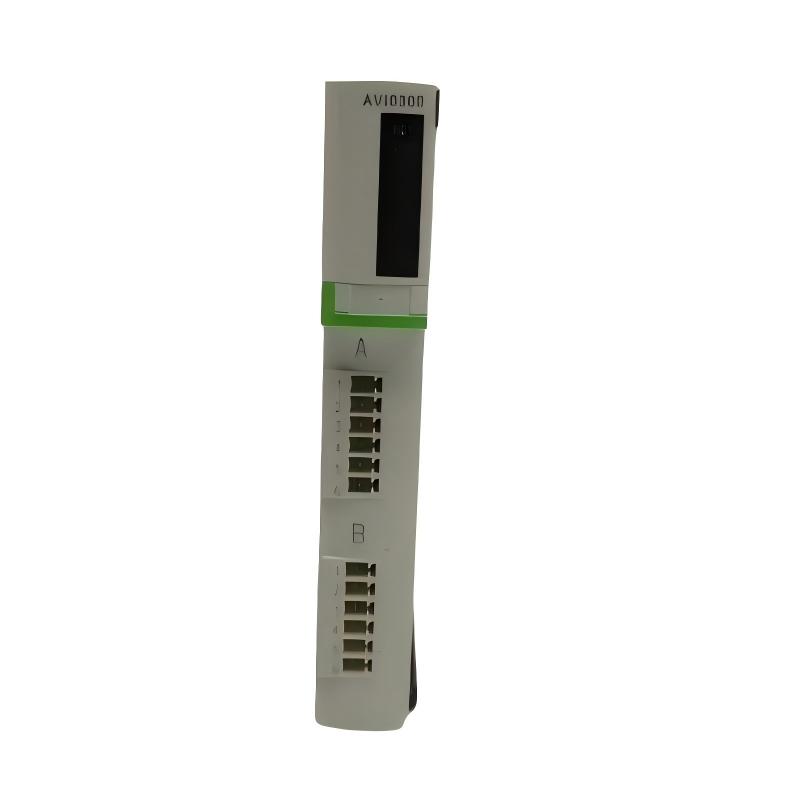

4. How should analog voltage sensors be connected to the STBAVI0300K?

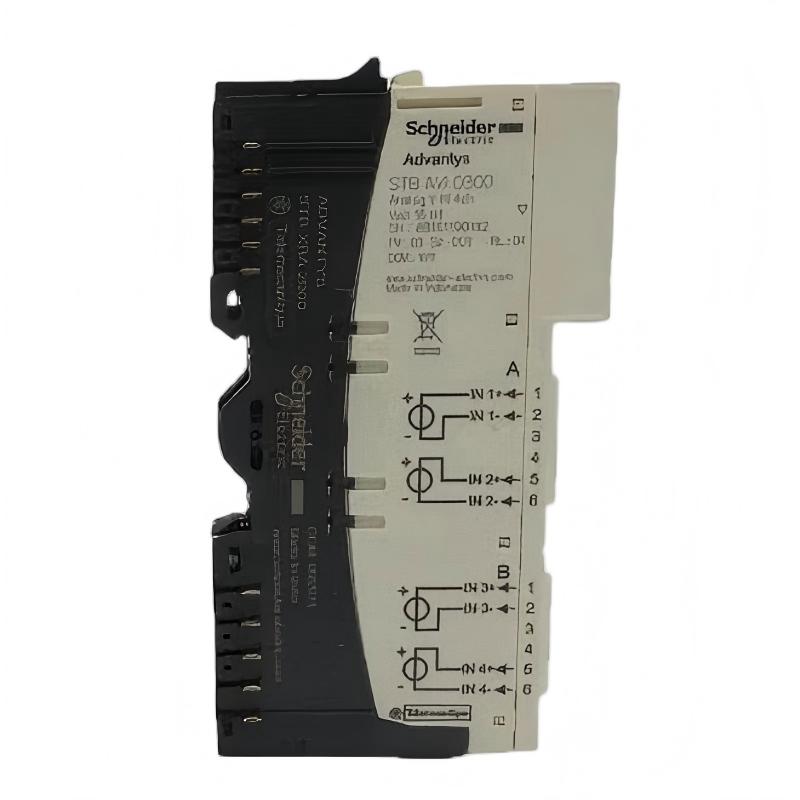

Connect each sensor’s positive and negative signal wires to the corresponding channel terminals according to the manufacturer’s wiring diagram. The module supports four analog input channels. Use the correct terminal assignments, maintain proper polarity, and avoid routing low-level signal cables alongside high-current power cables.
5. Can the STBAVI0300K accept 4–20 mA current signals?
No. The STBAVI0300K is a voltage-input module and does not directly support 4–20 mA current inputs. If a current-output transmitter must be connected, use a suitable signal converter or select a compatible current-input module. Verify the conversion range and input specifications before commissioning.
6. What should be checked if the STBAVI0300K reports incorrect analog values?
Start by checking the configured input range and comparing it with the actual sensor output. Inspect terminal connections, polarity, cable shielding, grounding, and the sensor’s power supply. If the readings remain unstable, test the channel with a known voltage source and review the controller’s I/O mapping and diagnostic information.
7. Which base and power distribution modules are compatible with the STBAVI0300K?
The kit includes the STBAVI0300 module and STBXBA1000 mounting base, along with STBXTS1100 screw-terminal and STBXTS2100 spring-clamp connectors. It is compatible with STBPDT3100 and STBPDT3105 power distribution modules. Confirm the network interface module and complete island configuration before installation or replacement.
8. Is the STBAVI0300K discontinued, and what replacement should be considered?
Schneider Electric lists the STBAVI0300K for discontinuation on December 1, 2027, with standard service scheduled to end on December 31, 2035. The recommended replacement is NTSAMI0420K from the Modicon Edge I/O NTS range. Because the replacement belongs to a different I/O platform, verify controller compatibility, network architecture, wiring, configuration software, and required input ranges before migration.
Schneider STBAVI0300K Standard Analog Input Kit is in stock. Please contact us for a quick quote and competitive pricing.
