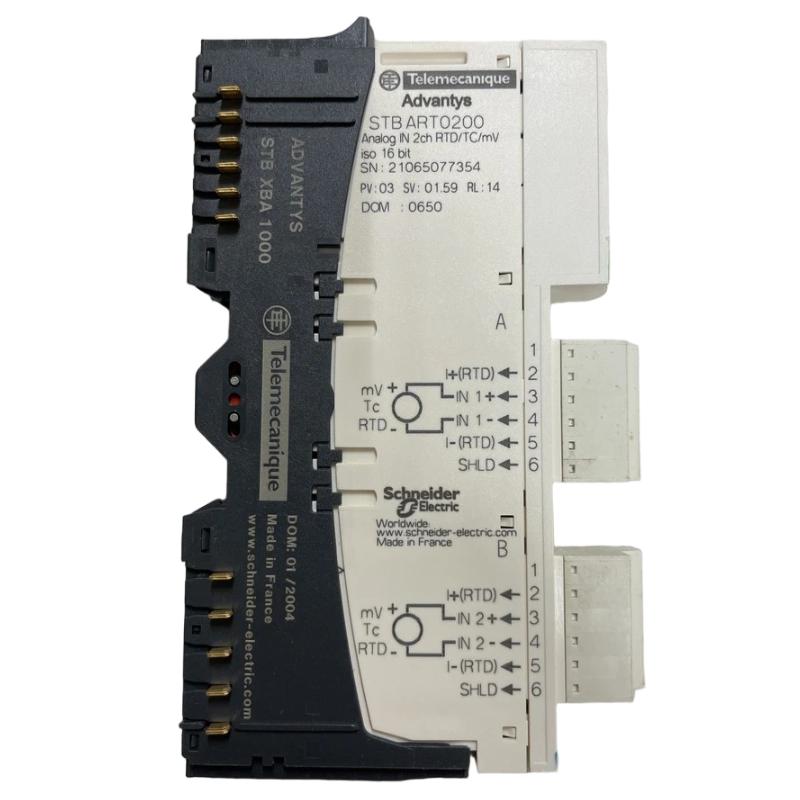

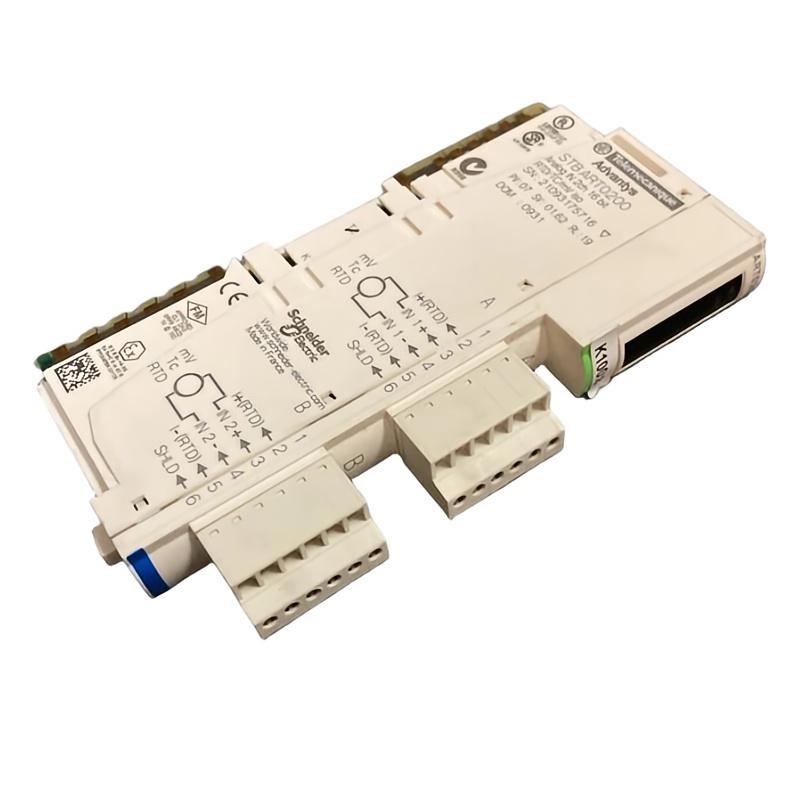

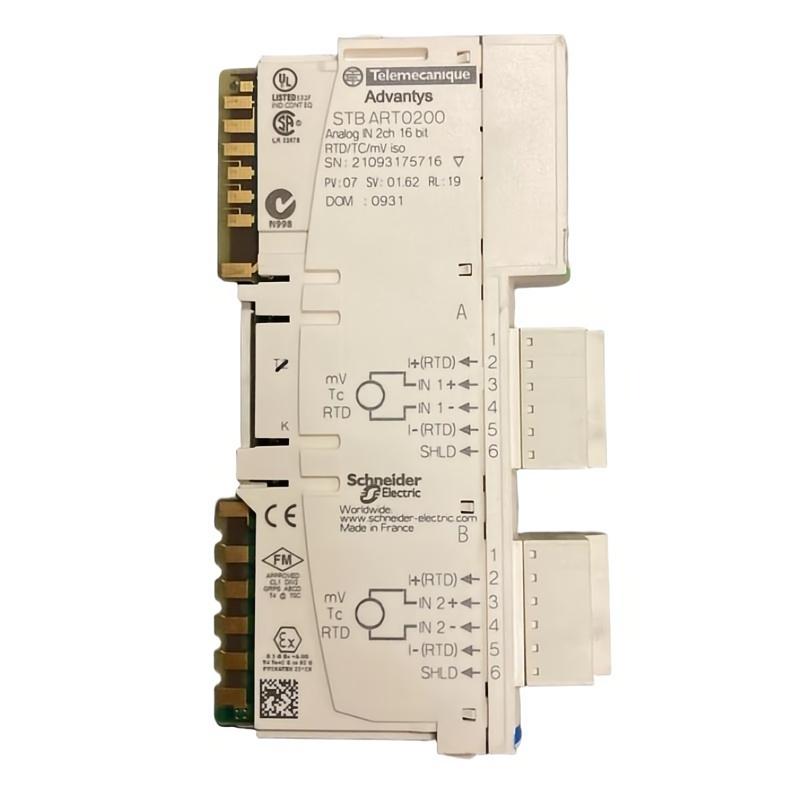

Schneider STBART0200K Standard Analog Input Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Schneider Electric |
| Model | STBART0200K |
| Product Type | Standard Analog Input Kit |
| Product Series | Modicon STB Distributed I/O |
| Number of Analog Inputs | 2 |
| Input Resolution | 15 bits + sign |
| Analog Input Types | ±80 mV voltage, RTD temperature sensors, thermocouples |
| Supported RTD Types | Cu10, Pt100, Pt1000, Ni100, Ni1000 |
| Supported Thermocouple Types | B, E, J, K, R, S, T |
| RTD Temperature Ranges | Vary by sensor type and wiring standard; refer to the applicable datasheet |
| Thermocouple Temperature Ranges | Vary by thermocouple type |
| Voltage Input Range | ±80 mV |
| Maximum Input Voltage | ±7.5 V DC absolute maximum |
| Input Impedance | 10 MΩ for ±80 mV input |
| Input Filter | Single low-pass filter, 25 Hz |
| Voltage Measurement Resolution | 0.01 mV |
| Temperature Measurement Resolution | 0.1°C or 0.1°F |
| Absolute Accuracy Error | ±0.1% of full scale at 25°C with internal compensation; ±0.15% with external compensation |
| Maximum Sensor Supply Current | 100 mA per input channel |
| Short-Circuit Protection | Supported |
| Channel-to-Logic-Bus Insulation | 1500 V for 1 minute |
| Rated Supply Voltage | 24 V DC |
| Logic Bus Current Consumption | 30 mA at 5 V DC |
| Cold Swapping | Supported |
| Hot-Swapping Fallback | Supported with standard NIMs, subject to system configuration |
| Data Format | EN 61131-2, IEC 61131-2 |
| Kit Components | STBART0200 module, STBXBA1000 base, STBXTS1100 screw-terminal connector, STBXTS2100 spring-clamp connector |
| Compatible Power Distribution Modules | STBPDT3100 / STBPDT3105 |
| Protection Rating | IP20 |
| Dimensions | 18.4 × 128.3 × 70 mm |
| Weight | 0.082 kg |
| Product Status | Scheduled for discontinuation on December 1, 2027; standard service is scheduled to end on December 31, 2035 |
| Recommended Replacement | NTSART0214K, subject to system compatibility verification |
FAQ
1. What is the main function of the Schneider STBART0200K Analog Input Kit?
The STBART0200K is designed to acquire low-level voltage and temperature signals in a Modicon STB distributed I/O system. It supports compatible RTD sensors, thermocouples, and ±80 mV voltage signals, making it suitable for industrial temperature monitoring, process measurement, and equipment control applications.
2. Which sensors are compatible with the STBART0200K?
The module supports Cu10, Pt100, Pt1000, Ni100, and Ni1000 resistance temperature detectors, as well as B, E, J, K, R, S, and T thermocouples. Before installation, verify the sensor type, wiring arrangement, measurement range, and configuration against the module documentation.
3. What is the input resolution of the STBART0200K?
The module provides a resolution of 15 bits plus a sign bit. Its specified absolute accuracy error at 25°C is ±0.1% of full scale with internal compensation and ±0.15% with external compensation. Actual measurement performance also depends on the sensor, wiring quality, and operating conditions.
4. How should RTD sensors and thermocouples be wired to the module?
RTDs can use two-wire, three-wire, or four-wire connections, depending on the sensor type and applicable standard. Thermocouples must be connected with the correct polarity and configured for the corresponding thermocouple type. Follow the manufacturer’s wiring diagrams to minimize measurement errors caused by lead resistance or incorrect connections.
5. Can the STBART0200K accept standard 0–10 V or 4–20 mA signals?
No. Its specified voltage measurement range is ±80 mV, so it is not a general-purpose 0–10 V or 4–20 mA analog input module. The ±7.5 V DC figure is the absolute maximum input voltage, not the normal measurement range. Use an appropriate signal-conditioning device if the application requires a different input range.
6. How can inaccurate temperature readings be diagnosed?
First, confirm that the sensor type selected in the configuration matches the installed sensor. Then check terminal connections, wiring resistance, polarity, and sensor condition. For thermocouples, verify cold-junction compensation settings. For RTDs, inspect the wiring arrangement and lead connections. Comparing the channel against a known-good sensor can help isolate the cause.
7. Does the STBART0200K provide electrical protection and noise filtering?
The module includes a 25 Hz low-pass input filter, short-circuit protection, and specified insulation between the input channels and the logic bus. For reliable measurements, route sensor wiring away from power cables, apply suitable shielding and grounding practices, and follow the installation requirements for the Modicon STB system.
8. Which components and system modules are required to install the STBART0200K?
The kit includes the STBART0200 input module, STBXBA1000 mounting base, STBXTS1100 screw-terminal connector, and STBXTS2100 spring-clamp connector. It is compatible with the STBPDT3100 and STBPDT3105 power distribution modules. Before replacing an existing module, verify compatibility with the network interface module, power distribution arrangement, and control-system configuration. The manufacturer lists NTSART0214K as a recommended replacement, but the application and system compatibility should be checked before migration.
Schneider STBART0200K Standard Analog Input Kit is in stock. Please contact us for a quick quote and competitive pricing.
