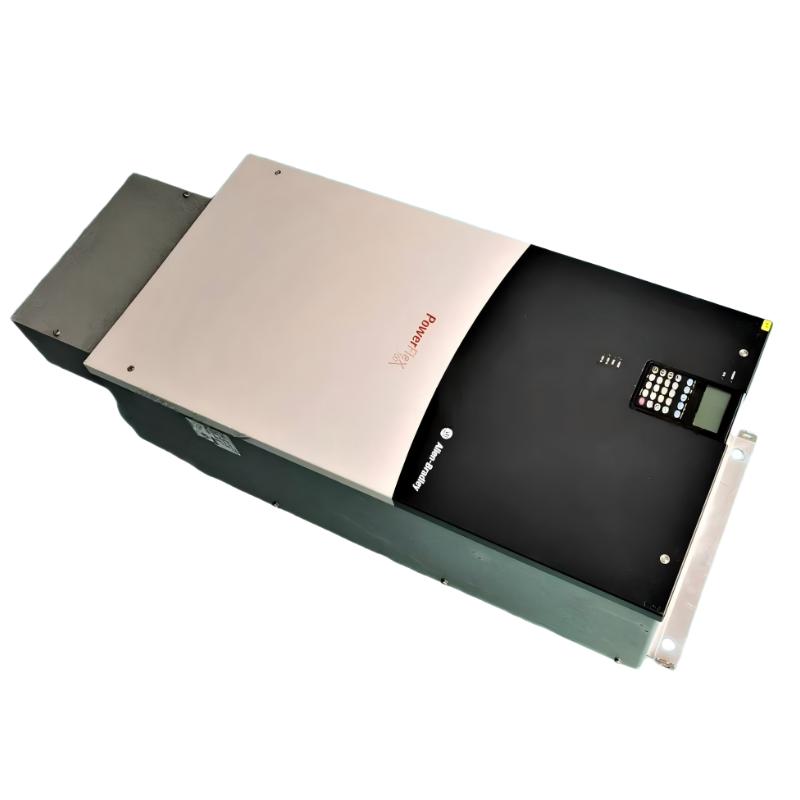

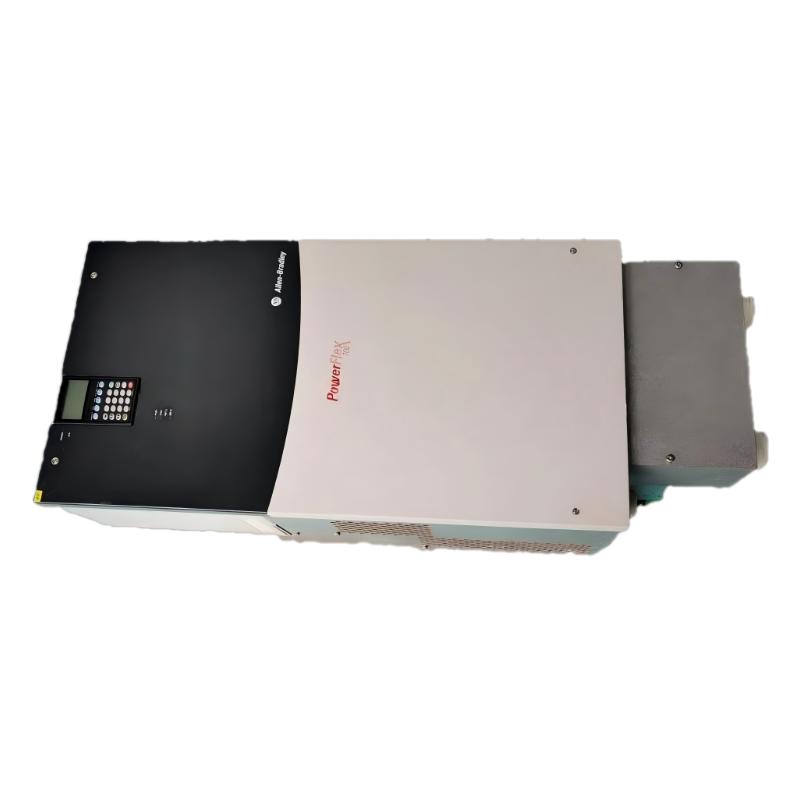

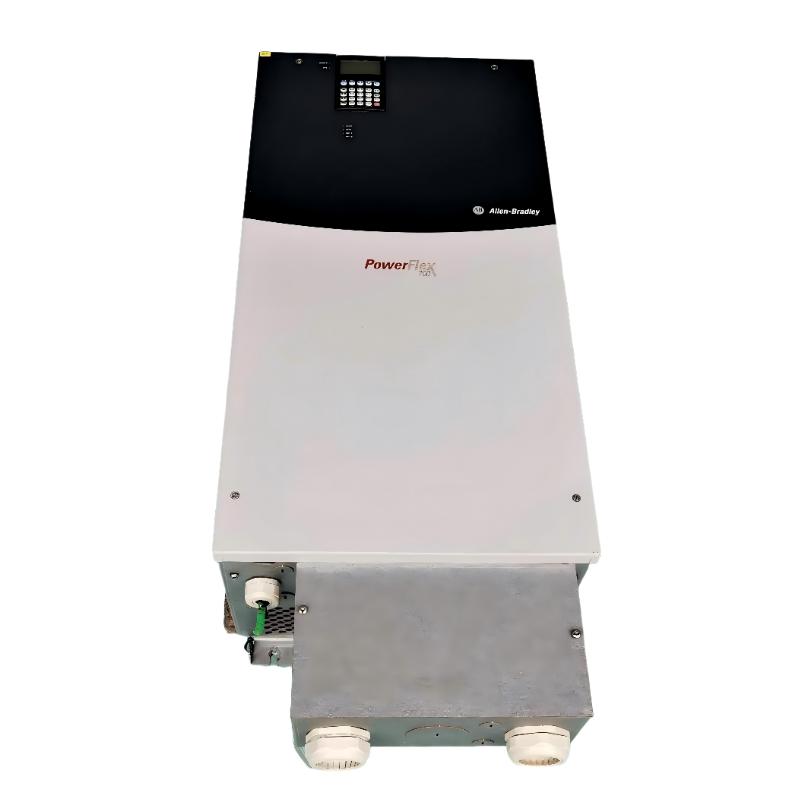

1. What is the continuous output current of the Allen-Bradley 20BD248A0ANNANC0?
The 20BD248A0ANNANC0 provides a continuous output current rating of 248 A for normal-duty applications and 180 A for heavy-duty applications. Drive selection should be based on the motor’s rated current, load characteristics, starting requirements, and required overload capacity rather than horsepower alone.

2. What motor horsepower is supported by the 20BD248A0ANNANC0?
The drive is rated for 200 HP under normal-duty operation and 150 HP under heavy-duty operation. It is designed for 460 VAC nominal motor applications. Before installation, the motor nameplate current should be checked against the drive’s applicable output-current rating.

3. Does the 20BD248A0ANNANC0 support encoder feedback?
No. The 20BD248A0ANNANC0 is a no-feedback configuration. It can use sensorless vector control to provide improved speed and torque performance without an external encoder. Applications requiring closed-loop speed control should use a PowerFlex 700 configuration equipped with the appropriate feedback interface.

4. Does the 20BD248A0ANNANC0 include a communication module?
No. This configuration is supplied without a communication module. Its standard 24 V DC I/O can be used for run commands, direction control, fault reset, status signals, and analog speed references. If network-based control is required, a compatible communication option must be selected separately.

5. Does the 20BD248A0ANNANC0 have an internal brake IGBT or braking resistor?
No. This configuration does not include a brake IGBT or drive-mounted braking resistor. For applications involving rapid deceleration, high-inertia loads, or frequent stopping, the regenerative energy must be evaluated and an appropriate external braking solution should be selected.

6. Which motor control modes are available on the 20BD248A0ANNANC0?
The PowerFlex 700 drive supports vector control, sensorless vector control, and programmable V/Hz control. Sensorless vector control is suitable when improved low-speed torque and speed regulation are required without encoder feedback. V/Hz control can be used for more conventional variable-speed motor applications.

7. What I/O configuration does the 20BD248A0ANNANC0 provide?
The drive uses 24 V DC I/O and provides six digital inputs, three digital outputs, two analog inputs, and two analog outputs. These signals can be assigned to functions such as start/stop control, forward/reverse operation, interlocking, fault handling, speed reference, and process feedback.

8. What parameters should be checked when commissioning the 20BD248A0ANNANC0?
Before energizing the drive, verify the 480 VAC three-phase supply, motor wiring, grounding, control wiring, and protective devices. Enter the motor nameplate voltage, current, frequency, and power data correctly. Acceleration and deceleration times, current limits, control mode, and motor overload settings should then be adjusted according to the application. Since this model operates without encoder feedback, correct motor data and sensorless vector configuration are particularly important for stable low-speed operation and accurate torque performance.
