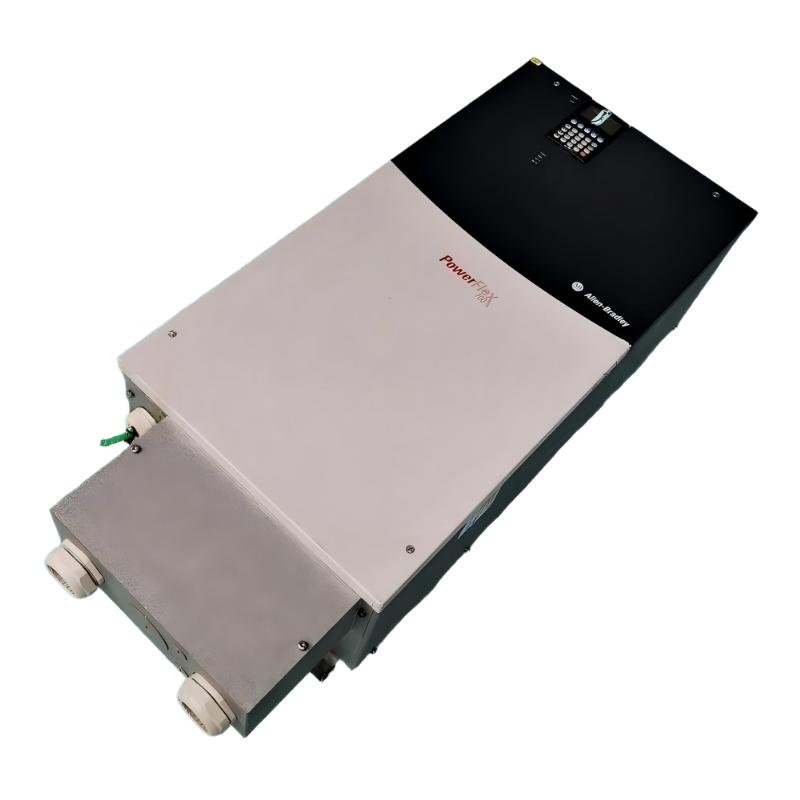

1. What are the rated input voltage and output current of 20BD248A0ANNAND0?
20BD248A0ANNAND0 is designed for three-phase 480 VAC power input and provides a rated continuous output current of 248 A. This current rating corresponds to a normal-duty power rating of approximately 200 HP and a heavy-duty rating of approximately 150 HP. When selecting this drive for an industrial motor application, the motor nameplate current should be used as the primary sizing reference rather than relying only on horsepower. The actual motor current, duty cycle, load characteristics, starting torque, ambient temperature, and required overload capability should all be evaluated to ensure that the drive operates within its intended rating.

2. What motor control methods are supported by 20BD248A0ANNAND0?
20BD248A0ANNAND0 supports several motor control methods, including V/Hz control, sensorless vector control, and vector control. V/Hz control is suitable for many general-purpose applications where straightforward speed regulation is sufficient. Sensorless vector control can provide improved torque performance and speed regulation without requiring an external motor speed feedback device. Vector-based control is particularly useful where more precise motor control and improved dynamic response are required. Before commissioning, the control mode should be selected according to the motor type, mechanical load, required torque characteristics, speed range, and overall application requirements.

3. What is the overload capability of 20BD248A0ANNAND0?
The drive provides short-term overload capability above its continuous 248 A output rating. It can provide up to 273 A for a one-minute overload period and up to 372 A for a three-second overload period, depending on operating and installation conditions. This capability is useful for applications where the motor experiences temporary increases in load or requires additional torque during acceleration. However, the overload rating should not be treated as a continuous operating current. Application engineers should consider the actual load profile, ambient temperature, acceleration requirements, duty cycle, and drive configuration when determining whether the drive is suitable for a particular machine.

4. Does 20BD248A0ANNAND0 include an internal braking IGBT or braking resistor?
20BD248A0ANNAND0 does not include an internal braking IGBT or an internal braking resistor. This is an important consideration for applications that generate significant regenerative energy during rapid deceleration. Examples include high-inertia machinery, vertical lifting equipment, winding systems, and applications requiring frequent stopping and starting. If regenerative energy causes the DC bus voltage to rise excessively, an appropriate external braking solution may be required. The braking system should be selected according to motor power, inertia, deceleration frequency, braking time, and regenerated energy. Increasing the deceleration time may also reduce DC bus voltage rise in applications where rapid stopping is not essential.

5. What I/O capabilities are available on 20BD248A0ANNAND0?
20BD248A0ANNAND0 provides 120 VAC I/O and includes six digital inputs, three digital outputs, two analog inputs, and two analog outputs. Digital inputs can be configured for functions such as start, stop, direction control, fault reset, preset speed selection, or other drive commands. Analog inputs can be used for speed references or process control signals, depending on the selected configuration. Analog outputs can provide operating information such as output frequency or current to external control equipment. The digital and analog I/O functions should be assigned according to the control architecture, and the terminal wiring should be verified carefully before applying power.

6. What should be checked when 20BD248A0ANNAND0 reports an overcurrent or overload fault?
When an overcurrent or overload fault occurs, troubleshooting should begin with the motor and mechanical load. Check whether the motor shaft, gearbox, pump, conveyor, fan, or other driven equipment has mechanical resistance, blockage, or abnormal friction. The motor cables should also be inspected for short circuits, ground faults, damaged insulation, or incorrect connections. If the fault occurs primarily during acceleration, the acceleration time may be too short for the connected load, causing the drive to demand excessive current. Motor nameplate data and drive motor parameters should also be verified. If the fault occurs during deceleration, check the deceleration setting and regenerative energy because excessive DC bus voltage can also lead to drive protection events.

7. Is the IP20 / NEMA Type 1 enclosure suitable for direct installation in harsh industrial environments?
The IP20 / NEMA Type 1 enclosure is intended primarily for protected industrial installation environments and does not provide the level of protection required for direct exposure to water, heavy dust, oil spray, corrosive chemicals, or other severe environmental conditions. For installations in demanding areas, the drive should be installed inside a suitable electrical cabinet or enclosure that provides the required environmental protection. Cabinet ventilation and heat dissipation are also important because the drive generates heat during normal operation. Excessive internal cabinet temperature can reduce component life and may cause thermal protection or drive derating. The installation environment should therefore be evaluated together with electrical requirements and cooling requirements.

8. How can 20BD248A0ANNAND0 be integrated with a PLC or DCS if no internal communication module is included?
20BD248A0ANNAND0 does not include an internal communication module as part of this configuration, but basic control can still be implemented through the available I/O. A PLC or DCS can use digital inputs for commands such as start, stop, direction, and fault reset, while analog inputs can be used to provide speed or process references. Drive operating information can also be transferred through the available outputs according to the configured functions. If network-based control is required, an appropriate communication adapter or interface can be added according to the control system architecture. Before integration, engineers should define the required communication protocol, control commands, status signals, parameter mapping, and fault-handling strategy to ensure reliable communication between the drive and the PLC or DCS.
