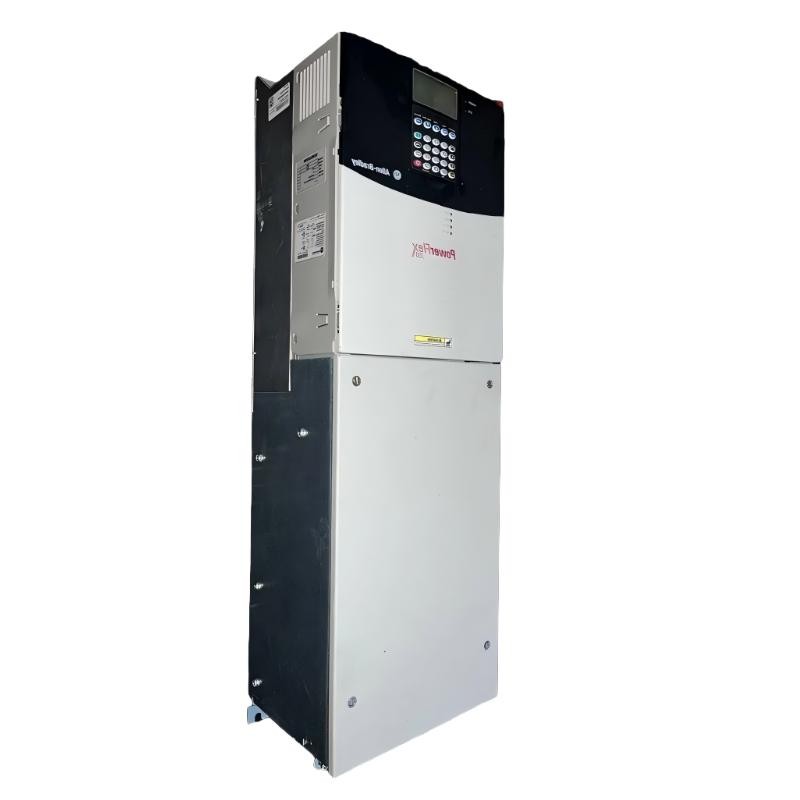

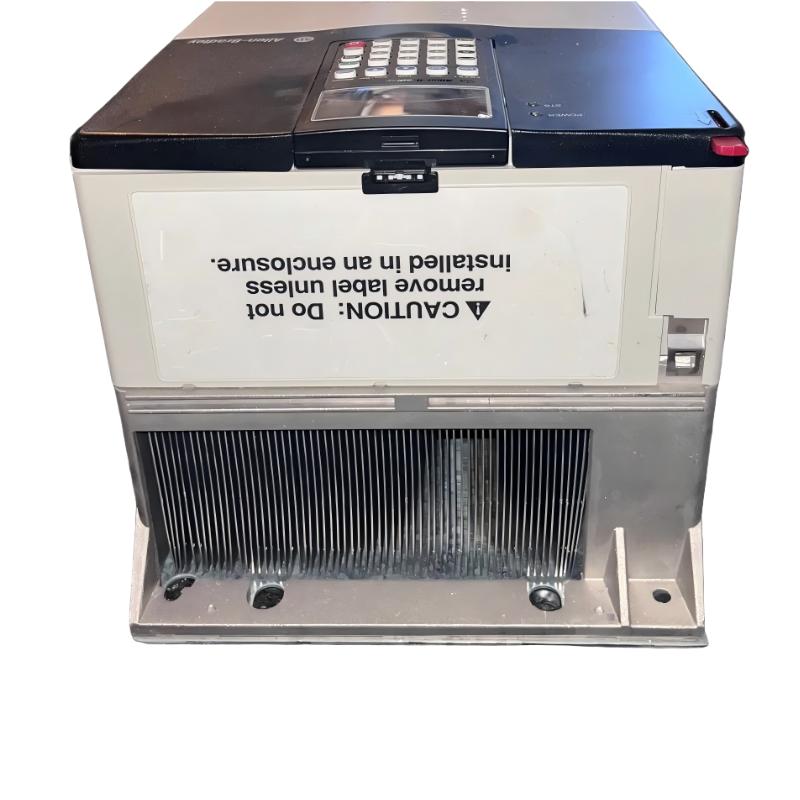

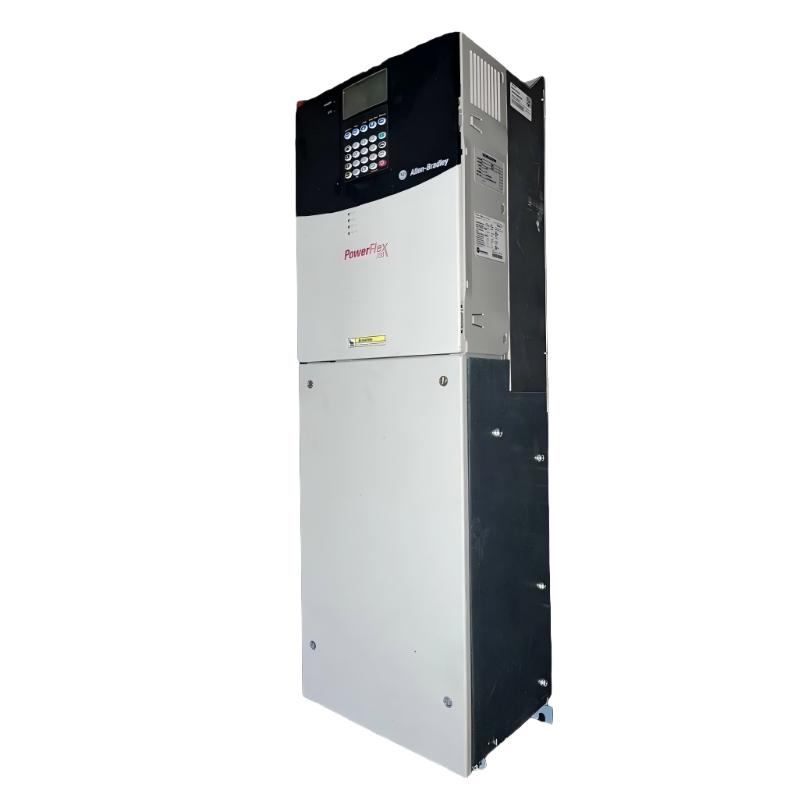

1. What is the rated output current of the Allen-Bradley 20BE062A0ANNANC0?
The 20BE062A0ANNANC0 has a continuous output current rating of 62 A and is designed for applications requiring up to 60 HP under normal-duty conditions. The drive can also provide higher short-term current capability, with approximately 78 A available for one minute and 104 A for three seconds. These overload ratings are useful for motor starting, acceleration, and temporary load increases.

When selecting the drive for a particular motor, the motor nameplate current should be compared with the PowerFlex 700 output-current rating rather than selecting the drive based only on horsepower. Motor service factor, load profile, acceleration requirements, and duty cycle should also be considered.

2. What type of motor control does the 20BE062A0ANNANC0 use?
This model uses vector control with 24 VDC I/O. Vector control provides more precise control of motor speed and torque than basic volts-per-hertz control, making the drive suitable for industrial machinery where stable motor operation is required during changing loads.

Because this version does not include feedback, the control system operates without an encoder-based speed feedback loop. Correct motor data and drive parameter configuration are therefore particularly important during commissioning to achieve stable operation and the desired acceleration, deceleration, and torque characteristics.

3. Does the 20BE062A0ANNANC0 have an internal communication module?
No. The 20BE062A0ANNANC0 is supplied without an internal communication module. This configuration is useful when the drive is primarily controlled through its local I/O or when communication requirements are handled through an appropriate external interface or system architecture.

For PLC or DCS integration, the control engineer should determine which signals are required, such as start/stop commands, speed reference, fault status, running status, and analog feedback. The available 24 VDC I/O can then be incorporated into the control cabinet design.

4. Does this PowerFlex 700 include a braking IGBT or internal braking resistor?
The 20BE062A0ANNANC0 does not include a brake IGBT and does not have an internal drive-mounted braking resistor. Consequently, applications with high regenerative energy or frequent rapid deceleration require additional consideration of the braking architecture.

If the driven load has significant inertia, such as a conveyor, centrifuge, hoist-related mechanism, or other rapidly decelerating equipment, the DC bus can rise during deceleration. The required braking method should be evaluated during system design rather than assuming that the standard drive configuration can absorb regenerative energy internally.

5. What is the difference between the 60 HP normal-duty and 50 HP heavy-duty ratings?
The normal-duty rating allows the 20BE062A0ANNANC0 to be applied to motors up to approximately 60 HP where the load profile remains within the normal overload capability of the drive. Heavy-duty applications typically involve higher starting torque, frequent acceleration, or greater overload requirements, so the applicable rating is reduced to approximately 50 HP.

The correct selection should always be based on actual motor full-load current and application duty. A motor operating under demanding mechanical conditions may require the heavy-duty rating even when its nameplate horsepower appears to fall within the normal-duty range.

6. How should the 20BE062A0ANNANC0 be commissioned for a new motor?
Commissioning should begin with verification of the incoming three-phase supply, motor wiring, grounding, control wiring, and protection devices. The motor nameplate information should then be entered into the drive parameters, including rated voltage, current, frequency, speed, and other applicable motor characteristics.

After basic configuration, perform a controlled start at low speed and verify motor rotation, current, acceleration, and operating status. Gradually increase the speed while monitoring the motor and drive for abnormal current, excessive vibration, overvoltage, overcurrent, or other fault conditions. Proper parameter tuning is especially important because this model uses vector control without encoder feedback.

7. What are common causes of overcurrent faults on the 20BE062A0ANNANC0?
Overcurrent faults can result from mechanical overload, incorrect motor parameters, excessive acceleration rates, motor wiring problems, short circuits, incorrect motor rotation configuration, or a motor that is too large for the selected drive rating. A heavily loaded machine can also cause current to rise rapidly during acceleration.

Troubleshooting should start by checking the motor nameplate data and comparing actual operating current with the drive rating. Inspect the motor and output wiring for insulation or phase-to-phase problems, verify that the mechanical load can rotate freely, and review acceleration and current-limit settings. If the fault occurs only during acceleration, increasing the acceleration time may help determine whether the problem is load-related.

8. How should the 20BE062A0ANNANC0 be integrated into a PLC-based control system?
The 24 VDC I/O configuration allows the drive to exchange basic control and status signals with a PLC. Typical signals include run commands, forward/reverse commands where applicable, fault reset, drive-ready status, running status, and speed reference signals. Analog I/O can also be used where the application requires a variable speed reference or process feedback.

For a reliable PLC-controlled system, the control sequence should account for drive-ready status and fault conditions rather than sending a continuous run command without monitoring the drive. Emergency-stop and safety functions should also be designed through the appropriate safety circuit instead of relying solely on standard drive control inputs.
