1. What are the main electrical ratings of the Allen-Bradley 20BE062A0ANNAND0?

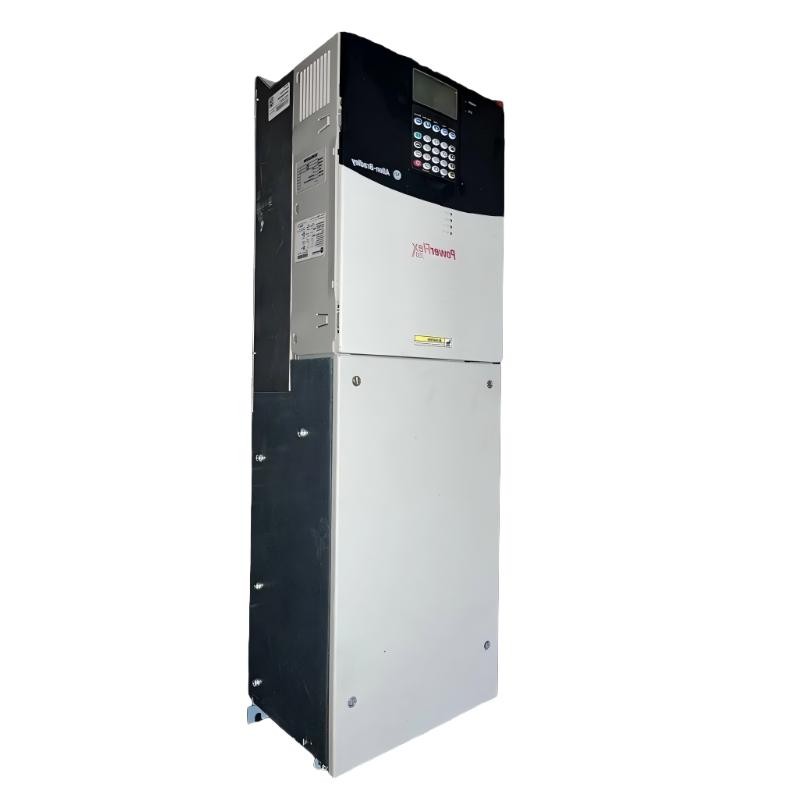

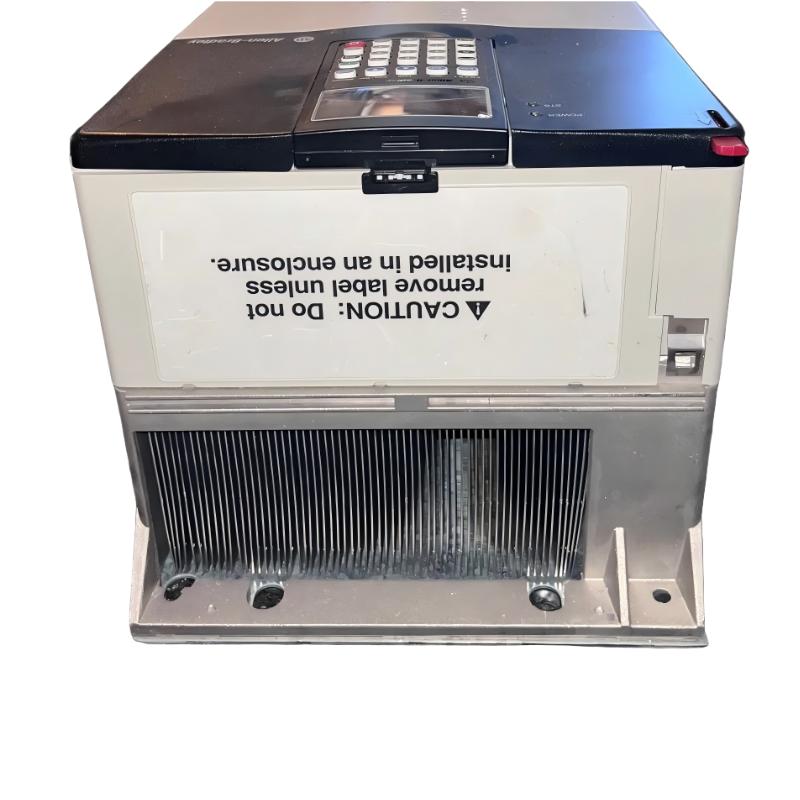

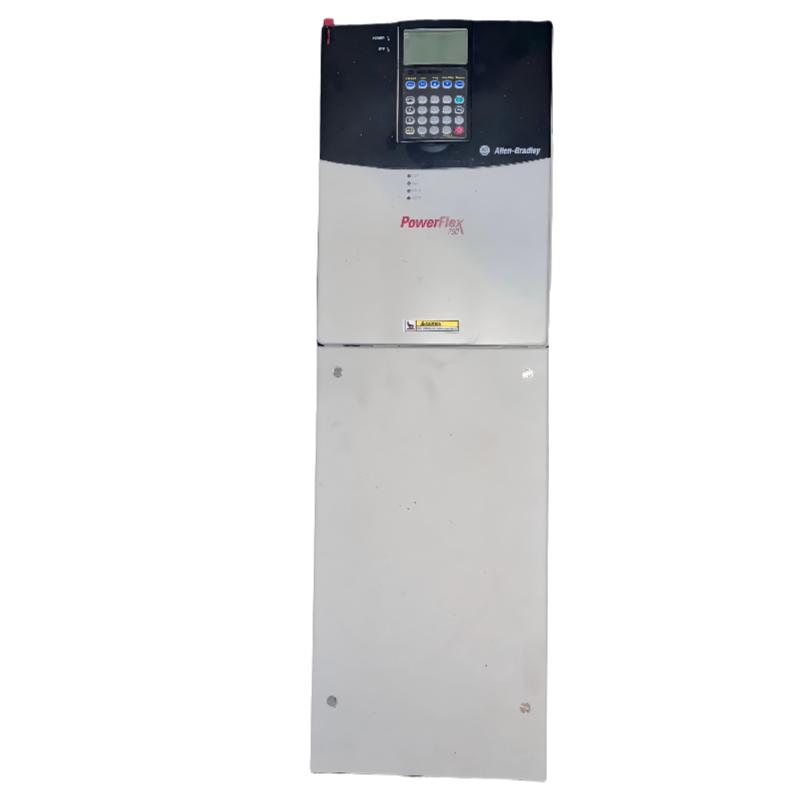

The 20BE062A0ANNAND0 is a PowerFlex 700 AC drive designed for 600 VAC three-phase industrial motor applications. It provides a continuous output current of 62 A, with a normal-duty rating of approximately 60 HP and a heavy-duty rating of approximately 50 HP.

The drive also supports short-term overload capability, reaching approximately 78 A for one minute and 104 A for three seconds. When selecting the drive, motor nameplate current should be compared with the drive rating, while acceleration requirements, starting torque, duty cycle, and actual mechanical load should also be considered.

2. What control method does the 20BE062A0ANNAND0 use?
The 20BE062A0ANNAND0 uses vector control. This control method provides more precise regulation of motor voltage, current, speed, and torque than basic V/Hz control, making it suitable for a wide range of industrial machinery and variable-speed applications.

This particular configuration does not use encoder feedback. The drive therefore relies on its internal motor model and programmed motor parameters for speed and torque control. Accurate entry of motor nameplate information is especially important during commissioning to obtain stable operation.

3. What type of I/O does the 20BE062A0ANNAND0 provide?
The 20BE062A0ANNAND0 uses 120 VAC I/O. Its I/O can be used for standard drive control and status functions, including run commands, stop commands, direction control, fault reset, drive status, and other machine-control signals.

Before connecting the drive to a PLC or external control panel, the control voltage must be verified carefully. This model should not be treated as a standard 24 VDC I/O configuration. The external control circuit must be designed around the 120 VAC I/O requirements and the applicable terminal functions.

4. Does the 20BE062A0ANNAND0 include a communication module?
No, the standard 20BE062A0ANNAND0 configuration does not include an internal communication module. Basic control can therefore be implemented through the available I/O, while more advanced system-level communication requires an appropriate external communication solution or system architecture.

For PLC or DCS applications, the required signals should be defined before installation. Typical signals include drive enable or run command, speed reference, drive-ready status, running status, and fault indication. Proper signal interlocking also helps prevent unintended motor starting.

5. Does the 20BE062A0ANNAND0 have an internal braking resistor or brake IGBT?
No. This configuration does not include an internal braking resistor or brake IGBT. During rapid deceleration, a motor driving a high-inertia load can return energy to the DC bus, causing the DC bus voltage to rise.

If the application requires frequent or rapid deceleration, the regenerative energy must be considered during system design. Depending on the load characteristics, an external braking solution or another suitable regenerative-energy management method may be required. Simply reducing the deceleration time can increase the possibility of DC-bus overvoltage faults.

6. How should the 20BE062A0ANNAND0 be commissioned with a new motor?
Before commissioning, verify the 600 VAC three-phase supply, motor wiring, grounding, control wiring, and protective devices. Enter the motor’s nameplate information into the drive, including rated voltage, current, frequency, and speed, and review the basic acceleration, deceleration, frequency, and current-limit parameters.

The first motor test should be performed at low speed. Check motor rotation, output current, acceleration behavior, and drive status before increasing the operating speed. Because this model uses sensorless vector control, incorrect motor data can significantly affect starting performance, low-speed operation, and torque response.

7. What can cause an overcurrent fault on the 20BE062A0ANNAND0?
Common causes include excessive mechanical load, incorrect motor parameters, an acceleration time that is too short, motor or cable faults, mechanical binding, and unsuitable drive-to-motor sizing. A sudden increase in mechanical torque during startup can also cause the output current to rise rapidly.

Troubleshooting should begin with the motor nameplate parameters and motor wiring. Check for phase-to-phase faults, grounding problems, abnormal motor resistance, and mechanical restrictions. If the fault occurs primarily during acceleration, increasing the acceleration time can be useful as a diagnostic step. However, repeated overcurrent faults should be investigated rather than simply increasing current limits.

8. How can the 20BE062A0ANNAND0 be integrated into a PLC-based automation system?
The drive can exchange basic control and status signals with a PLC through its available I/O. A typical PLC interface may include run and stop commands, direction control, fault reset, drive-ready status, running status, and fault indication. Analog signals can also be used where the application requires variable speed references or process feedback.

The PLC program should monitor the drive’s operating and fault states instead of relying only on the run command. A reliable sequence should verify that the drive is ready before starting the motor and should generate the appropriate alarm and shutdown response when a drive fault occurs. Safety functions such as emergency stop and personnel protection should be implemented through the appropriate safety circuit rather than relying solely on standard drive I/O.
