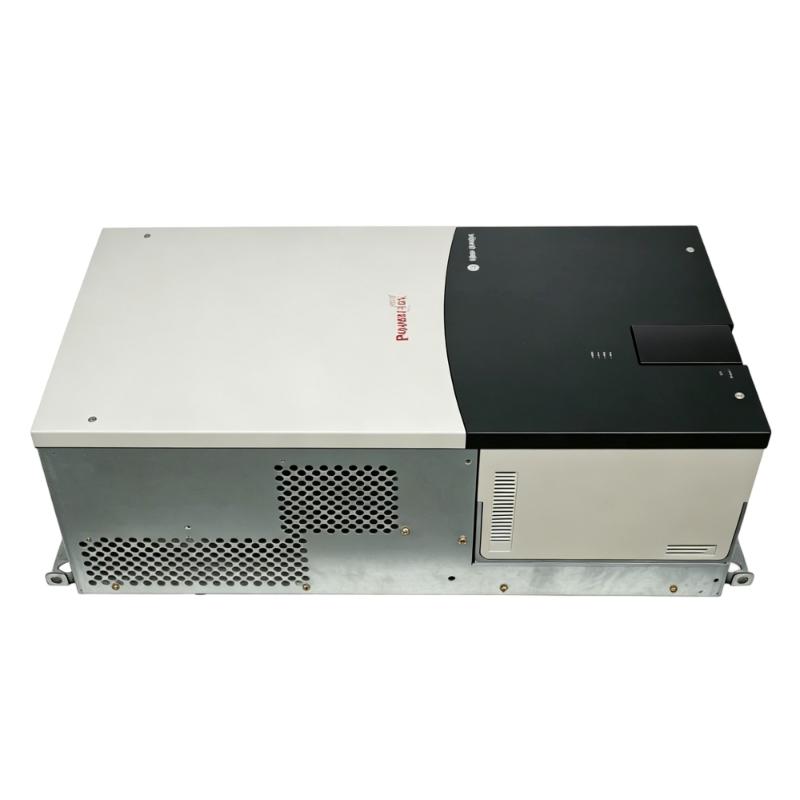

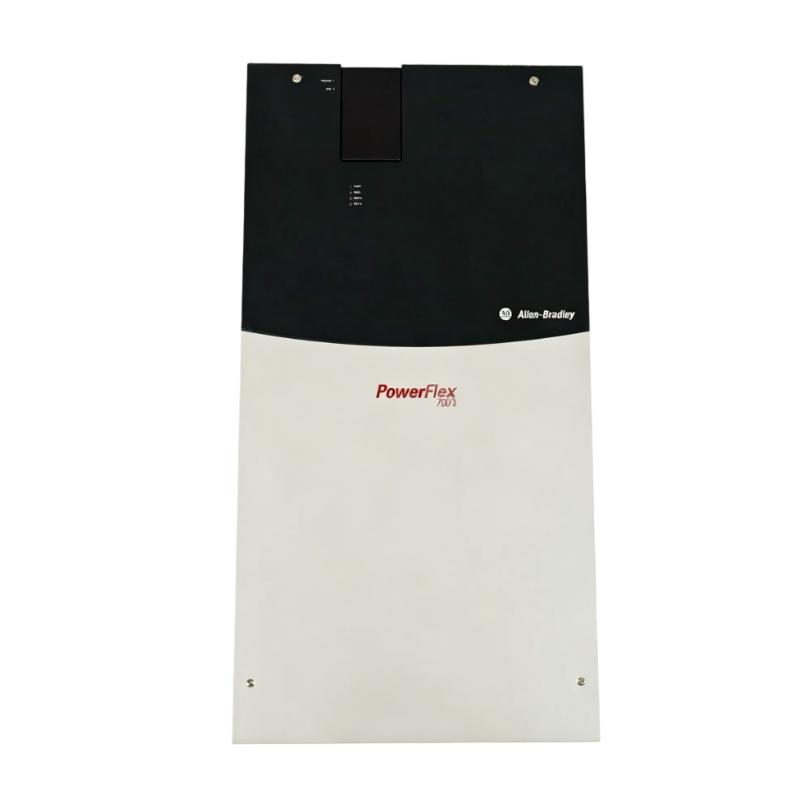

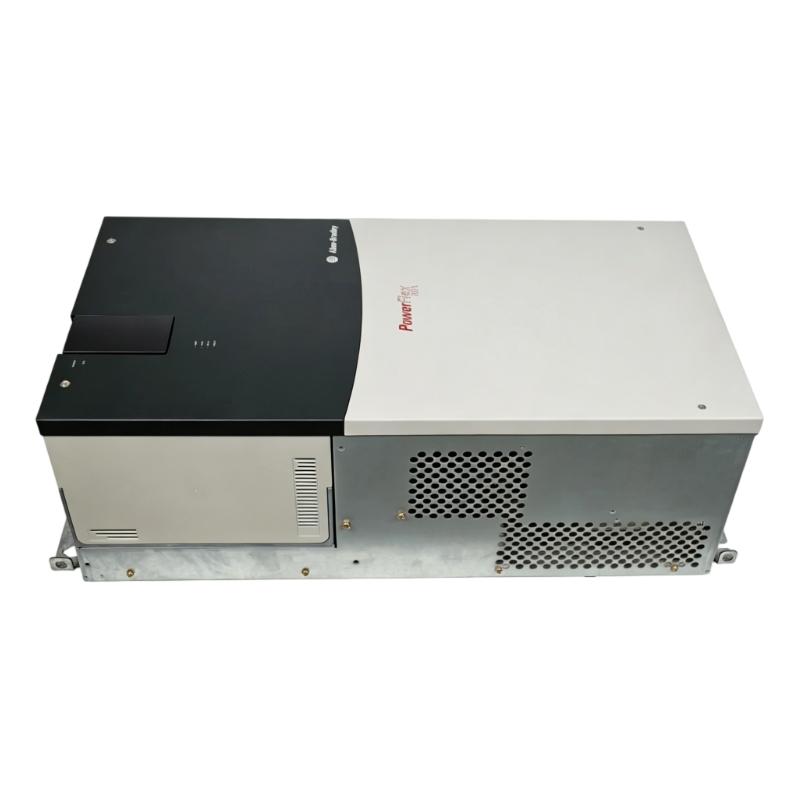

Technical Specifications

FAQ

1. What is the rated output current of the 20BP140A3ANNADC1?

The 20BP140A3ANNADC1 has a rated output current of 140 A. It is rated for 75 kW under normal-duty operation and 55 kW under heavy-duty operation. When selecting a motor, the motor rated current should be compared with the drive’s continuous output capability, while motor voltage, operating frequency, load characteristics, starting torque, and duty cycle should also be considered. For applications with frequent acceleration, high inertia, or changing loads, the required overload capacity should be evaluated carefully to ensure reliable operation.

2. What type of input power does the 20BP140A3ANNADC1 use?

The 20BP140A3ANNADC1 uses a 540 VDC input and includes a precharge function. The DC power supply must be designed with suitable isolation, protection, switching equipment, and current capacity. During installation, the DC bus polarity and connection sequence should be verified carefully. Because the DC bus can retain stored electrical energy after the input power has been removed, appropriate discharge and voltage-verification procedures must be completed before maintenance or internal inspection.

3. What communication interface is provided on the 20BP140A3ANNADC1?

The 20BP140A3ANNADC1 is configured with a DeviceNet communication interface. DeviceNet can be used to integrate the drive with compatible PLCs, controllers, and other industrial automation equipment. Through the communication network, the control system can exchange commands, speed references, operating status, and diagnostic information with the drive. During commissioning, the DeviceNet node configuration, communication wiring, data mapping, control commands, and status feedback should be verified before enabling automatic operation.

4. Does the 20BP140A3ANNADC1 support encoder feedback?

Yes. The drive supports encoder feedback and can work with compatible incremental dual-channel encoders. Encoder feedback provides actual motor speed information to the drive and can improve speed regulation and dynamic response in closed-loop applications. The encoder supply can support 5 V or 12 V configurations depending on the applicable setup. During installation, the encoder supply voltage, A/B phase signals, signal direction, shielding, grounding, and feedback parameters should all be checked to ensure stable and accurate speed feedback.

5. What motor control methods are available on the 20BP140A3ANNADC1?

The PowerFlex 700 platform supports V/Hz control and vector-based motor control, including sensorless vector control. V/Hz control is suitable for applications where straightforward variable-speed control is sufficient, while vector control provides improved torque and speed regulation for more demanding applications. When encoder feedback is used, the drive can operate with closed-loop speed feedback for applications requiring tighter speed control. The appropriate control method should be selected according to the motor characteristics, load requirements, and required dynamic response.

6. Does the 20BP140A3ANNADC1 have an internal braking resistor or Brake IGBT?

No. This configuration does not include a Brake IGBT and does not have an internal braking resistor. If the driven machine has high inertia or requires rapid deceleration, the regenerative energy generated by the motor must be considered. Rapid deceleration can cause energy to return to the DC bus and increase bus voltage. Depending on the application, the deceleration time may need to be increased, or an appropriate external braking solution may need to be incorporated into the system. The braking method should be selected according to the motor, load inertia, stopping time, and operating cycle.

7. What should be checked if the 20BP140A3ANNADC1 develops an overcurrent fault?

An overcurrent fault should be investigated from both the electrical and mechanical sides. First, check whether the motor or driven equipment is mechanically blocked, overloaded, or experiencing excessive friction. The motor cables should be inspected for phase-to-phase shorts, ground faults, damaged insulation, or incorrect connections. The programmed motor voltage, current, frequency, and other motor data should also be compared with the motor nameplate. If the fault occurs mainly during acceleration, the acceleration time may be too short for the load inertia. Increasing the acceleration time can reduce the instantaneous current demand. Repeated faults may require inspection of the motor, mechanical load, wiring, and drive power components.

8. What should be checked before commissioning the 20BP140A3ANNADC1?

Before commissioning, verify the 540 VDC input supply, grounding, protective devices, motor connections, control wiring, encoder feedback, and DeviceNet communication connections. The motor nameplate parameters should then be entered accurately, including rated voltage, rated current, frequency, and speed where required. The selected control method, acceleration and deceleration times, minimum and maximum frequency, current limits, stopping method, and I/O configuration should also be reviewed. For systems using encoder feedback, the encoder supply, pulse signals, feedback direction, and scaling should be confirmed. Initial operation should begin at low speed and controlled load conditions while monitoring output current, motor speed, feedback signals, and fault status before gradually moving to normal operating conditions.
