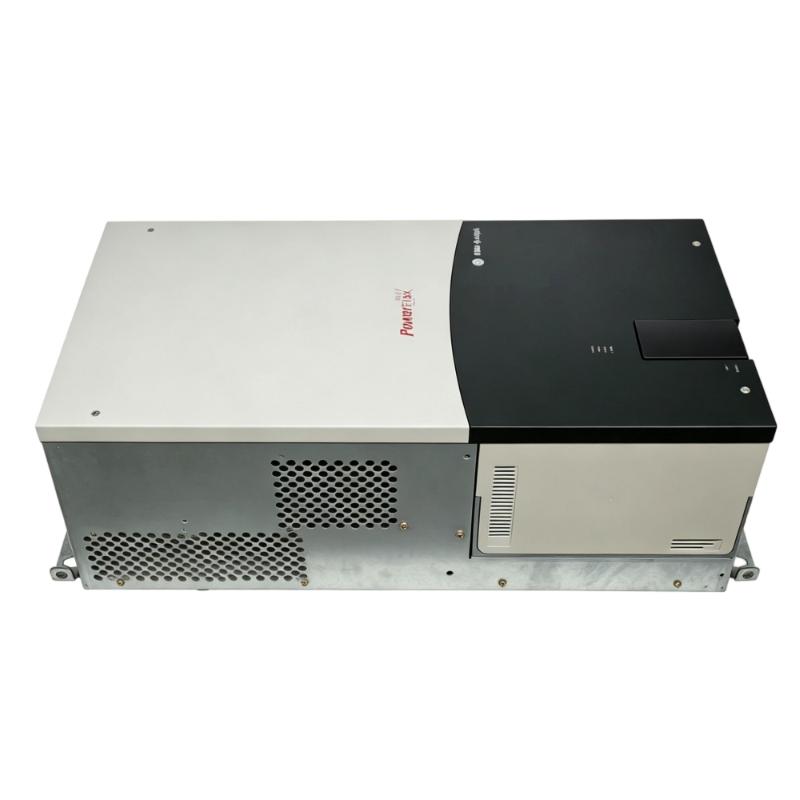

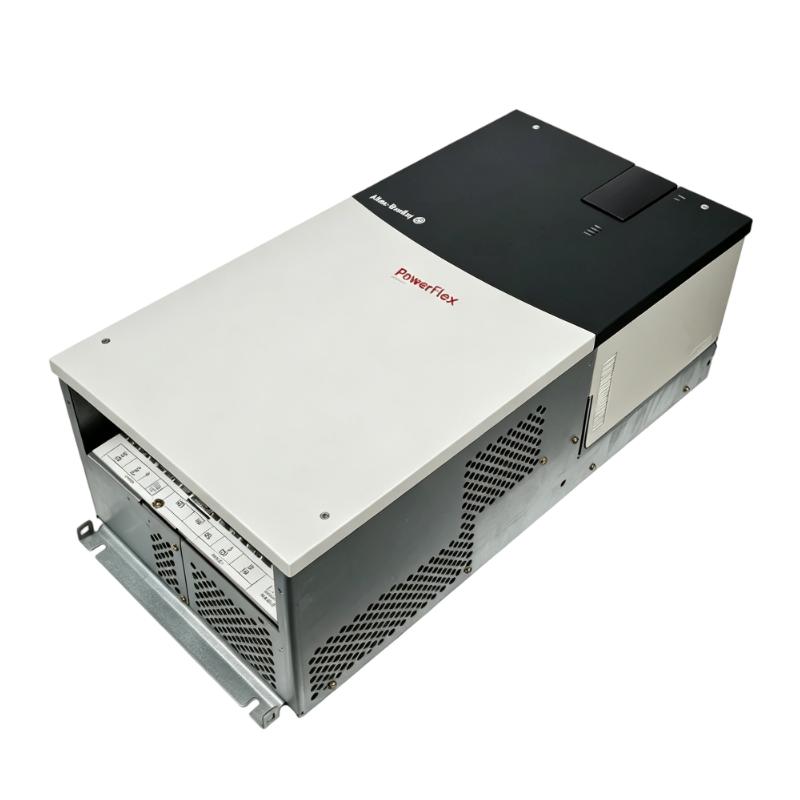

Allen-Bradley 20F1AND302JA0NNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

Technical Specifications
Allen-Bradley 20F1AND302JA0NNNNN PowerFlex 753 AC Drive
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | PowerFlex 753 |
| Product Type | AC Drive |
| Catalog Number | 20F1AND302JA0NNNNN |
| Input Voltage | 480 VAC |
| Input Phase | 3 Phase |
| Output Current | 302 A |
| Normal Duty Rating | 250 HP |
| Heavy Duty Rating | 200 HP |
| Frame Size | Frame 7 |
| Cooling | Forced Air Cooled |
| Enclosure | IP20/IP00, NEMA/UL Open Type |
| Input Type | AC Input with Precharge, No DC Terminals |
| Embedded I/O | Yes |
| EMC Filtering | Filtered |
| CM Jumper | Installed |
| Dynamic Braking | DB Transistor |
| HIM | Blank, No HIM |
| Protection | Standard Protection |
| Dimensions | 145 mm × 140 mm × 140 mm |
| Weight | Approx. 125 lb (56.7 kg) |
| Lifecycle Status | Active |
FAQ
Q1: What is the Allen-Bradley 20F1AND302JA0NNNNN?
It is an air-cooled PowerFlex 753 AC drive designed for industrial motor control applications.
Q2: What input voltage does this drive use?
The drive is designed for a 480 VAC, three-phase power supply.
Q3: What is the rated output current?
The rated output current is 302 A.
Q4: What motor capacity does the drive support?
It is rated for 250 HP under Normal Duty operation and 200 HP under Heavy Duty operation.
Q5: What frame size is used?
The 20F1AND302JA0NNNNN uses a Frame 7 configuration.
Q6: Does this model include dynamic braking?
Yes. This configuration includes an integrated dynamic braking transistor for compatible braking-resistor applications.
Q7: Does the drive include a HIM keypad?
No. The catalog configuration specifies a blank HIM position, meaning no HIM is included.
Q8: What type of enclosure and cooling does it have?
It uses an IP20/IP00, NEMA/UL Open Type enclosure and forced-air cooling. It is intended to be installed inside an appropriate electrical cabinet or enclosure.
Allen-Bradley 20F1AND302JA0NNNNN PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
