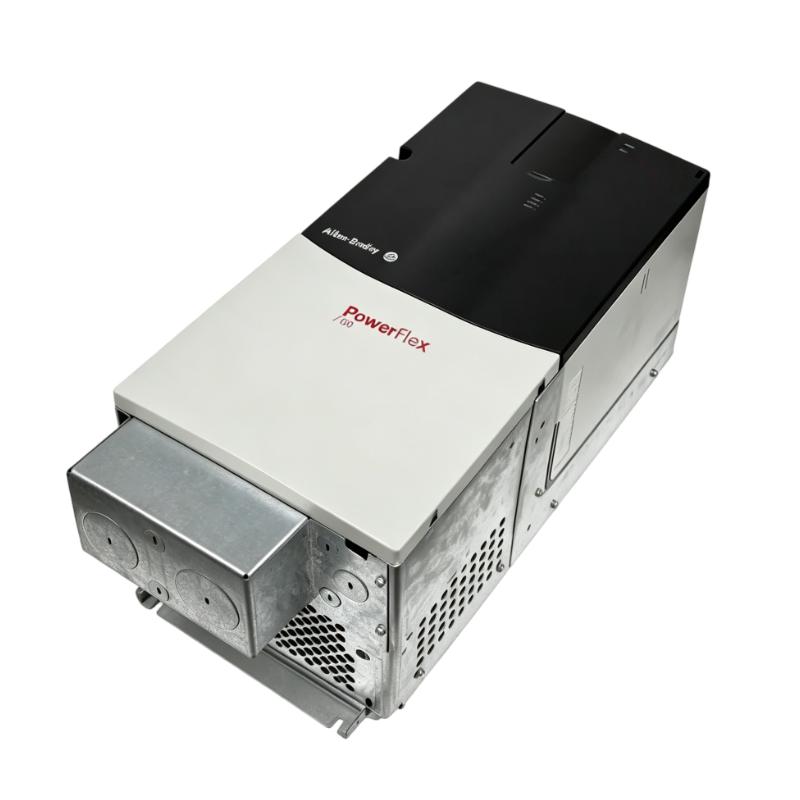

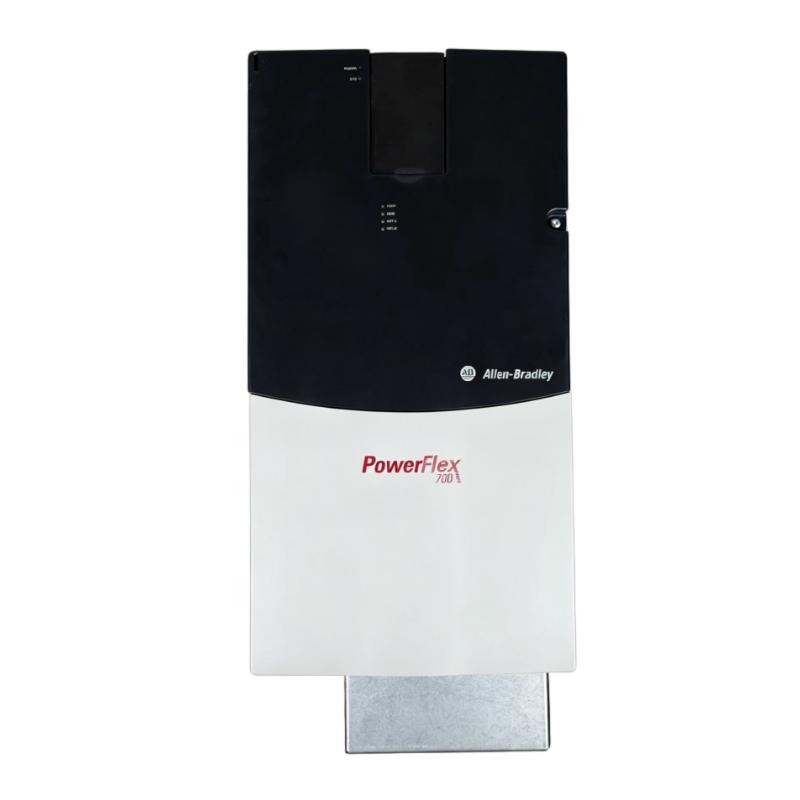

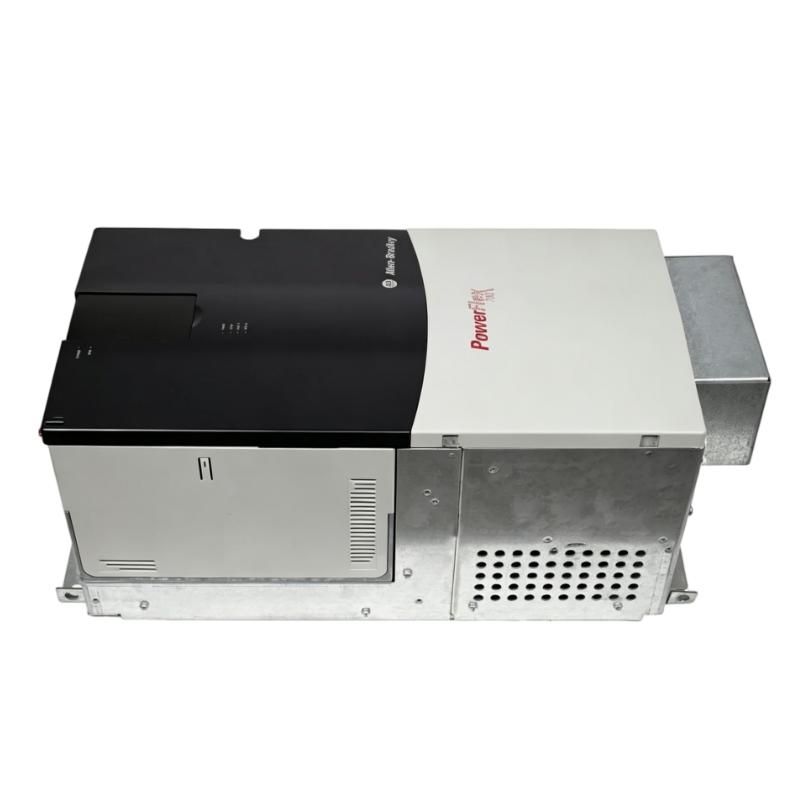

Allen Bradley 20BP140A3ANNANC0 PowerFlex 700 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen Bradley |
| Model | 20BP140A3ANNANC0 |
| Series | PowerFlex 700 |
| Product Type | AC Drive |
| Input Voltage | 540 VDC |
| Input Type | DC Input with Precharge |
| Input Phase | Three-phase |
| Rated Output Current | 140 A |
| Normal-Duty Power Rating | 75 kW |
| Heavy-Duty Power Rating | 55 kW |
| Frame Size | Frame 5 |
| Output Voltage Range | 0 to Rated Motor Voltage |
| Maximum Output Frequency | 420 Hz |
| Control Method | Vector Control, V/Hz Control, Sensorless Vector Control |
| Feedback | No Feedback |
| Brake IGBT | Without Brake IGBT |
| Internal Brake Resistor | No |
| Carrier Frequency | 2, 4, 8, and 10 kHz |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Digital Inputs | 6 |
| Digital Outputs | 3 |
| Communication Module | None |
| Control I/O | 24 VDC I/O |
| EMC Filter | EMC Filter with Common-Mode Choke |
| Human Interface | LCD Display with Full Numeric Keypad |
| Enclosure Rating | IP20 / NEMA / UL Type 1 |
| Cooling Method | Forced-Air Cooling |
| Overload Capacity | 110% for up to 1 minute; 150% for up to 3 seconds |
| Efficiency | Approximately 97.5% at rated current and nominal line voltage |
| Acceleration Time | 0 to 3600 s, programmable |
| Deceleration Time | 0 to 3600 s, programmable |
| Motor Overload Protection | Class 10 motor overload protection in vector-control configurations |
| Input Voltage Tolerance | ±10% |
| Number of Output Phases | 3 |
| Dimensions | 689.6 × 308.9 × 275.4 mm |
| Weight | 37.19 kg |
FAQ
1. What is the rated output current of the Allen Bradley 20BP140A3ANNANC0?
The 20BP140A3ANNANC0 has a rated output current of 140 A, with a normal-duty power rating of 75 kW and a heavy-duty rating of 55 kW.
2. What type of input power does the 20BP140A3ANNANC0 require?
The drive uses a 540 VDC input with a precharge circuit. The input supply should be checked carefully against the drive rating before energizing the unit.
3. Does the 20BP140A3ANNANC0 have an internal communication module?
No. This configuration does not include an internal communication module. Communication requirements therefore need to be addressed through the applicable external or optional architecture.
4. What motor control modes are supported by the 20BP140A3ANNANC0?
The PowerFlex 700 platform supports vector control, V/Hz control, and sensorless vector control. The appropriate mode depends on the motor characteristics and application requirements.
5. Does the 20BP140A3ANNANC0 support encoder feedback?
No. The 20BP140A3ANNANC0 is configured without a feedback option. Applications requiring closed-loop encoder feedback should use a suitable PowerFlex 700 configuration with the required feedback capability.
6. Does the 20BP140A3ANNANC0 include a built-in braking resistor?
No. This model does not include an internal braking resistor or Brake IGBT. If the application requires regenerative braking or rapid deceleration, an appropriate external braking arrangement should be evaluated.
7. What overload capability does the 20BP140A3ANNANC0 provide?
The drive provides 110% overload capability for up to 1 minute and 150% overload capability for up to 3 seconds. Actual operation should remain within the applicable drive and motor thermal limits.
8. What should be checked before commissioning the 20BP140A3ANNANC0?
Verify the 540 VDC input supply, motor nameplate data, power and control wiring, grounding, motor rotation, control parameters, acceleration and deceleration settings, and protective-device configuration. The drive should be commissioned only after confirming that the motor and application parameters match the selected drive configuration.
Allen Bradley 20BP140A3ANNANC0 PowerFlex 700 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
