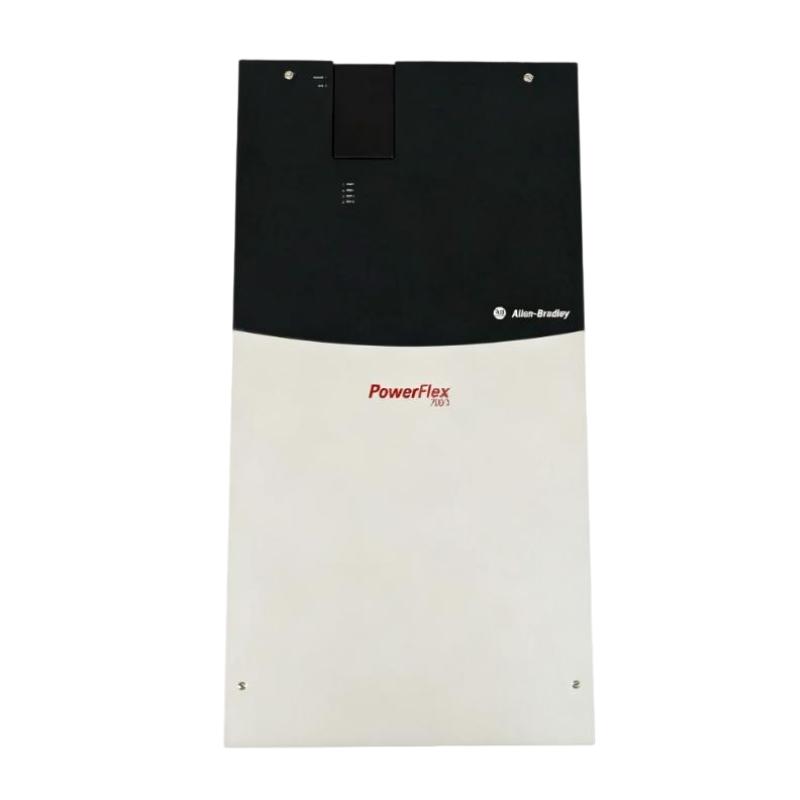

Allen Bradley 20BP205A3ANNANC0 PowerFlex 700 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen Bradley |
| Model | 20BP205A3ANNANC0 |
| Series | PowerFlex 700 |
| Product Type | AC Drive |
| Input Voltage | 540 VDC |
| Input Type | DC Input with Precharge |
| Rated Output Current | 205 A |
| Normal-Duty Power Rating | 110 kW |
| Heavy-Duty Power Rating | 90 kW |
| Frame Size | Frame 6 |
| Enclosure Rating | IP20 / NEMA / UL Type 1 |
| Control Method | Vector Control |
| Control I/O | 24 VDC I/O |
| Feedback | Encoder Feedback |
| Encoder Supply | 5 V / 12 V |
| Communication Module | None |
| Human Interface | LCD Display with Full Numeric Keypad |
| EMC Filter | EMC Filter with Common-Mode Choke |
| Brake IGBT | None |
| Internal Brake Resistor | None |
| Carrier Frequency | 2, 4, 8, and 10 kHz |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Digital Inputs | 6 |
| Digital Outputs | 3 |
| Maximum Output Frequency | 420 Hz |
| Output Voltage Range | 0 to Rated Motor Voltage |
| Input Phase | Three-phase |
| Output Phase | Three-phase |
| Overload Capacity | 110% for up to 1 minute; 150% for up to 3 seconds |
| Motor Overload Protection | Class 10 Motor Overload Protection |
| Acceleration Time | 0 to 3600 s, programmable |
| Deceleration Time | 0 to 3600 s, programmable |
| Input Voltage Tolerance | ±10% |
| Cooling Method | Forced-Air Cooling |
| Short-Circuit Rating | Up to 200,000 A symmetrical RMS |
| Short-Circuit Protection | Output phase-to-phase short-circuit protection |
| Dimensions | 850 × 403.9 × 275.5 mm |
| Weight | 71.44 kg |
FAQ
1. What is the rated output current of the Allen Bradley 20BP205A3ANNANC0?
The 20BP205A3ANNANC0 has a rated output current of 205 A, with a normal-duty power rating of 110 kW and a heavy-duty rating of 90 kW. It is designed for high-power industrial motor control applications.
2. What type of input power does the 20BP205A3ANNANC0 require?
The drive uses a 540 VDC input with a precharge function. The DC bus voltage and input-side protection should be verified before the drive is energized.
3. What motor control methods are available on the 20BP205A3ANNANC0?
The PowerFlex 700 platform supports vector control, sensorless vector control, and V/Hz control. The appropriate control mode should be selected according to the motor characteristics and application requirements.
4. Does the 20BP205A3ANNANC0 support encoder feedback?
Yes. This configuration supports encoder feedback and provides 5 V / 12 V encoder power, making it suitable for applications requiring closed-loop speed or torque control.
5. Does the 20BP205A3ANNANC0 include an internal braking resistor?
No. The drive does not include an internal braking resistor or Brake IGBT. Applications requiring rapid deceleration or handling significant regenerative energy may require an external braking solution.
6. What I/O signals are available on the 20BP205A3ANNANC0?
The drive provides 2 analog inputs, 2 analog outputs, 6 digital inputs, and 3 digital outputs. It also provides 24 VDC control I/O for connection to external control circuits.
7. What overload capability does the 20BP205A3ANNANC0 provide?
The drive supports 110% of rated current for up to 1 minute and 150% for up to 3 seconds. Actual operation should also take the motor’s thermal characteristics and load conditions into account.
8. What should be checked if the 20BP205A3ANNANC0 develops an overcurrent or startup fault?
Check the motor cables and grounding for short circuits or insulation problems, then verify motor nameplate data, encoder wiring, load conditions, and vector-control parameters. If the fault occurs during startup or acceleration, check whether the acceleration time is too short and whether the current limit is properly configured.
Allen Bradley 20BP205A3ANNANC0 PowerFlex 700 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
