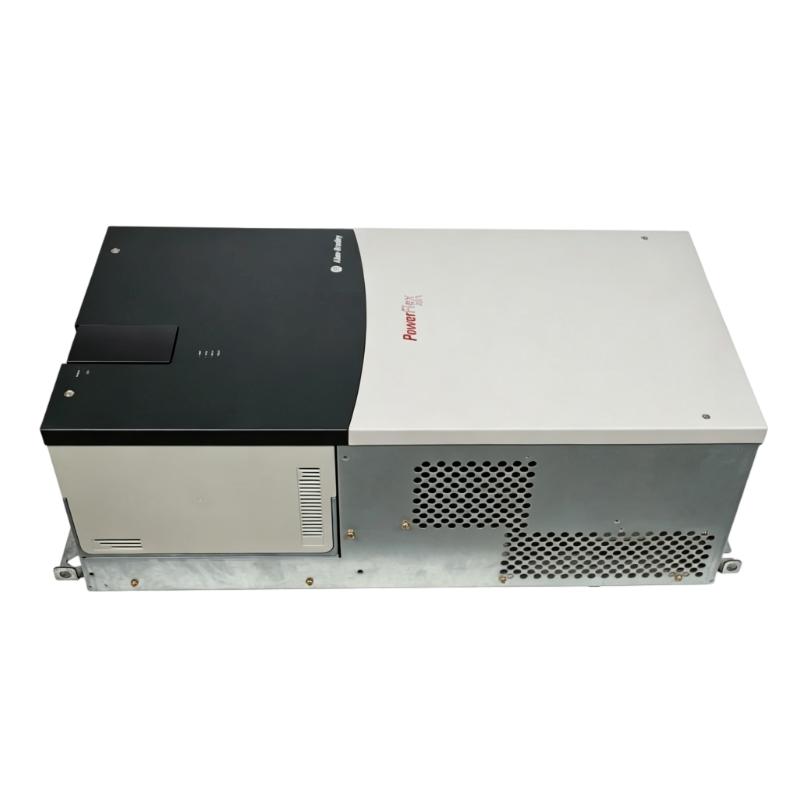

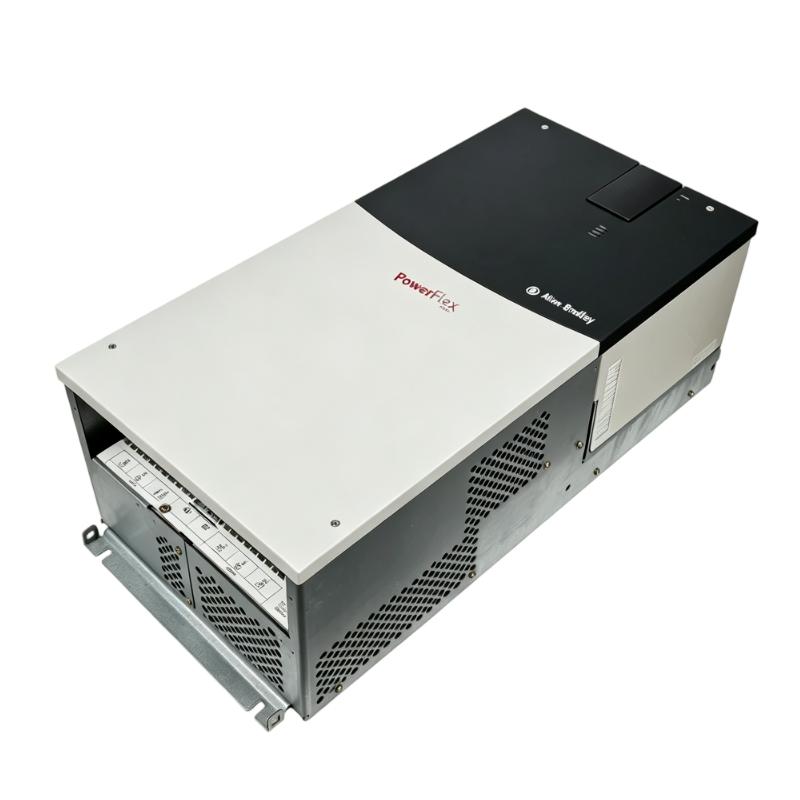

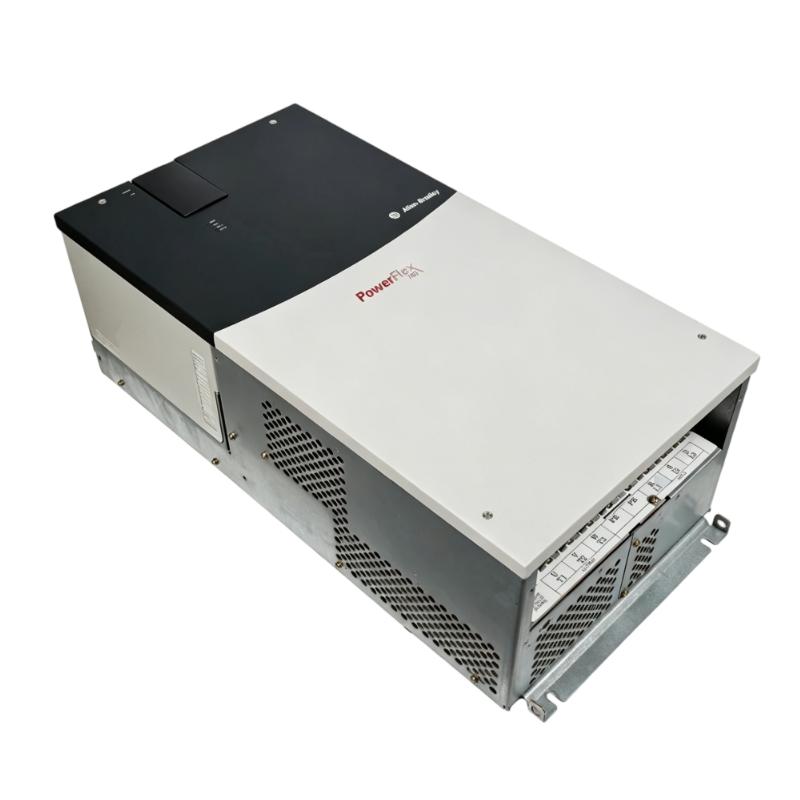

Allen Bradley 20BP260A3ANNANC0 PowerFlex 700 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen Bradley |
| Model | 20BP260A3ANNANC0 |
| Series | PowerFlex 700 |
| Product Type | AC Drive |
| Input Voltage | 540 VDC |
| Input Type | DC Input with Precharge |
| Input Phase | Three-phase |
| Rated Output Current | 260 A |
| Normal-Duty Power Rating | 132 kW |
| Heavy-Duty Power Rating | 110 kW |
| Frame Size | Frame 6 |
| Output Voltage Range | 0 to Rated Motor Voltage |
| Maximum Output Frequency | 420 Hz |
| Control Method | Vector Control, Sensorless Vector Control, V/Hz Control |
| Feedback | No Feedback |
| Brake IGBT | None |
| Internal Brake Resistor | None |
| Carrier Frequency | 2, 4, 8, and 10 kHz |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Digital Inputs | 6 |
| Digital Outputs | 3 |
| Communication Module | None |
| Control I/O | 24 VDC I/O |
| EMC Filter | EMC Filter with Common-Mode Choke |
| Human Interface | LCD Display with Full Numeric Keypad |
| Enclosure Rating | IP20 / NEMA / UL Type 1 |
| Cooling Method | Forced-Air Cooling |
| Overload Capacity | 110% for up to 1 minute; 150% for up to 3 seconds |
| Efficiency | Approximately 97.5% at rated current and nominal line voltage |
| Acceleration Time | 0 to 3600 s, programmable |
| Deceleration Time | 0 to 3600 s, programmable |
| Motor Overload Protection | Class 10 Motor Overload Protection |
| Input Voltage Tolerance | ±10% |
| Short-Circuit Rating | Up to 200,000 A symmetrical RMS |
| Output Short-Circuit Protection | Phase-to-phase output short-circuit protection |
| Stopping Methods | Coast, DC Brake, Fast Brake, S-Curve and programmable stopping modes |
| Dimensions | 850 × 403.9 × 275.5 mm |
| Weight | 71.44 kg |
FAQ
1. What is the rated output current of the Allen Bradley 20BP260A3ANNANC0?
The 20BP260A3ANNANC0 has a rated output current of 260 A, with a normal-duty power rating of 132 kW and a heavy-duty rating of 110 kW. It is designed for high-power industrial motor control applications.
2. What type of input power does the 20BP260A3ANNANC0 require?
The drive uses a 540 VDC input with a precharge function. Before energizing the unit, verify the DC supply voltage, polarity, and input-side protection.
3. What motor control methods are supported by the 20BP260A3ANNANC0?
The drive supports vector control, sensorless vector control, and V/Hz control. The appropriate control mode should be selected according to the motor characteristics, load requirements, and required control performance.
4. Does the 20BP260A3ANNANC0 support encoder feedback?
This configuration is supplied without a feedback option. If closed-loop encoder control is required, a compatible PowerFlex 700 configuration with the appropriate feedback interface should be selected.
5. Does the 20BP260A3ANNANC0 include a built-in braking IGBT or braking resistor?
No. This model does not include a braking IGBT or internal braking resistor. An external braking solution may be required for applications involving rapid deceleration or significant regenerative energy.
6. What control I/O is available on the 20BP260A3ANNANC0?
The drive provides 2 analog inputs, 2 analog outputs, 6 digital inputs, and 3 digital outputs. The control interface operates with 24 VDC I/O for connection to external control circuits.
7. What overload capability does the 20BP260A3ANNANC0 provide?
The drive provides 110% of rated current for up to 1 minute and 150% for up to 3 seconds. Actual operating conditions should also be considered together with the motor’s thermal characteristics and load profile.
8. What should be checked if the 20BP260A3ANNANC0 develops an overcurrent or startup fault?
Check the motor output cables, grounding, insulation, and mechanical load first. Then verify the motor nameplate data and drive control parameters. If the fault occurs during startup or acceleration, check the acceleration time, current limit, and selected motor-control mode.
Allen Bradley 20BP260A3ANNANC0 PowerFlex 700 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
