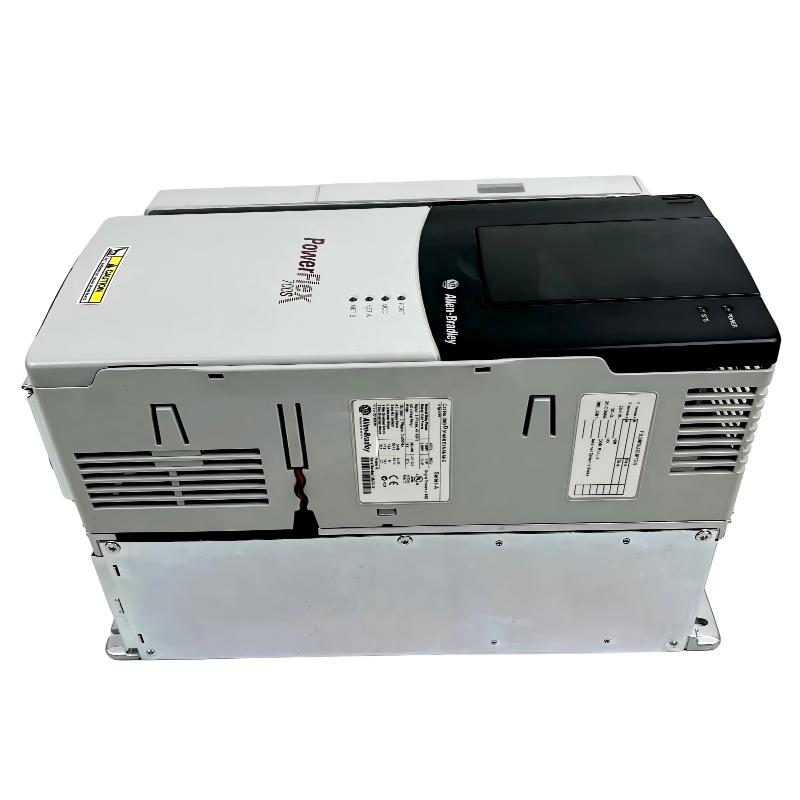

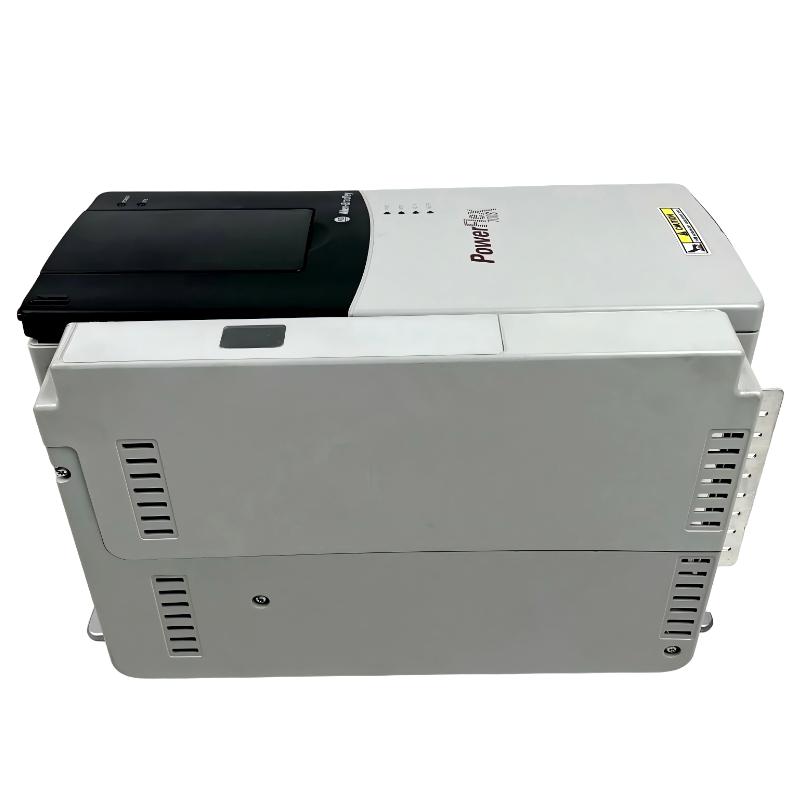

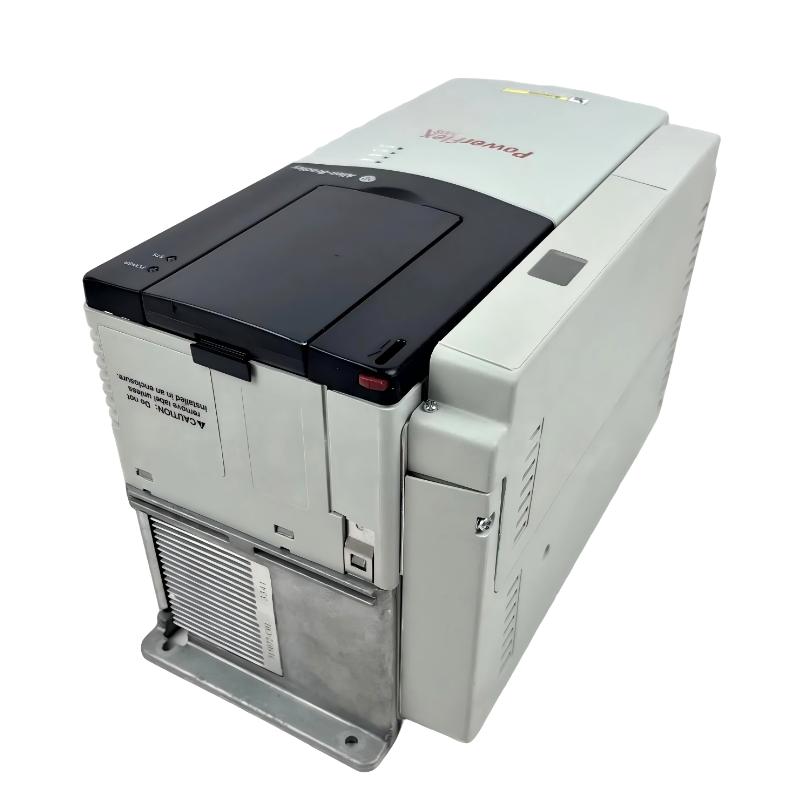

Allen Bradley 20DC015A0EYNANANE PowerFlex 700S AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 20DC015A0EYNANANE |
| Product Type | PowerFlex 700S AC Drive |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | PowerFlex 700S Series |
| Main Function | High-performance AC drive for precise motor speed, torque, and motion control |
| Application | Industrial automation, conveyors, pumps, fans, machine tools, process control systems |
| Input Voltage | 400 VAC |
| Input Phase | 3-phase |
| Output Phase | 3-phase |
| Output Current | 15.4 A |
| Normal Duty Power Rating | Approx. 7.5 kW |
| Heavy Duty Power Rating | Approx. 5.5 kW |
| Frame Size | Frame 1 |
| Control Type | PowerFlex 700S Phase II Control |
| Motor Control Method | Field-Oriented Control, Sensorless Vector Control, Vector Control with Feedback |
| Output Frequency Range | 0…400 Hz |
| Overload Capacity | 110% for 1 minute; 150% for 3 seconds |
| Brake Function | Brake IGBT installed |
| Brake Resistor | No internal brake resistor |
| EMC Filtering | EMC filter with common mode choke |
| Human Interface Module (HIM) | No HIM (Blank Plate) |
| Feedback Option | Standard incremental encoder feedback |
| Communication Module | No communication module included |
| DriveLogix | No DriveLogix |
| Expanded Cassette | Included |
| Communication Interface | DPI interface |
| Supported Communication Options | EtherNet/IP, DeviceNet, ControlNet, PROFIBUS, Modbus (with optional adapters) |
| Safety Function | Safe Off compatible (with appropriate options) |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Conformal Coating | Yes |
| Cooling Method | Forced air cooling |
| Mounting Method | Panel mounting |
| Operating Temperature | 0°C to +40°C (without derating) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 336 × 166.9 × 200 mm |
| Weight | Approx. 7.03 kg |
| Typical Applications | Precision machinery, production lines, conveyors, pumps, fans, industrial automation systems |
FAQ
Q1: What is the 20DC015A0EYNANANE mainly used for?
A: The 20DC015A0EYNANANE is a PowerFlex 700S AC drive designed for high-performance control of three-phase AC motors in industrial automation applications.
Q2: What motor power does the 20DC015A0EYNANANE support?
A: It supports approximately 7.5 kW motors under normal-duty operation and approximately 5.5 kW under heavy-duty operation.
Q3: What input power supply is required?
A: The drive requires a 400 VAC three-phase power supply.
Q4: Does the 20DC015A0EYNANANE include a brake resistor?
A: No. It includes a brake IGBT, but does not include an internal brake resistor. An external brake resistor is required when dynamic braking is needed.
Q5: Does this model include a HIM display?
A: No. This configuration uses a blank plate and does not include a Human Interface Module.
Q6: Does the 20DC015A0EYNANANE support encoder feedback?
A: Yes. It supports standard incremental encoder feedback for improved speed and torque regulation.
Q7: What communication options are available?
A: Optional communication adapters can be added to support industrial networks such as EtherNet/IP, DeviceNet, ControlNet, PROFIBUS, and Modbus.
Q8: What are the main advantages of the 20DC015A0EYNANANE?
A: It provides advanced vector motor control, encoder feedback capability, EMC filtering, braking support, reliable diagnostics, and compatibility with Allen-Bradley automation systems.
Note: PowerFlex 700S series products have been discontinued; replacement evaluation is recommended for new system designs.
Allen Bradley 20DC015A0EYNANANE PowerFlex 700S AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
