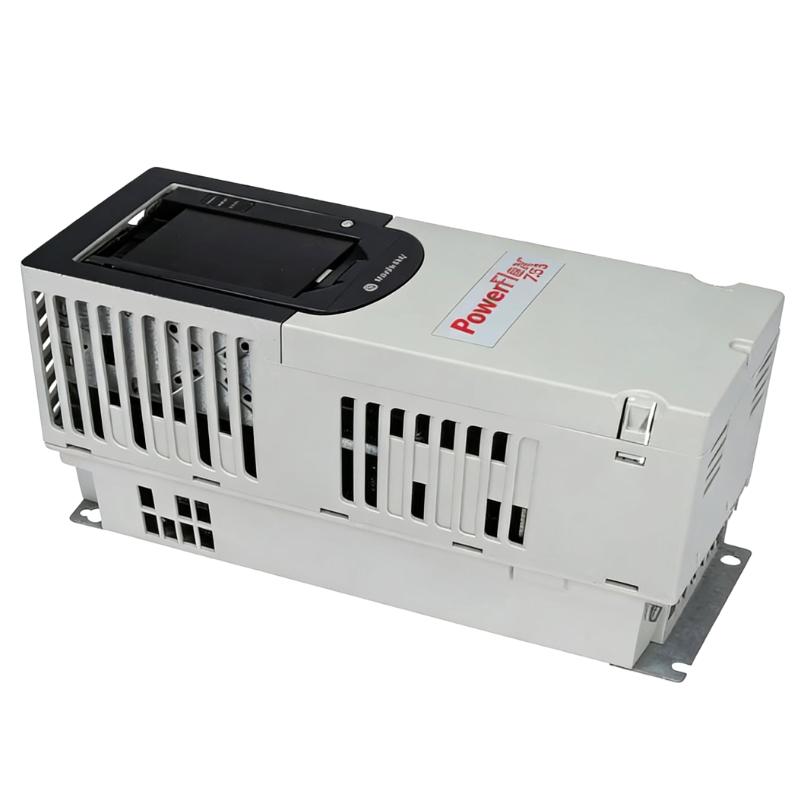

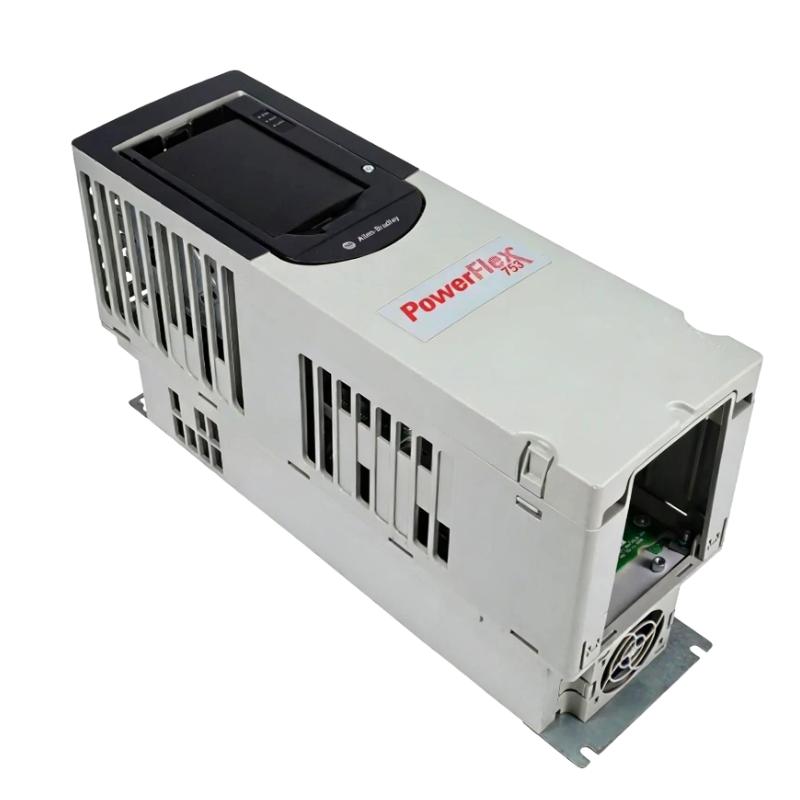

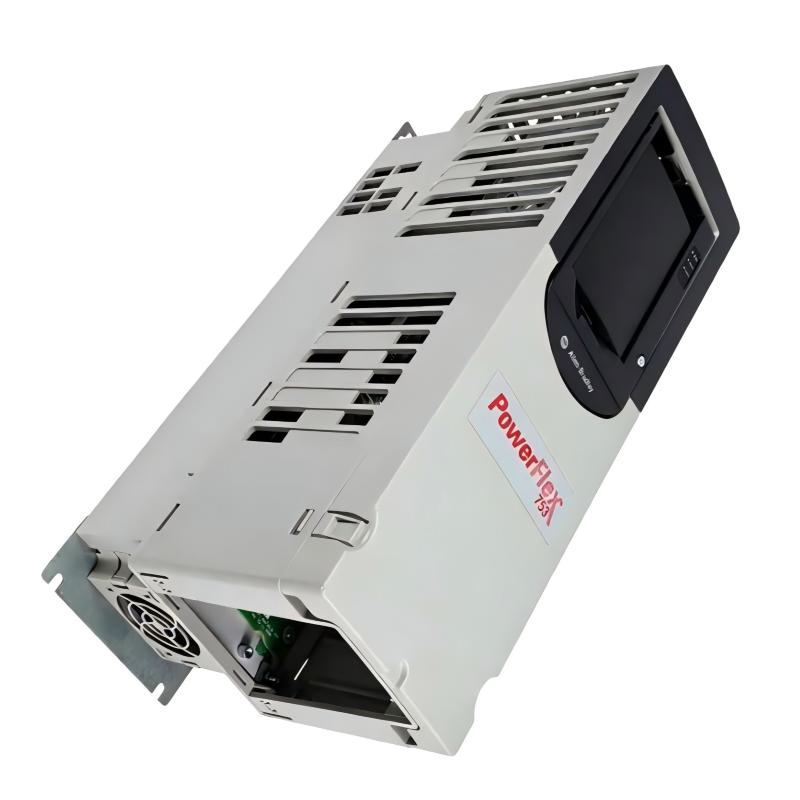

Allen Bradley 20F11NC 022 AAONNNNN PowerFlex 753 Air Cooled AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 20F11NC022AA0NNNNN |
| Product Type | PowerFlex 753 Air Cooled AC Drive |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | PowerFlex 753 Series |
| Main Function | Variable frequency drive for controlling AC motor speed, torque, and operation in industrial automation systems |
| Application | Industrial machinery, conveyors, pumps, fans, compressors, process equipment, production lines |
| Input Voltage | 480 VAC |
| Input Phase | 3-phase |
| Output Phase | 3-phase |
| Output Current | 22 A |
| Normal Duty Power Rating | 15 HP (11 kW) |
| Heavy Duty Power Rating | 10 HP (7.5 kW) |
| Frame Size | Frame 2 |
| Input Type | AC input with precharge |
| Control Type | PowerFlex 753 embedded I/O control |
| Motor Control Method | V/Hz Control, Sensorless Vector Control, Vector Control with Feedback |
| Output Frequency Range | 0…400 Hz |
| Overload Capacity | 110% for 1 minute; 150% for 3 seconds |
| Dynamic Braking | DB Transistor included |
| Brake Resistor | External brake resistor required |
| EMC Filtering | EMC Filter included |
| CM Jumper | Installed |
| Human Interface Module (HIM) | No HIM (Blank Cover) |
| Embedded I/O | Standard embedded I/O |
| Communication Interface | DPI interface |
| Optional Communication | EtherNet/IP, DeviceNet, ControlNet, PROFIBUS and other communication adapters |
| Safety Function | Safe Torque-Off compatible with safety options |
| Enclosure Rating | IP20/IP00, NEMA/UL Open Type |
| Cooling Method | Forced air cooling |
| Mounting Method | Panel mounting |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 350 × 220 × 250 mm |
| Weight | Approx. 12 kg |
| Typical Applications | Conveyors, pumps, fans, material handling systems, industrial automation equipment |
FAQ
Q1: What is the 20F11NC022AA0NNNNN mainly used for?
A: The 20F11NC022AA0NNNNN is a PowerFlex 753 AC drive used for variable speed and torque control of three-phase AC motors in industrial automation applications.
Q2: What motor power does the 20F11NC022AA0NNNNN support?
A: It supports 15 HP (11 kW) motors under normal-duty operation and 10 HP (7.5 kW) under heavy-duty operation.
Q3: What input power supply is required?
A: The drive requires a 480 VAC three-phase power supply.
Q4: Does the 20F11NC022AA0NNNNN include a brake resistor?
A: No. It includes a dynamic braking transistor, but an external brake resistor is required when braking energy needs to be dissipated.
Q5: Does this model include a HIM display?
A: No. This configuration uses a blank cover and does not include a Human Interface Module.
Q6: Does the 20F11NC022AA0NNNNN support encoder feedback?
A: Yes. The PowerFlex 753 platform supports feedback options through optional modules.
Q7: What communication options are available?
A: Optional communication adapters can be added to support EtherNet/IP, DeviceNet, ControlNet, PROFIBUS and other industrial networks.
Q8: What are the main advantages of the 20F11NC022AA0NNNNN?
A: It provides flexible motor control, embedded I/O, EMC filtering, dynamic braking capability, advanced diagnostics, and compatibility with Allen-Bradley automation systems.
Allen Bradley 20F11NC 022 AAONNNNN PowerFlex 753 Air Cooled AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
